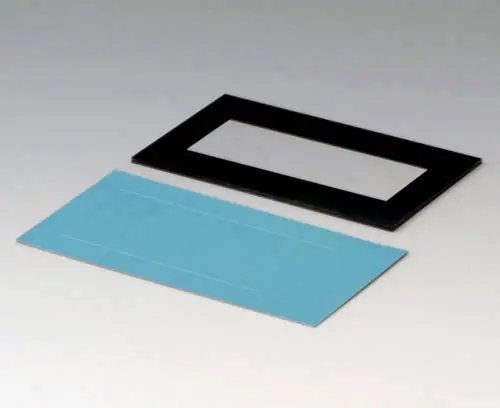

A9174009 Display window M, border black

A9174009

Display window M, border black

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply

1 display window, 1 adhesive foil

  • To be used for
  • View Customizing Options
A9074209 DATEC-MOBIL-BOX M, Vers. II

A9074209

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074209

DATEC-MOBIL-BOX M, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
7.68″x3.98″x1.73″
IP 65 opt.
A9074229 DATEC-MOBIL-BOX M, Vers. II, high

A9074229

DATEC-MOBIL-BOX M, Vers. II, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9074229

DATEC-MOBIL-BOX M, Vers. II, high
product added to your basket
ABS (UL 94 HB)
black RAL 9005
7.68″x3.98″x2.32″
IP 65 opt.

Customizing options for A9174009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
