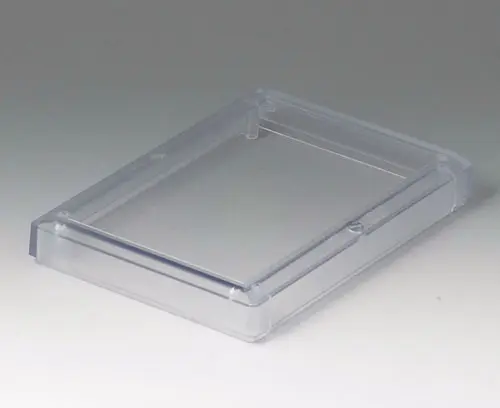

B4013621 Cover S

B4013621

Cover S

Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply

1 cover, assembly kit

  • To be used for
  • View Customizing Options
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4013117

DATEC-TERMINAL S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.12″x7.09″x3.39″
IP 54 opt.

Customizing options for B4013621

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
transparent
Width
5.118″
130 mm
Depth
7.087″
180 mm
Height
0.906″
23 mm
PCB length, base
6.772″
172 mm
PCB width, base
4.094″
104 mm
Keypad length
6.217″
157.9 mm
Keypad width
3.957″
100.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
145 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
