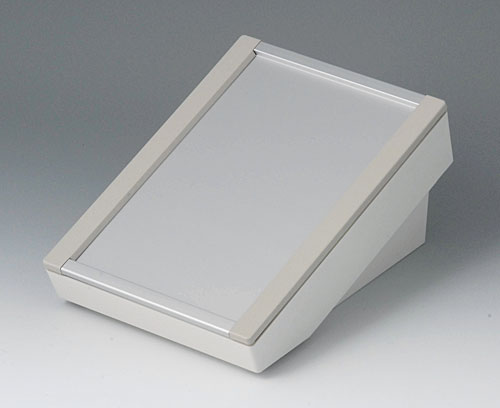

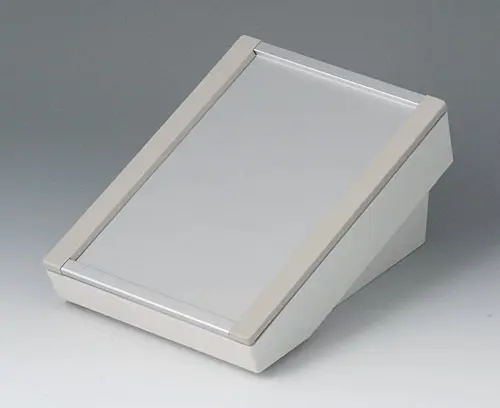

B4113126 Profile plate S

B4113126

Profile plate S

Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply

1 profile plate, 4 screws, 2 cover strips

  • To be used for
  • View Customizing Options
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4013117

DATEC-TERMINAL S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.12″x7.09″x3.39″
IP 54 opt.

Customizing options for B4113126

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Profile plate matt anodized,
Cover strips pebble gray RAL 7032
Width
5.118″
130 mm
Depth
7.087″
180 mm
Height
0.315″
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
165 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
