A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L

Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply

1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

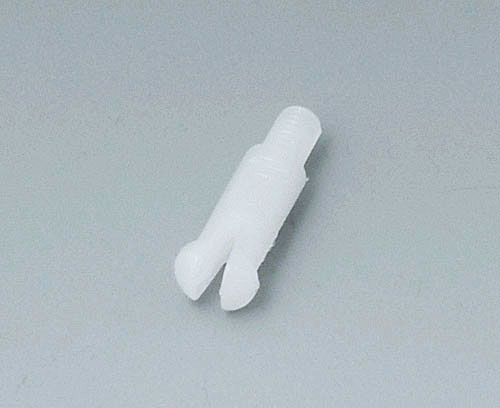

A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Close

A9100008

Snap-lock
product added to your basket
PA 6 (UL 94 HB)
natural-colored
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

Accessory

A9210290 Anti-slide feet 0.374" x 0.150"

A9210290

Anti-slide feet 0.374" x 0.150" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 0.374" x 0.150"
product added to your basket
transparent

Customizing options for A9043265

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
Top part off-white RAL 9002,
Bottom part pebble gray RAL 7032
Length
7.441″
189 mm
Width
4.331″
110 mm
Height
2.756″
70 mm
PCB length, base
6.299″
160 mm
PCB width, base
4.055″
103 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
260 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
