FLAT-PACK CASES

Flat-Pack Case

Multi-purpose plastic enclosures

Our FLAT-PACK CASES offer simple and low-priced enclosures for your electronics.

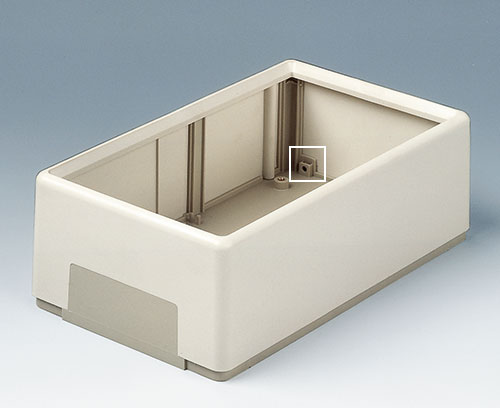

  • large range of sizes and versions for table-top and wall mounting
  • robust construction with tongue & groove design

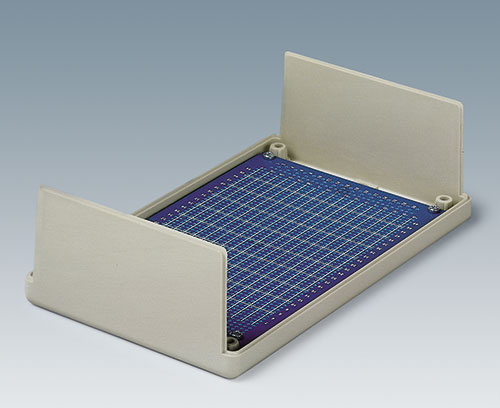

  • the bottom parts are open at the sides and are thus particularly useful for all installation and service work

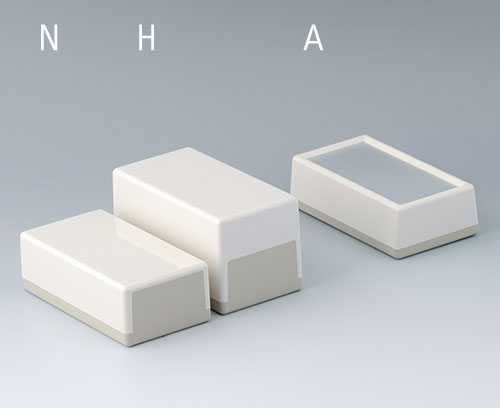

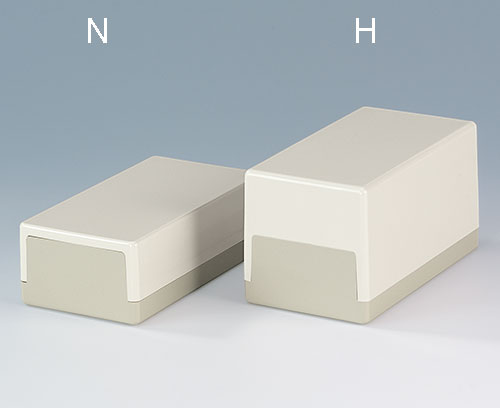

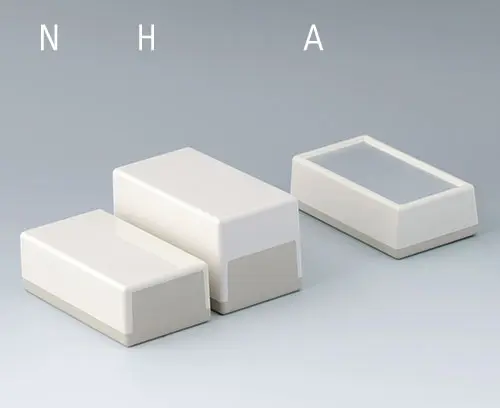

  • with low (N) and high (H) top part

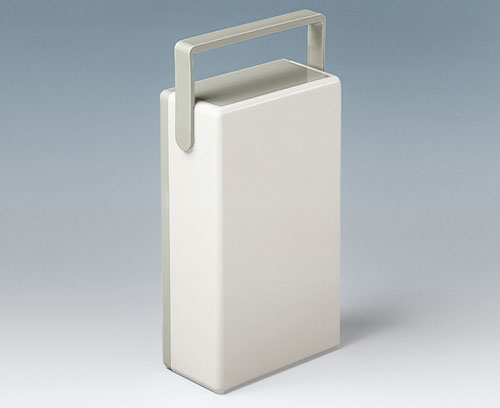

  • versions with handle bar for ergonomic operation or easy carrying

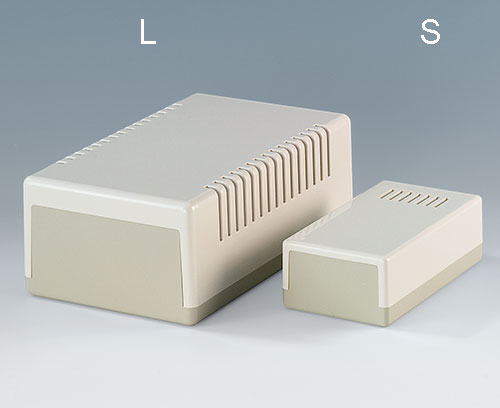

  • with ventilation slots for components dissipating high heat (189 L)
  • with slots on the top for miniature appliances with sound signal (120 S)

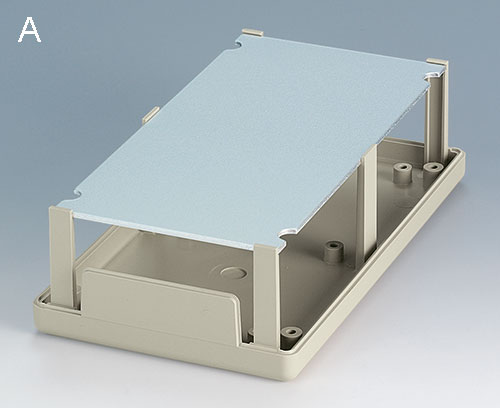

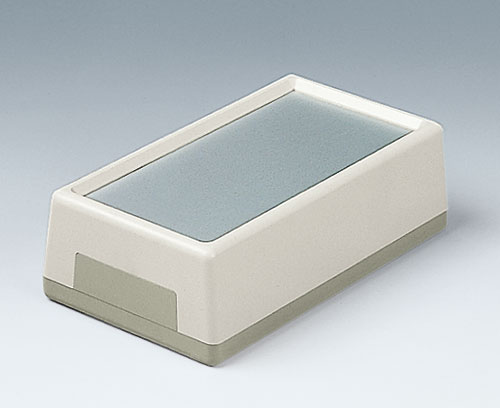

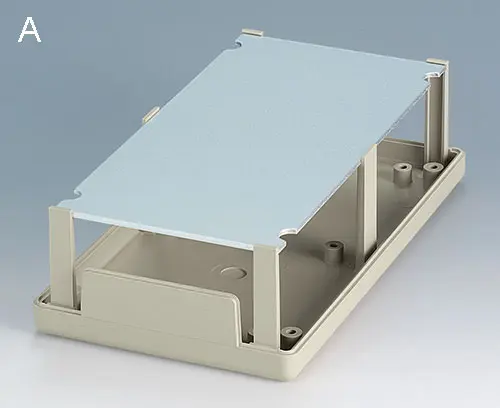

  • type A models with aluminum front panels; operating elements are protected by a raised edge on the case
  • protection class IP 40 (version without slots)
  • internal screw pillars for PCBs etc.

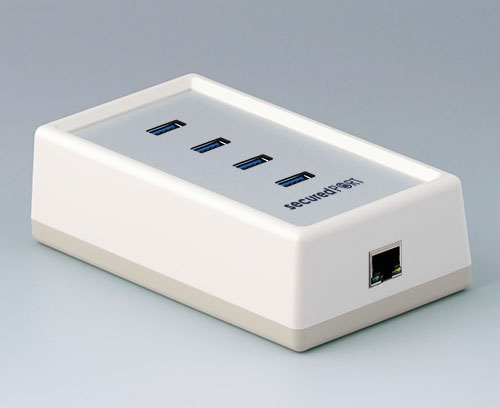

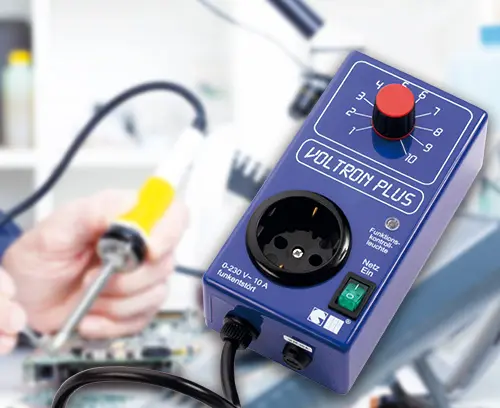

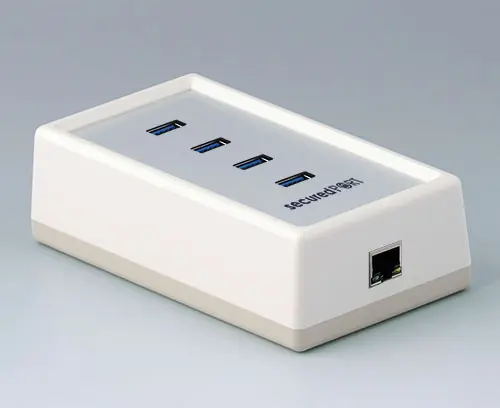

  • Application Examples

Application fields

Universal enclosures for electronic and electrotechnical devices, e.g.
  • Measuring and control instruments
  • Medical, wellness and laboratory equipment
  • Computer peripherals etc.
  • Browse Full List
  • Accessories
  • View Customizing Options
A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9010065

FLAT-PACK CASES 100 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.94″x1.97″x0.98″
IP 40
A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9011065

FLAT-PACK CASES 100 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.94″x1.97″x1.57″
IP 40
A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9020065

FLAT-PACK CASES 120 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x1.57″
IP 40
A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9020265

FLAT-PACK CASE 120 S
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x1.57″
A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9021065

FLAT-PACK CASE 120 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x2.56″
IP 40
A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9030065

FLAT-PACK CASES 150 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x1.97″
IP 40
A9030165 FLAT-PACK CASES 150 N, Vers. II

A9030165

FLAT-PACK CASES 150 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9030165

FLAT-PACK CASES 150 N, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x1.97″
IP 40
A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9031065

FLAT-PACK CASE 150 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x3.15″
IP 40
A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9032065

FLAT-PACK CASES 150 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x2.17″
IP 40
A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9040065

FLAT-PACK CASES 189 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.36″
IP 40
A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

FLAT-PACK CASES 189 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9040165

FLAT-PACK CASES 189 N, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.36″
IP 40
A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9041065

FLAT-PACK CASE 189 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x3.82″
IP 40
A9041165 FLAT-PACK CASE 189 H, Vers. II

A9041165

FLAT-PACK CASE 189 H, Vers. II Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9041165

FLAT-PACK CASE 189 H, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x3.82″
IP 40
A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9042065

FLAT-PACK CASE 189 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x4.72″
IP 40
A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9043065

FLAT-PACK CASES 189 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.76″
IP 40
A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9043265

FLAT-PACK CASE 189 L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.76″
A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front panel, see accessory A9195201,rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9520165

FLAT-PACK CASE 120 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x1.57″
IP 40
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9530165

FLAT-PACK CASE 150 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.35″x1.77″
IP 40
A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9540165

FLAT-PACK CASE 210 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.27″x4.92″x2.76″
IP 40
A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel
A9100008 Snap-lock

A9100008

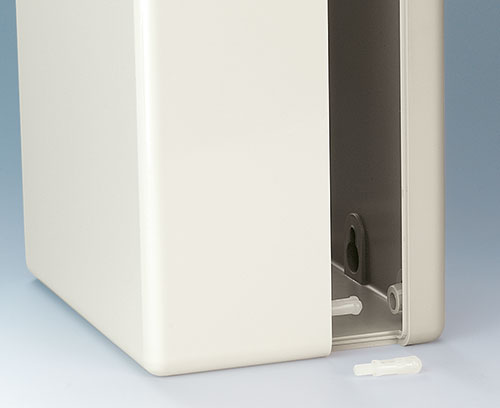

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Close

A9100008

Snap-lock
product added to your basket
PA 6 (UL 94 HB)
natural-colored

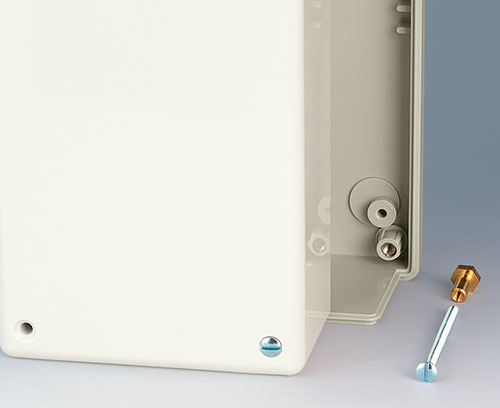

A9120000 Assembly kit for wall mounting

A9120000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9120000

Assembly kit for wall mounting
product added to your basket

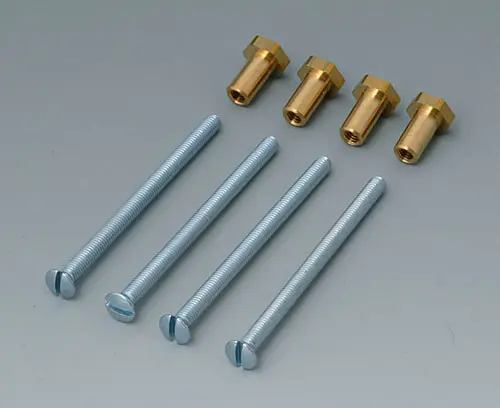

A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9130000

Assembly kit for wall mounting
product added to your basket

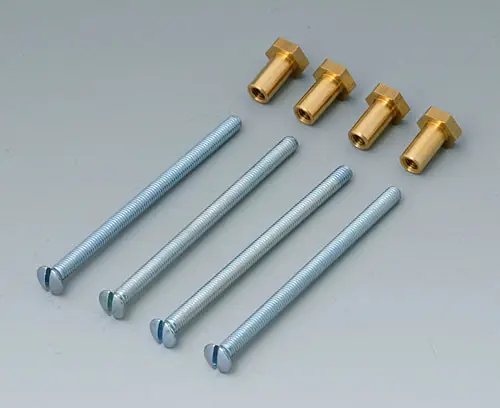

A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9132000

Assembly kit for wall mounting
product added to your basket

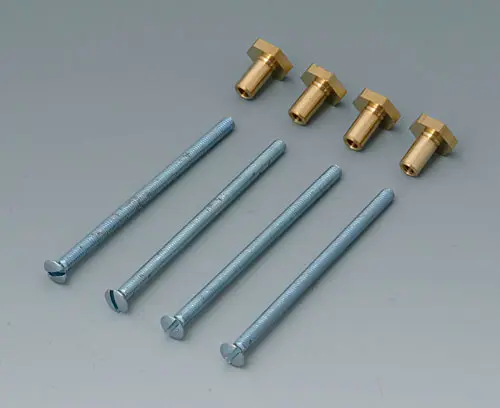

A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Close

A9140000

Assembly kit for wall mounting
product added to your basket
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 0.787", 2 x diameter = 0.165").
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Close

A9172107

Belt/Pocket clip
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.44″x1.18″

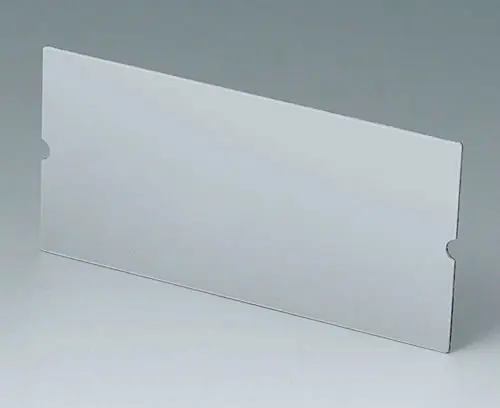

A9195201 Front panel 120 A

A9195201

Front panel 120 A Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

Close

A9195201

Front panel 120 A
product added to your basket
Aluminum
matt anodized
4.45″x2.28″x0.04″

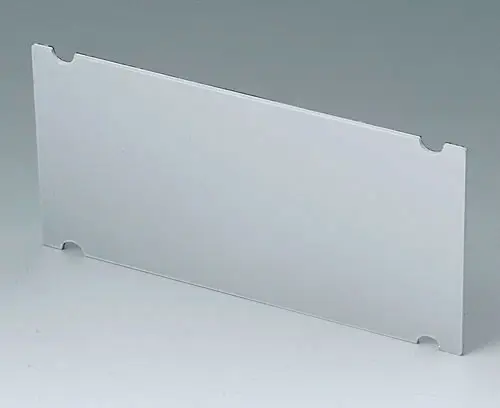

A9195301 Front panel 150 A

A9195301

Front panel 150 A Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

Close

A9195301

Front panel 150 A
product added to your basket
Aluminum
matt anodized
5.58″x2.82″x0.06″
A9195401 Front panel 210 A

A9195401

Front panel 210 A Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

Close

A9195401

Front panel 210 A
product added to your basket
Aluminum
matt anodized
7.91″x4.57″x0.06″
A9207150 Anti-slide feet 0.256" x 0.079"

A9207150

Anti-slide feet 0.256" x 0.079" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 0.256" x 0.079"
product added to your basket
transparent
A9210290 Anti-slide feet 0.374" x 0.150"

A9210290

Anti-slide feet 0.374" x 0.150" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 0.374" x 0.150"
product added to your basket
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 3.189" (bore distance 0.787", 2 x diameter = 0.165"). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250807

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 1.693" (bore distance 0.787", 2 x diameter = 0.165"). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250817

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032

Customizing options for Flat-Pack Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
