Accessories for enclosures
C2204168

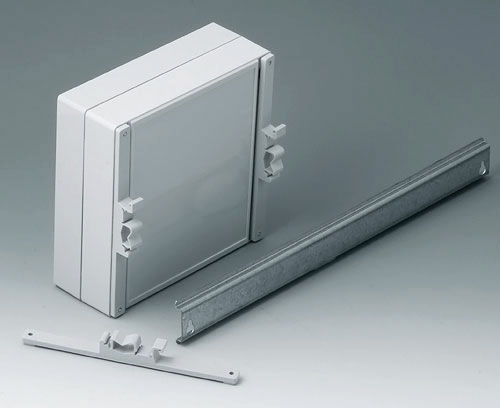

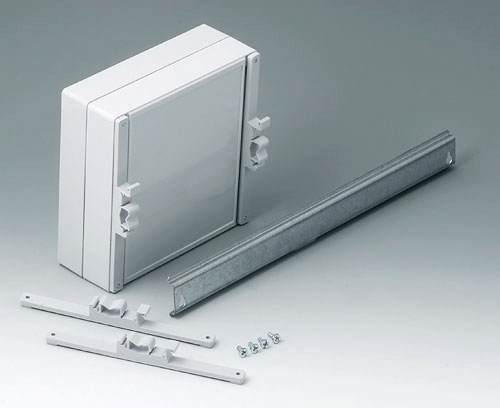

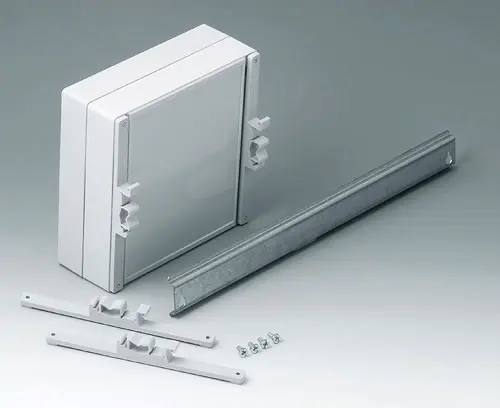

Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 6.299".
Supply2 fastening elements, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for C2204168
Please select the product details you would like to include in the PDF.
Add to my basket
C0161601
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C0161601
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
6.30″x6.30″x1.18″
C0161602
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C0161602
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
6.30″x6.30″x1.18″
C0162401
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C0162401
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
9.45″x6.30″x1.18″
C0162402
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part.´Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C0162402
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
9.45″x6.30″x1.18″
C1161601
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C1161601
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
6.30″x6.30″x1.18″
C1161602
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C1161602
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
6.30″x6.30″x1.18″
C1162401
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C1162401
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
9.45″x6.30″x1.18″
C1162402
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C1162402
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
9.45″x6.30″x1.18″
C2016161
ROBUST-BOX WIDTH 6.299", Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016161
ROBUST-BOX WIDTH 6.299", Vers. Iproduct added to your basket
light gray RAL 7035
6.30″x6.30″x2.36″
C2016162
ROBUST-BOX WIDTH 6.299", Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016162
ROBUST-BOX WIDTH 6.299", Vers. IIproduct added to your basket
light gray RAL 7035
6.30″x6.30″x2.36″
C2016241
ROBUST-BOX WIDTH 6.299", Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016241
ROBUST-BOX WIDTH 6.299", Vers. Iproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
C2016242
ROBUST-BOX WIDTH 6.299", Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016242
ROBUST-BOX WIDTH 6.299", Vers. IIproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
C2116161
ROBUST-BOX WIDTH 6.299", Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116161
ROBUST-BOX WIDTH 6.299", Vers. Iproduct added to your basket
light gray RAL 7035
6.30″x6.30″x3.54″
C2116162
ROBUST-BOX WIDTH 6.299", Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116162
ROBUST-BOX WIDTH 6.299", Vers. IIproduct added to your basket
light gray RAL 7035
6.30″x6.30″x3.54″
C2116241
ROBUST-BOX WIDTH 6.299", Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116241
ROBUST-BOX WIDTH 6.299", Vers. Iproduct added to your basket
light gray RAL 7035
9.45″x6.30″x3.54″
C2116242
ROBUST-BOX WIDTH 6.299", Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116242
ROBUST-BOX WIDTH 6.299", Vers. IIproduct added to your basket
light gray RAL 7035
9.45″x6.30″x3.54″
C2161601
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C2161601
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
6.30″x6.30″x2.36″
C2161602
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C2161602
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
6.30″x6.30″x2.36″
C2162401
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C2162401
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
C2162402
Case shell 6.299", with tongue
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with tongue
C2162402
Case shell 6.299", with tongueproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
C2416241
ROBUST-BOX WIDTH 6.299", Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416241
ROBUST-BOX WIDTH 6.299", Vers. Iproduct added to your basket
light gray RAL 7035
9.45″x6.30″x4.72″
C2416242
ROBUST-BOX WIDTH 6.299", Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416242
ROBUST-BOX WIDTH 6.299", Vers. IIproduct added to your basket
light gray RAL 7035
9.45″x6.30″x4.72″
C3162401
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C3162401
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
C3162402
Case shell 6.299", with groove
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Supply 1 case shell with groove
C3162402
Case shell 6.299", with grooveproduct added to your basket
light gray RAL 7035
9.45″x6.30″x2.36″
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 90 KB
- AutoCAD DWG-File 298 KB
- AutoCAD DXF-File 782 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
