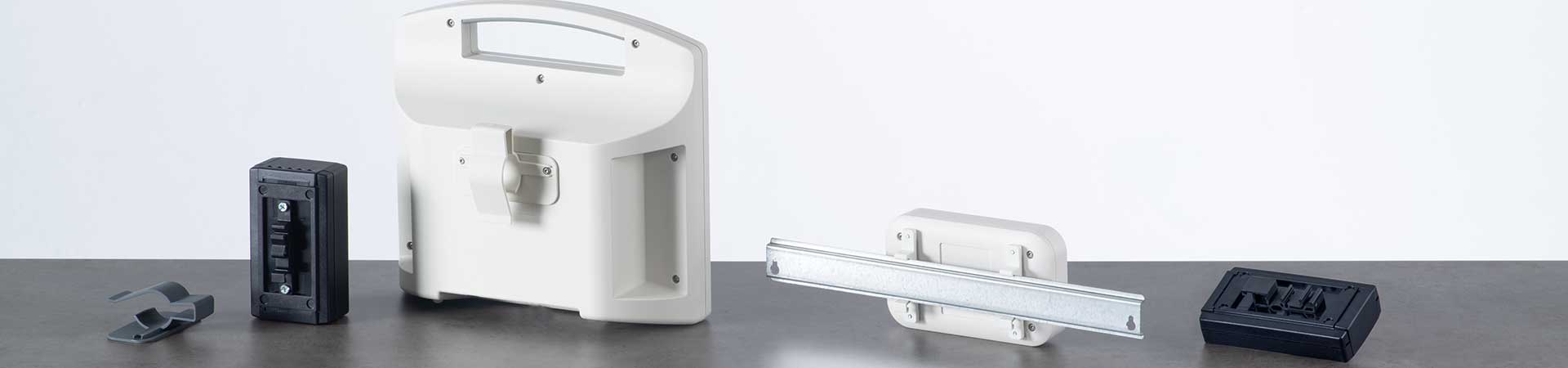

Holding devices

Holding devices

  • Universal enclosure holding devices with ball joint, for bicycle handle bars etc., or with flexible neck and suction pad for mounting behind vehicle windscreens and on smooth surfaces etc.

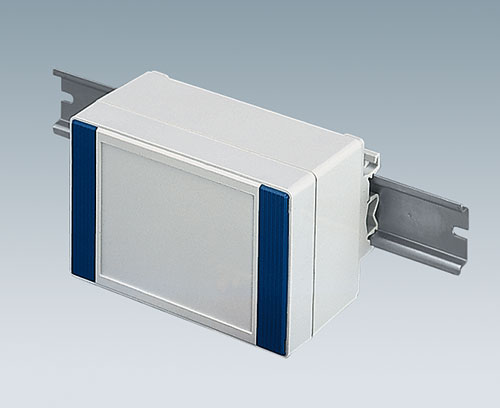

  • Fastening element for DIN rails in accordance with DIN EN 60715 TH35 and G32.

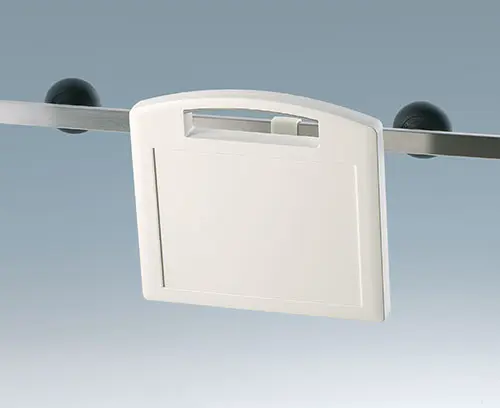

  • Holding clamp for round tubes up to ø 1.260" / equipment rails DIN EN ISO 19054.
  • Browse Full List
  • Catalog Documents
A9220019 Adapter for holding device (4-claws system)

A9220019

Adapter for holding device (4-claws system) For attaching the enclosures to holding devices (A9220029, A9220039, A9220049 and A9220059). For all applications, with self-adhesive film on the rear. With 4-hole grid pattern to match the grid plates of the holding devices with the 4-claws system (separate article).

Supply 1 adapter with self-adhesive film

Close

A9220019

Adapter for holding device (4-claws system) ABS (UL 94 HB)
black
2.24″x1.65″x0.24″
A9220029 Holding device, ball joint

A9220029

Holding device, ball joint For self-adhesive mounting or screw mounting. The base can be moved horizontally backwards and forwards by 45° and can be rotated around its own axis. The optimum setting can be fixed with the integrated locking screw. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device, mounting material

Close

A9220029

Holding device, ball joint ABS (UL 94 HB)
black
1.18″x2.13″x2.95″
A9220039 Holding device, bicycle

A9220039

Holding device, bicycle For screw mounting on the bar with ø 0.787" to 0.984". With two rubber shims for correct mounting on the bar or handlebars. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device, 2 rubber shims, 1 allen key

Close

A9220039

Holding device, bicycle PC
black
1.50″x2.24″x1.65″
A9220049 Holding device, flexible swan neck with suction pad

A9220049

Holding device, flexible swan neck with suction pad The device can be rotated by 360° and can be adjusted horizontally and vertically with an inclination angle of 40° in the viewing angle. With especially sturdy 0.315" aluminum wire – guarantees significantly reduced vibration characteriztics and allows higher weight-carrying capacity. The diameter of the suction disk is 2.756". Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device

Close

A9220049

Holding device, flexible swan neck with suction pad black
7.48″x2.76″x2.76″
A9220059 Holding device, secured with suction pad

A9220059

Holding device, secured with suction pad Grid plate with rear-mounted grid arm and integrated suction disk with 2.756" diameter. Secure mounting on all smooth surfaces. Integrated spring mechanism and novel vacuum return path guarantee that the suction disk is absolutely flat before mounting. The position can be fixed using locking screws. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply 1 holding device

Close

A9220059

Holding device, secured with suction pad black
5.24″x2.76″x2.76″
A9220079 Gripper without holding element

A9220079

Gripper without holding element Suitable for all devices with a width of 3.346" to 6.693" and a height of 2.362" to 3.937". With adjustable bridges, including additional extension bridges and spacer cushion. The integrated foam rubber mounting prevents scratches on the enclosure and eliminates rattling noises. With 4-hole grid system to match the grid plates of the holding devices with the 4-claws system (separate article required).

Supply 1 gripper, various spacer cushions

Close

A9220079

Gripper without holding element black
4.72″x3.82″x2.64″
B1300017 Fastening element for DIN-Rails

B1300017

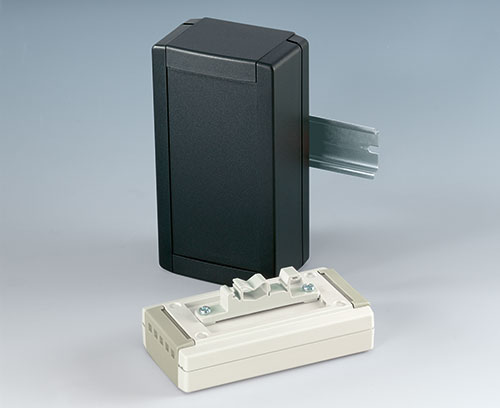

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 0.118" required.

Supply 1 piece incl, assembly kit

Close

B1300017

Fastening element for DIN-Rails PA 6
off-white RAL 9002

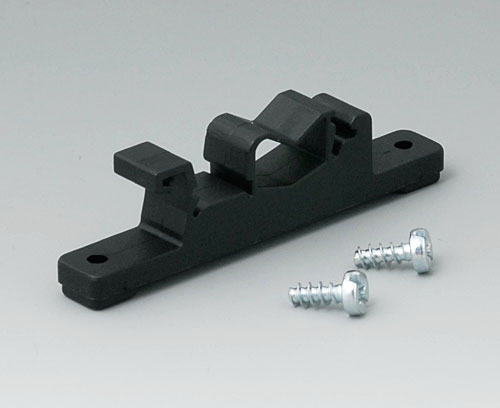

B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 0.118" required.

Supply 1 piece incl, assembly kit

Close

B1300019

Fastening element for DIN-Rails PA 6
black RAL 9005

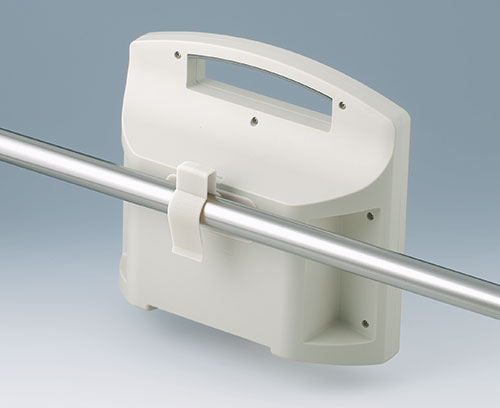

B4308237 Holding clamps

B4308237

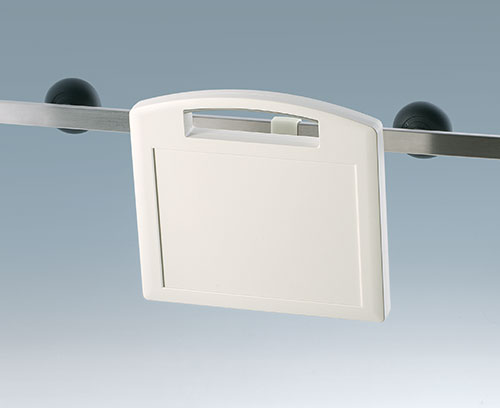

Holding clamps For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Close

B4308237

Holding clamps PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Close

B4308238

Holding clamps PA 6
lava

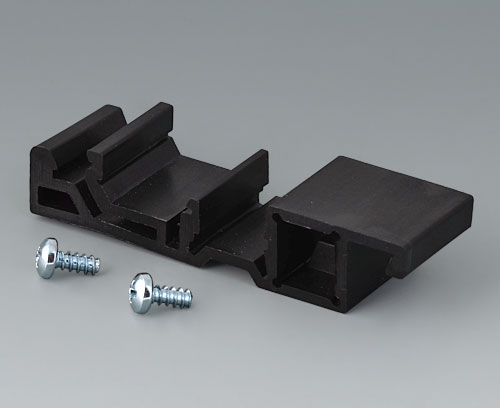

B6811751 DIN rail adapter

B6811751

DIN rail adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece, 2 screws

Close

B6811751

DIN rail adapter PA 66 (UL 94 V-0)
black RAL 9005
