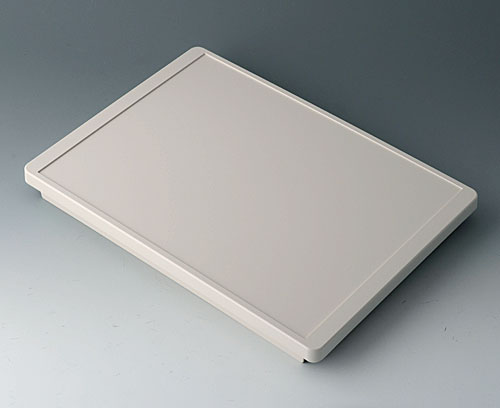

B4046407 Cover L

B4046407

Cover L

Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply

1 cover, assembly kit

  • Components/Accessories
  • View Customizing Options

Mobile with battery compartment

Mobile without battery compartment

Mobile with station

Mobile / Wall

Desk-top (screw-type connection)

Desk-top / Wall

Installation

Customizing options for B4046407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
10.827″
275 mm
Depth
7.677″
195 mm
Height
1.004″
25.5 mm
Keypad length
7.205″
183 mm
Keypad width
9.724″
247 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - LCD Modules

Miscellaneous information

Weight/1 part
231 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
