B1822217

MINI-DATA-BOX E40, high

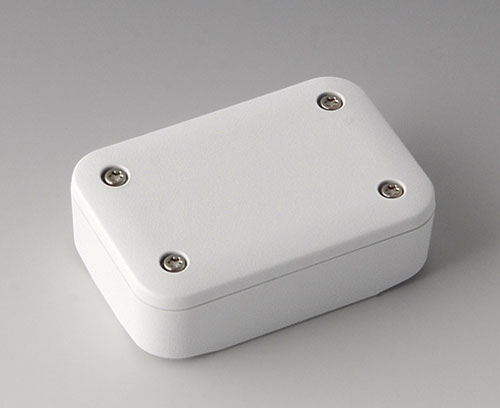

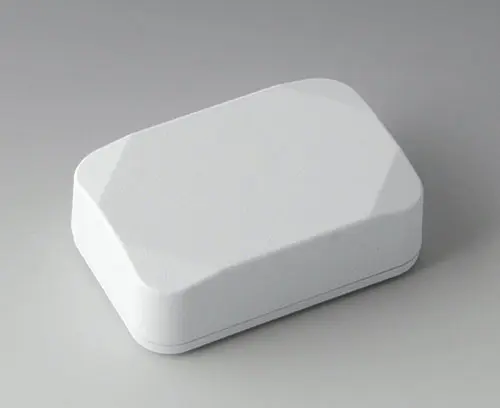

2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Top part high

Supply

Top and bottom parts, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B1822217

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "protection"

B1922101 Sealing E40/EF40

B1922101

Sealing E40/EF40

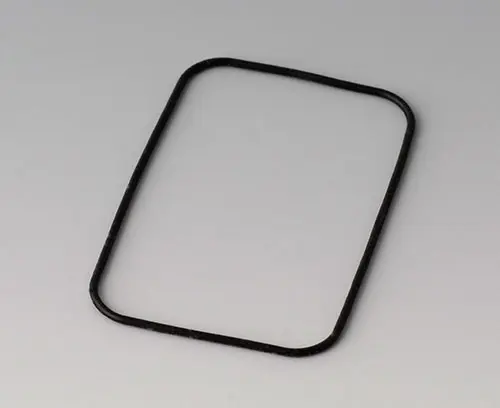

Use: increases the protection class of MINI-DATA-BOX E40 and EF40. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

B1922101

Sealing E40/EF40
product added to your basket

Customizing options for B1822217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: sealing,
Color
traffic white RAL 9016
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
2.362″
60 mm
Width
1.575″
40 mm
Height
0.787″
20 mm
PCB length, base
2.047″
52 mm
PCB width, base
1.260″
32 mm
PCB length, top
2.047″
52 mm
PCB width, top
1.260″
32 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B1822217 and don't forget to request a quotation!
