Mini-Data-Box
Reliably good connections

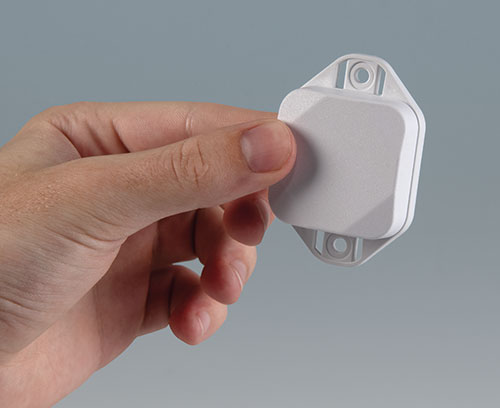

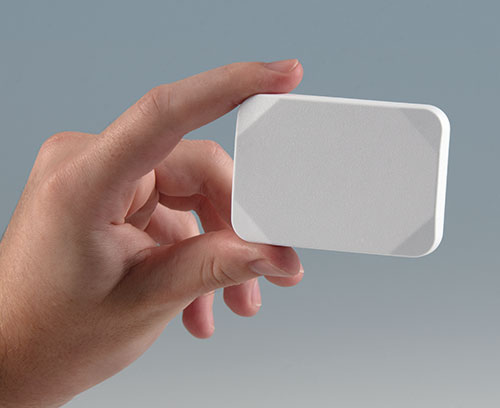

The MINI-DATA-BOX will convince you with its compact size and attention to detail. It is suitable for a variety of indoor and outdoor applications. Designer corners play gently with the light on the surface and lend the enclosure a new lightness.
- modern enclosure design with elegant designer corners

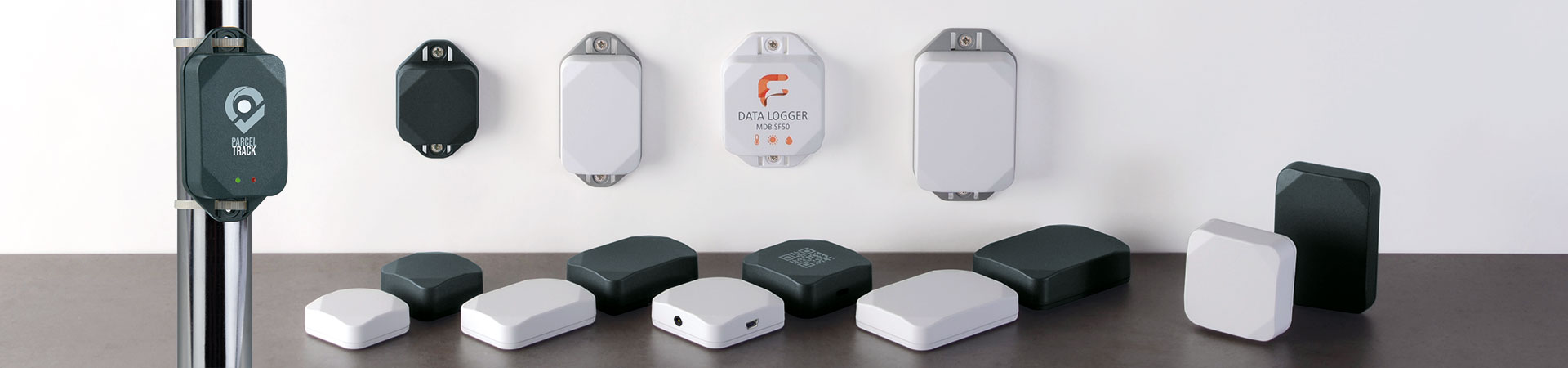

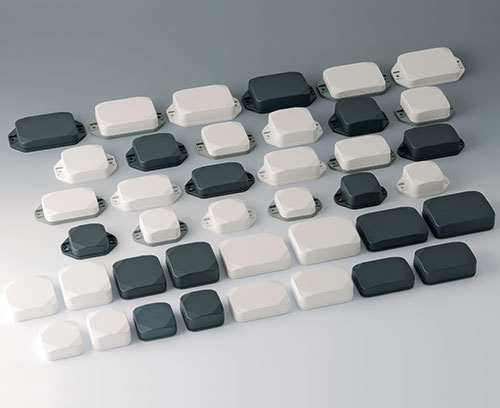

- 40 standard enclosures

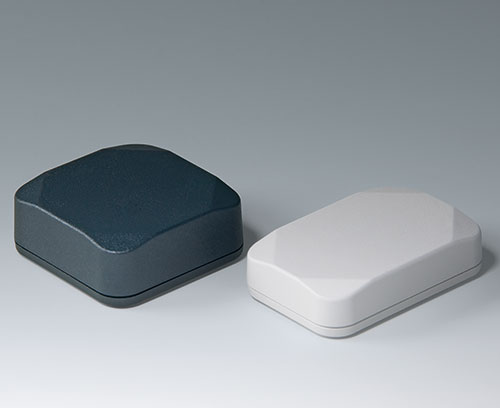

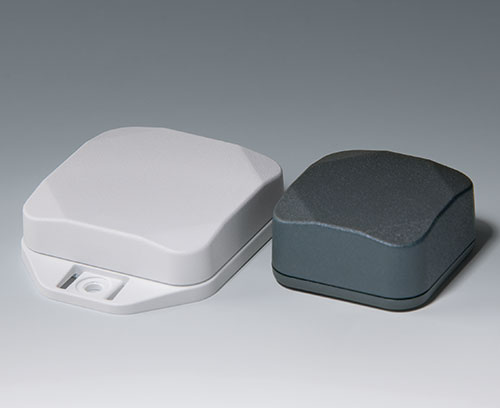

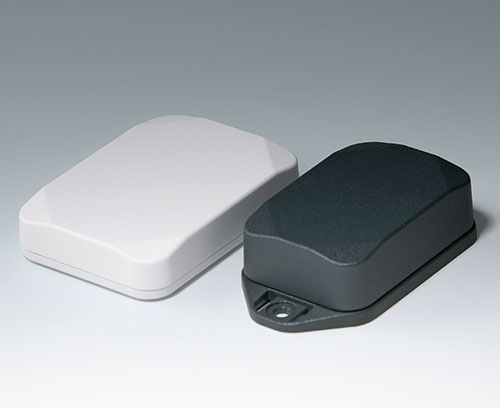

- two basic shapes: S (square) and E (edge)

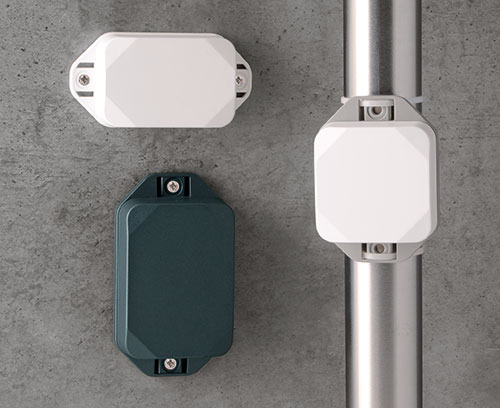

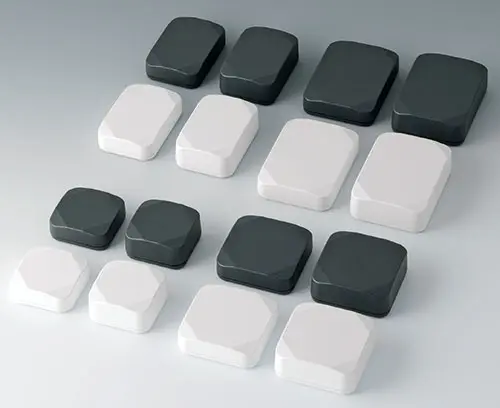

- bottom part with/without flanges for screws or cable ties

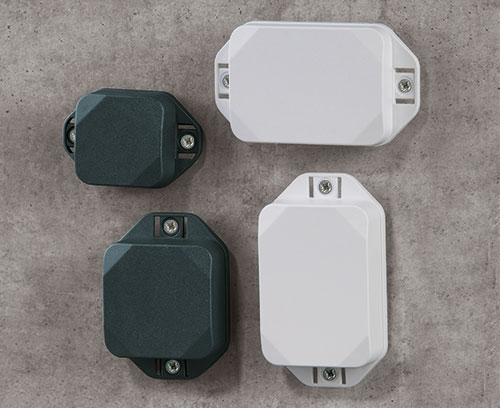

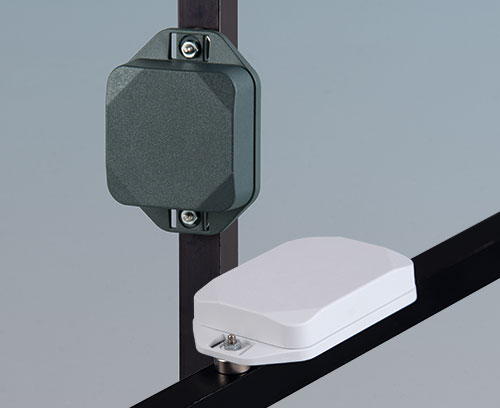

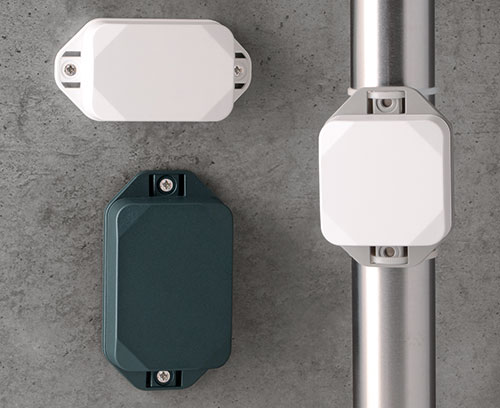

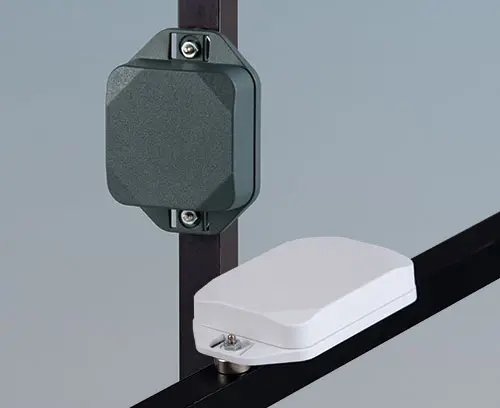

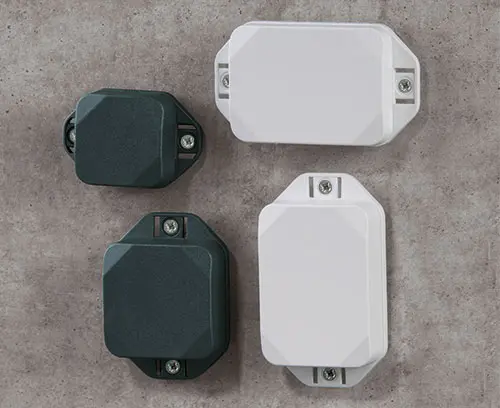

- flanges provide fast mounting to walls, ceilings, rails or tube profiles and masts

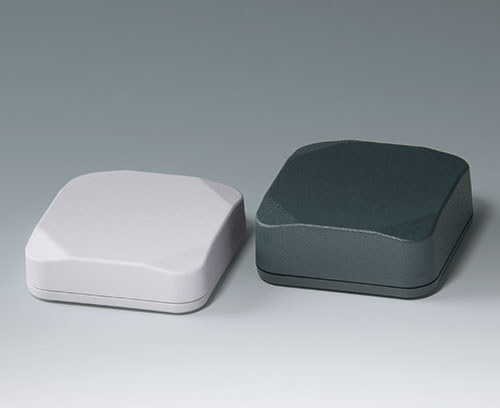

- flat or high top part for individual installation configurations and user needs

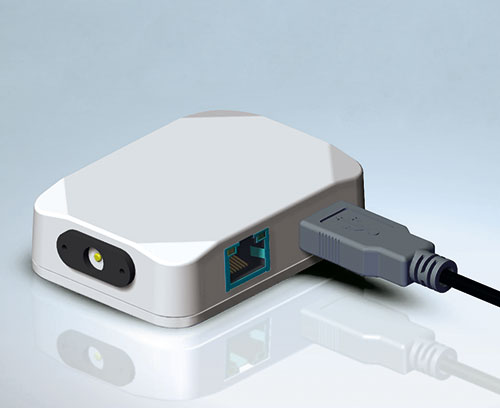

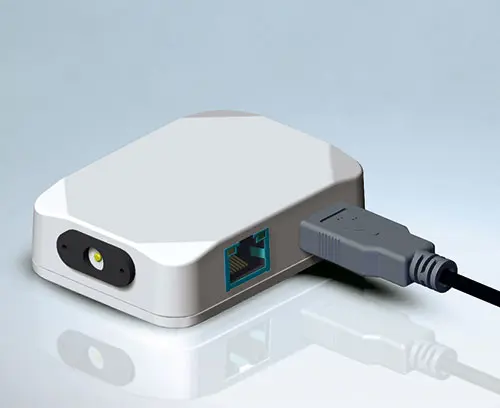

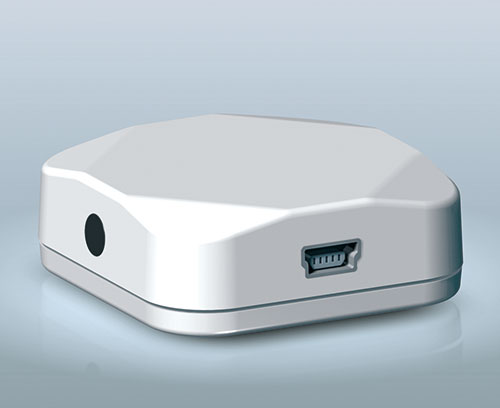

- flat surfaces for interfaces - for easy and user-friendly connections
- sturdy thanks to robust construction with all-round tongue and groove joint

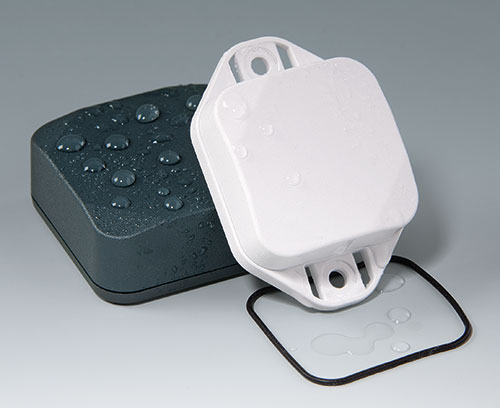

- high IP 65 protection class (with accessory seal) provides safety even in harsh environments

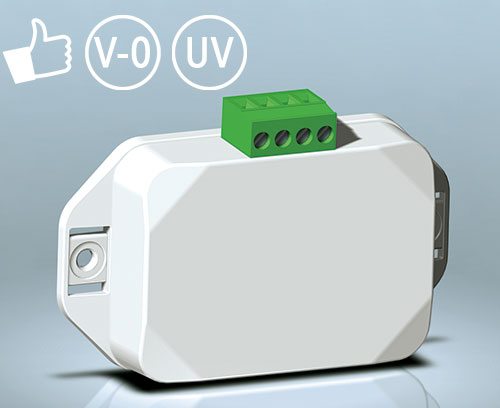

- flame-resistant material ASA+PC in the standard colours traffic white and anthracite gray,

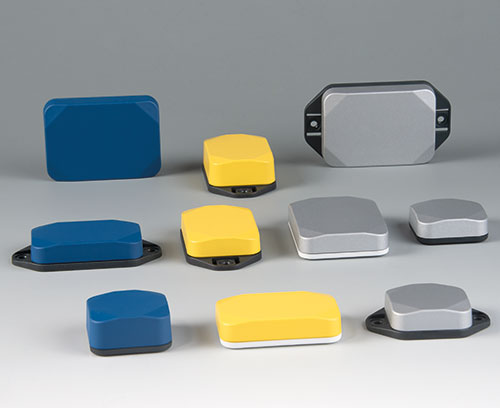

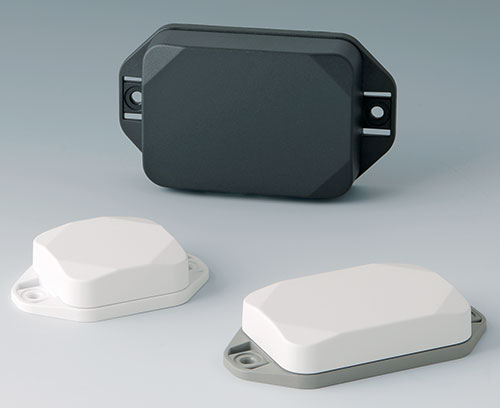

NEW: enclosure with flanges also available in two colors, in traffic white (top part) and traffic gray A (bottom part) - special colors available on request

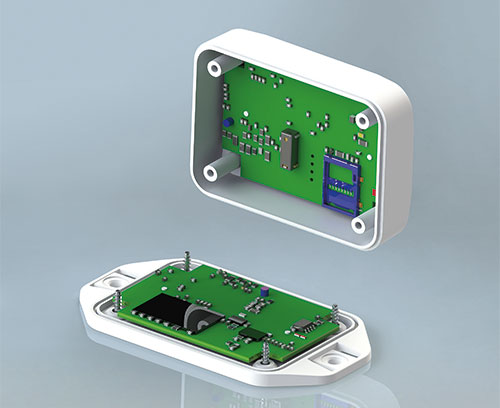

- fixing supports for PCBs and components in the top and bottom parts; alternatively, potting of electronic assemblies possible
- enclosure assembled with stainless Torx steel screws
DESIGNER STATEMENT
“a little something, hardly visible but present wherever it is needed, possibly the key building block in a system that would not work without this little something. The compact enclosure is, on the one hand, the elegant protection for your components, whose design takes away the angularity of the object thanks to its slightly sloping corners, and on the other hand a securely mounted, robust enclosure, whose faceted top underlines the technical quality and function of your product in its play of light, like the cut of a diamond."
Martin Nussberger, polyform Industrie Design
Application Fields

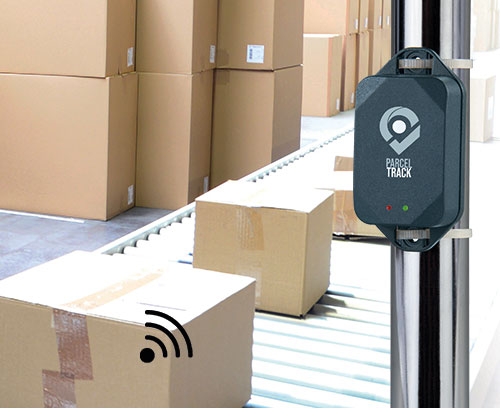

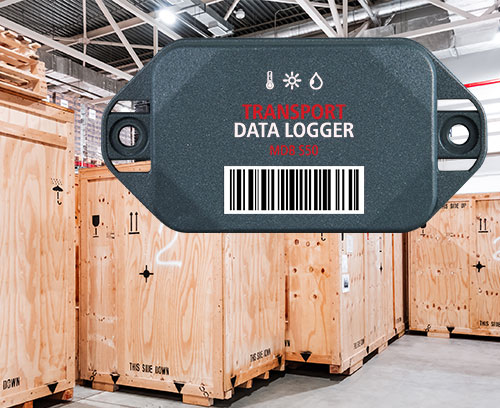

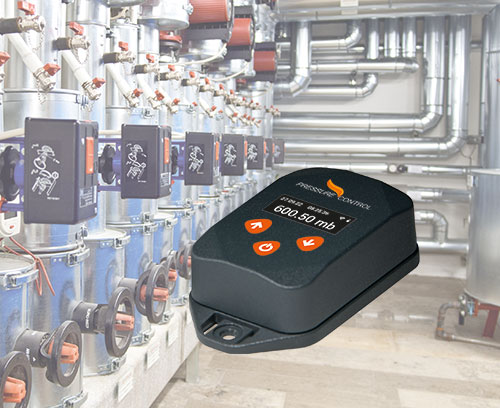

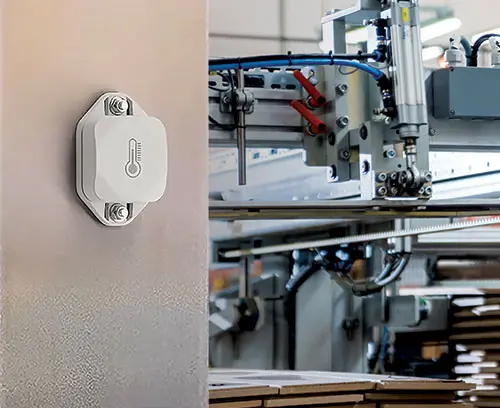

Ideal for miniaturised electronics applications, and modern sensor technology, located indoors and outside. IoT/IIoT, sensor systems, smart logistics, peripheral and interface equipment, automation, environmental technology, measurement and control engineering, security and monitoring technology, information and communications technology (ICT), etc.
Select which version/size you want below or browse full product list
B1902101
Use: increases the protection class of MINI-DATA-BOX S40 and SF40. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1902101
Sealing S40/SF40
B1904101
Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1904101
Sealing S50/SF50
B1922101
Use: increases the protection class of MINI-DATA-BOX E40 and EF40. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1922101
Sealing E40/EF40
B1924101
Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1924101
Sealing E50/EF50Customizing options for Mini-Data-Box
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
