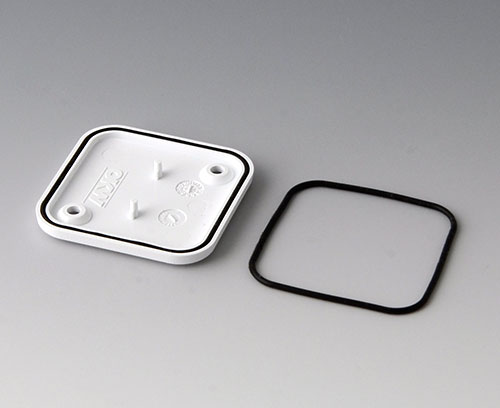

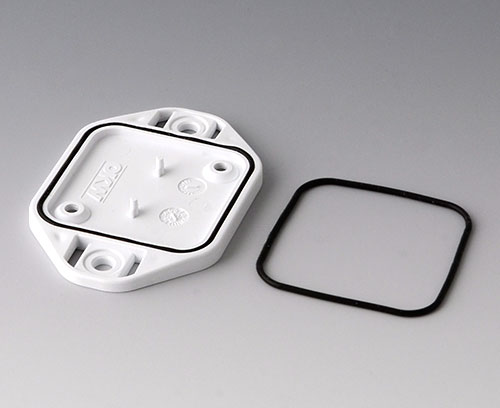

B1902101 Sealing S40/SF40

B1902101

Sealing S40/SF40

Use: increases the protection class of MINI-DATA-BOX S40 and SF40. Fits to the groove in the bottom part of the enclosure.

Supply

1 seal

  • To be used for

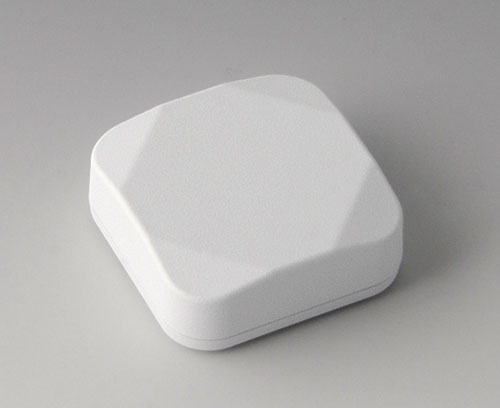

B1802117 MINI-DATA-BOX S40, flat

B1802117

MINI-DATA-BOX S40, flat

2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part flat

Supply Top and bottom parts, assembly kit

Close

B1802117

MINI-DATA-BOX S40, flat
product added to your basket
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
1.57″x1.57″x0.59″
IP 65 opt., IP 40

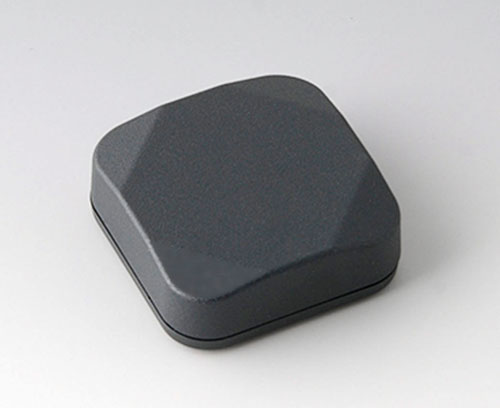

B1802118 MINI-DATA-BOX S40, flat

B1802118

MINI-DATA-BOX S40, flat 2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part flat

Supply Top and bottom parts, assembly kit

Close

B1802118

MINI-DATA-BOX S40, flat
product added to your basket
ASA+PC-FR (UL 94 V-0)
anthracite gray RAL 7016
1.57″x1.57″x0.59″
IP 65 opt., IP 40

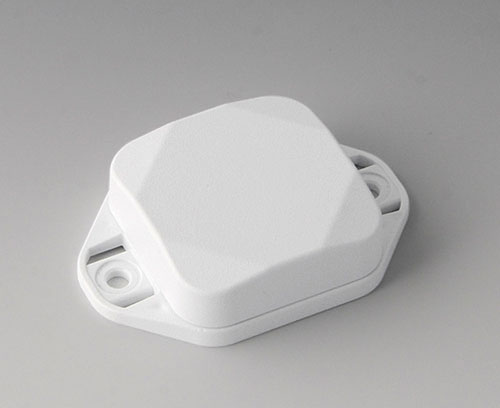

B1802127 MINI-DATA-BOX SF40, flat, with flanges

B1802127

MINI-DATA-BOX SF40, flat, with flanges 2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part flat

Supply Top and bottom parts, assembly kit

Close

B1802127

MINI-DATA-BOX SF40, flat, with flanges
product added to your basket
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
1.57″x1.57″x0.59″
IP 65 opt., IP 40

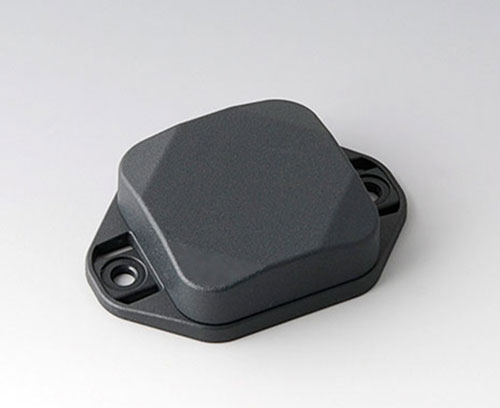

B1802128 MINI-DATA-BOX SF40, flat, with flanges

B1802128

MINI-DATA-BOX SF40, flat, with flanges 2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part flat

Supply Top and bottom parts, assembly kit

Close

B1802128

MINI-DATA-BOX SF40, flat, with flanges
product added to your basket
ASA+PC-FR (UL 94 V-0)
anthracite gray RAL 7016
1.57″x1.57″x0.59″
IP 65 opt., IP 40

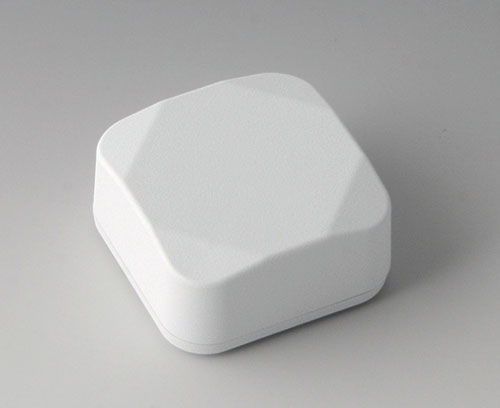

B1802217 MINI-DATA-BOX S40, high

B1802217

MINI-DATA-BOX S40, high 2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part high

Supply Top and bottom parts, assembly kit

Close

B1802217

MINI-DATA-BOX S40, high
product added to your basket
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
1.57″x1.57″x0.79″
IP 65 opt., IP 40

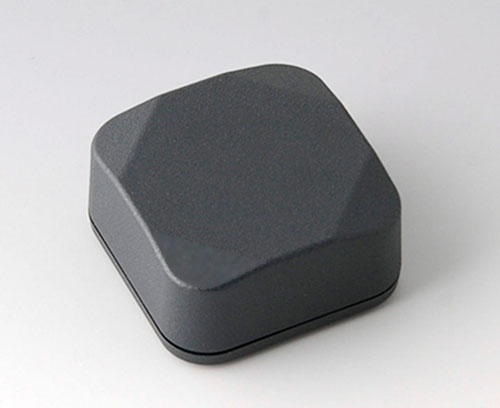

B1802218 MINI-DATA-BOX S40, high

B1802218

MINI-DATA-BOX S40, high 2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Top part high

Supply Top and bottom parts, assembly kit

Close

B1802218

MINI-DATA-BOX S40, high
product added to your basket
ASA+PC-FR (UL 94 V-0)
anthracite gray RAL 7016
1.57″x1.57″x0.79″
IP 65 opt., IP 40

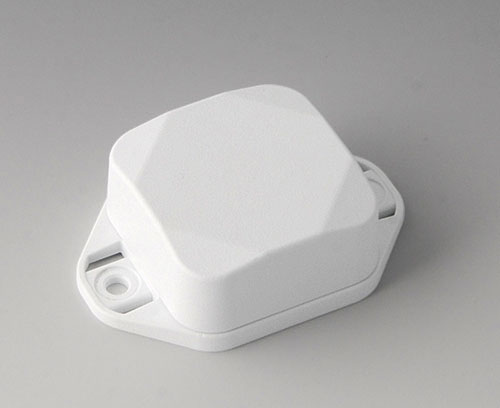

B1802227 MINI-DATA-BOX SF40, high, with flanges

B1802227

MINI-DATA-BOX SF40, high, with flanges 2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part high

Supply Top and bottom parts, assembly kit

Close

B1802227

MINI-DATA-BOX SF40, high, with flanges
product added to your basket
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
1.57″x1.57″x0.79″
IP 65 opt., IP 40

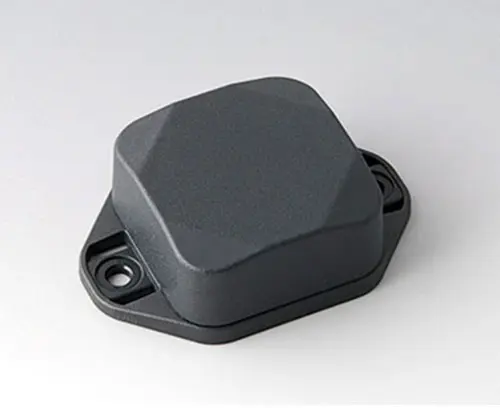

B1802228 MINI-DATA-BOX SF40, high, with flanges

B1802228

MINI-DATA-BOX SF40, high, with flanges 2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version Bottom part with flanges, top part high

Supply Top and bottom parts, assembly kit

Close

B1802228

MINI-DATA-BOX SF40, high, with flanges
product added to your basket
ASA+PC-FR (UL 94 V-0)
anthracite gray RAL 7016
1.57″x1.57″x0.79″
IP 65 opt., IP 40
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
