B9002307 Intermediate ring DS

B9002307

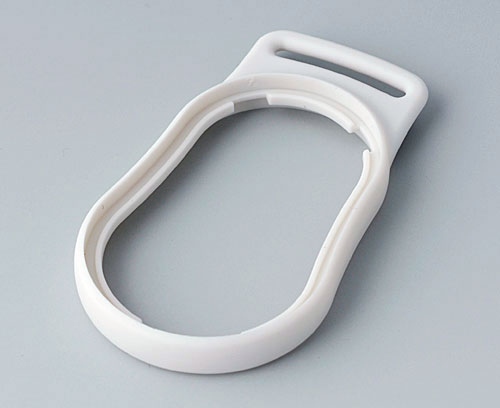

Intermediate ring DS

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply

1 intermediate ring DS

  • Components/Accessories
  • View Customizing Options

System components to complete

B9002906 Bottom and top part DS

B9002906

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Close

B9002906

Bottom and top part DS PMMA (IR) (UL 94 HB)
black RAL 9005
2.01″x1.26″x0.51″
B9002907 Bottom and top part DS

B9002907

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Close

B9002907

Bottom and top part DS ABS (UL 94 HB)
off-white RAL 9002
2.01″x1.26″x0.51″
B9002908 Bottom and top part DS

B9002908

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Close

B9002908

Bottom and top part DS ABS (UL 94 HB)
lava
2.01″x1.26″x0.51″

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 0.807".

Supply 1 key ring

Close

A9164001

Key ring Steel
nickel-plated
0.81″
B9100043 Hand strap, woven

B9100043

Hand strap, woven Without quick-action lock.

Supply 1 hand strap

Close

B9100043

Hand strap, woven black
7.87″
B9100053 Carrying strap, textile

B9100053

Carrying strap, textile With safety closure.

Supply 1 collar

Close

B9100053

Carrying strap, textile black
35.43″x0.59″
B9100063 Carrying strap, textile

B9100063

Carrying strap, textile Without quick-action lock.

Supply 1 carrying strap

Close

B9100063

Carrying strap, textile black
33.86″

Customizing options for B9002307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
