B3322918 Infill cover 220

B3322918

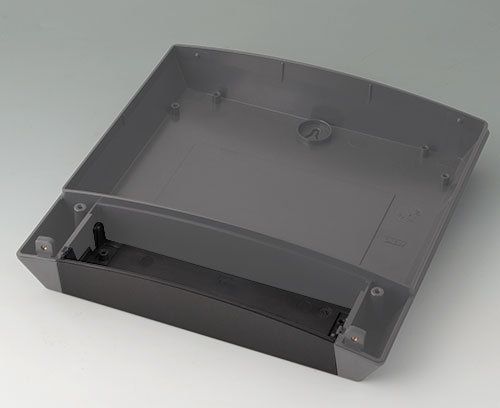

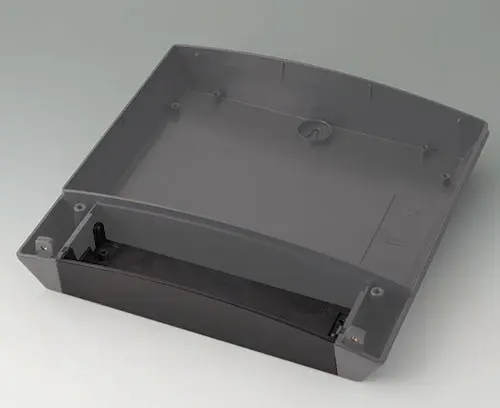

Infill cover 220

With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply

1 infill cover

  • Components/Accessories
  • View Customizing Options

System components to complete

B3222101 NET-BOX 220

B3222101

NET-BOX 220 Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222101

NET-BOX 220 ASA+PC-FR (UL 94 V-0)
light gray RAL 7035
8.66″x8.66″x1.99″
IP 65 opt.

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)

Customizing options for B3322918

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
PCB length, base
1.732″
44 mm
PCB width, base
6.142″
156 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Miscellaneous information

Weight/1 part
45 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
