Net-Box

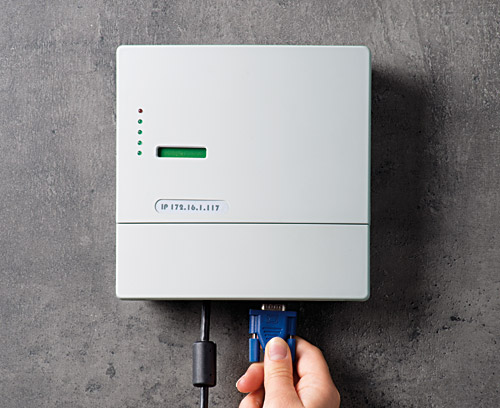

Wall mount enclosures for control units

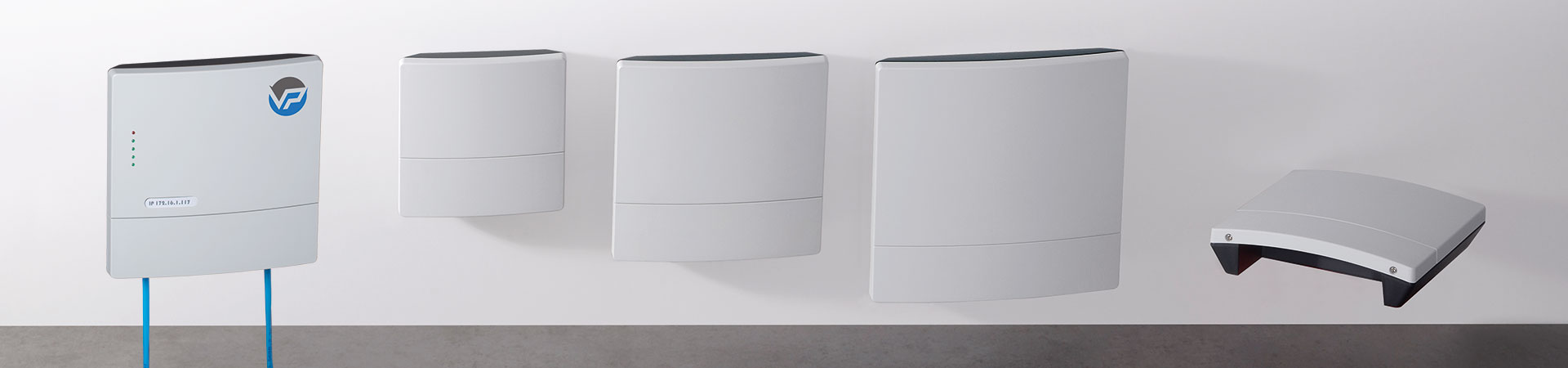

NET-BOX plastic enclosures have a slim design and stylish curved top section, this makes these modern and elegant housings perfect for wall mounted control units, network nodes and much more.

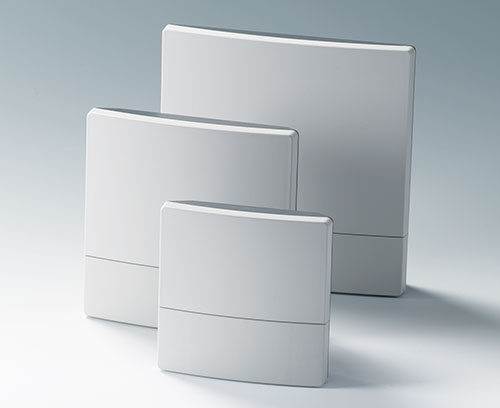

- three sizes with plenty of room for electronics and interfaces

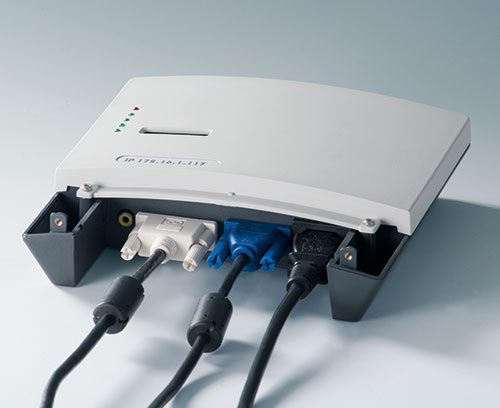

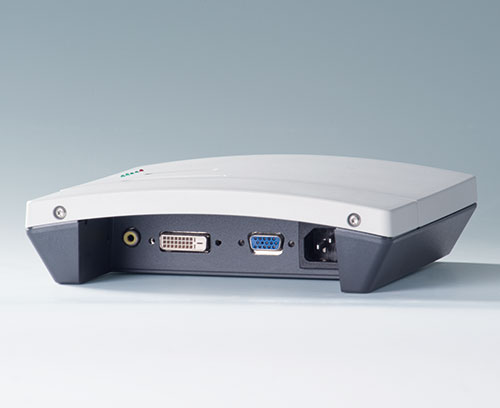

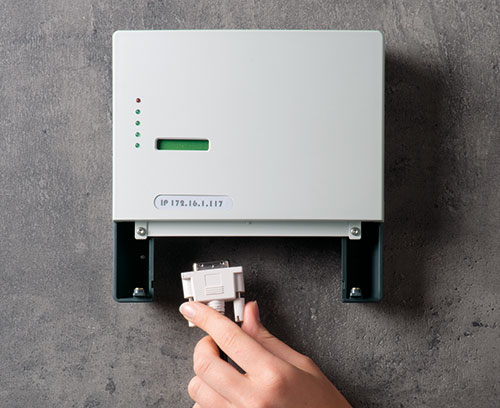

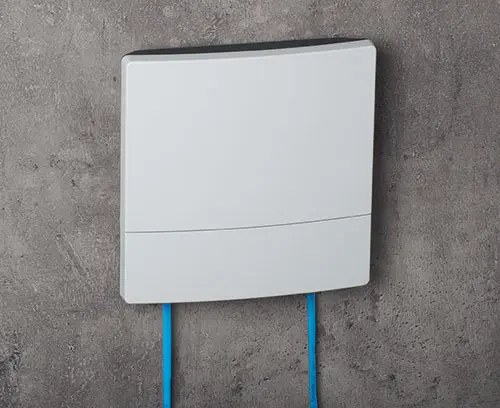

- the connectors and cables are hidden under the front lid

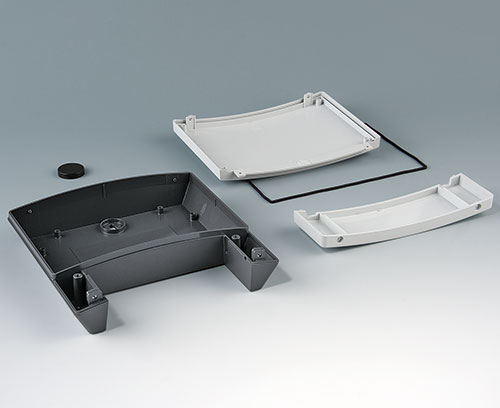

- the cases are molded in flame retardant material and can be sealed to IP 65

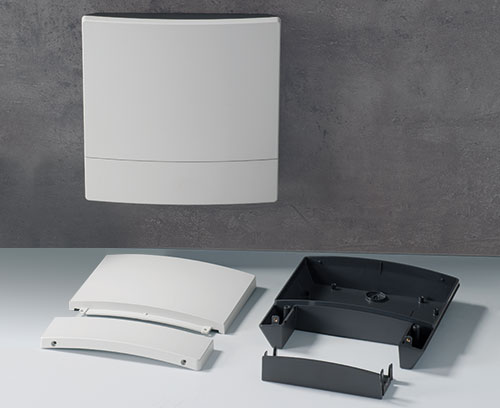

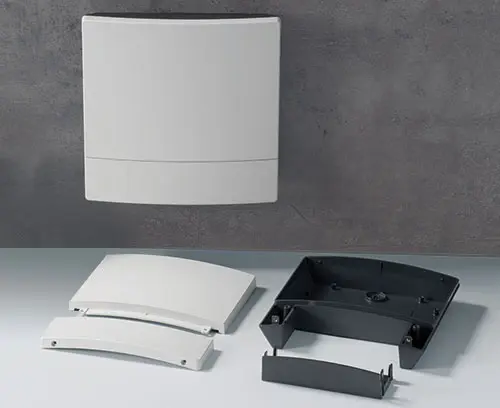

- simple three part assembly - bottom part, front cover and front lid; there are no visible screws on the front, just two on the underside of the lid

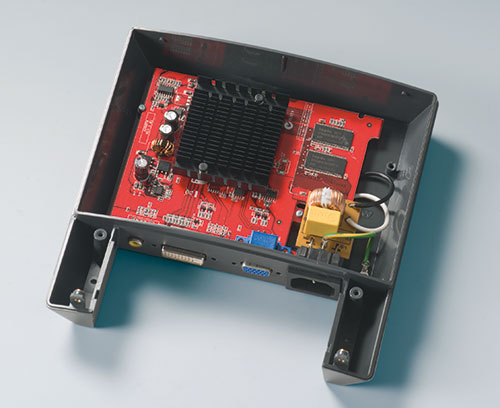

- screw pillars are provided in the bottom part for mounting PCBs and assemblies

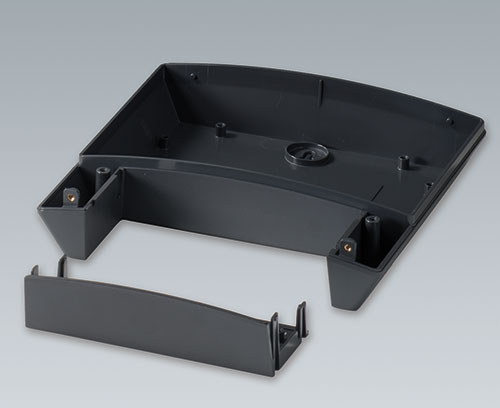

- optional infill covers close the underside opening and can be used for fitting additional PCBs or assemblies
- three point wall mounting system - no need to open the main electronics section, only the front lid has be refitted after installation (version II already has openings in the bottom part)
- supplied with anti-tamper Torx T10 assembly screws
- NET-BOX cases can also be used as desktop units, accessory non-slip feet are available
Special material
On request we can also custom mould many of our enclosures in special colors/materials to match your requirements exactly. Minimum quantity and feasibility on request.
Application Fields

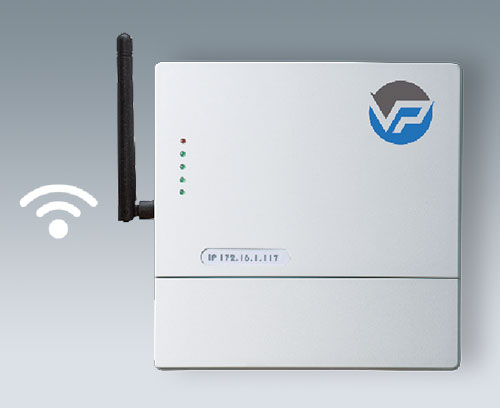

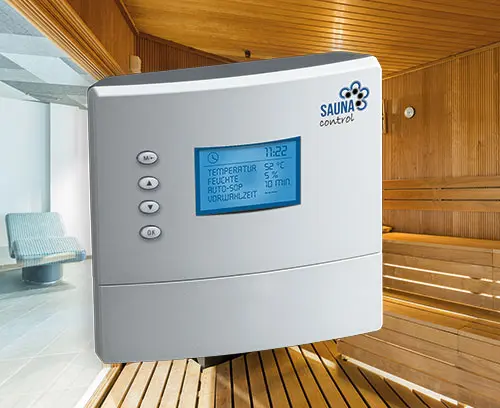

Building management, central control units, IoT/IIoT, smart factory, industry 4.0, gateways, data acquisition systems, data systems engineering, measuring and control technology, supervision terminals and access control, medical and wellness technology, etc.
B3214101
NET-BOX 140, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. Iproduct added to your basket
light gray RAL 7035
5.51″x5.51″x1.83″
,
B3214201

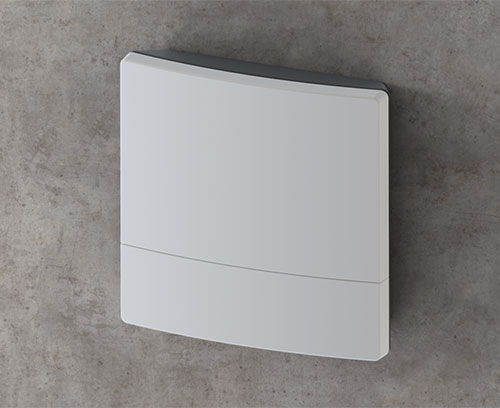

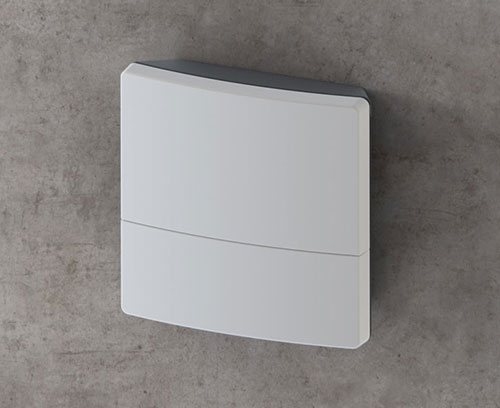

NET-BOX 140, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIproduct added to your basket
light gray RAL 7035
5.51″x5.51″x1.83″
B3218101
NET-BOX 180, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. Iproduct added to your basket
light gray RAL 7035
7.09″x7.09″x1.91″
,
B3218201
NET-BOX 180, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIproduct added to your basket
light gray RAL 7035
7.09″x7.09″x1.91″
B3222101
NET-BOX 220, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. Iproduct added to your basket
light gray RAL 7035
8.66″x8.66″x1.99″
,
B3222201
NET-BOX 220, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIproduct added to your basket
light gray RAL 7035
8.66″x8.66″x1.99″
A0306031
Self-tapping screws 0.118" x 0.236" (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 0.118" x 0.236" (PZ1)product added to your basket
A9207150
Anti-slide feet 0.256" x 0.079"
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 0.256" x 0.079"product added to your basket
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketproduct added to your basket
anthracite gray RAL 7016
3.94″x3.94″x0.79″
B3314159

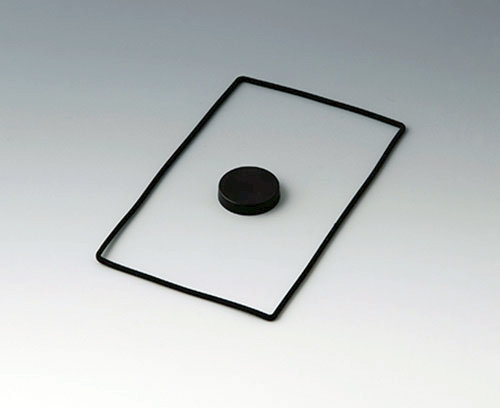

Sealing kit 140
Application: for increasing the protection class, of NET-BOX 140.
Supply 1 sealing kit
B3314159
Sealing kit 140product added to your basket
black
B3314918

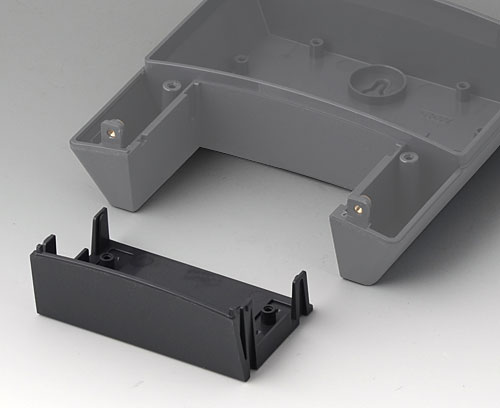

Infill cover 140
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3314918
Infill cover 140product added to your basket
lava
B3318159

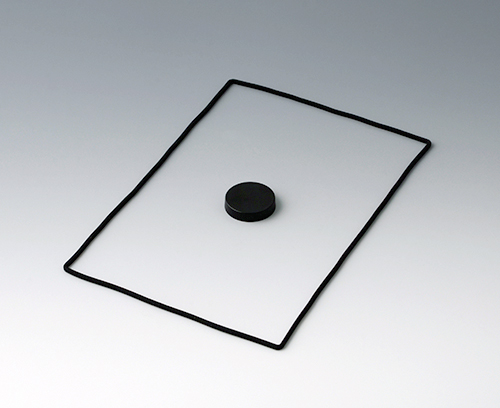

Sealing kit 180
Application: for increasing the protection class, of NET-BOX 180
Supply 1 sealing kit
B3318159
Sealing kit 180product added to your basket
black
B3318918

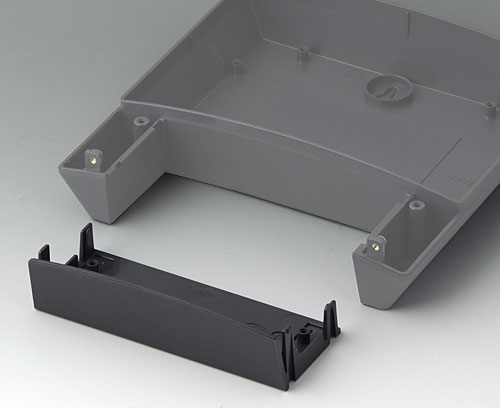

Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3318918
Infill cover 180product added to your basket
lava
B3322159
Sealing kit 220
Application: for increasing the protection class, of NET-BOX 220.
Supply 1 sealing kit
B3322159
Sealing kit 220product added to your basket
black
B3322918
Infill cover 220
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3322918
Infill cover 220product added to your basket
lava
Customizing options for Net-Box
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
