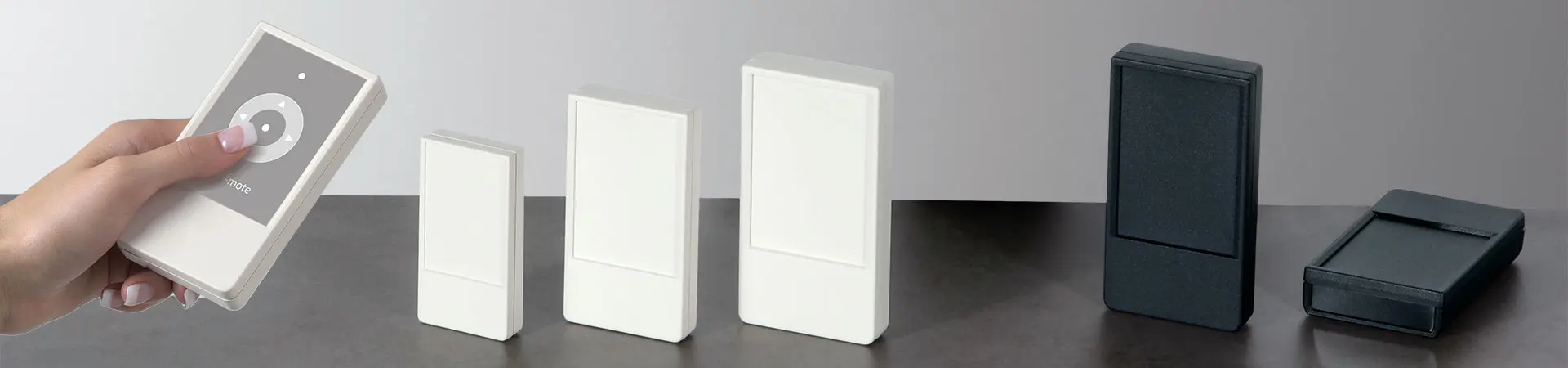

DATEC-POCKET-BOX

Datec-Pocket-Box

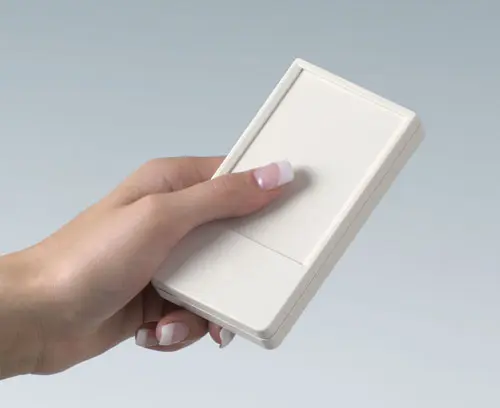

Compact handheld enclosures

The attractive pocket-sized DATEC-POCKET-BOX plastic enclosures offer a remarkable amount of technology in a minimum of space, as well as sturdy construction.

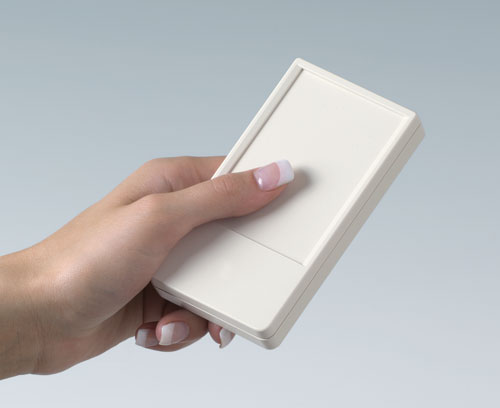

  • thin profile for comfortable holding

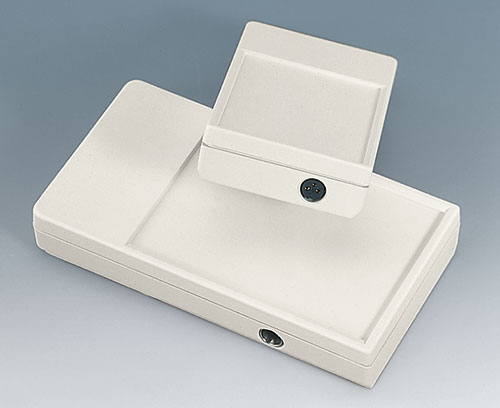

  • plain surfaces allow easier machining for the interfaces

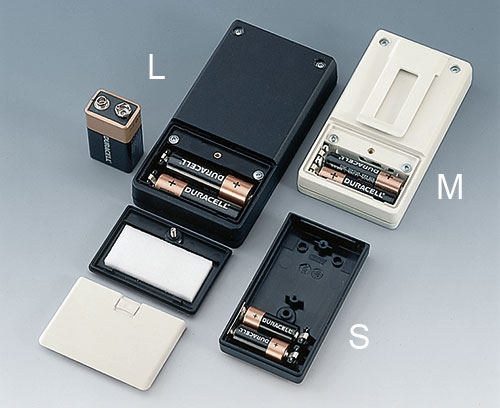

  • battery compartments for N, AA, AAA and 9 V cells

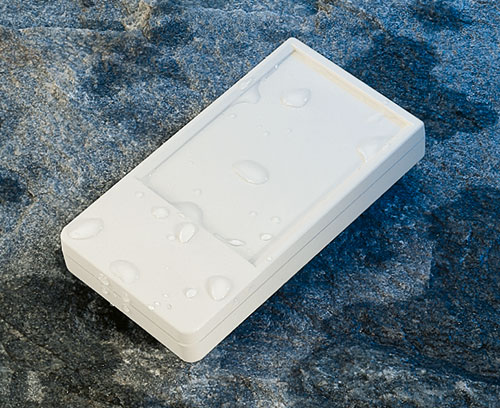

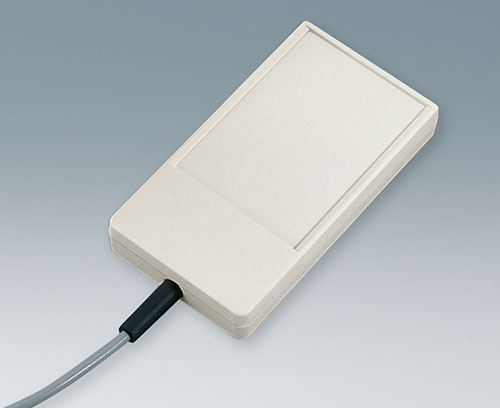

  • standard versions with pre-fitted sealing gaskets provide greater protection against dust and water entry

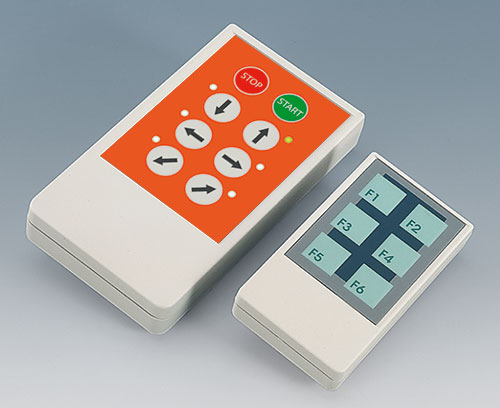

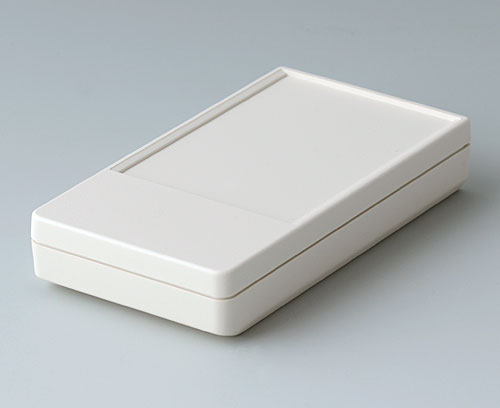

  • recessed operating area for protecting the membrane keypad or decorative foil/label

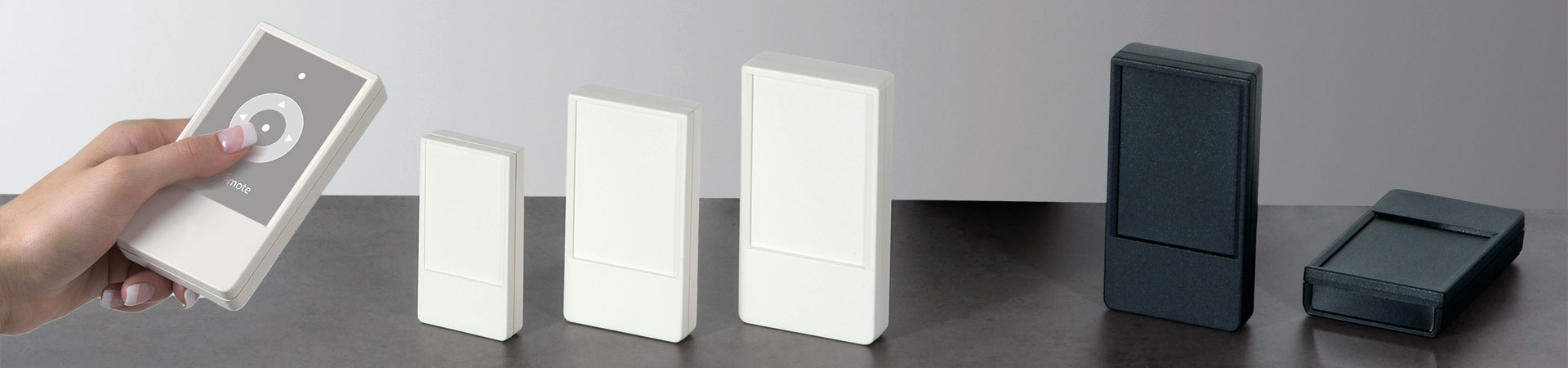

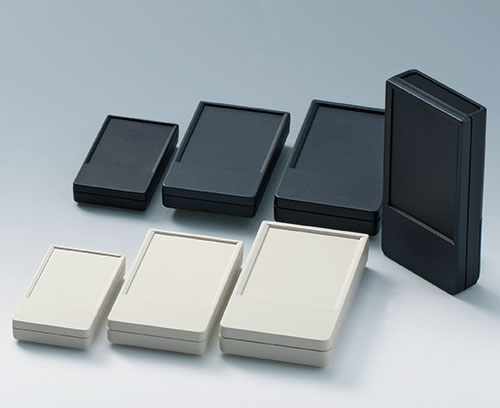

  • three sizes in two colors

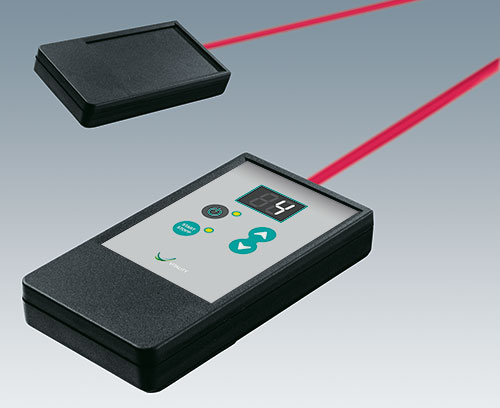

  • ABS (UL 94 HB) or PMMA plexiglas infra-red light-permeable (UL 94 HB); for efficient infra-red signals the recessed front face is clear polished (sizes M/L)
  • belt/pocket clip as accessory
  • internal fastening pillars for PCBs
  • Application Examples

Application fields

  • Especially suitable for measuring and control technology
  • Remote controls
  • Pulse generator for ultra-sound and infra-red
  • Sensors, optoelectronics
  • Mobile data recording
  • Wireless communications
  • Select Versions
  • Accessories
  • View Customizing Options

Select which version/size you want below or browse full product list

A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket
A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

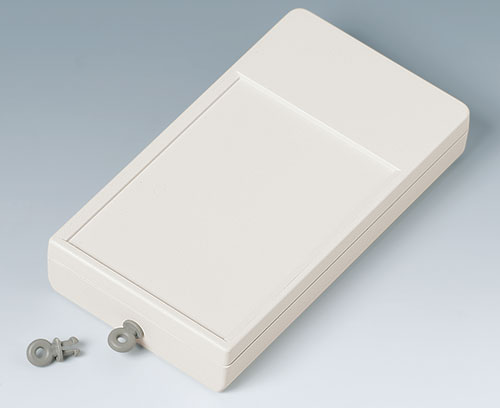

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.118", location hole ø 0.157" required.

Supply 1 ring eyelet

Close

A9100001

Ring eyelet
product added to your basket
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
product added to your basket

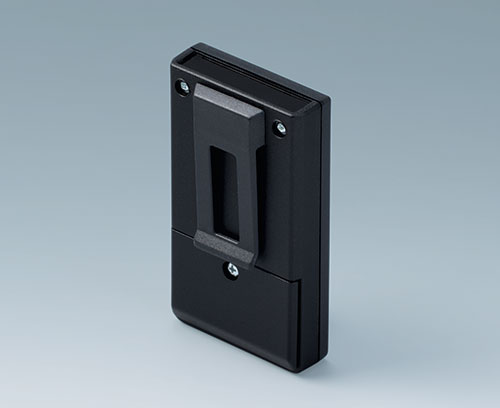

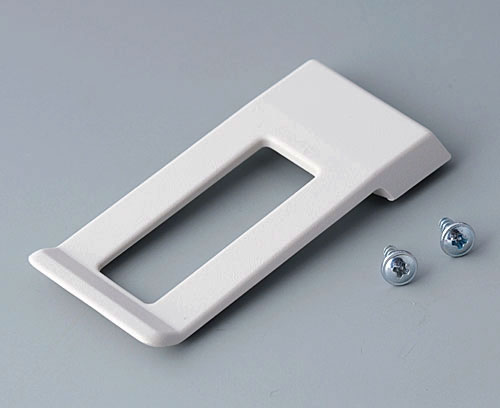

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 0.787", 2 x diameter = 0.165").
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Close

A9172107

Belt/Pocket clip
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.44″x1.18″

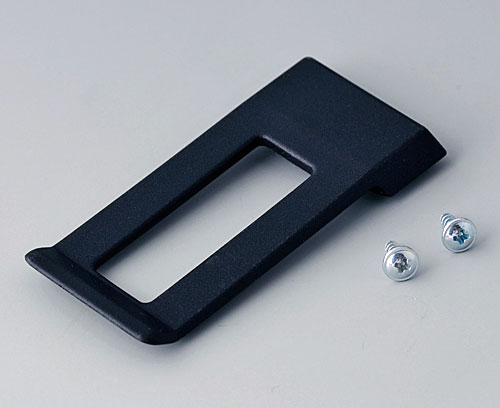

A9172109 Belt/Pocket clip

A9172109

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 0.787", 2 x diameter = 0.165").
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Close

A9172109

Belt/Pocket clip
product added to your basket
ABS (UL 94 HB)
black RAL 9005
2.44″x1.18″
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
product added to your basket
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
product added to your basket
Steel
nickel-plated
A9250251 Battery spacer

A9250251

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply 1 spacer

Close

A9250251

Battery spacer
product added to your basket
PE foam
1.97″x0.98″x0.12″

Customizing options for Datec-Pocket-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
