Motec

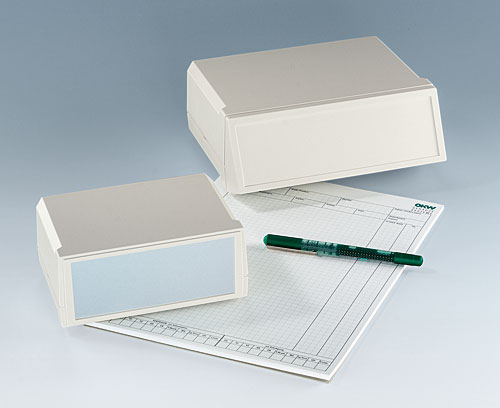

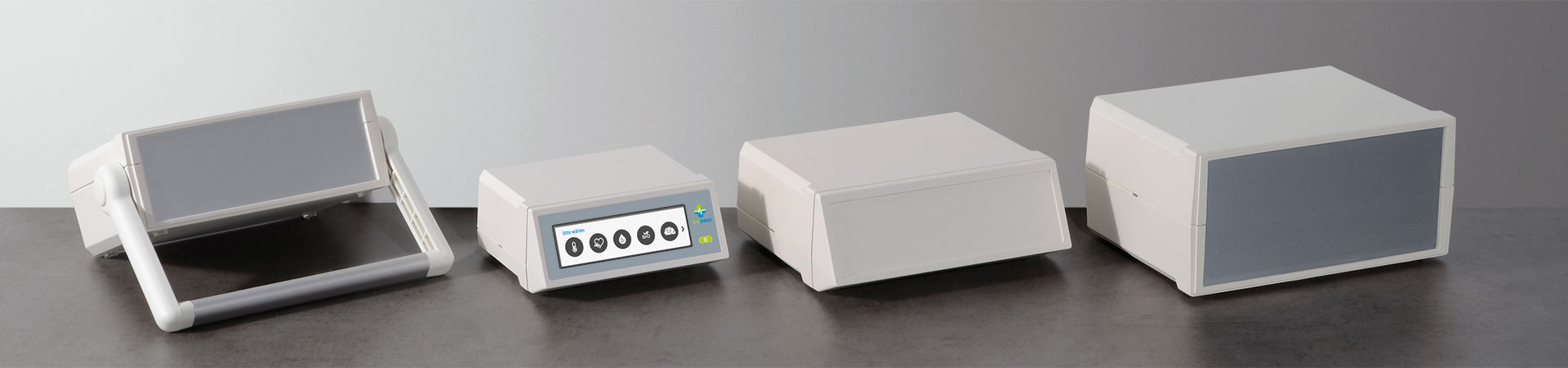

Modern desktop enclosures with wide front panels

With its generous dimensions, stylish design and ergonomic control panels, our MOTEC series is designed to distinguish your electronics from more conventional systems.

  • stylish range of instrument enclosures

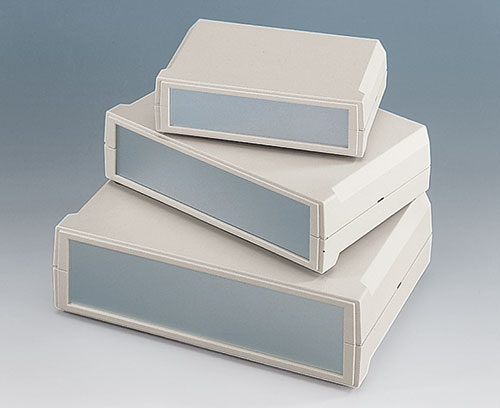

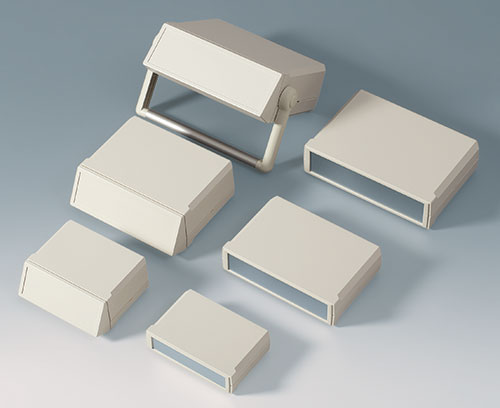

  • three plan sizes
  • different case heights for individual configurations
  • high-quality material ABS (UL 94 HB)

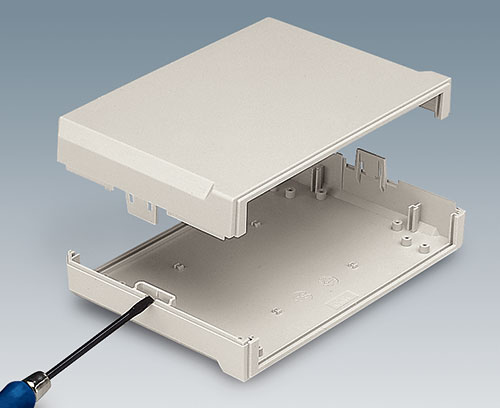

  • robust clip-together assembly to minimize your assembly work
  • access with flat screwdriver only, for security

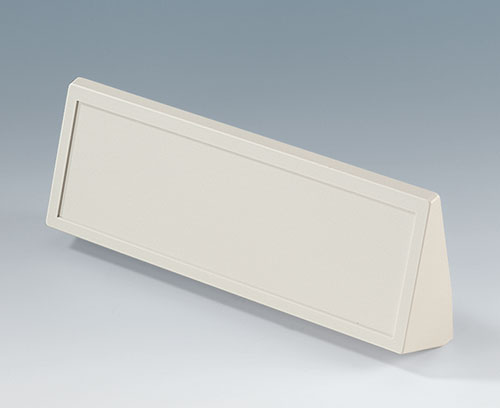

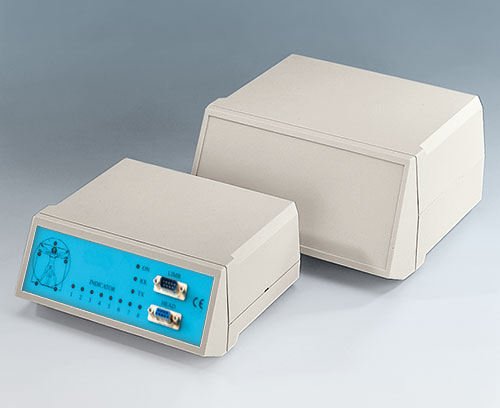

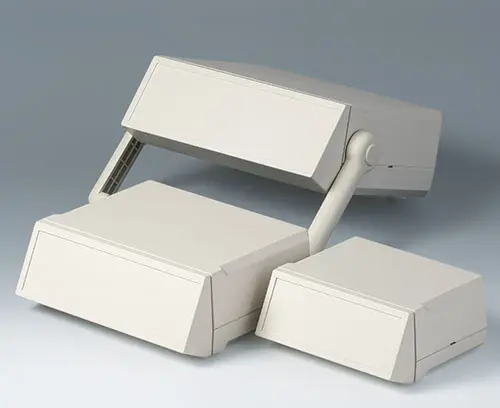

  • ergonomic, molded sloping control panel with recessed area for a membrane keypad
  • aluminum panels ordered separately

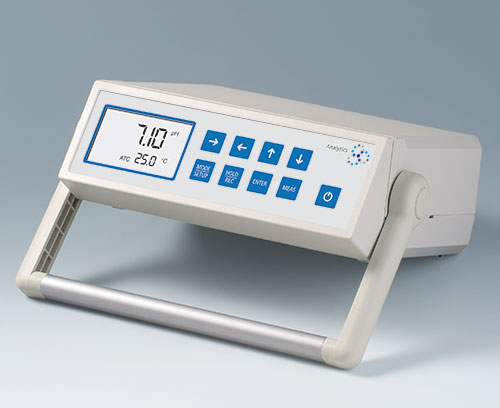

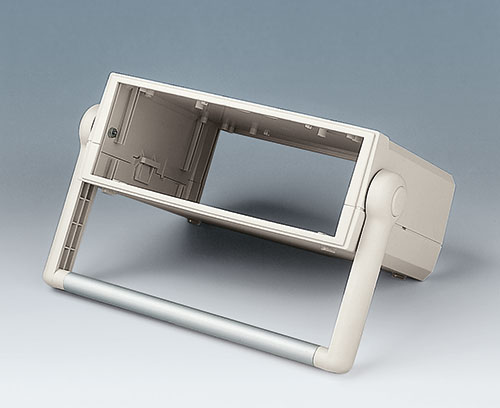

  • versions with handle for ergonomically tilted position or carrying
  • four non-slip self-adhesive feet included
  • protection class IP 40

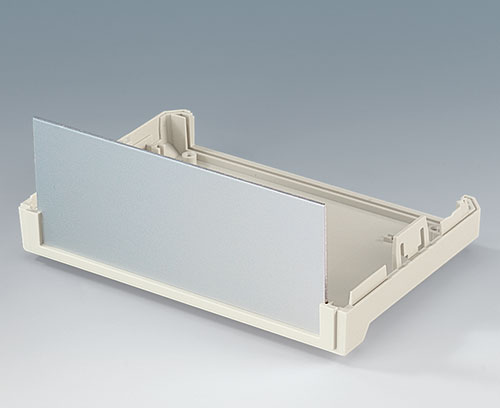

  • internal guide grooves for the vertical insertion of partitions and PCBs
  • internal screw pillars for PCBs etc.
Generate PDF

Application Fields

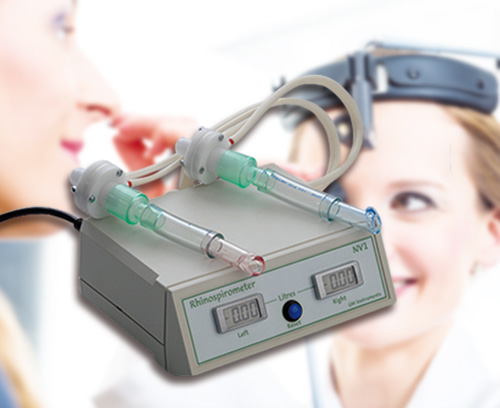

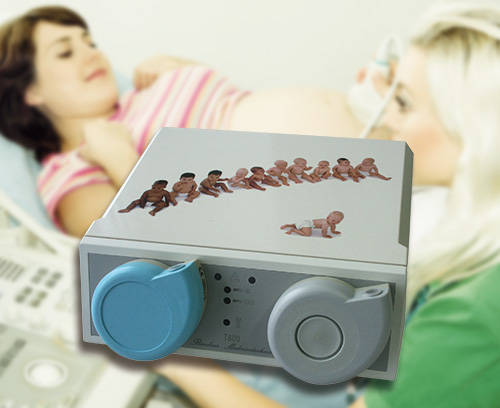

Measuring and control technology, feedback control, peripheral devices and interfaces, switchboxes, modems, laboratory equipment, medical and wellness devices, etc.

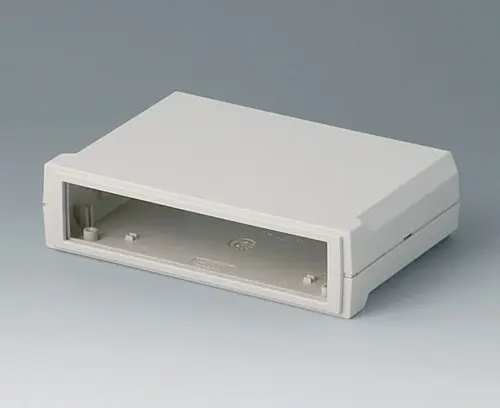

B3015117 MOTEC S, flat/flat

B3015117

MOTEC S, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3015117

MOTEC S, flat/flat
product added to your basket

off-white RAL 9002
6.10″x4.13″x1.57″

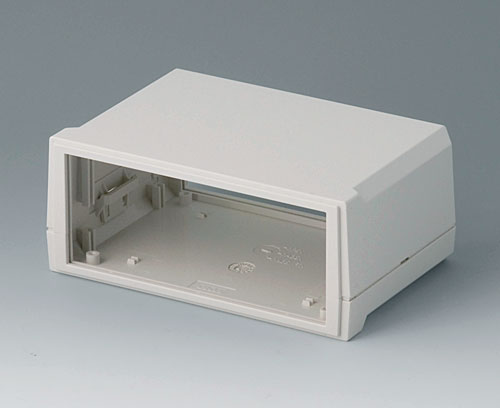

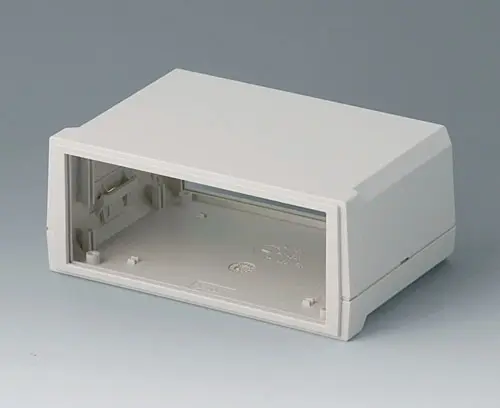

B3015127 MOTEC S, flat/high

B3015127

MOTEC S, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3015127

MOTEC S, flat/high
product added to your basket

off-white RAL 9002
6.10″x4.13″x2.56″

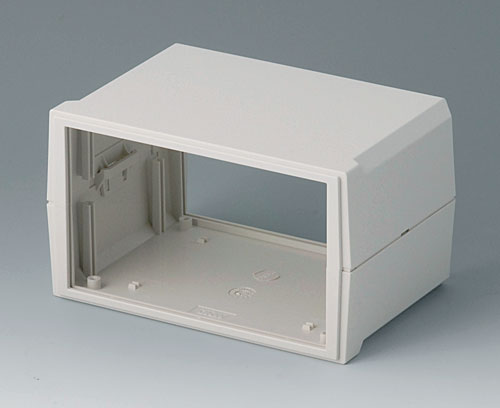

B3015137 MOTEC S, high/high

B3015137

MOTEC S, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3015137

MOTEC S, high/high
product added to your basket

off-white RAL 9002
6.10″x4.13″x3.54″

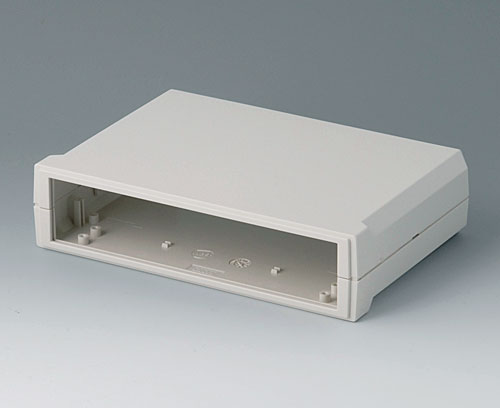

B3020117 MOTEC M, flat/flat

B3020117

MOTEC M, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3020117

MOTEC M, flat/flat
product added to your basket

off-white RAL 9002
8.07″x5.51″x1.97″

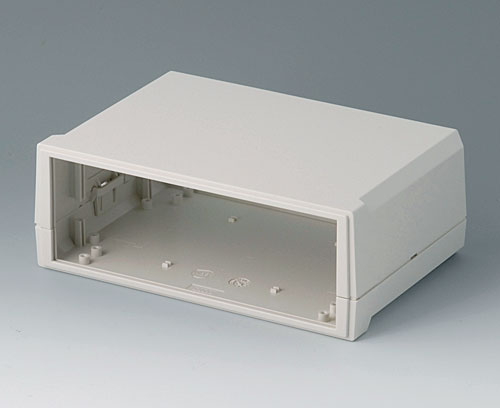

B3020127 MOTEC M, flat/high

B3020127

MOTEC M, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3020127

MOTEC M, flat/high
product added to your basket

off-white RAL 9002
8.07″x5.51″x2.95″

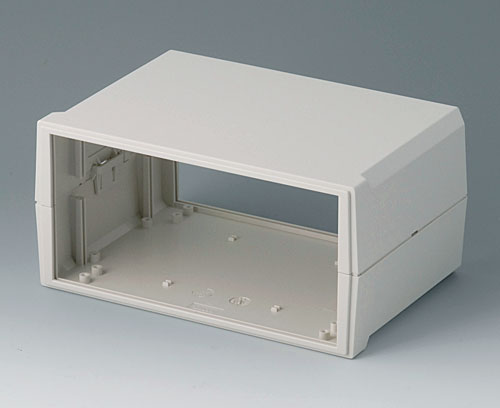

B3020137 MOTEC M, high/high

B3020137

MOTEC M, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3020137

MOTEC M, high/high
product added to your basket

off-white RAL 9002
8.07″x5.51″x3.94″

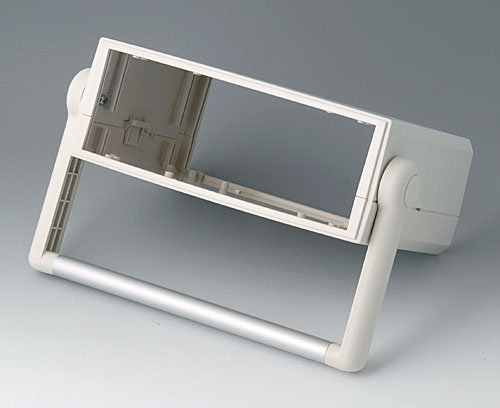

B3020147 MOTEC M, with handle bar

B3020147

MOTEC M, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

B3020147

MOTEC M, with handle bar
product added to your basket

off-white RAL 9002
8.07″x5.51″x2.95″

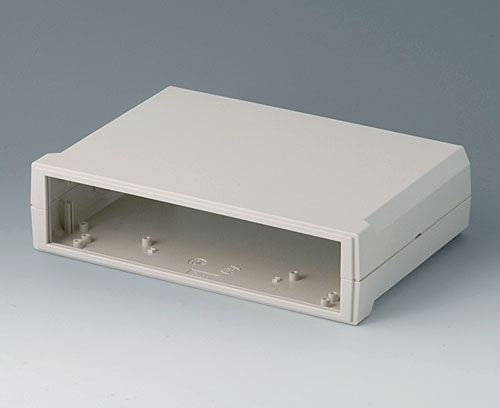

B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3023117

MOTEC-L, flat/flat
product added to your basket

off-white RAL 9002
9.25″x6.50″x2.36″

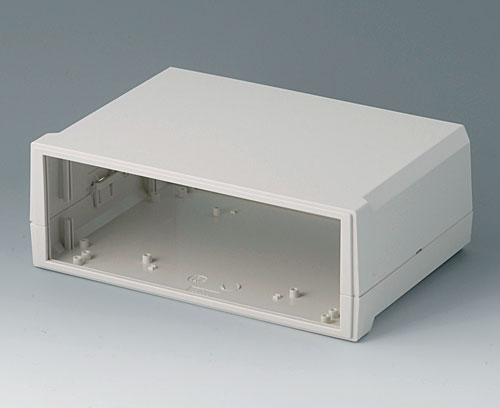

B3023127 MOTEC L, flat/high

B3023127

MOTEC L, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3023127

MOTEC L, flat/high
product added to your basket

off-white RAL 9002
9.25″x6.50″x3.35″

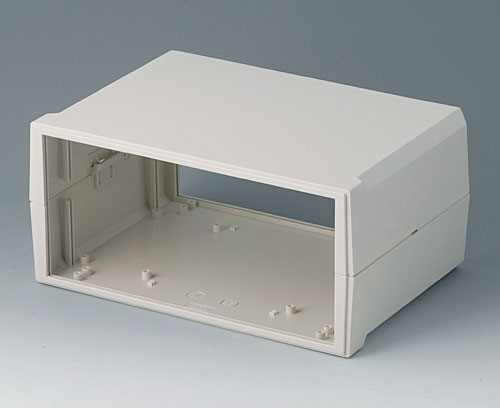

B3023137 MOTEC L, high/high

B3023137

MOTEC L, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3023137

MOTEC L, high/high
product added to your basket

off-white RAL 9002
9.25″x6.50″x4.33″

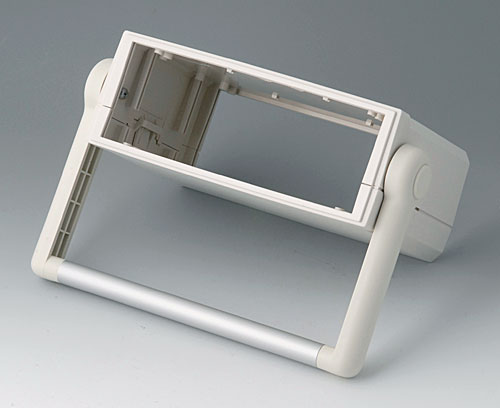

B3023147 MOTEC L, with handle bar

B3023147

MOTEC L, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

B3023147

MOTEC L, with handle bar
product added to your basket

off-white RAL 9002
9.25″x6.50″x3.35″
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.236", type PZ1.

Supply 4 screws

A9199008

Set of screws
product added to your basket

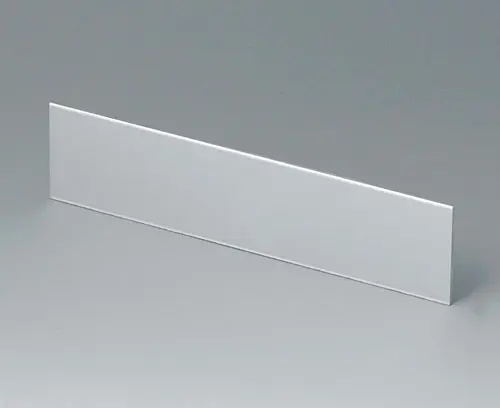

B3115100 Front / rear panel S

B3115100

Front / rear panel S Suitable for MOTEC S B3015117 with flat base and top part.

Supply 1 front panel

B3115100

Front / rear panel S
product added to your basket

matt anodized
5.35″x1.26″x0.06″

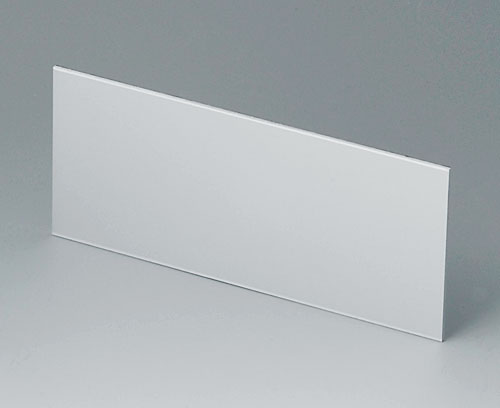

B3115110 Front / rear panel S

B3115110

Front / rear panel S Suitable for MOTEC S B3015127 with flat base and high top part.

Supply 1 front panel

B3115110

Front / rear panel S
product added to your basket

matt anodized
5.35″x2.24″x0.06″

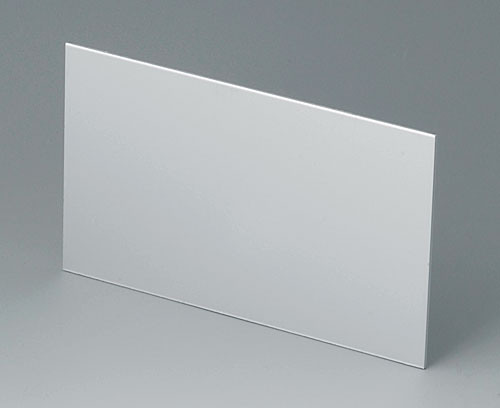

B3115120 Front / rear panel S

B3115120

Front / rear panel S Suitable for MOTEC S B3015137 with high base and top part.

Supply 1 front panel

B3115120

Front / rear panel S
product added to your basket

matt anodized
5.35″x3.23″x0.06″

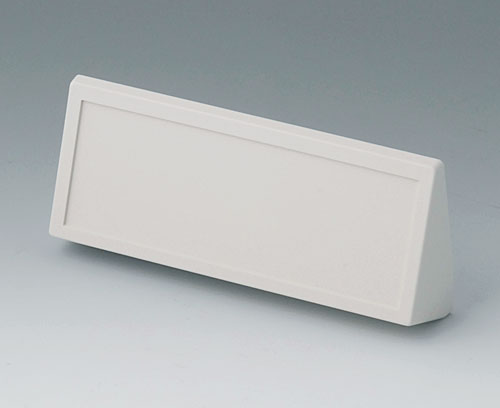

B3115167 Sloping control panel S, flat/high

B3115167

Sloping control panel S, flat/high Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

B3115167

Sloping control panel S, flat/high
product added to your basket

off-white RAL 9002

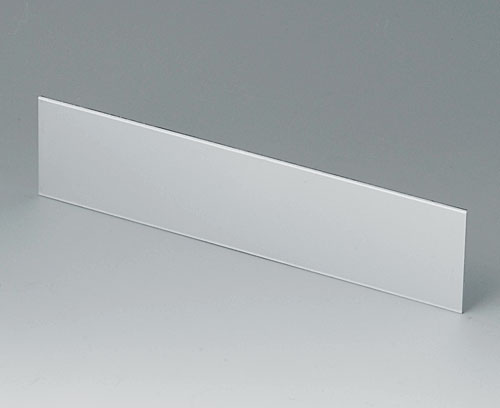

B3120100 Front / rear panel M

B3120100

Front / rear panel M Suitable for MOTEC M B3020117 with flat base and top part.

Supply 1 front panel

B3120100

Front / rear panel M
product added to your basket

matt anodized
7.28″x1.65″x0.06″

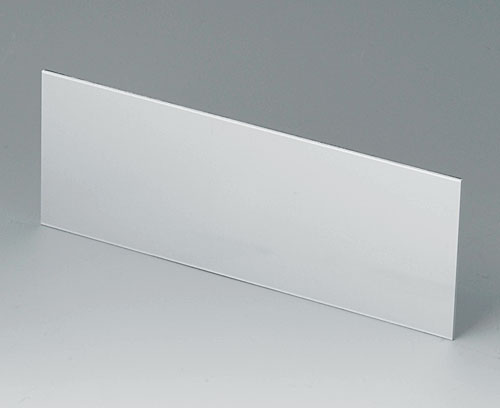

B3120110 Front / rear panel M

B3120110

Front / rear panel M Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part.

Supply 1 front panel

B3120110

Front / rear panel M
product added to your basket

matt anodized
7.28″x2.64″x0.06″

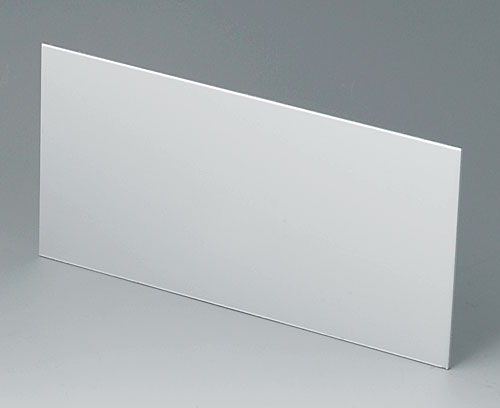

B3120120 Front / rear panel M

B3120120

Front / rear panel M Suitable for MOTEC M B3020137 with high base and top part.

Supply 1 front panel

B3120120

Front / rear panel M
product added to your basket

matt anodized
7.28″x3.62″x0.06″

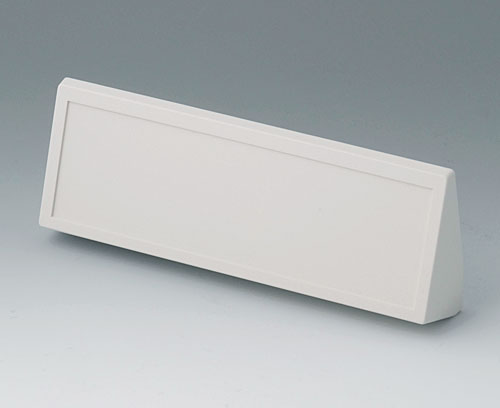

B3120167 Sloping control panel M, flat/high

B3120167

Sloping control panel M, flat/high Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

B3120167

Sloping control panel M, flat/high
product added to your basket

off-white RAL 9002

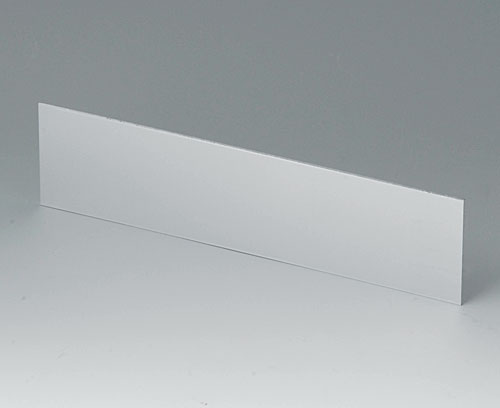

B3123100 Front / rear panel L

B3123100

Front / rear panel L Suitable for MOTEC L B3023117 with flat base and top part.

Supply 1 front panel

B3123100

Front / rear panel L
product added to your basket

matt anodized
8.43″x2.05″x0.06″

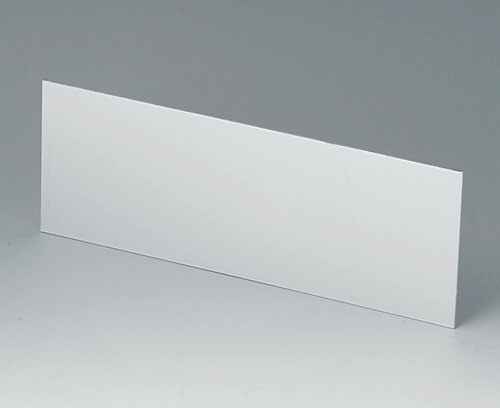

B3123110 Front / rear panel L

B3123110

Front / rear panel L Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.

Supply 1 front panel

B3123110

Front / rear panel L
product added to your basket

matt anodized
8.43″x3.03″x0.06″

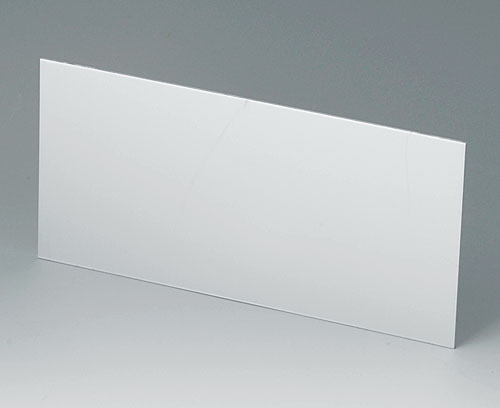

B3123120 Front / rear panel L

B3123120

Front / rear panel L Suitable for MOTEC L B3023137 with high base and top part.

Supply 1 front panel

B3123120

Front / rear panel L
product added to your basket

matt anodized
8.43″x4.02″x0.06″

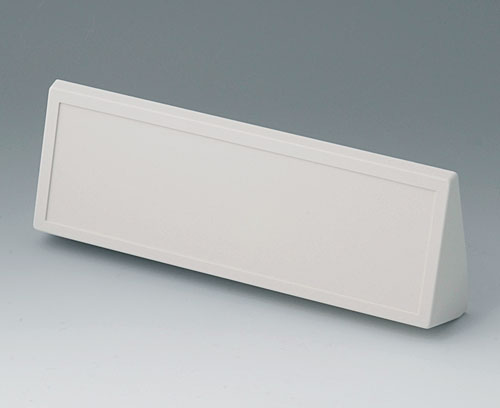

B3123167 Sloping control panel L, flat/high

B3123167

Sloping control panel L, flat/high Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

B3123167

Sloping control panel L, flat/high
product added to your basket

off-white RAL 9002

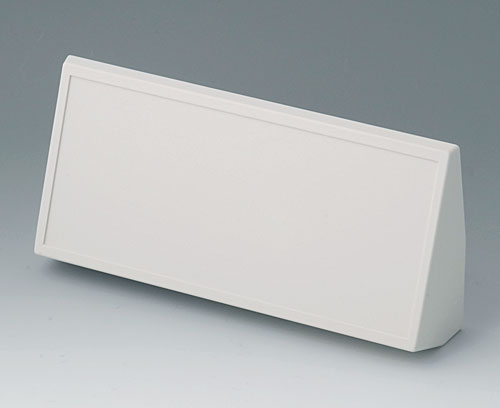

B3123177 Sloping control panel L, high/high

B3123177

Sloping control panel L, high/high Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

B3123177

Sloping control panel L, high/high
product added to your basket

off-white RAL 9002

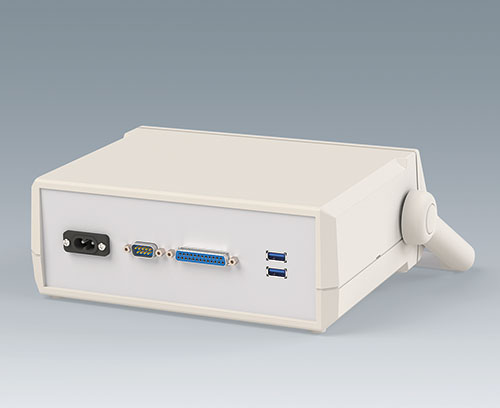

Customizing options for Motec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
