Solid-Box

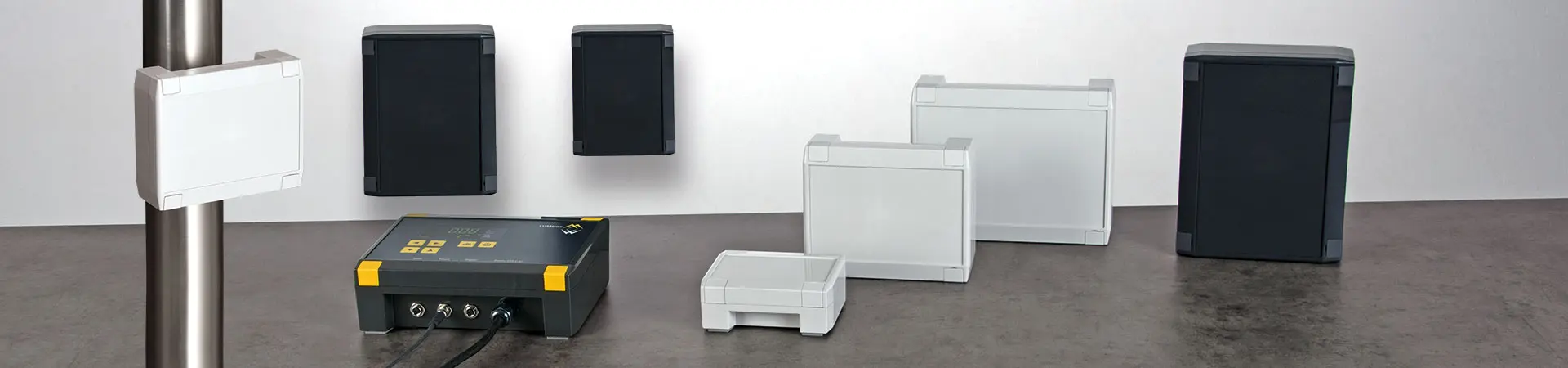

Elegant IP 66/IP 67 enclosure for industrial applications
Robust, waterproof and stylish – the new SOLID-BOX enclosure range satisfies all the requirements that a modern electronic/electrical housing must meet in industrial environments, as well as in protected outdoor areas.

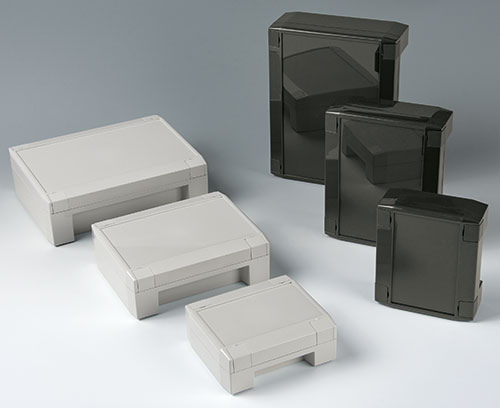

- 3 enclosure sizes in 2 standard colors

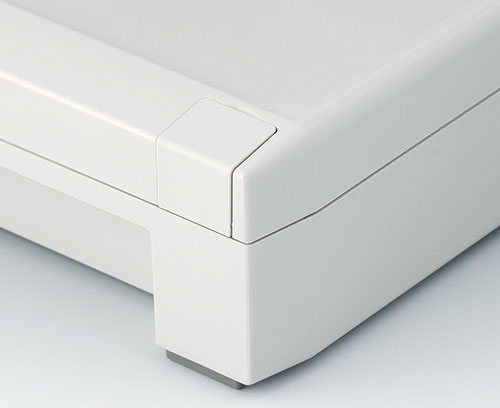

- convincing design thanks to the modern, highly polished enclosure surface snap-on design trims in the top panel conceal all the fixing screws

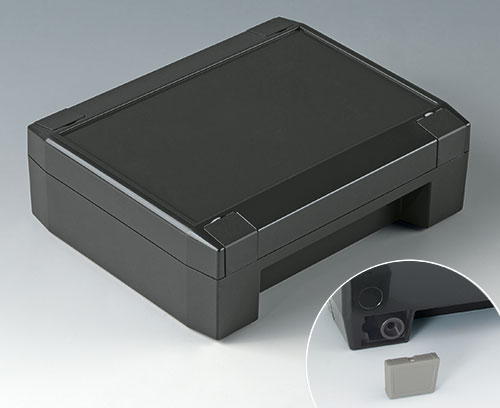

- can be used as desktop and wall-mounted enclosures

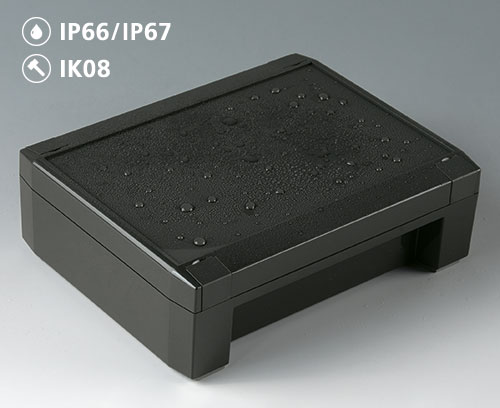

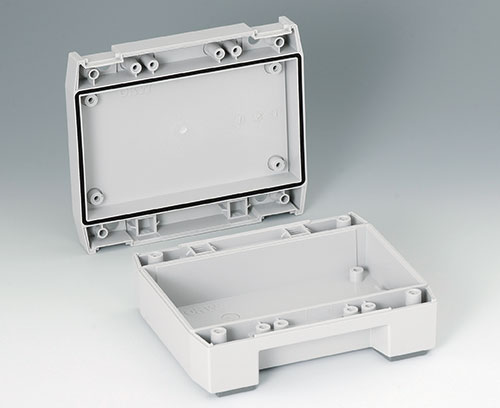

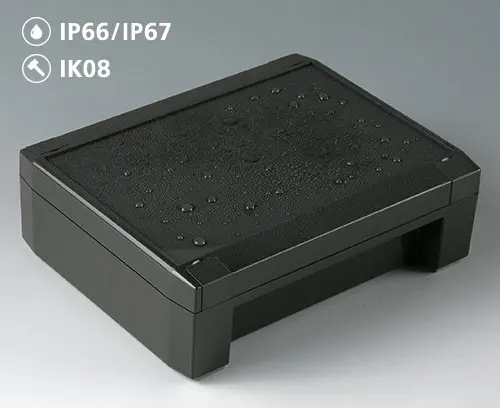

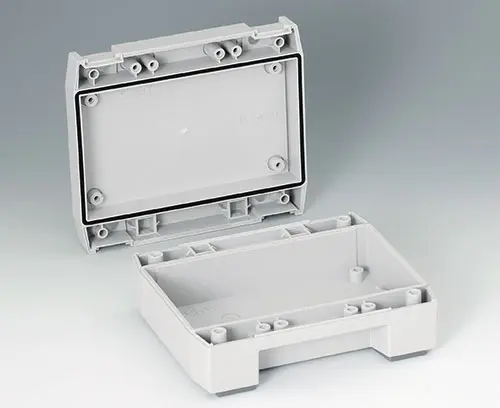

- high IP 66/67 protection class and IK 08 impact protection offer safety – even in harsh environments; the seal is pre-fitted in the top part
- excellent, flame-retardant V-0 rated material (1.50 mm) with increased heat distortion temperature (Vicat/B 120 = 110°C), chlorine- and bromine-free flame resistance

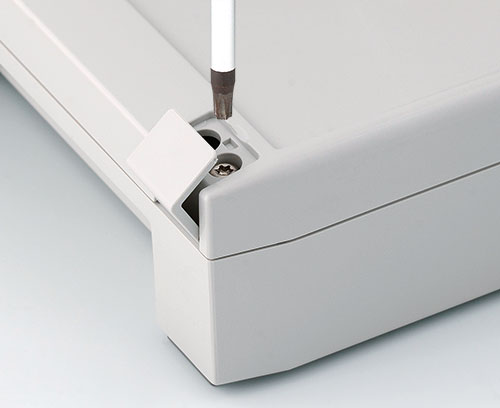

- enclosure assembly with rust-proof, captured Torx screws outside the sealed interior

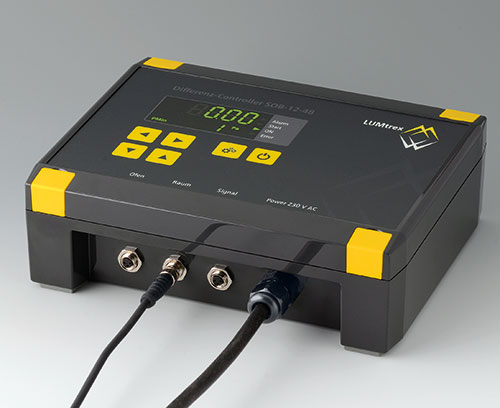

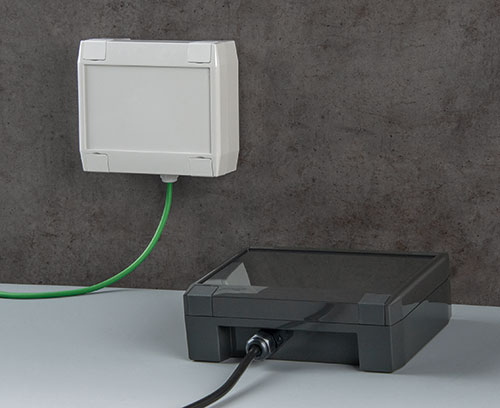

- 2 recessed areas in the bottom part for installation/protection of connectors, switches and other interfaces – easy and user-friendly to connect

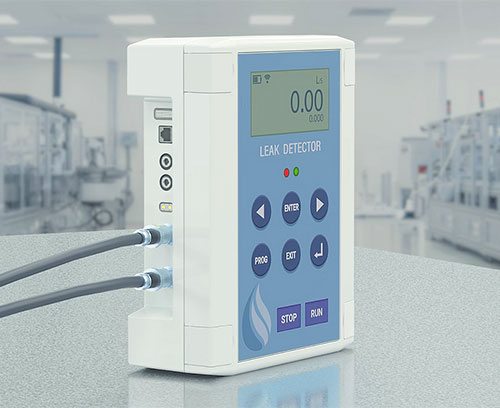

- recessed operating area in the top for flush fitting a membrane keypad or product label

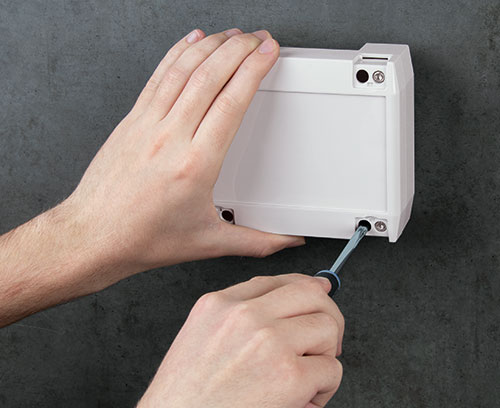

- screw channels under the design trims allow for direct, concealed wall mounting

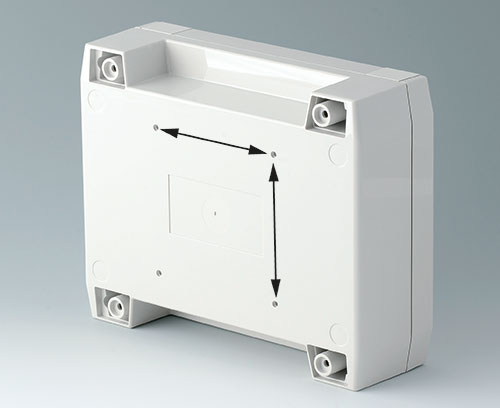

- mounting points on the rear of sizes 145 and 175 match the hole patterns of VESA MIS-D 75/100

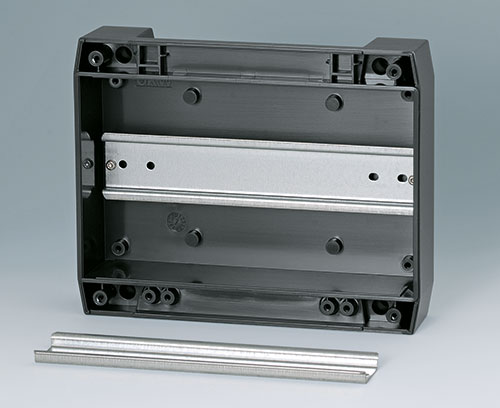

- integrated fastening pillars for PCBs, DIN rails and mounting plates
- accessory hinge set retains the top panel in situ during assembly and servicing
- enclosure feet kit (accessory) for non-slip positioning on a desktop
Special material

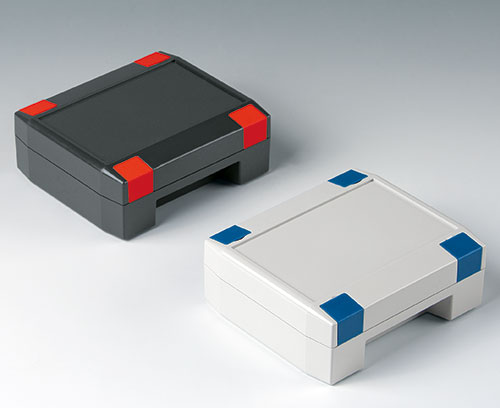

On request we can also custom mould many of our enclosures in special colors/materials to match your requirements exactly. For the new SOLID-BOX, for example, it would be possible to have the design trims injection-moulded in a different color to code the function or device series, or even to have the whole enclosure in your company color (minimum quantity and feasibility on request).
DESIGNER STATEMENT
“A SOLID-BOX delivers what its name promises. In this enclosure, watertight and particularly impact-resistant, your components can be placed stably and securely even in inhospitable environments, without visible screw connections or fasteners. And yet the design of the enclosures gives the robust construction an elegant lightness. The slightly sloping bevels surrounding the long sides and the interplay of light and shadow underline the quality of the product."
Martin Nussberger, polyform Industrie Design
Application Fields

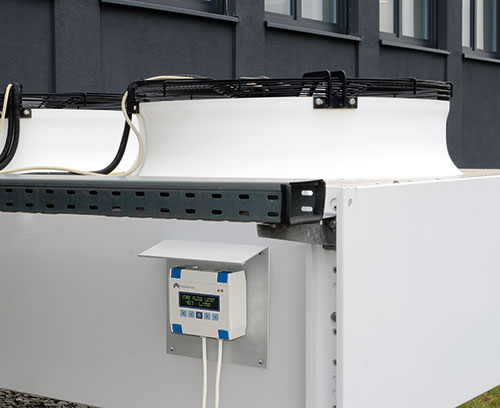

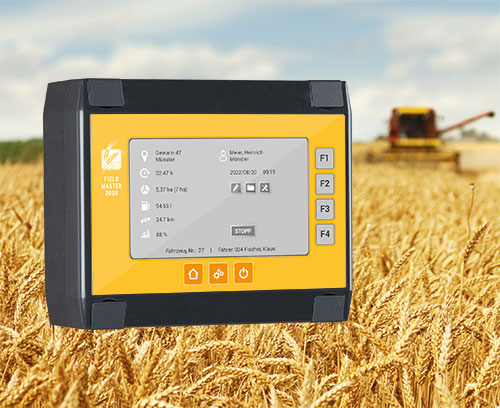

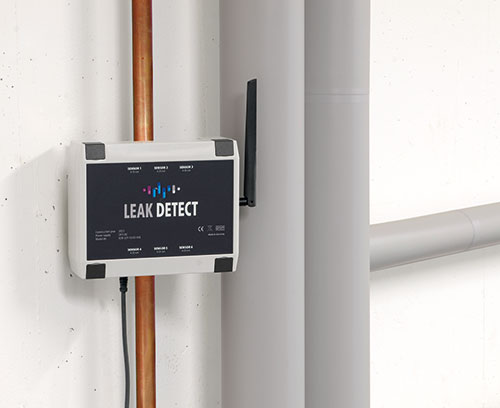

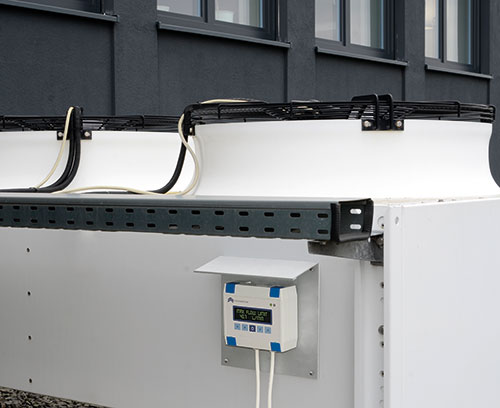

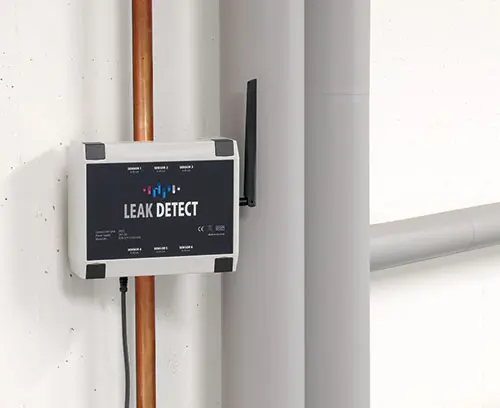

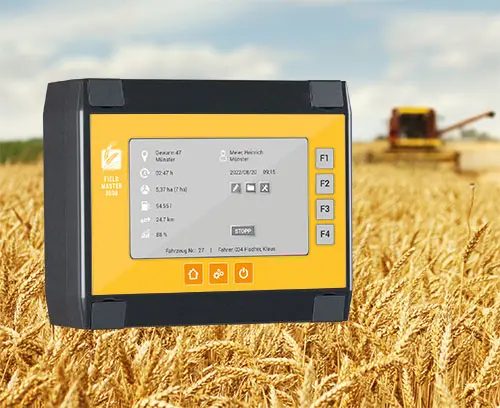

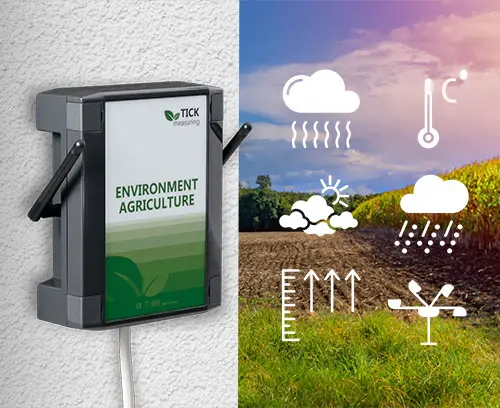

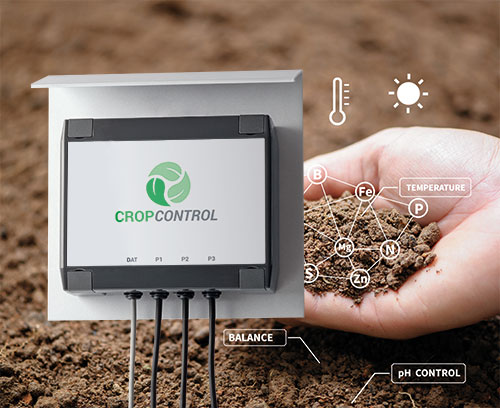

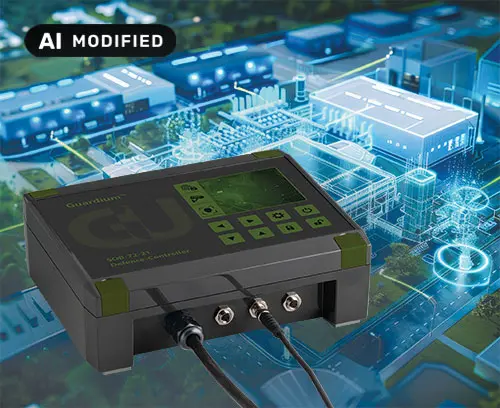

Ideal for high-quality electronic and electrical equipment which is used indoors or in protected outdoor areas, e.g. plant and machine construction, heating, air conditioning and ventilation technology, IoT/IIoT, smart factory/Industry 4.0, gateways, data loggers, information and communications technology (ICT), electrical installations, measuring and control technology, agriculture, farming, sensor systems and safety engineering.

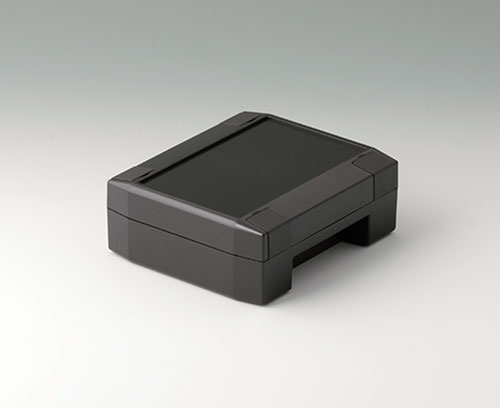

C8011131
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8011131
SOLID-BOX 115anthracite gray RAL 7016
5.31″x4.53″x1.97″
, ,
C8011132
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8011132

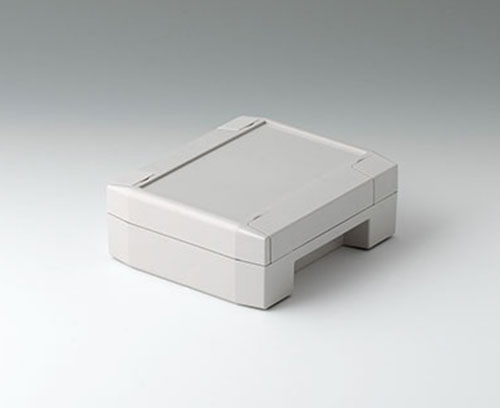

SOLID-BOX 115light gray RAL 7035
5.31″x4.53″x1.97″
, ,

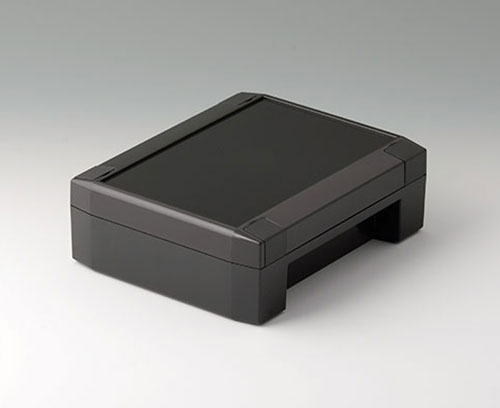

C8014181
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-molded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014181
SOLID-BOX 145anthracite gray RAL 7016
7.09″x5.71″x2.36″
, ,

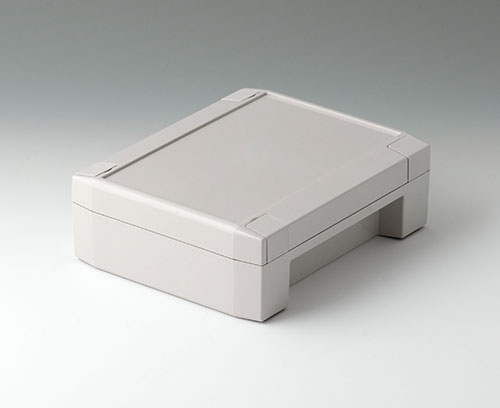

C8014182
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-molded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014182
SOLID-BOX 145light gray RAL 7035
7.09″x5.71″x2.36″
, ,
C8017221
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-molded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017221

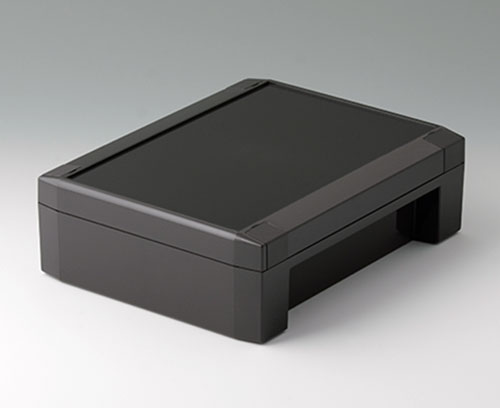

SOLID-BOX 175anthracite gray RAL 7016
8.86″x6.89″x2.76″
, ,

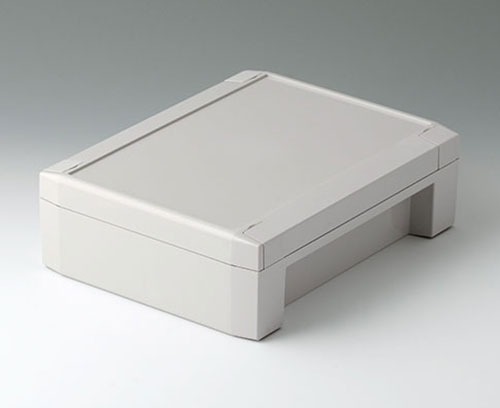

C8017222
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-molded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017222
SOLID-BOX 175light gray RAL 7035
8.86″x6.89″x2.76″
, ,
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 0.118" x 0.315" (T10)A9325018

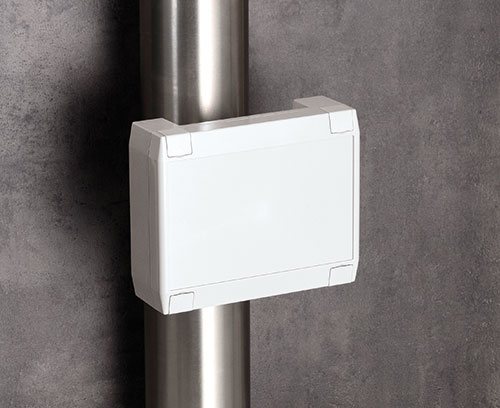

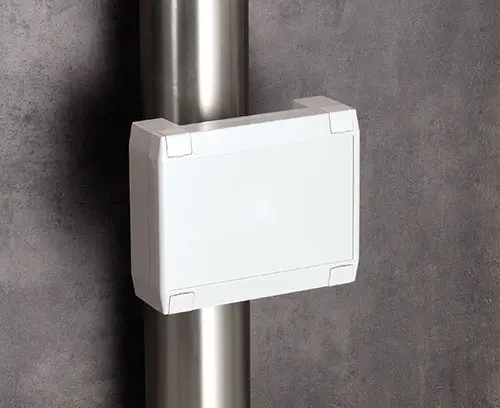

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketanthracite gray RAL 7016
3.94″x3.94″x0.79″

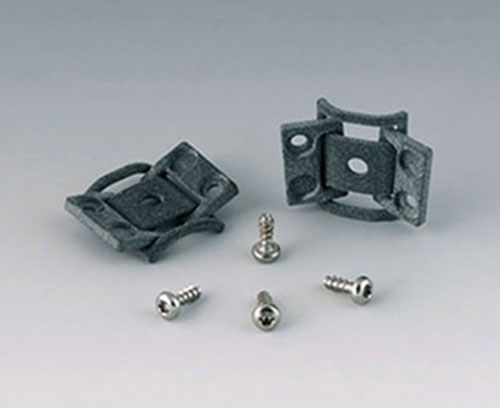

C2299031
Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 7.874" x 11.811" and 9.449" x 14.173".
Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.
Supply 2 securing hinges
C2299031
Securing hinge for the covernatural-colored

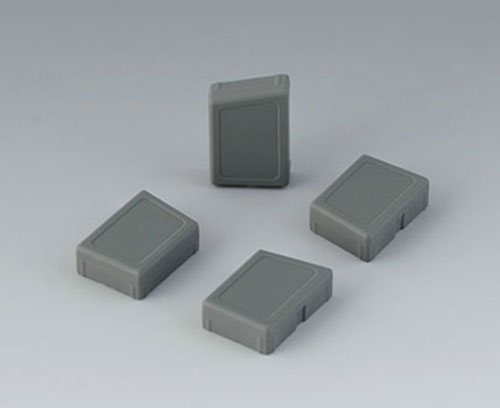

C8100188
Supply 4 enclosure feet
C8100188
Set of enclosure feetvolcano

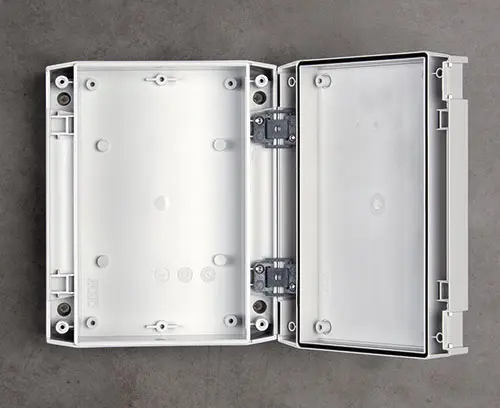

C8100360

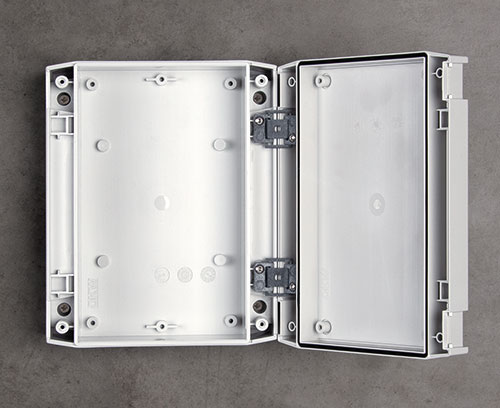

Easy installation in existing fastening pillars on the long sides of the bottom and top parts.
Supply 2 hinges, 4 screws
C8100360
Internal hinge setCustomizing options for Solid-Box
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
