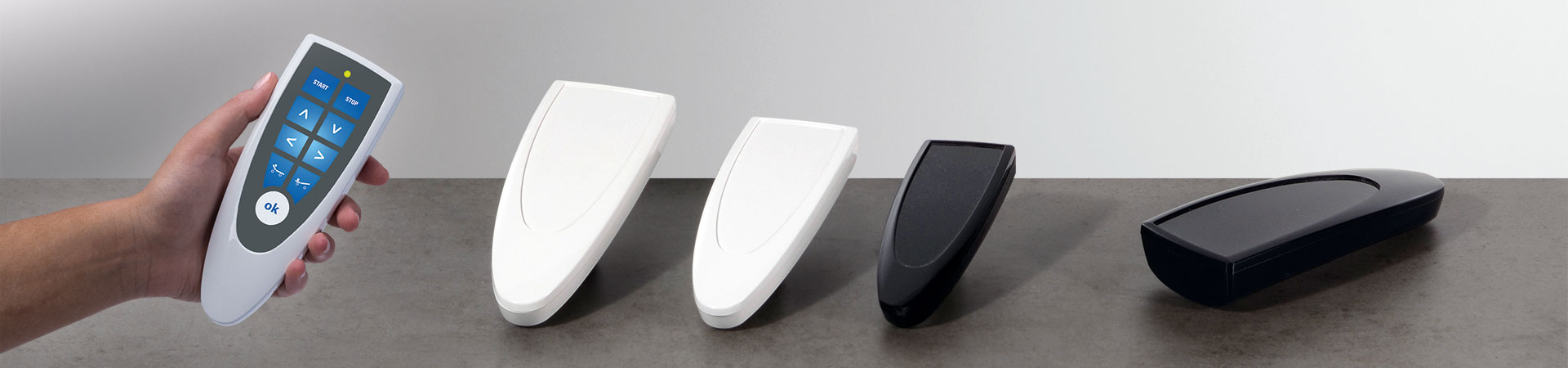

STYLE-CASE - highly polished and ergonomic handheld enclosures
Three sizes: S, M, LSTYLE-CASES fit snugly in the hand Contoured handheld enclosuresBattery compartment: 2 x 1.5 V AAA (S, M) and 2 x 1.5 V AA (L)STYLE-CASE also available in infra-red light-permeable PMMA plexiglasSealing kit to improve the IP protection class (accessory)Fastening pillars for PCB mountingRecessed operating area for a membrane keypadSpecial colours, printing and machining on demandHigh surface finish qualitySTYLE-CASE SSTYLE-CASE - highly polished and ergonomic handheld enclosures

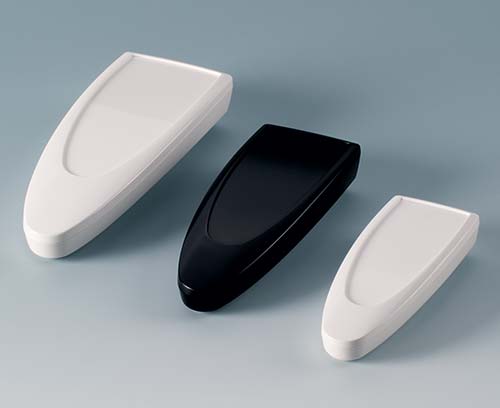

Three sizes: S, M, L

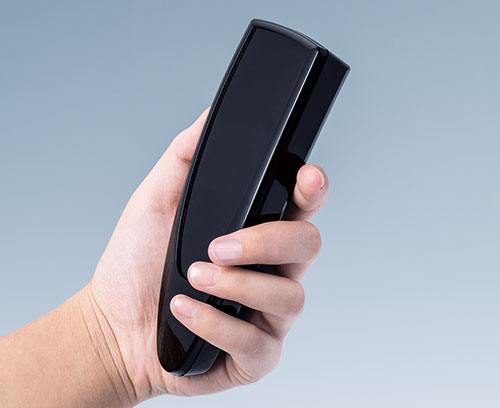

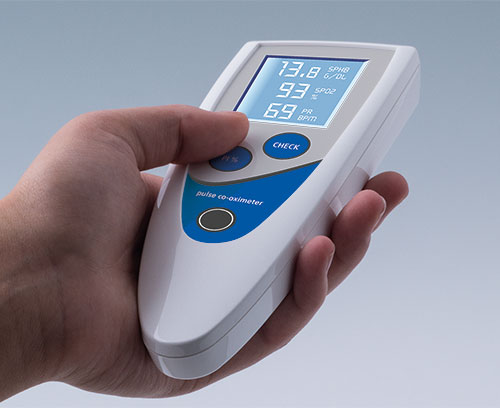

STYLE-CASES fit snugly in the hand
Contoured handheld enclosures

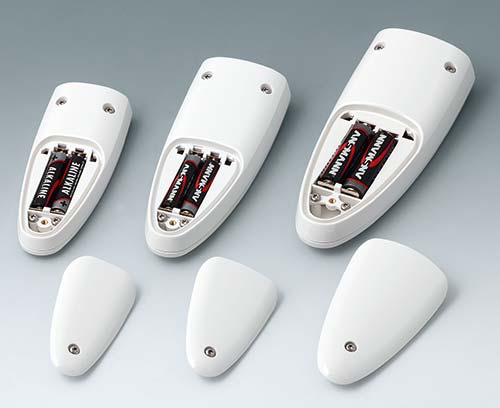

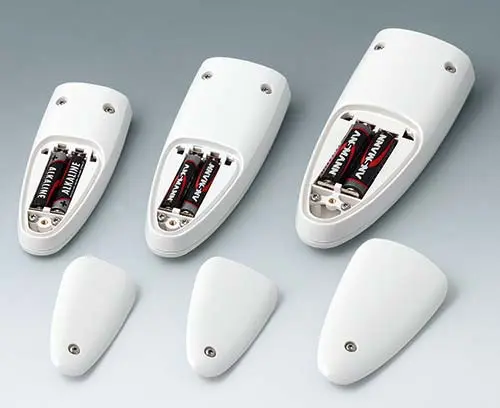

Battery compartment: 2 x 1.5 V AAA (S, M) and 2 x 1.5 V AA (L)

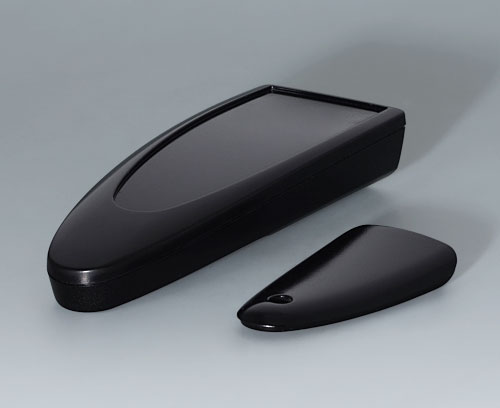

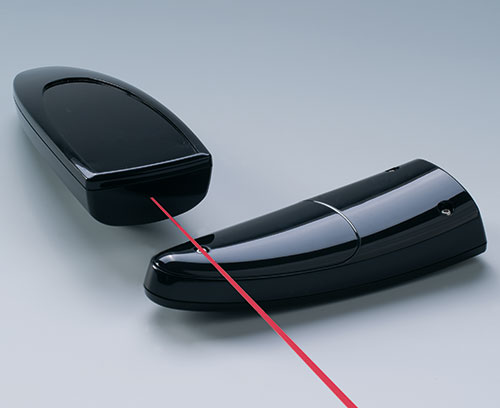

STYLE-CASE also available in infra-red light-permeable PMMA plexiglas

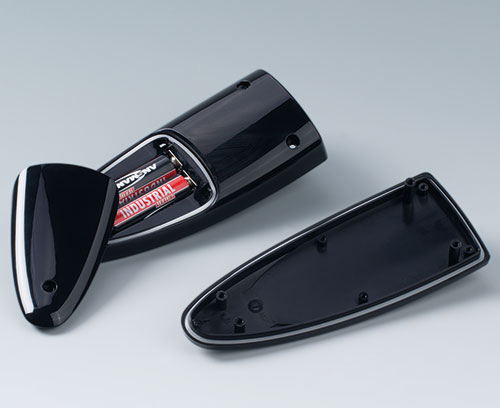

Sealing kit to improve the IP protection class (accessory)

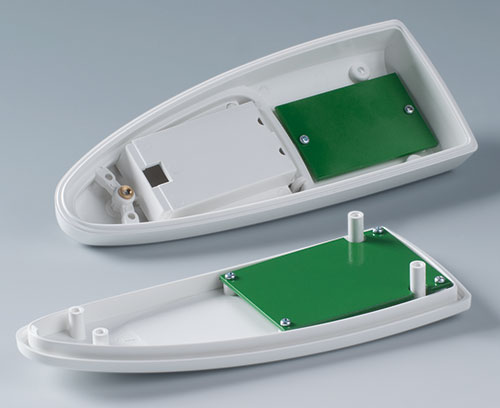

Fastening pillars for PCB mounting

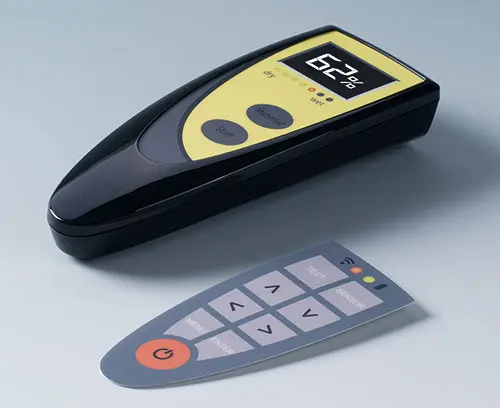

Recessed operating area for a membrane keypad

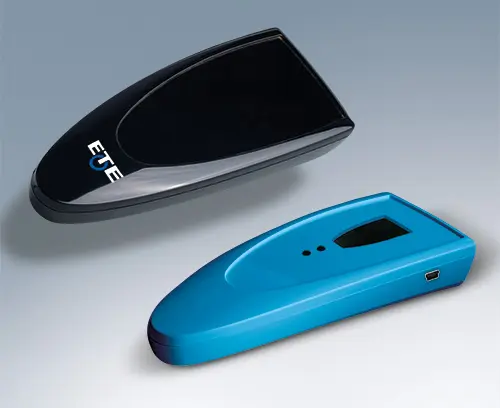

Special colours, printing and machining on demand

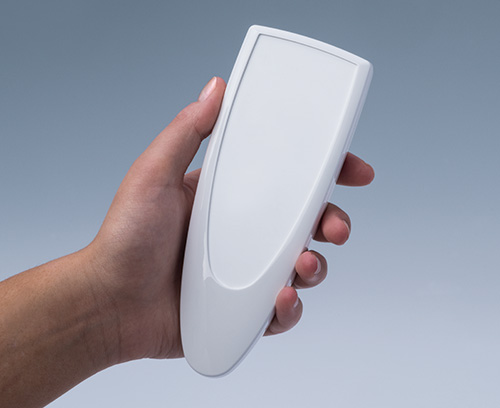

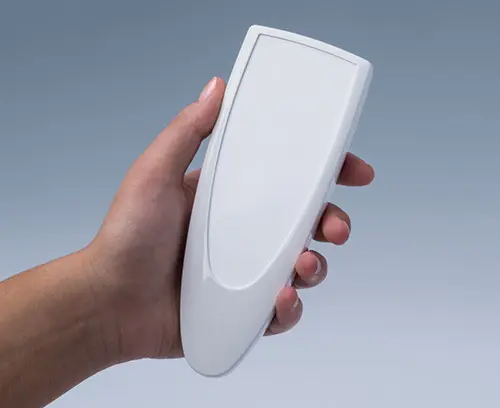

High surface finish quality

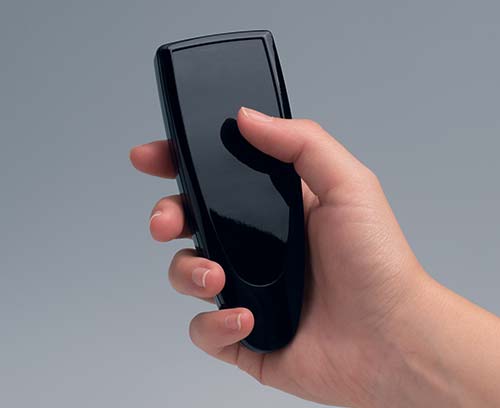

STYLE-CASE S
STYLE-CASE - highly polished and ergonomic handheld enclosures

Style-Case

Beautiful, highly polished and ergonomic handheld enclosures

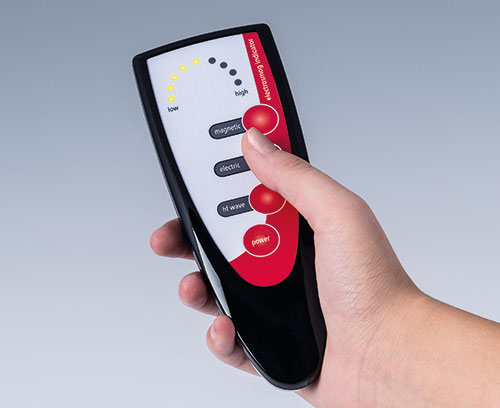

OKW presents the STYLE-CASE which has a high gloss surface finish, thus creating another design highlight for modern handheld control units. These elegant eye-catching plastic enclosures fit snugly in the hand and are easy and reliable to operate. The highly polished surface has a very pleasant feel which imparts a high quality and modern user experience.

  • high-quality ASA with high UV protection or in PMMA material permeable to infra-red light (Plexiglas)
  • glossy surface is easy to clean
  • robust, offers protection up to IP 65, sealing kit available as accessory
  • assembled by Torx drive stainless steel screws
  • recessed operating panel for protecting the membrane keypad / product label
  • integrated battery compartment: 2 x 1.5 V AAA (S, M) and 2 x 1.5 V AA (L), set of battery clips supplied as accessories
  • attachment pillars for PCBs and components, self-tapping screws for mounting the boards are available as accessories

Applications

Ideal for design-oriented hand control units. Many different types of remote control systems.
Specially made for the medical and social fields as well as in the household and in industry.

  • Video



  • Browse Full List
  • Catalog Documents
  • View Customizing Options
NEW PRODUCT
View

B2802016  Add to my list
STYLE-CASE S

PMMA (IR) (UL 94 HB)
black RAL 9005
4.84″x1.89″x0.94″
IP 40

B2802017  Add to my list
STYLE-CASE S

ASA (UL 94 HB)
traffic white RAL 9016
4.84″x1.89″x0.94″
IP 40

B2803016  Add to my list
STYLE-CASE M

PMMA (IR) (UL 94 HB)
black RAL 9005
5.79″x2.20″x1.06″
IP 40

B2803017  Add to my list
STYLE-CASE M

ASA (UL 94 HB)
traffic white RAL 9016
5.79″x2.20″x1.06″
IP 40

B2804016  Add to my list
STYLE-CASE L

PMMA (IR) (UL 94 HB)
black RAL 9005
6.54″x2.52″x1.22″
IP 65 opt., IP 40

B2804017  Add to my list
STYLE-CASE L

ASA (UL 94 HB)
traffic white RAL 9016
6.54″x2.52″x1.22″
IP 65 opt., IP 40

Accessory "battery"

A9190020  Add to my list
Set of battery clips

Steel
nickel-plated

B2904210  Add to my list
Set of battery clips

Steel
nickel-plated

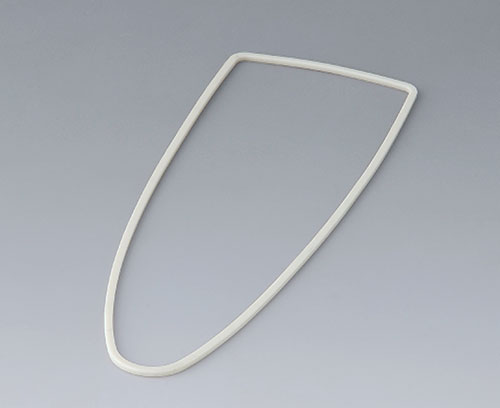

Accessory "protection"

B2902111  Add to my list
Sealing kit S

TPV 50A

B2903111  Add to my list
Sealing kit M

TPV 50A

B2904111  Add to my list
Sealing kit L

TPV 50A

Accessory "screws"

A0304031  Add to my list
Self-tapping screws 0.087" x 0.197" (PZ1)

A0399T10  Add to my list
Torx T10 screwdriver

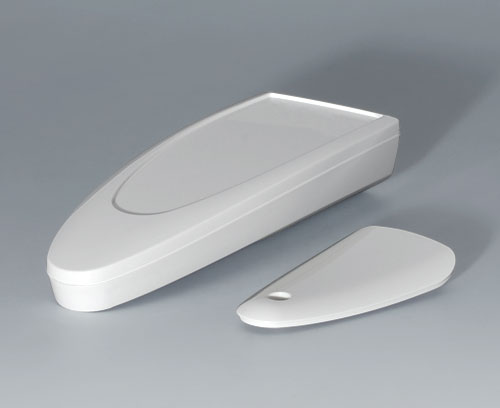

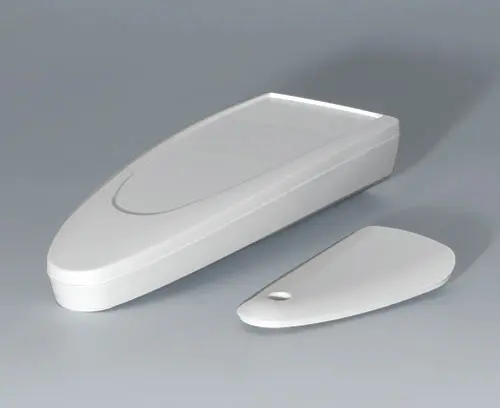

B2803017

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

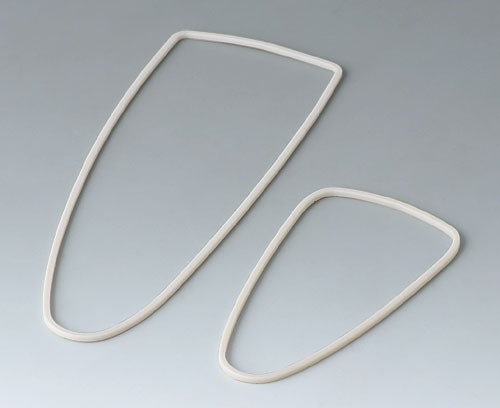

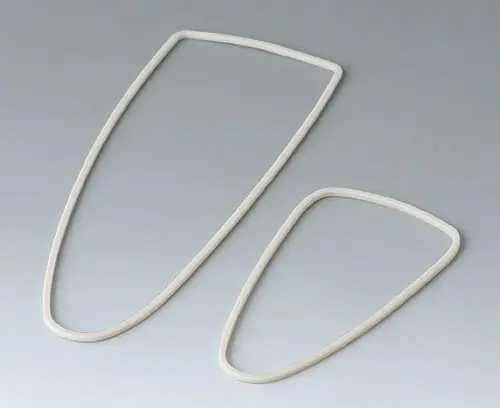

B2904111

To improve the IP protection class.

Supply
2 sealings kit (enclosure, battery compartment)

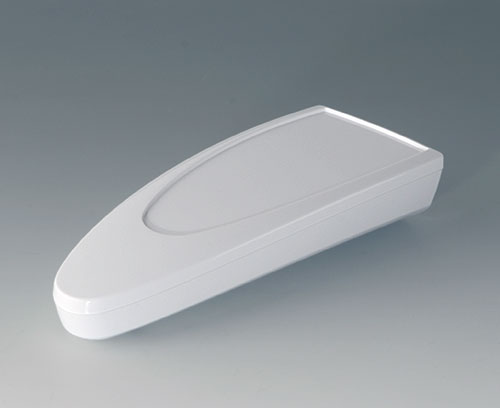

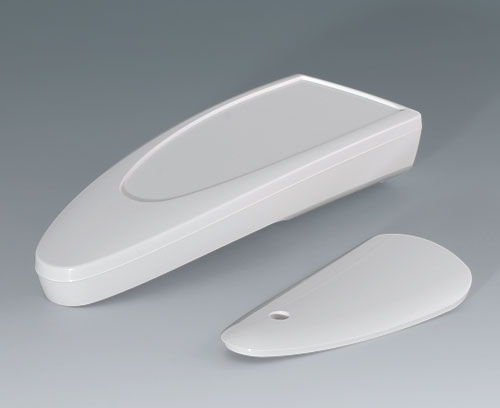

B2804017

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

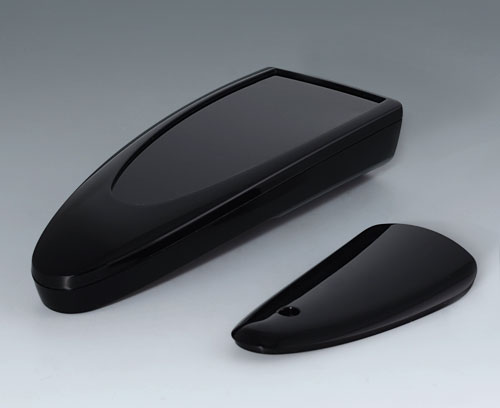

B2804016

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

A0304031

Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply
1 self-tapping screw

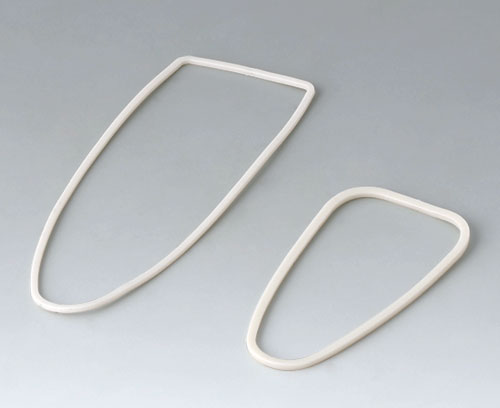

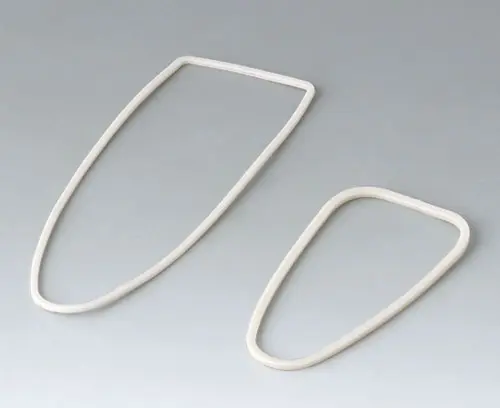

B2902111

To improve the IP protection class.

Supply
2 sealings kit (enclosure, battery compartment)

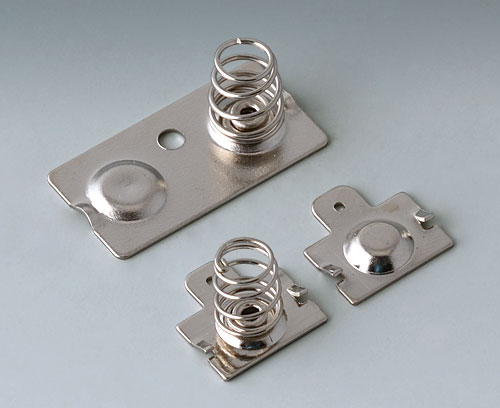

B2904210

For contacting 2 AA batteries.

Supply
1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

A0399T10

Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply
1 screwdriver

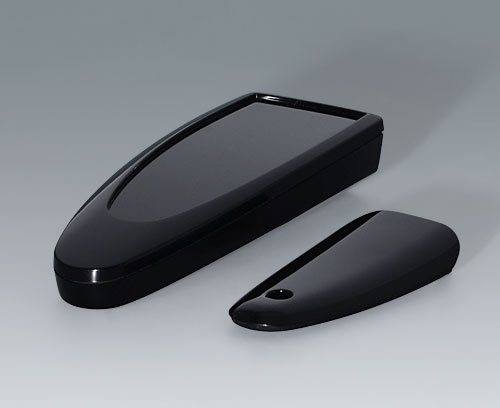

B2802016

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

B2803016

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

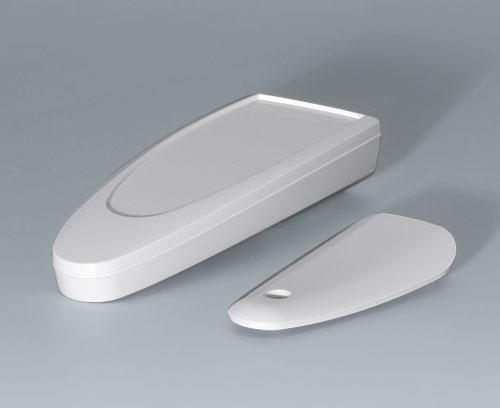

B2802017

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply
Top and bottom part, battery compartment lid, assembly kit

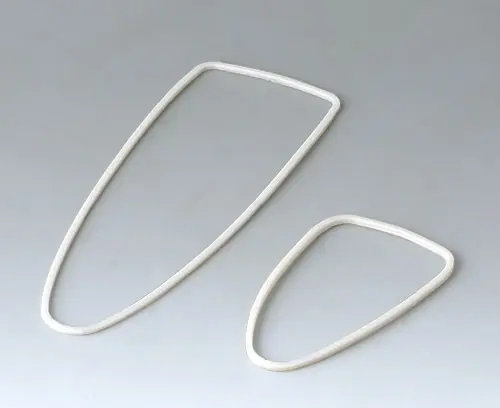

B2903111

To improve the IP protection class.

Supply
2 sealings kit (enclosure, battery compartment)

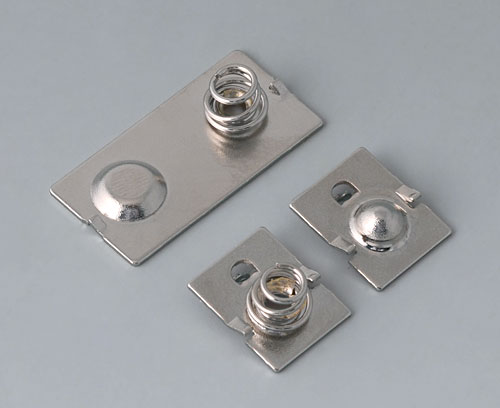

A9190020

For contacting 2 AAA batteries.

Supply
1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
