B4418207 PROTEC 180, Vers. II

B4418207

PROTEC 180, Vers. II

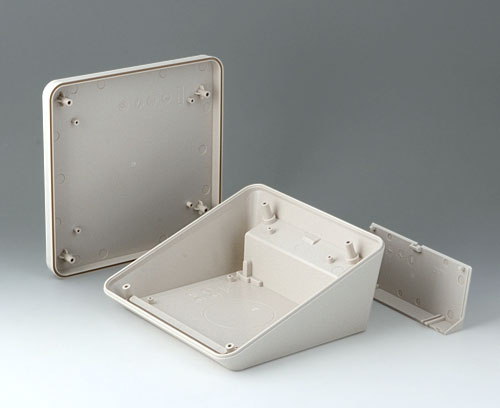

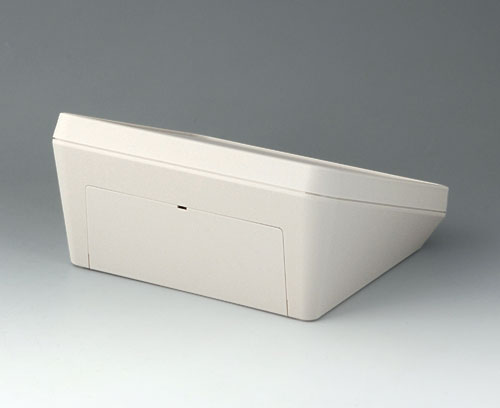

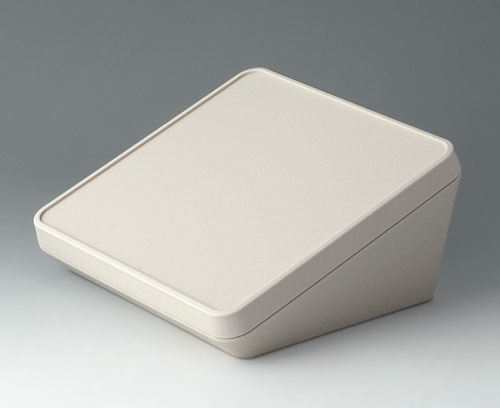

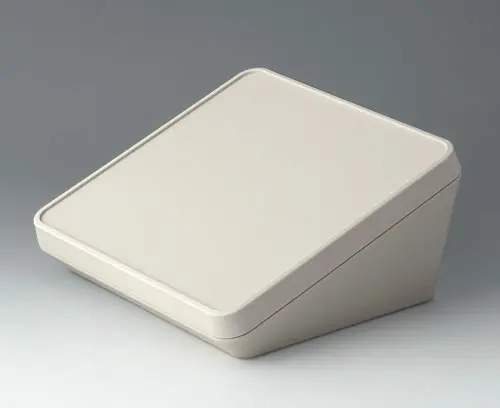

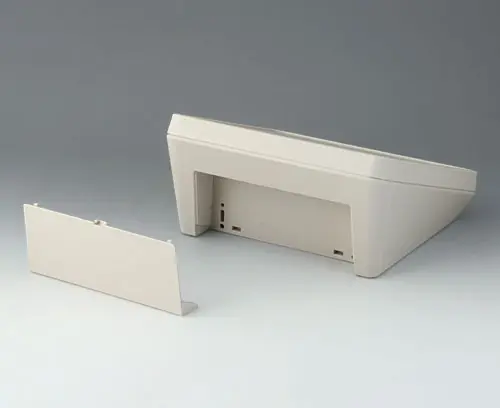

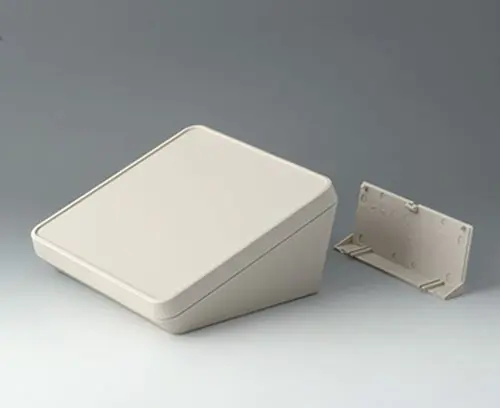

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply

Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

  • Components/Accessories
  • View Customizing Options

Accessory "protection"

B4518030 Sealing 180

B4518030

Sealing 180

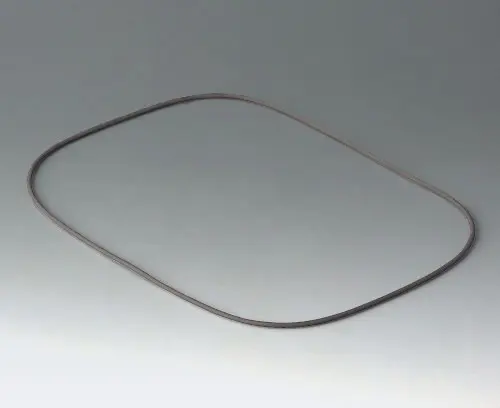

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4518030

Sealing 180

Accessory "wall/holder"

B4518101 Wall suspension element 180

B4518101

Wall suspension element 180

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Close

B4518101

Wall suspension element 180 Steel
galvanized

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

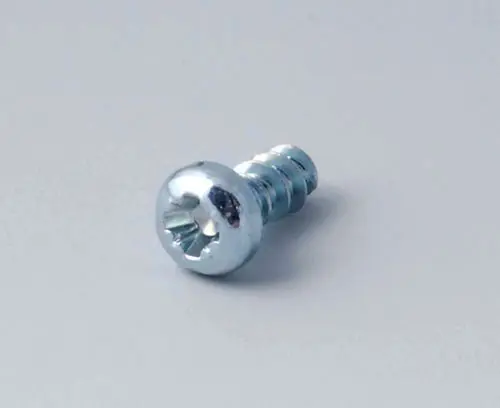

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver

Customizing options for B4418207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
7.087″
180 mm
Depth
7.087″
180 mm
Height
3.622″
92 mm
PCB length, base
4.016″
102 mm
PCB width, base
5.906″
150 mm
PCB length, top
6.535″
166 mm
PCB width, top
6.535″
166 mm
Keypad length
6.685″
169.8 mm
Keypad width
6.685″
169.8 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
350 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
