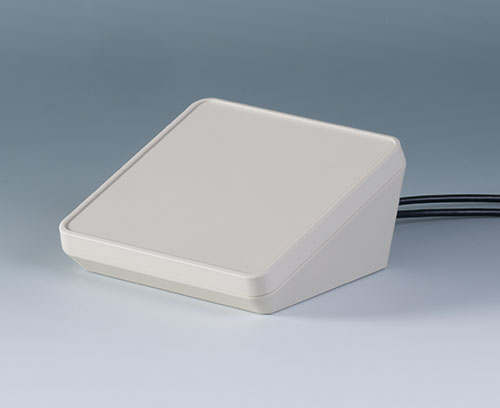

Hidden plugs at the rear

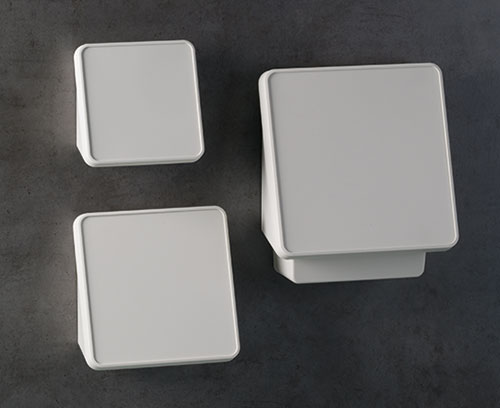

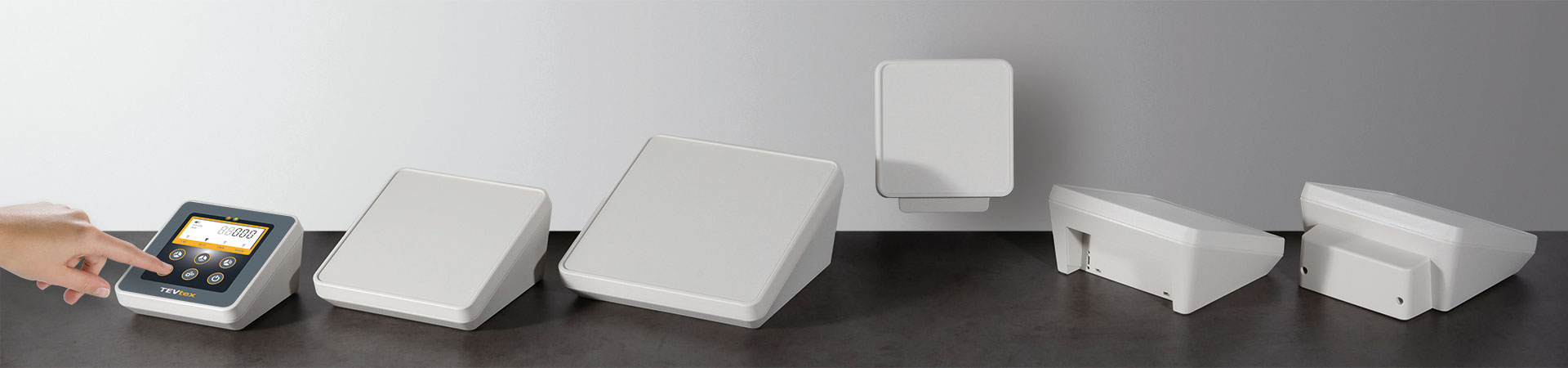

Three sizes

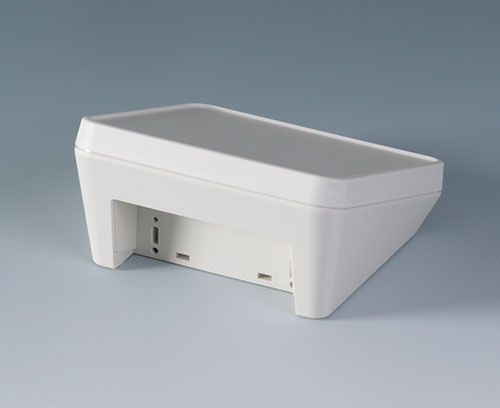

Version I - with recessed interface area

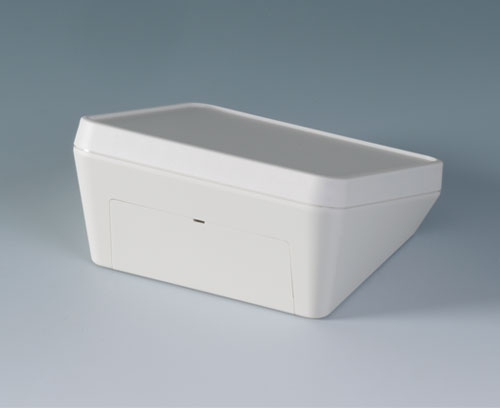

Version II - with a snap-on cover for flush covering of the recessed interface area

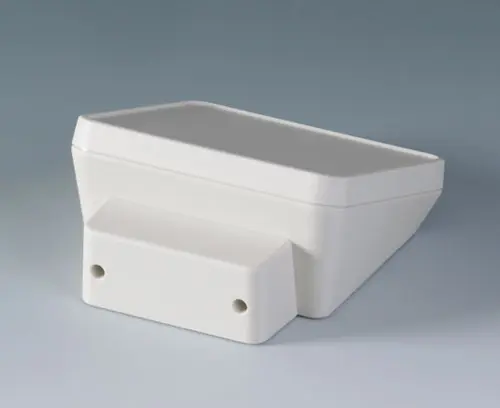

Version III - with a deep cover for the recessed interface area

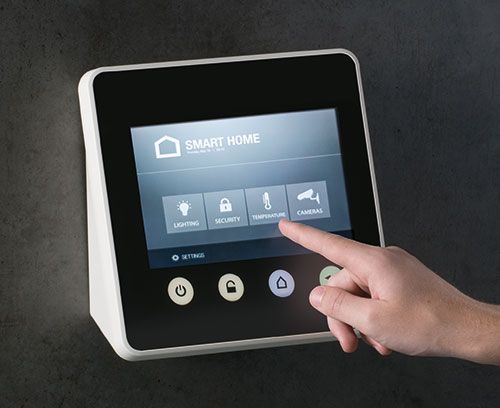

Application example: wall-mounted enclosure with touchscreen

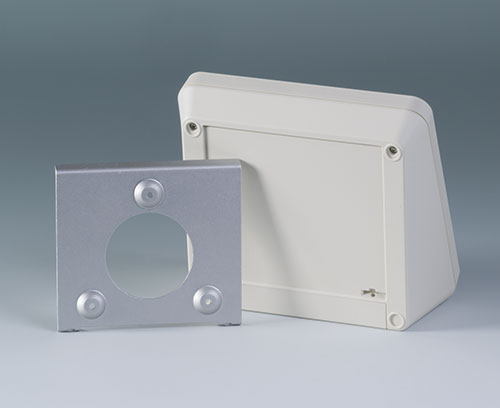

With wall suspension element (accessories)

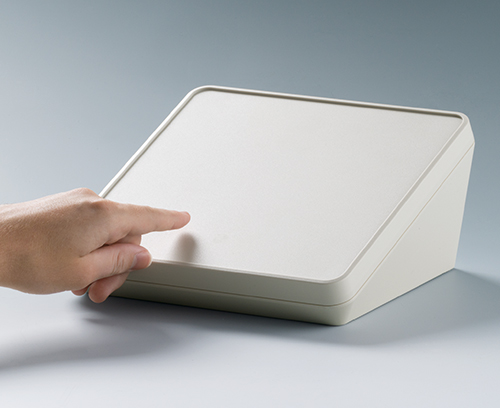

Ergonomic operation

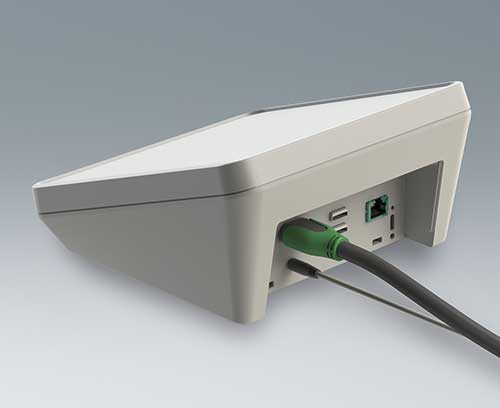

Raised connector mounting panel

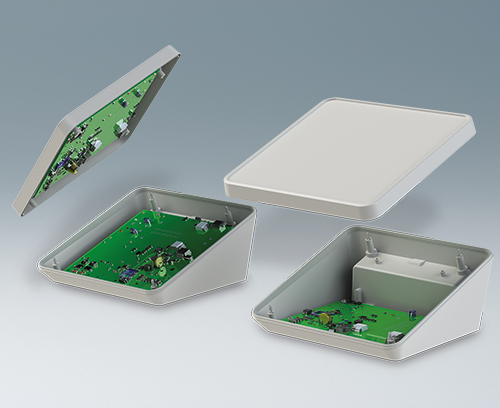

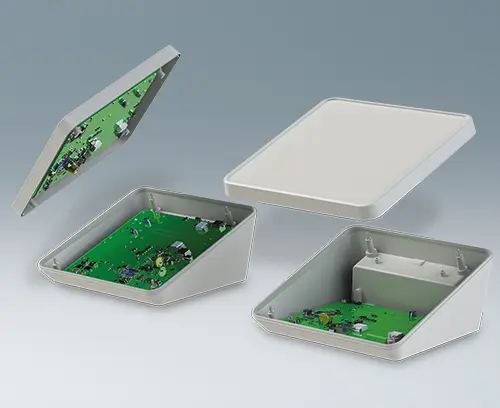

Fastening pillars for PCB mounting

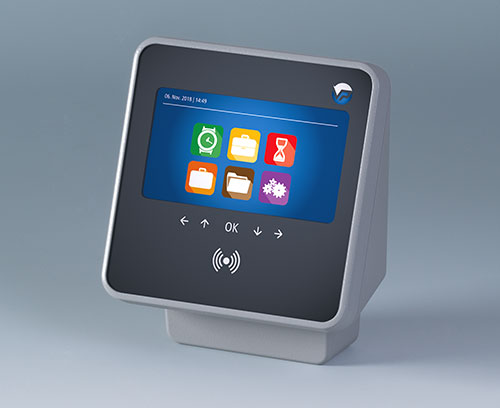

Recessed top for a membrane keypad

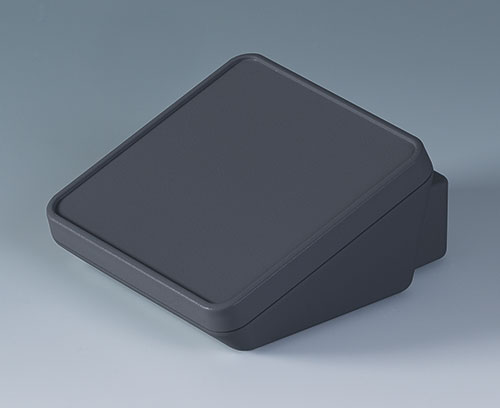

Special colors on demand

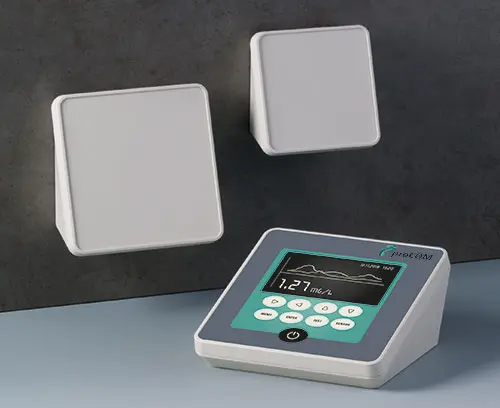

Ergonomic shape, ideal for desktop and wall-mounted applications

Protec

Square control center

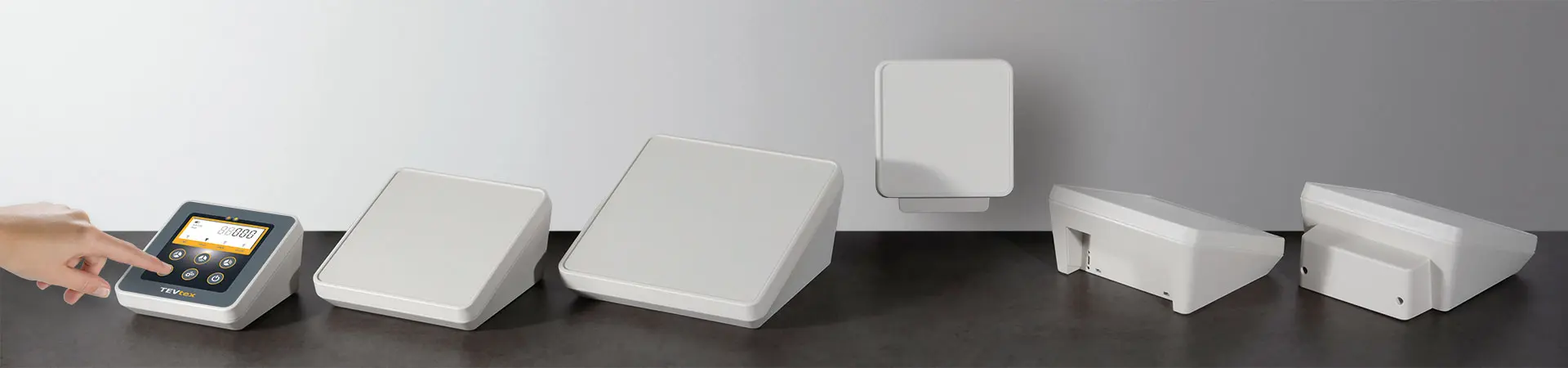

PROTEC enclosures have a modern and highly attractive square design with soft contours. As a result, these wall-mount and desktop housings are ideal for modern electronics applications, both indoors and outdoors.

  • three sizes 140 / 180 / 220, each in the following versions:
    Version I
    With a deep recessed interface area at the rear of the enclosure for the installation and protection of connectors, interfaces, switches and cables.
    Version II
    As version I, but also with a snap-on cover for flush covering of the recessed interface area.
    Version III
    As version I, but with a deep cover for the recessed interface area which is fitted by screws. The deep cover provides additional internal space for the electronics, cabling and connections.
  • front operating panel ergonomically inclined by 20°
  • recessed operating area for protecting a membrane keypad
  • plenty of space for touch screens (PROTEC 140: 5.7"/14.5 cm, PROTEC 180: 7"/17.8 cm, PROTEC 220: 8.4"/21.3 cm)
  • no visible fixings screws, all fixings hidden on the underside
  • high-quality V-0 material in off-white (RAL 9002) for tough applications
  • sealed electronics compartment with 3 board levels; plenty of space for the components and assemblies
  • concealed, flush wall mounting with removal prevention feature (accessory wall suspension element)
  • corrosion-free stainless steel screws with reliable Torx heads
  • non-slip rubber feet ensure that desktop devices do not skid

Applications

  • Surveillance systems, access and security control
  • Data acquisition systems
  • Building services systems, central control units
  • IoT/IIoT
  • Smart factory
  • Industry 4.0
  • Gateways
  • Data systems engineering
  • Measuring and control technology
  • Medical technology, health care

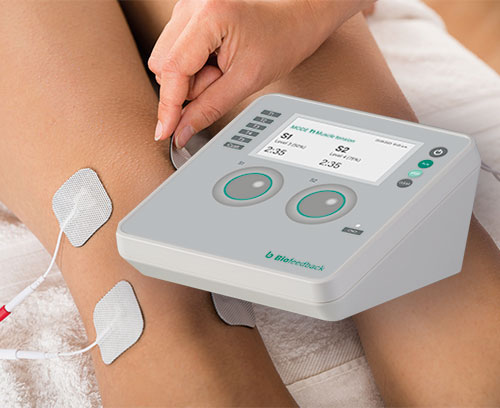

  • Application Examples

  • Browse Full List
  • View Customizing Options
NEW PRODUCT
View

B4414107  Add to my list
PROTEC 140, Vers. I

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
5.51″x5.51″x2.99″

B4414207  Add to my list
PROTEC 140, Vers. II

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
5.51″x5.51″x2.99″

B4414307  Add to my list
PROTEC 140, Vers. III

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
5.51″x6.30″x2.99″

B4418107  Add to my list
PROTEC 180, Vers. I

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
7.09″x7.09″x3.62″

B4418207  Add to my list
PROTEC 180, Vers. II

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
7.09″x7.09″x3.62″

B4418307  Add to my list
PROTEC 180, Vers. III

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
7.09″x7.91″x3.62″

B4422107  Add to my list
PROTEC 220, Vers. I

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x8.66″x4.25″

B4422207  Add to my list
PROTEC 220, Vers. II

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x8.66″x4.25″

B4422307  Add to my list
PROTEC 220, Vers. III

ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x9.57″x4.25″

Accessory "protection"

B4514030  Add to my list
Sealing kit 140

B4518030  Add to my list
Sealing kit 180

B4522030  Add to my list
Sealing kit 220

Accessory "wall/holder"

B4514101  Add to my list
Wall suspension element 140

Steel
galvanized

B4518101  Add to my list
Wall suspension element 180

Steel
galvanized

B4522101  Add to my list
Wall suspension element 220

Steel
galvanized

Accessory "screws"

A0305031  Add to my list
Self-tapping screws 0.098" x 0.236" (PZ1)

A0399T10  Add to my list
Torx T10 screwdriver

B4422307

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

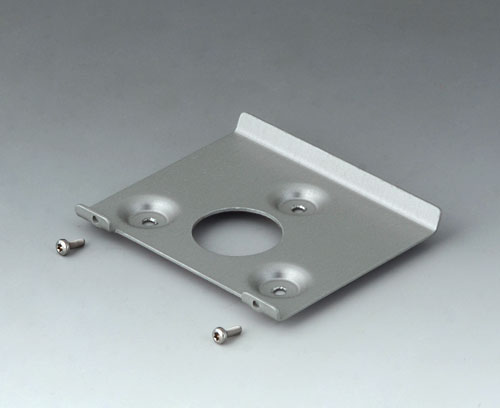

B4514101

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply
1 wall suspension element and 2 screws

B4418207

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

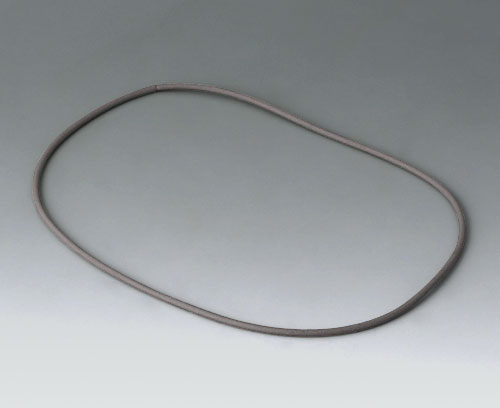

B4514030

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply
1 seal

B4414107

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

B4414307

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

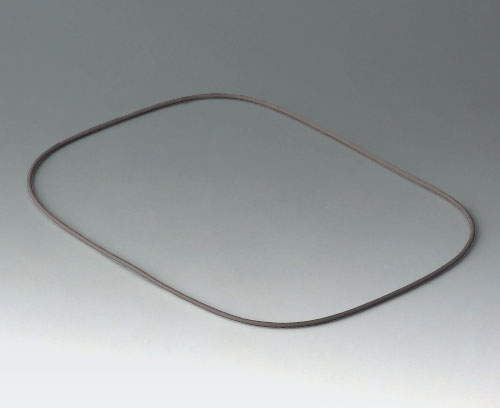

B4518030

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply
1 seal

B4418307

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

B4414207

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

B4422107

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

A0399T10

Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply
1 screwdriver

B4422207

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

B4518101

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply
1 wall suspension element and 2 screws

B4418107

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply
Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

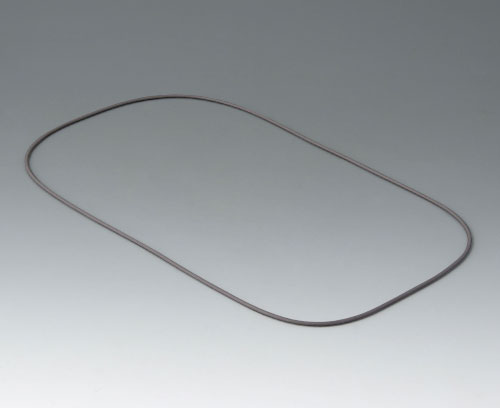

B4522030

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply
1 seal

A0305031

Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply
1 self-tapping screw

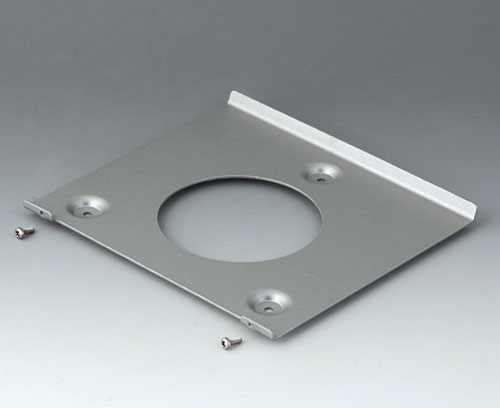

B4522101

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply
1 wall suspension element and 2 screws
