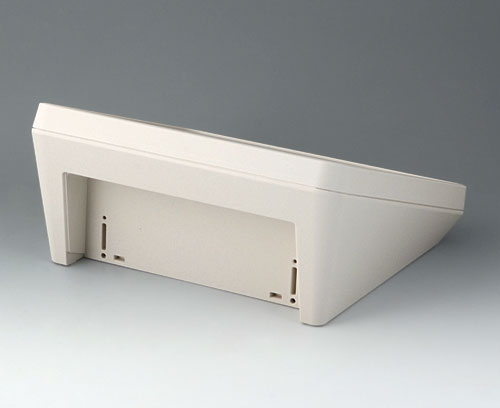

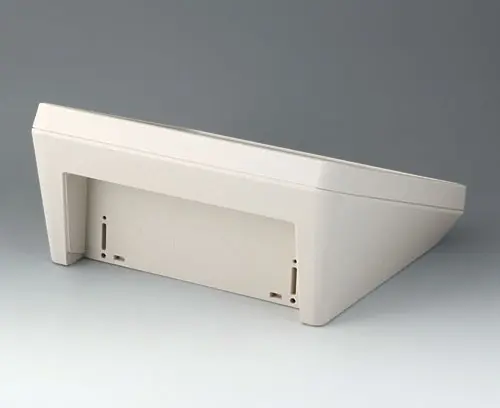

PROTEC 220, Vers. I

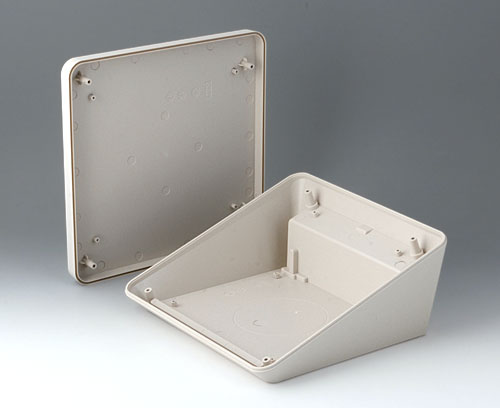

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, assembly kit including 4 self-adhesive rubber feet
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B4422107
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B4522030
Sealing 220
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220product added to your basket
Accessory "wall/holder"
B4522101
Wall suspension element 220
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4522101
Wall suspension element 220product added to your basket
Accessory "screws"
A0305031
Self-tapping screws 0.098" x 0.236" (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 0.098" x 0.236" (PZ1)product added to your basket
A0325060
Self-tapping screw 0.098" x 0.236" (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 0.098" x 0.236" (T8)product added to your basket
Customizing options for B4422107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Application Examples
- Purchasing Data
Material
Protection class
Necessary accessories: sealing
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
8.661″
220 mm
Depth
8.661″
220 mm
Height
4.252″
108 mm
PCB length, base
5.394″
137 mm
PCB width, base
7.244″
184 mm
PCB length, top
8.110″
206 mm
PCB width, top
8.110″
206 mm
Keypad length
8.220″
208.8 mm
Keypad width
8.220″
208.8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 293 KB
- AutoCAD DWG-File 1,068 KB
- AutoCAD DXF-File 3,795 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 536 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00023915.x_t 4,202 KB
- 00023915.STEP 10,756 KB
- 00023915.SAT 10,797 KB
Weight/1 part
466 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
