B4522101 Wall suspension element 220

B4522101

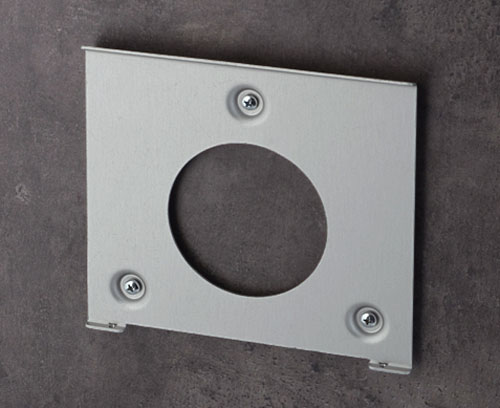

Wall suspension element 220

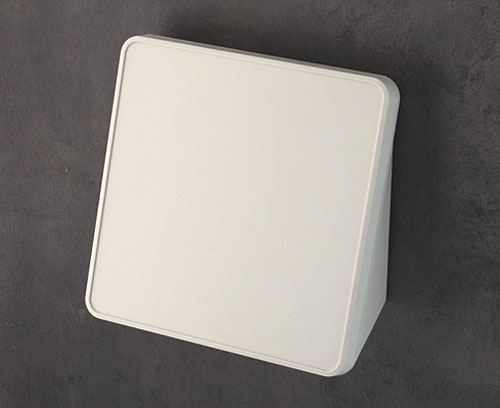

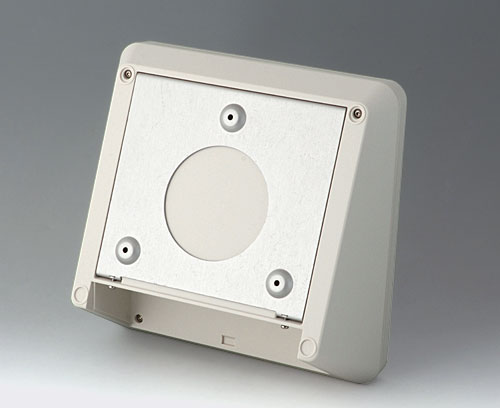

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply

1 wall suspension element and 2 screws

  • To be used for
B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Close

B4422107

PROTEC 220, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x8.66″x4.25″
B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Close

B4422207

PROTEC 220, Vers. II ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x8.66″x4.25″
B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Close

B4422307

PROTEC 220, Vers. III ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
8.66″x9.57″x4.25″
  • Technical Data
  • Purchasing Data
Material
Color
galvanized
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
86 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
