B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II

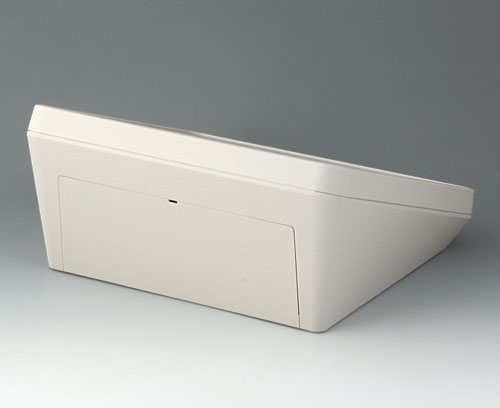

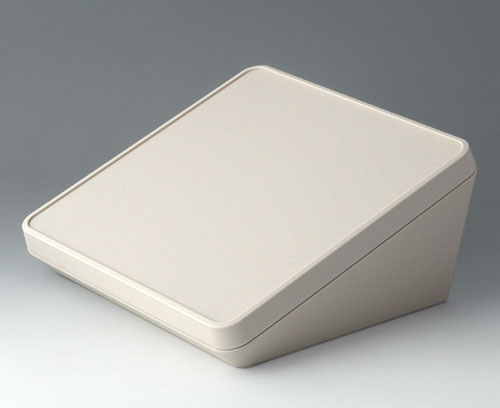

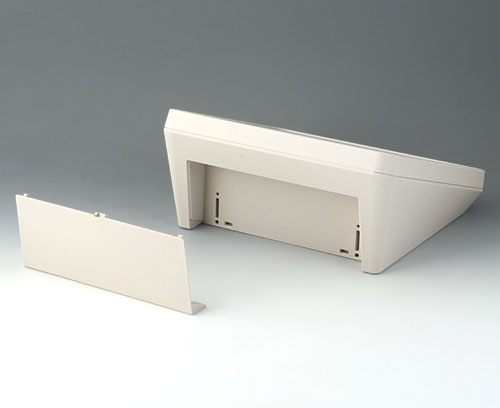

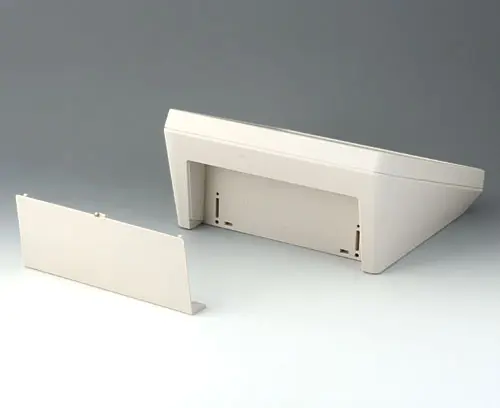

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply

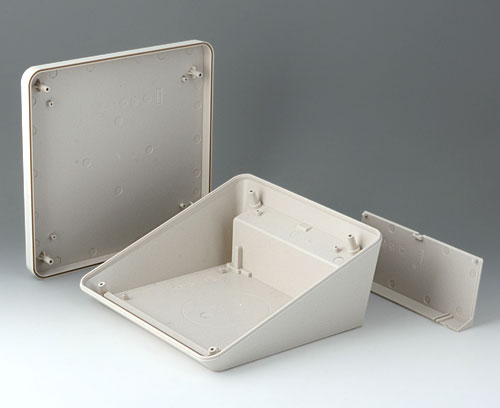

Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

  • Components/Accessories
  • View Customizing Options

Accessory "protection"

B4522030 Sealing 220

B4522030

Sealing 220

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4522030

Sealing 220

Accessory "wall/holder"

B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

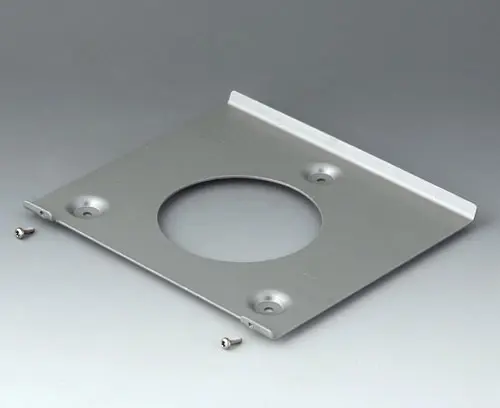

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Close

B4522101

Wall suspension element 220 Steel
galvanized

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver

Customizing options for B4422207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
8.661″
220 mm
Depth
8.661″
220 mm
Height
4.252″
108 mm
PCB length, base
5.394″
137 mm
PCB width, base
7.244″
184 mm
PCB length, top
8.110″
206 mm
PCB width, top
8.110″
206 mm
Keypad length
8.220″
208.8 mm
Keypad width
8.220″
208.8 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
513 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
