Accessories for enclosures
B6724444
RAILTEC SUP. 107, end section
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply1 end section
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6724444
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B6724440

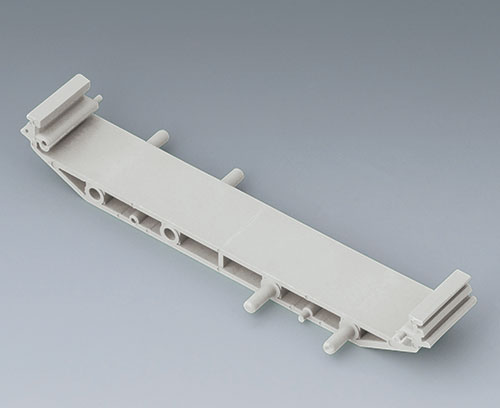

RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724440
RAILTEC SUP. 107, intermediate partproduct added to your basket
light gray
4.65″x0.73″x0.69″
B6724441
RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724441
RAILTEC SUP. 107, intermediate partproduct added to your basket
light gray
4.65″x1.38″x0.69″
B6724442
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724442
RAILTEC SUP. 107, intermediate p. + footproduct added to your basket
light gray
4.65″x0.73″x1.08″
B6724443
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724443
RAILTEC SUP. 107, intermediate p. + footproduct added to your basket
light gray
4.65″x1.38″x1.08″
Accessory "wall/holder"
B6824542
Wall suspension element for SUP. 107
Allows direct wall mounting, suitable for end section.
Supply 2 pieces as set
B6824542
Wall suspension element for SUP. 107product added to your basket
light gray
Customizing options for B6724444
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Length
4.646″
118 mm
Width
0.453″
11.5 mm
Height
0.689″
17.5 mm
PCB length, base
4.213″
107 mm
PCB width, base
0.394″
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 163 KB
- AutoCAD DWG-File 332 KB
- AutoCAD DXF-File 920 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 34 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006810.x_t 183 KB
- 00006810.STEP 426 KB
- 00006810.SAT 302 KB
Weight/1 part
14 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B6724444 and don't forget to request a quotation!
