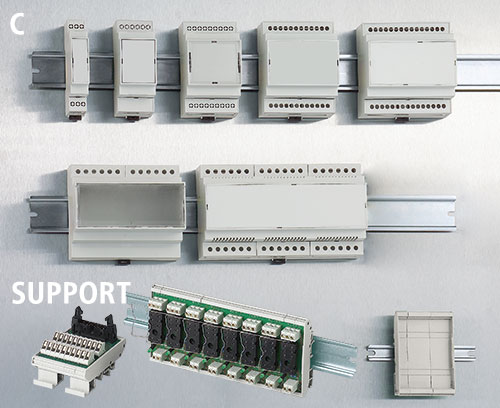

Railtec C

Modular DIN Rail Enclosures and PCB Holders

Extensive range of DIN rail cases for mounting to standard DIN EN 60715 rails, or for panel mounting. Also, open DIN rail PCB supports/holders for individual component mounting and simple replacement of the interfaces.

• all types designed for fast installation of PCBs and terminals
• outstanding material properties for tough conditions, with high temperature stability (UL 94 V-0)
• easy and fast assembly with snap-in installation of the enclosure parts

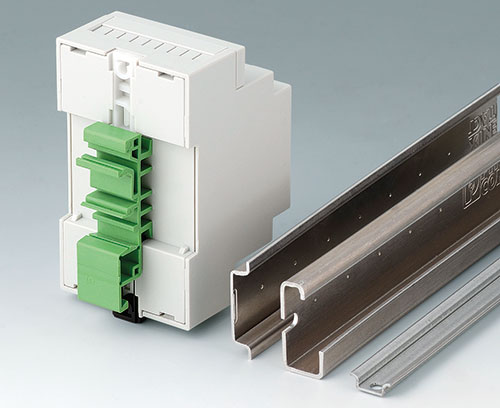

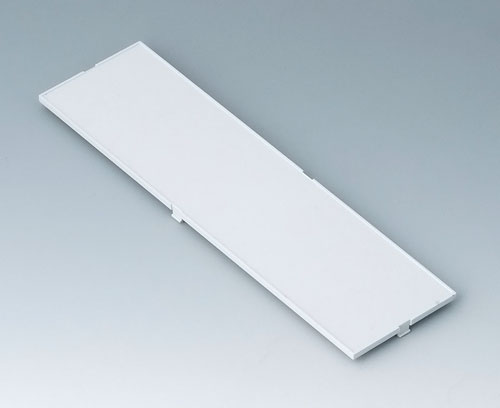

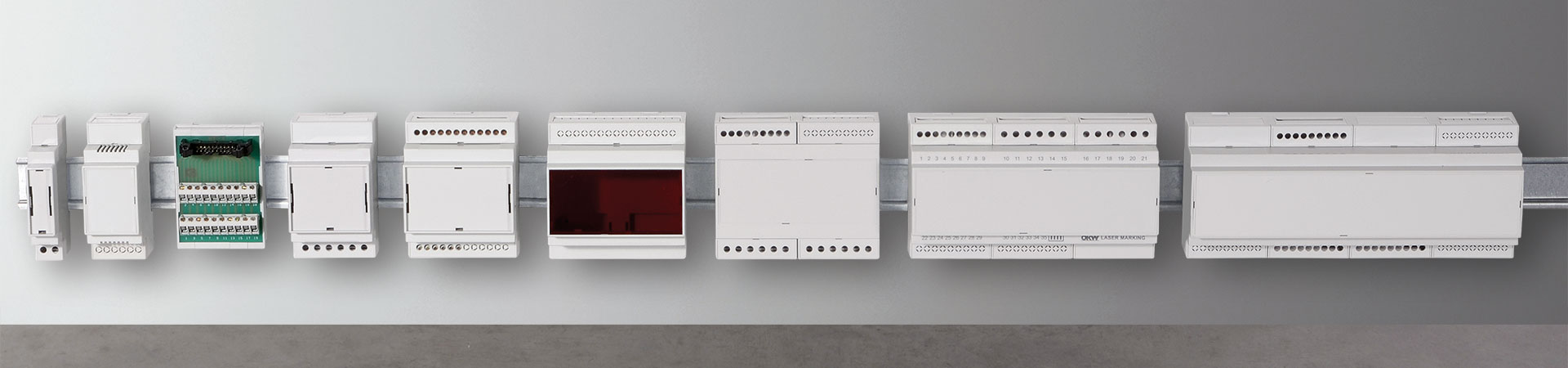

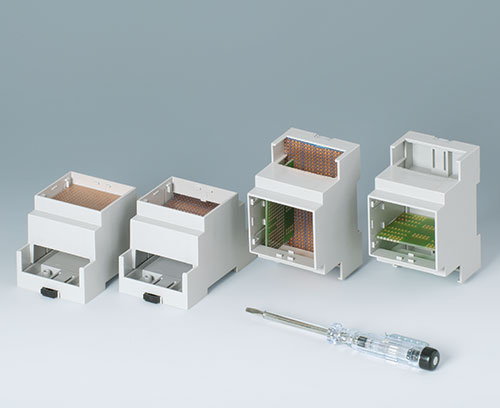

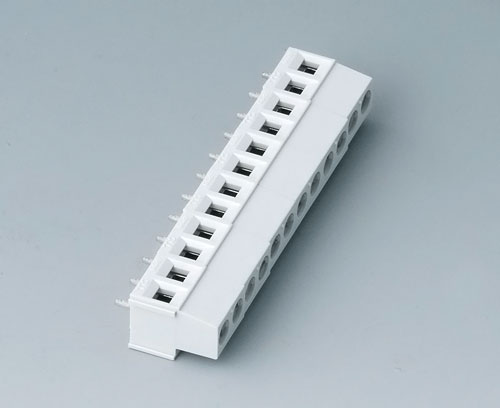

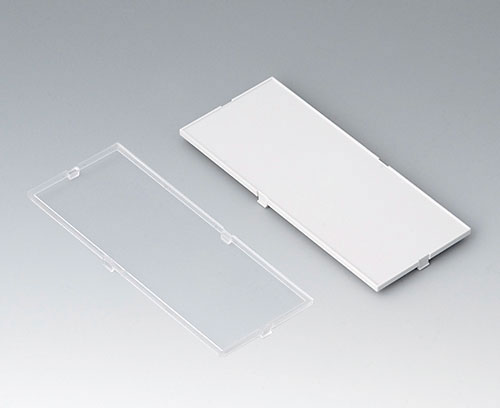

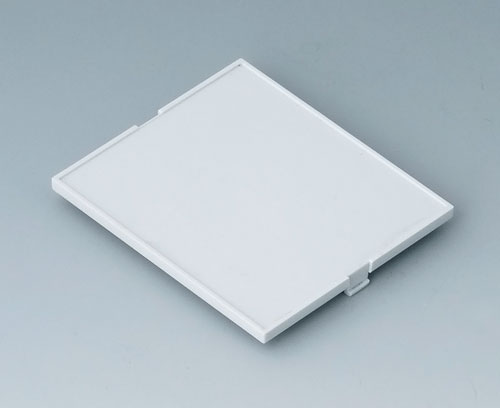

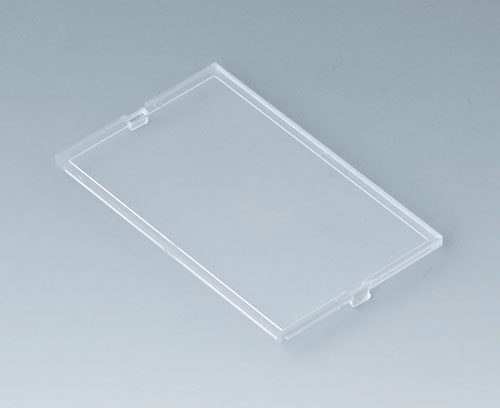

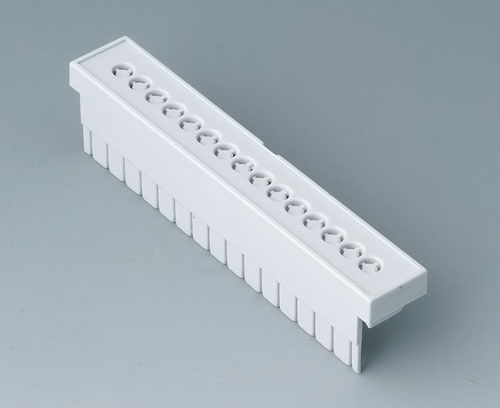

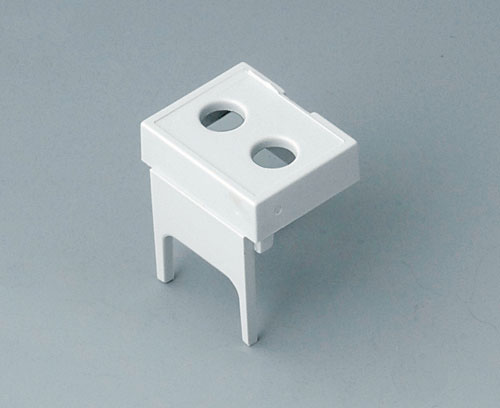

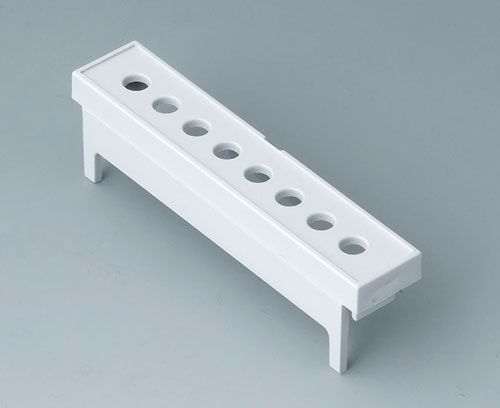

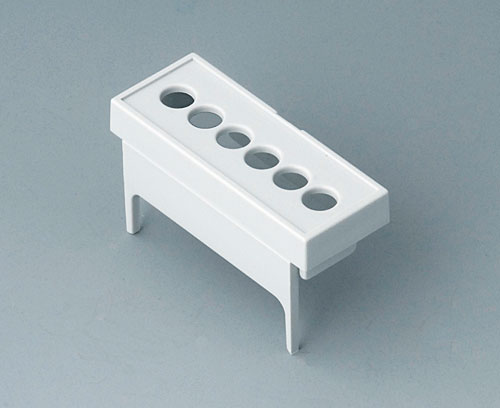

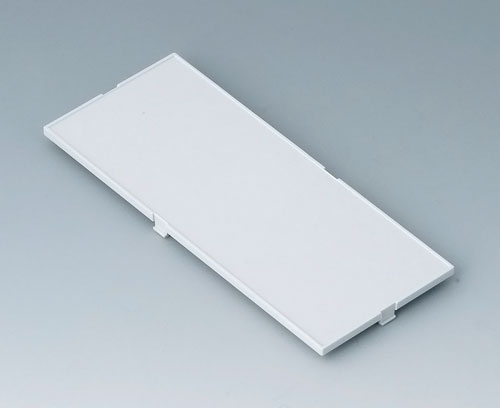

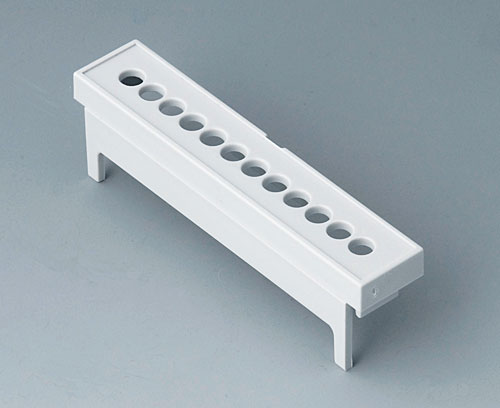

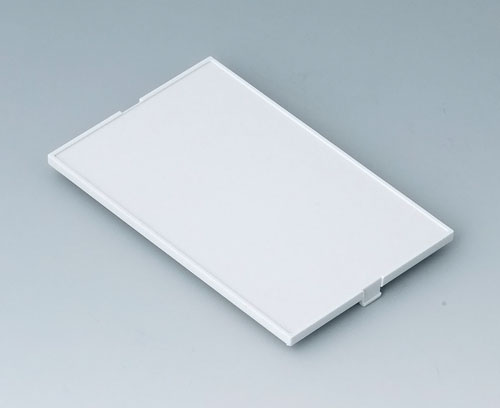

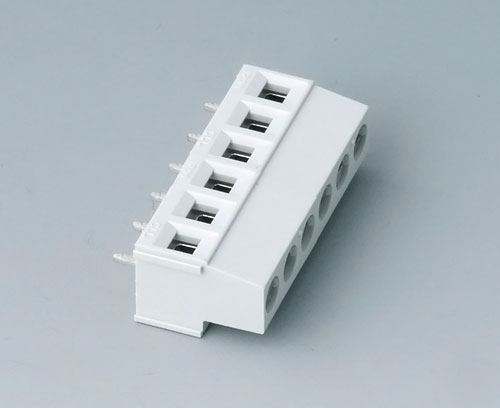

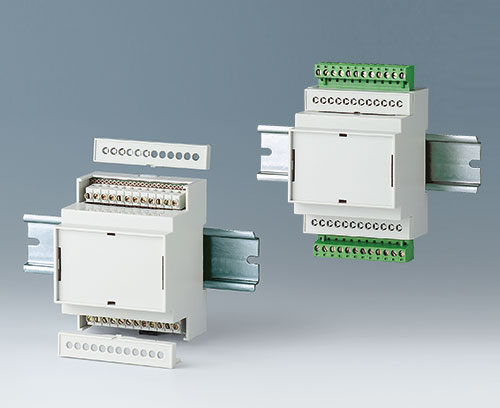

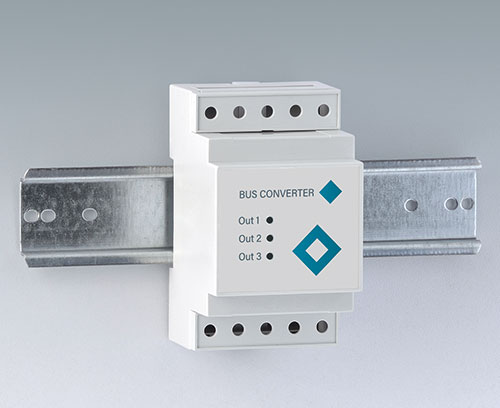

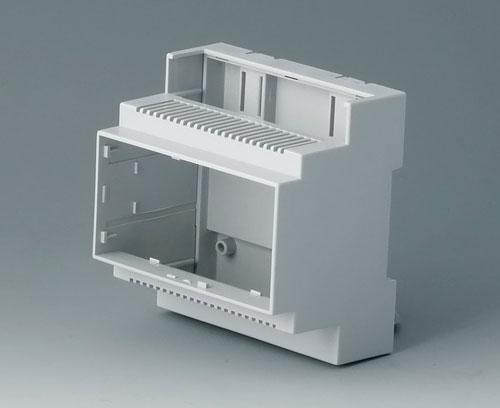

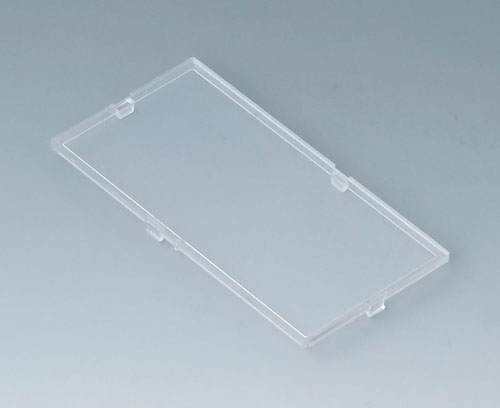

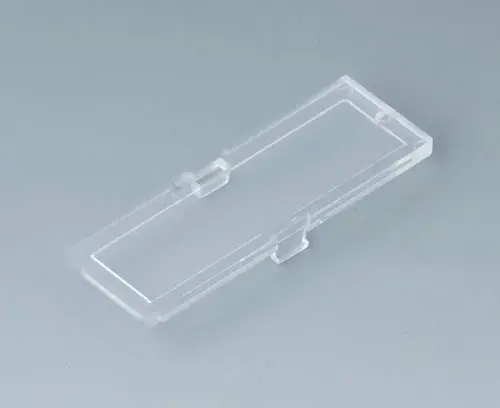

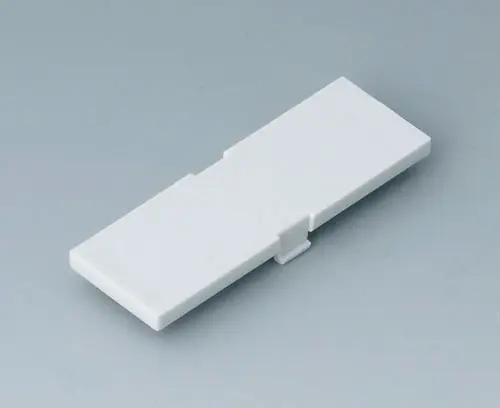

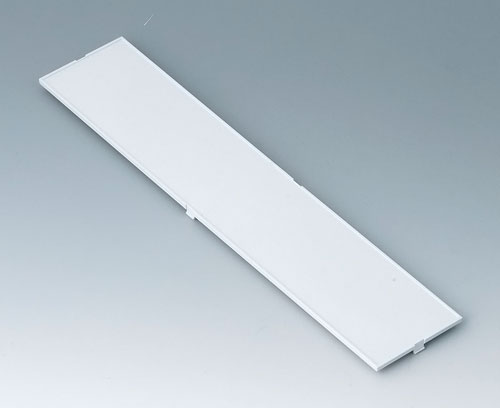

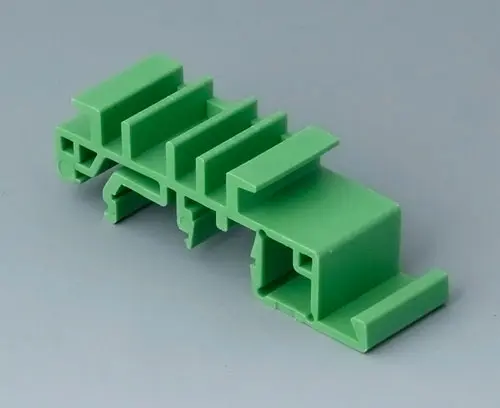

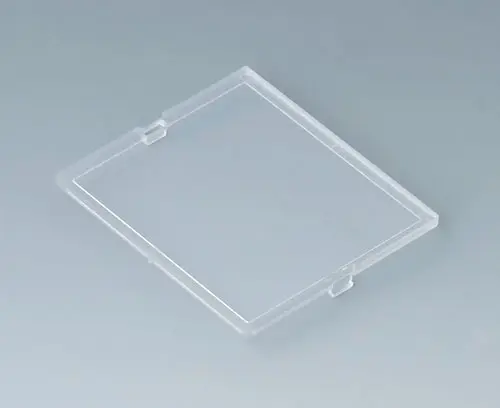

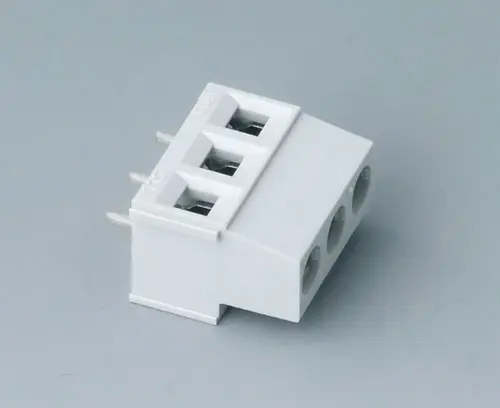

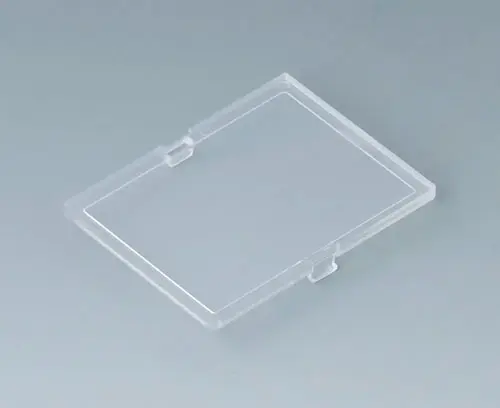

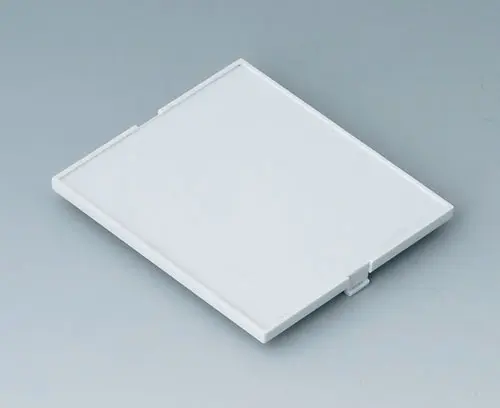

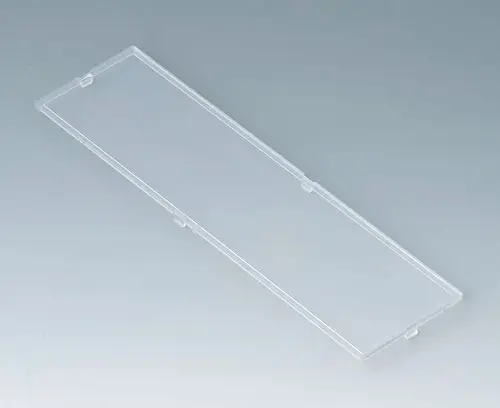

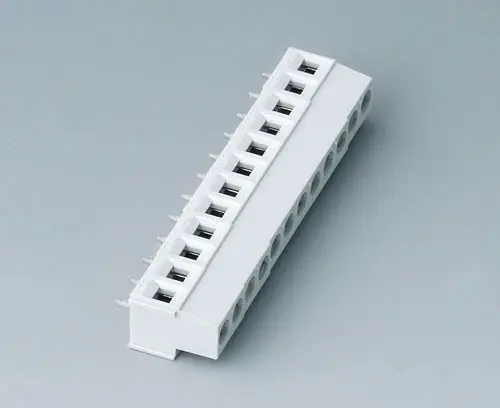

• RAILTEC C: for PCB terminal blocks, plug headers and front connectors; optional frame for additional PCB position; front panels and lids in different versions; 1 to 12 module widths; for DIN rails EN 60715 TH35; PCB positioning in all 3 directions; adapter for TH15 and G32 rails (1 to 4 module models) as accessory; BUS system for energy and data transmission in the DIN rail (7.5 mm height) as accessory


  Version I	front open, connection side with free through passage, without ventilation slots

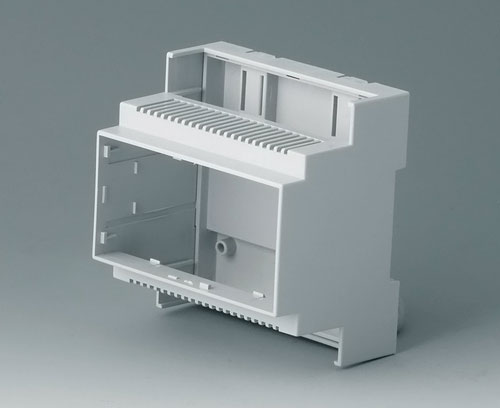

  Version II	front open, connection side with free through passage, with ventilation slots
  Version III	front open, connection side with extended case wall, without ventilation slots

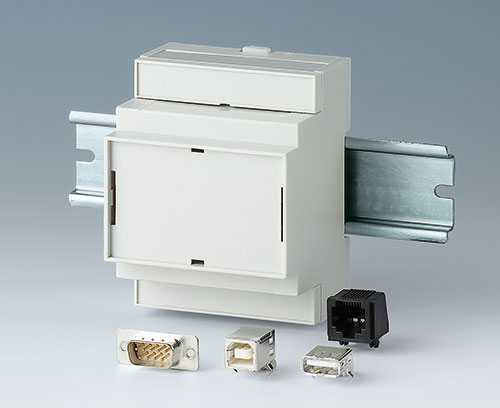

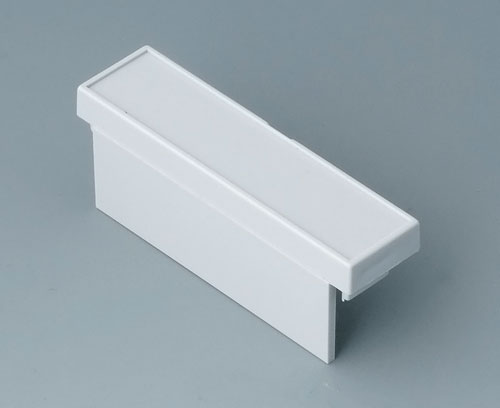

  Version IV	front closed, connection side with free through passage, without ventilation slots

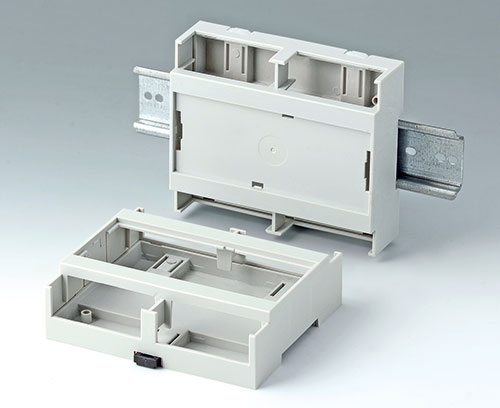

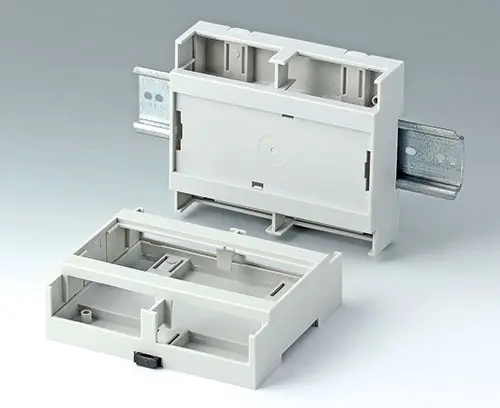

  NEW: RAILTEC C, 6 modules with high top part

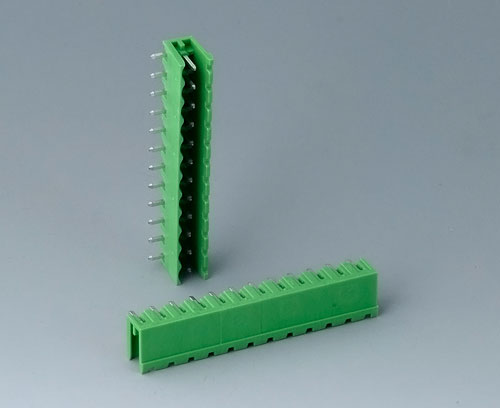

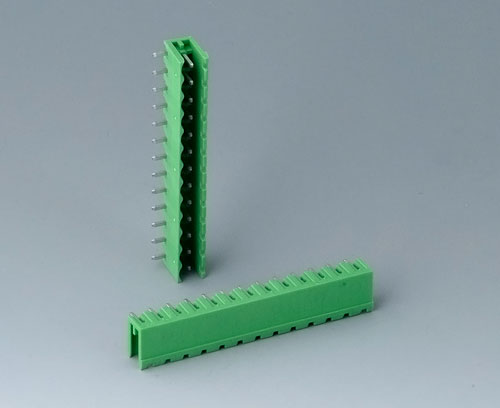

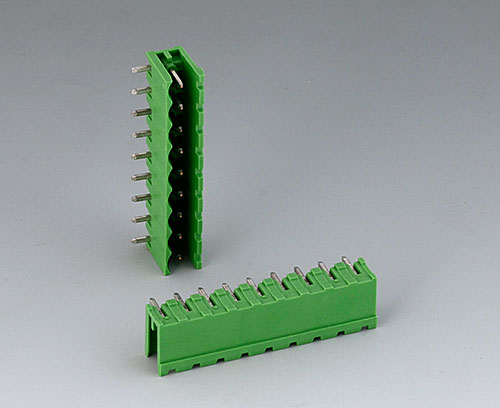

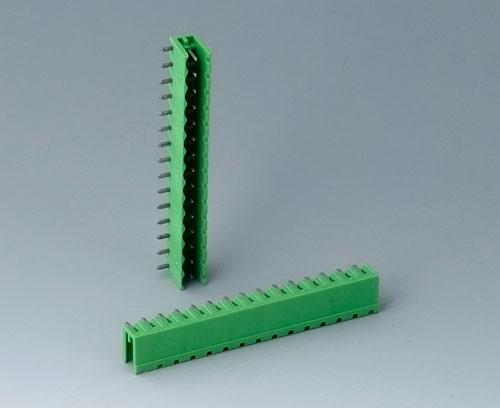

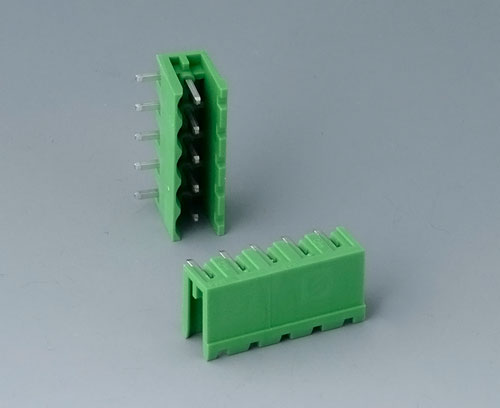

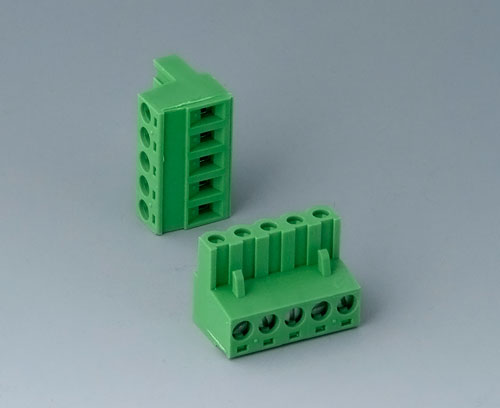

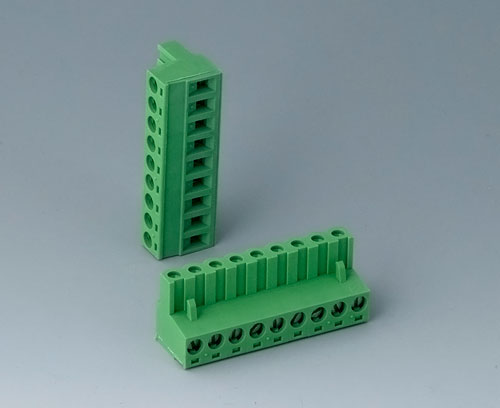

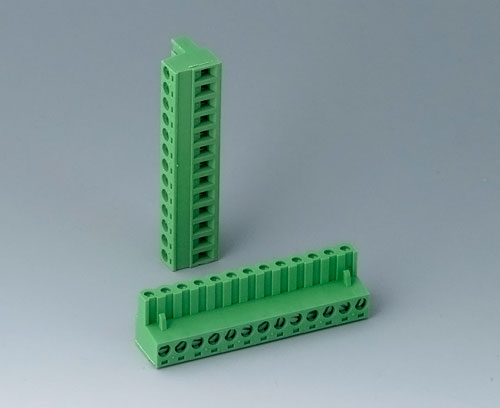

• RAILTEC CB: for PCB plug headers 5.0 mm pitch max. 12-pin; connection possible from 3 sides; 2 standard widths; for DIN rails EN 60715 TH35 and G32

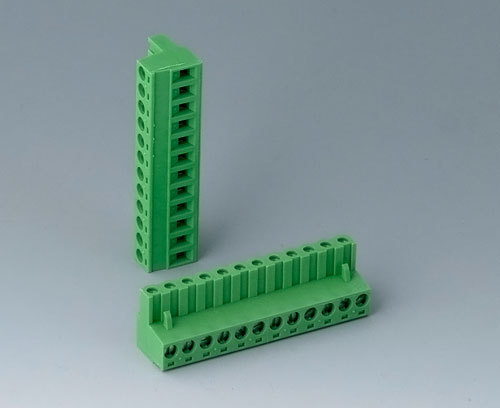

• NEW: RAILTEC CV with push-on terminal blocks, 16-pin (4 x 4 pins) in a 5 mm grid; without/with ventilation slots for good heat dissipation; for DIN rails EN 60715 TH35
• RAILTEC CM: with 8 connections on four levels; 0.689" standard module width, individual expandable; for DIN rails EN 60715 TH35; adapter for TH15 and G32 as accessory
• RAILTEC CC: with 12 connections; removable front with integrated clips for labelling; for DIN rails EN 60715 TH35; adapter for TH15 and G32 as accessory

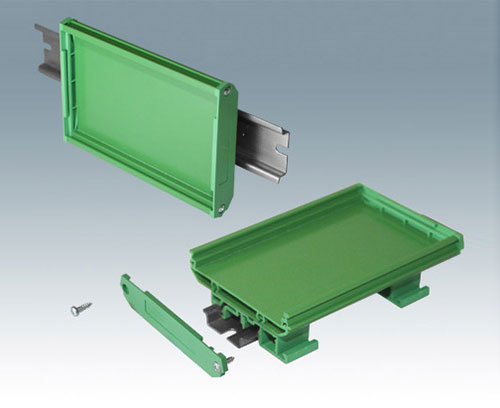

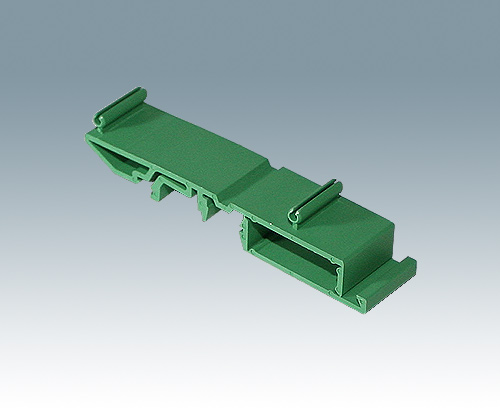

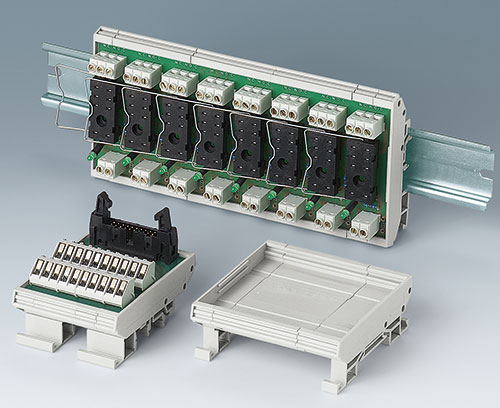

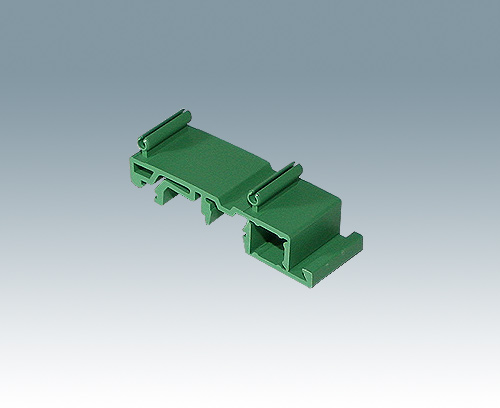

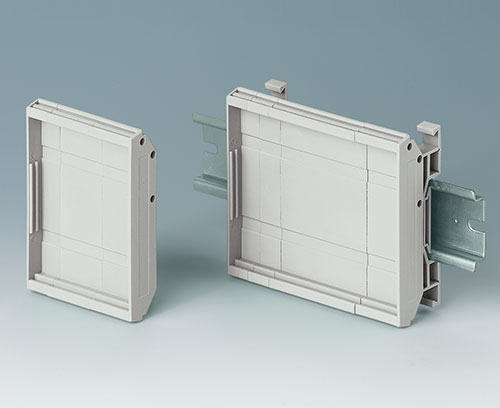

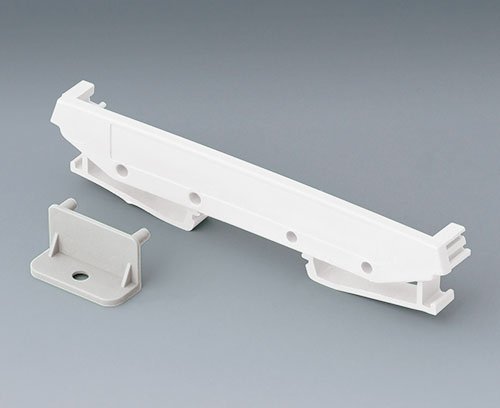

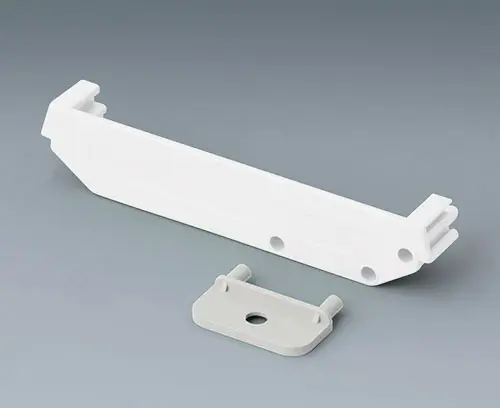

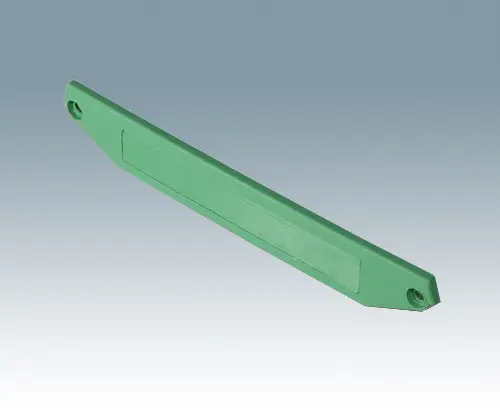

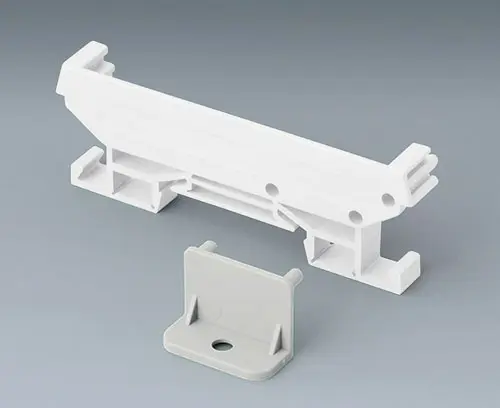

• RAILTEC SUPPORT: PCB holder for DIN rail mounting; modular design for individual component mounting; for DIN rails EN 60715 TH35, TH15 and G32
• protection class < IP 40
