B6802115

Terminal guards, with holes, 10.16 mm

Easy assembly through snap-in installation of the case parts.

Version

5 poles (designed to allow the use of terminals, block 10.16 mm)

Supply

1 piece

  • To be used for
  • View Customizing Options
AltText

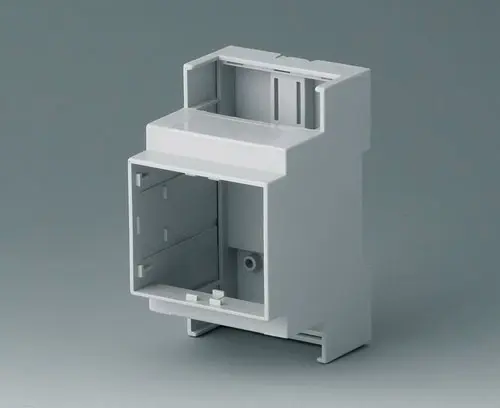

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6702100

RAILTEC C, 3 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
2.09″x3.54″x2.28″
AltText

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Close

B6702102

RAILTEC C, 3 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
2.09″x3.54″x2.28″
AltText

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6702106

RAILTEC C, 3 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
2.09″x3.54″x2.28″
AltText

B6705100

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705100

RAILTEC C, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705101

RAILTEC C, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705102

RAILTEC C, 6 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705103

RAILTEC C, 6 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705106

RAILTEC C, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705107

RAILTEC C, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
AltText

B6705700

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705700

RAILTEC C, 6 modules, high
product added to your basket
PC (UL 94 V-0)
light gray
4.21″x3.54″x4.49″
AltText

B6705706

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705706

RAILTEC C, 6 modules, high
product added to your basket
PC (UL 94 V-0)
light gray
4.21″x3.54″x4.49″
AltText

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705800

RAILTEC C, 6 modules, flat, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.18″x3.54″x1.26″
AltText

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.18″x3.54″x1.26″
AltText

B6706100

RAILTEC C, 9 modules, Vers. I Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706100

RAILTEC C, 9 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6706101

RAILTEC C, 9 modules, Vers. I Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706101

RAILTEC C, 9 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6706102

RAILTEC C, 9 modules, Vers. II Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706102

RAILTEC C, 9 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6706103

RAILTEC C, 9 modules, Vers. II Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706103

RAILTEC C, 9 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6706106

RAILTEC C, 9 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706106

RAILTEC C, 9 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6706107

RAILTEC C, 9 modules, Vers. IV Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6706107

RAILTEC C, 9 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
6.30″x3.54″x2.28″
AltText

B6707100

RAILTEC C, 12 modules, Vers. I Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6707100

RAILTEC C, 12 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
8.27″x3.54″x2.28″
AltText

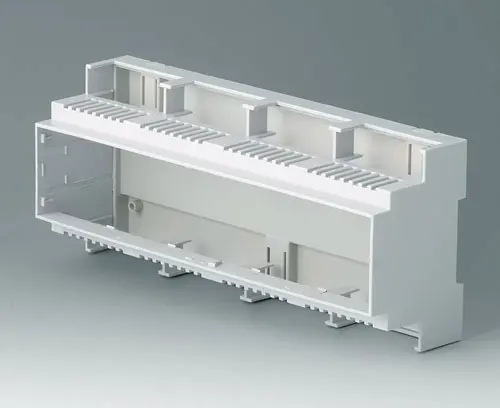

B6707102

RAILTEC C, 12 modules, Vers. II Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6707102

RAILTEC C, 12 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
8.27″x3.54″x2.28″

Customizing options for B6802115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
light gray
Pitch
10.16 mm
Poles
5
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
