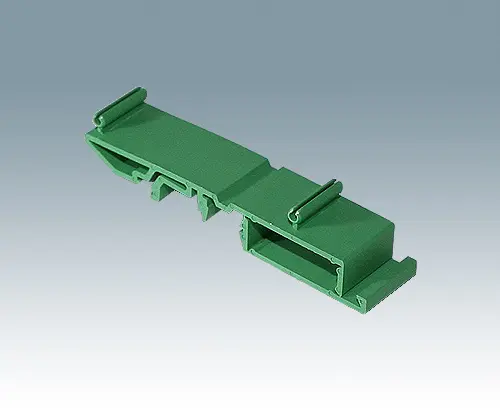

CIME/E/FE0000E RAILTEC SUP. EXT 107, DIN rail foot

CIME/E/FE0000E

RAILTEC SUP. EXT 107, DIN rail foot

DIN rail foot for TH35 and G32 DIN rails. Fits into grooves in the RAILTEC-SUPPORT extruded base section. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >5.906") and 4 end cover self-tapping screws.

Supply

1 DIN rail foot

  • To be used for

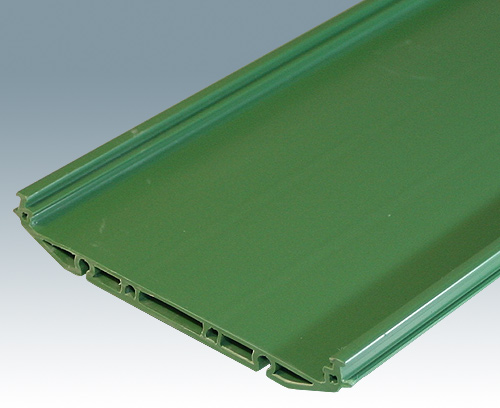

CIME/E/BExxx RAILTEC SUP. EXT 107, base section

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section Extruded base section for 107 mm (4.213") PCBs  - 'XXX' in part no = your PCB width in mm (we will supply the base extrusion pre-cut to this dimension). E.g. PCB width 200 mm (7.874") - order Part # CIME/E/BE200. Minimum cut = 70 mm (2.75"). Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >5.906") and 4 end cover self-tapping screws.
Note: The weight shown in purchasing data refers to profiles with 3.937" length.

Supply 1 base section (cut to your PCB size)

Close

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section
product added to your basket
PA (UL 94 V-0)
green
4.61″x0.71″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
green
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Width
0.787″
20 mm
Height
0.472″
12 mm
Depth
3.543″
90 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
