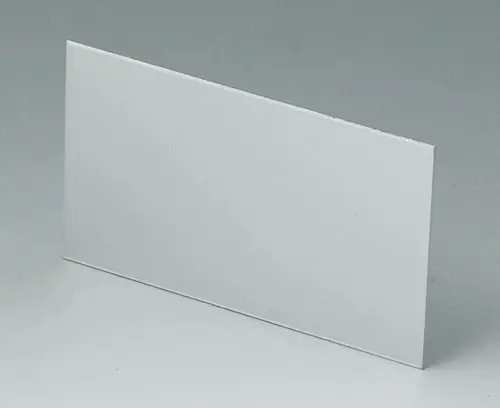

A9109221 Front / rear panel V, O 155

A9109221

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply

1 front panel

  • To be used for
  • View Customizing Options

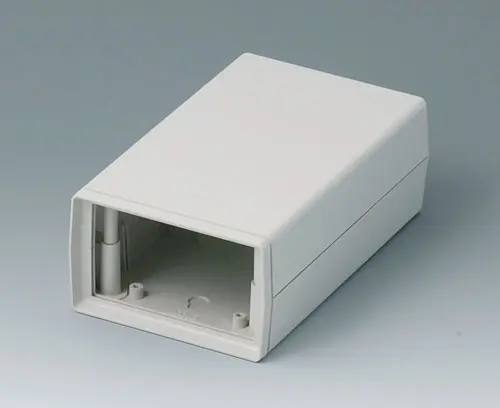

A9408440 SHELL-TYPE CASES O 155, Vers. I

A9408440

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408440

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.10″x2.24″
A9408443 SHELL-TYPE CASES V 155, Vers. I

A9408443

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408443

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x2.24″

Customizing options for A9109221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
matt anodized
Width
3.224″
81.9 mm
Height
1.874″
47.6 mm
Thickness
0.039″
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
10 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
