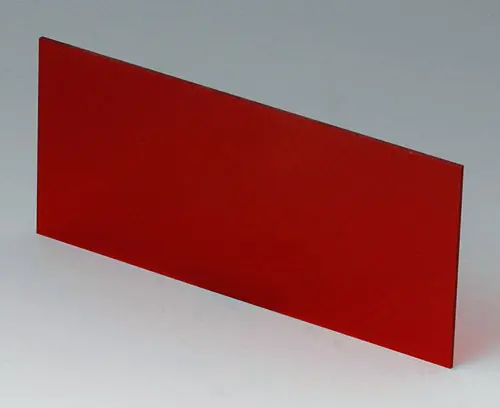

A9113123 Front / rear panel V, O 190

A9113123

Front / rear panel V, O 190

Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply

1 front panel

  • To be used for
  • View Customizing Options

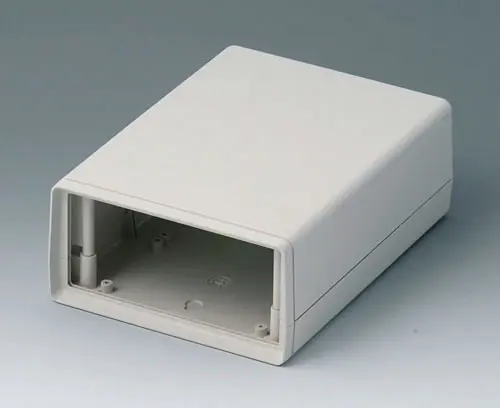

A9413340 SHELL-TYPE CASES O 190, Vers. I

A9413340

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413340

SHELL-TYPE CASES O 190, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″

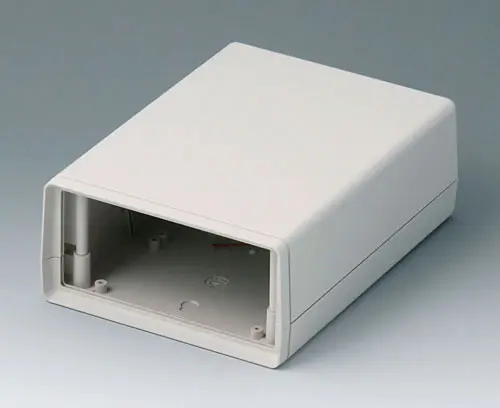

A9413343 SHELL-TYPE CASES V 190, Vers. I

A9413343

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413343

SHELL-TYPE CASES V 190, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″
A9413648 SHELL-TYPE CASES V 190, Vers. V

A9413648

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413648

SHELL-TYPE CASES V 190, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″

Customizing options for A9113123

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Color
red transparent
Width
4.890″
124.2 mm
Height
2.228″
56.6 mm
Thickness
0.059″
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9.5 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
