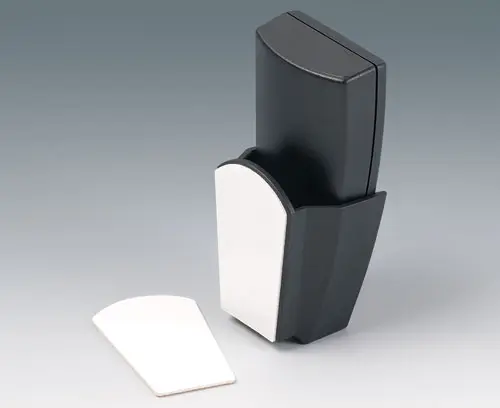

A9166005 Adhesive foil

A9166005

Adhesive foil

For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply

1 piece

  • To be used for
A9066107 SMART-CASE M, Vers. I

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066107

SMART-CASE M, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40
A9066109 SMART-CASE M, Vers. I

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066109

SMART-CASE M, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066117

SMART-CASE M, Vers. II
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40
A9066119 SMART-CASE M, Vers. II

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066119

SMART-CASE M, Vers. II
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066127 SMART-CASE M, Vers. III

A9066127

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066127

SMART-CASE M, Vers. III
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40

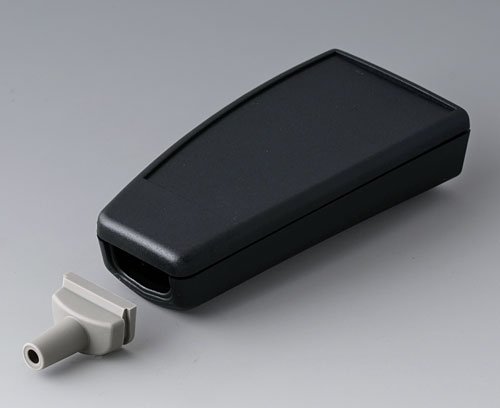

A9066129 SMART-CASE M, Vers. III

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066129

SMART-CASE M, Vers. III
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066137 SMART-CASE M, Vers. IV

A9066137

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066137

SMART-CASE M, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40

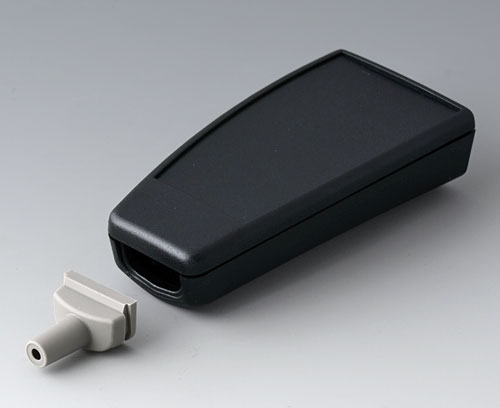

A9066139 SMART-CASE M, Vers. IV

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066139

SMART-CASE M, Vers. IV
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066147 SMART-CASE M, Vers. V

A9066147

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066147

SMART-CASE M, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40
A9066149 SMART-CASE M, Vers. V

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066149

SMART-CASE M, Vers. V
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066209 SMART CASE M, Vers. I

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066209

SMART CASE M, Vers. I
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066219 SMART-CASE M, Vers. II

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066219

SMART-CASE M, Vers. II
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066317 SMART-CASE M, Vers. VI

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066317

SMART-CASE M, Vers. VI
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.78″x1.85″x0.94″
IP 40
A9066319 SMART-CASE M, Vers. VI

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066319

SMART-CASE M, Vers. VI
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

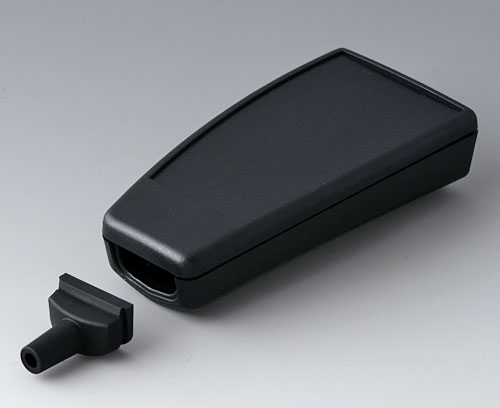

A9066329 SMART-CASE M, Vers. III

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066329

SMART-CASE M, Vers. III
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

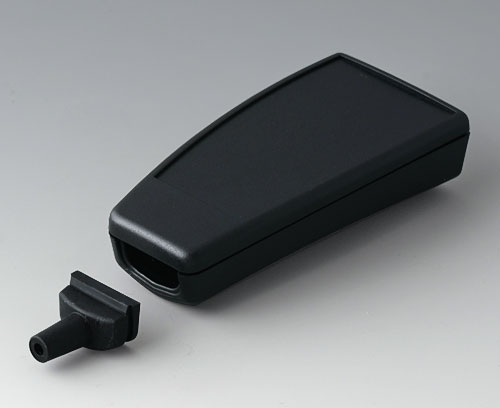

A9066339 SMART-CASE M, Vers. IV

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066339

SMART-CASE M, Vers. IV
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

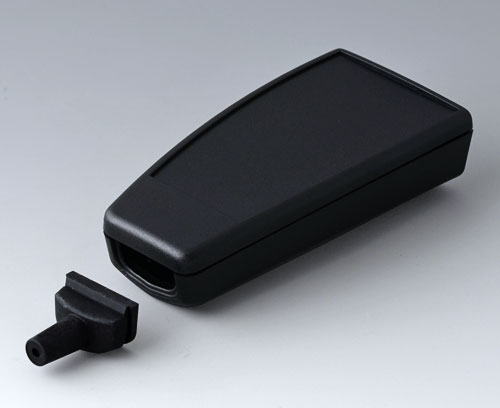

A9066349 SMART-CASE M, Vers. V

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066349

SMART-CASE M, Vers. V
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066419 SMART-CASE M, Vers. VI

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066419

SMART-CASE M, Vers. VI
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9166307 Holder M

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 0.209" - 0.323". The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Close

A9166307

Holder M
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 0.209" - 0.323". The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Close

A9166309

Holder M
product added to your list
ABS (UL 94 HB)
black RAL 9005
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Other material - general information

Weight/1 part
1 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
