A9167019 Belt/pocket clip

A9167019

Belt/pocket clip

Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply

1 Clip, assembly kit

  • To be used for
  • View Customizing Options
A9066109 SMART-CASE M, Vers. I

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066109

SMART-CASE M, Vers. I ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066119 SMART-CASE M, Vers. II

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066119

SMART-CASE M, Vers. II ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066129 SMART-CASE M, Vers. III

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066129

SMART-CASE M, Vers. III ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

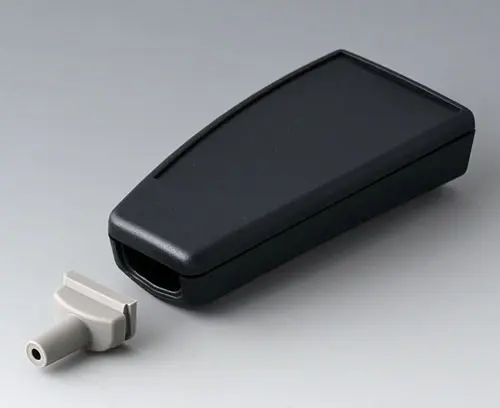

A9066139 SMART-CASE M, Vers. IV

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066139

SMART-CASE M, Vers. IV ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066149 SMART-CASE M, Vers. V

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066149

SMART-CASE M, Vers. V ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066209 SMART CASE M, Vers. I

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066209

SMART CASE M, Vers. I PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066219 SMART-CASE M, Vers. II

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066219

SMART-CASE M, Vers. II PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066319 SMART-CASE M, Vers. VI

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066319

SMART-CASE M, Vers. VI ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066329 SMART-CASE M, Vers. III

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066329

SMART-CASE M, Vers. III ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
A9066339 SMART-CASE M, Vers. IV

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066339

SMART-CASE M, Vers. IV ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

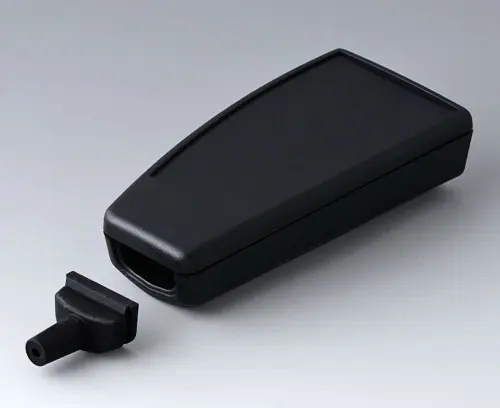

A9066349 SMART-CASE M, Vers. V

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066349

SMART-CASE M, Vers. V ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

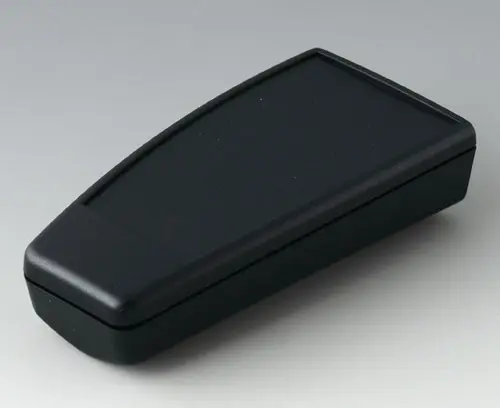

A9066419 SMART-CASE M, Vers. VI

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066419

SMART-CASE M, Vers. VI PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40

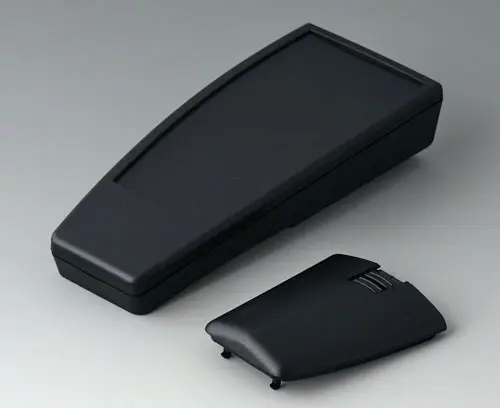

A9067109 SMART-CASE L, Vers. I

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067109

SMART-CASE L, Vers. I ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40

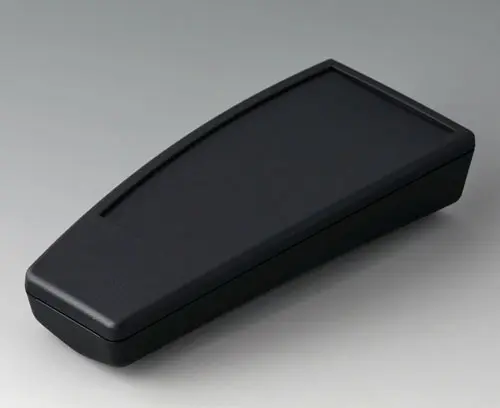

A9067119 SMART-CASE L, Vers. II

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067119

SMART-CASE L, Vers. II ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067129 SMART-CASE L, Vers. III

A9067129

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment. Bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9067129

SMART-CASE L, Vers. III ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067139 SMART-CASE L, Vers. IV

A9067139

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9067139

SMART-CASE L, Vers. IV ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067149 SMART-CASE L, Vers. V

A9067149

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9067149

SMART-CASE L, Vers. V ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067209 SMART-CASE L, Vers. I

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067209

SMART-CASE L, Vers. I PMMA (IR) (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40
A9067219 SMART-CASE L, Vers. II

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067219

SMART-CASE L, Vers. II PMMA (IR) (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067329 SMART-CASE L, Vers. III

A9067329

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9067329

SMART-CASE L, Vers. III ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067339 SMART-CASE L, Vers. IV

A9067339

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9067339

SMART-CASE L, Vers. IV ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
A9067349 SMART-CASE L, Vers. V

A9067349

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9067349

SMART-CASE L, Vers. V ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40

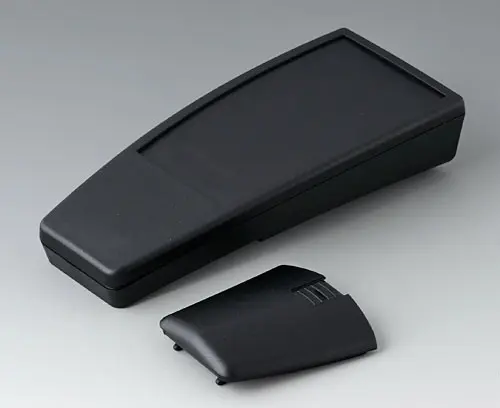

A9068109 SMART-CASE XL, Vers. I

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068109

SMART-CASE XL, Vers. I ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40
A9068119 SMART-CASE XL, Vers. II

A9068119

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068119

SMART-CASE XL, Vers. II ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
A9068129 SMART-CASE XL, Vers. III

A9068129

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9068129

SMART-CASE XL, Vers. III ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40

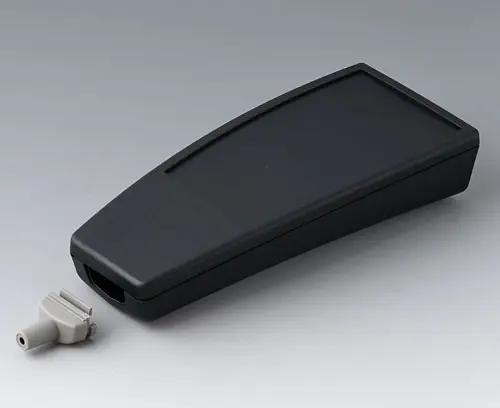

A9068139 SMART-CASE XL, Vers. IV

A9068139

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9068139

SMART-CASE XL, Vers. IV ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
A9068149 SMART-CASE XL, Vers. V

A9068149

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9068149

SMART-CASE XL, Vers. V ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
A9068209 SMART-CASE XL, Vers. I

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068209

SMART-CASE XL, Vers. I PMMA (IR) (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40

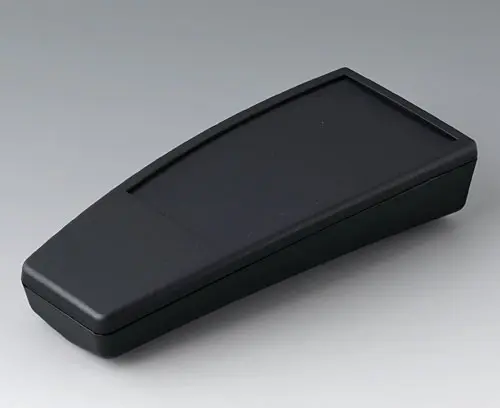

A9068219 SMART-CASE XL, Vers. II

A9068219

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068219

SMART-CASE XL, Vers. II PMMA (IR) (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40

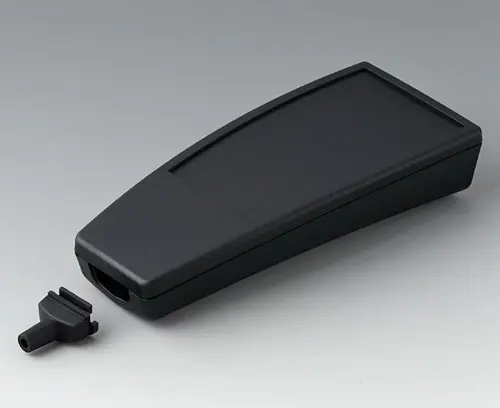

A9068329 SMART-CASE XL, Vers. III

A9068329

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9068329

SMART-CASE XL, Vers. III ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
A9068339 SMART-CASE XL, Vers. IV

A9068339

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9068339

SMART-CASE XL, Vers. IV ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40

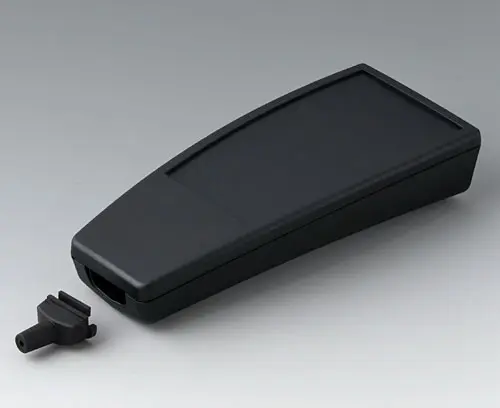

A9068349 SMART-CASE XL, Vers. V

A9068349

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9068349

SMART-CASE XL, Vers. V ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40

Customizing options for A9167019

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
trafficflow
