AltText

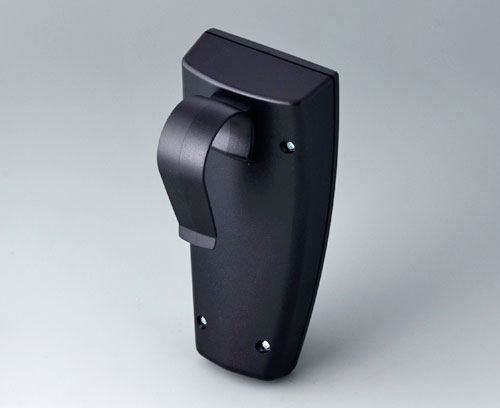

A9167029

Holding clamp

Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply

1 holding clamp, assembly kit

  • To be used for
  • View Customizing Options
AltText

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066109

SMART-CASE M, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066119

SMART-CASE M, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066129

SMART-CASE M, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066139

SMART-CASE M, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066149

SMART-CASE M, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066209

SMART CASE M, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066219

SMART-CASE M, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066319

SMART-CASE M, Vers. VI
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9066329

SMART-CASE M, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9066339

SMART-CASE M, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9066349

SMART-CASE M, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066419

SMART-CASE M, Vers. VI
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.78″x1.85″x0.94″
IP 40
AltText

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067109

SMART-CASE L, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40
AltText

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067119

SMART-CASE L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

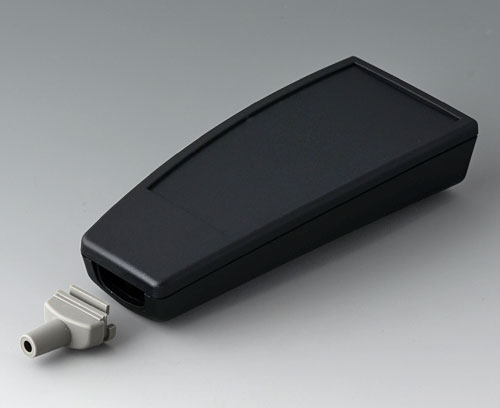

A9067129

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment. Bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9067129

SMART-CASE L, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

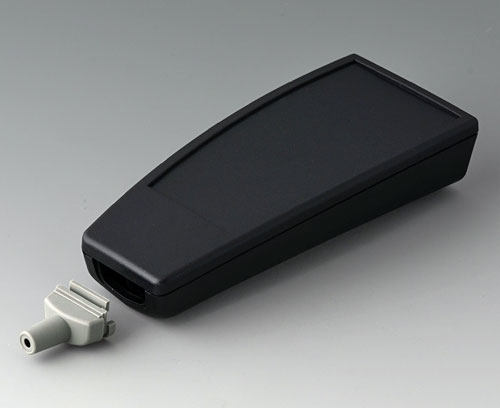

A9067139

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9067139

SMART-CASE L, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

A9067149

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9067149

SMART-CASE L, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067209

SMART-CASE L, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40
AltText

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067219

SMART-CASE L, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

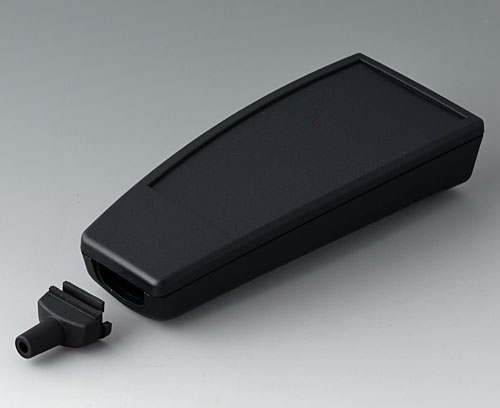

A9067329

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9067329

SMART-CASE L, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

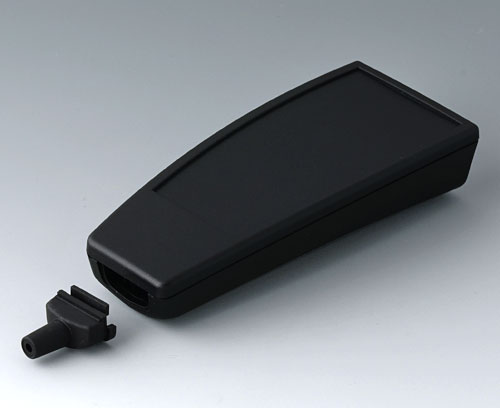

A9067339

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9067339

SMART-CASE L, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

A9067349

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9067349

SMART-CASE L, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 65 opt., IP 40
AltText

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068109

SMART-CASE XL, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40
AltText

A9068119

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068119

SMART-CASE XL, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068129

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9068129

SMART-CASE XL, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068139

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.165" - 0.197")

Supply Case-top and base, cable strain, assembly kit

Close

A9068139

SMART-CASE XL, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068149

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9068149

SMART-CASE XL, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068209

SMART-CASE XL, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40
AltText

A9068219

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068219

SMART-CASE XL, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068329

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply Case-top and base, cable strain, assembly kit

Close

A9068329

SMART-CASE XL, Vers. III
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068339

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9068339

SMART-CASE XL, Vers. IV
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

A9068349

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (0.134" - 0.165")

Supply Case-top and base, cable strain, assembly kit

Close

A9068349

SMART-CASE XL, Vers. V
product added to your basket
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 65 opt., IP 40
AltText

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2823109

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
3.54″x1.65″x0.87″
AltText

B2824109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2824109

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
4.72″x1.65″x0.87″
AltText

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2833109

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
4.57″x2.13″x0.87″
AltText

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2834109

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
6.14″x2.13″x0.87″

Customizing options for A9167029

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
