A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S

Serves as a sealing ring and impact protection and ensures 0.079" more installation height. Individual color choice and designs on demand.

Supply

1 intermediate ring

  • To be used for
  • View Customizing Options

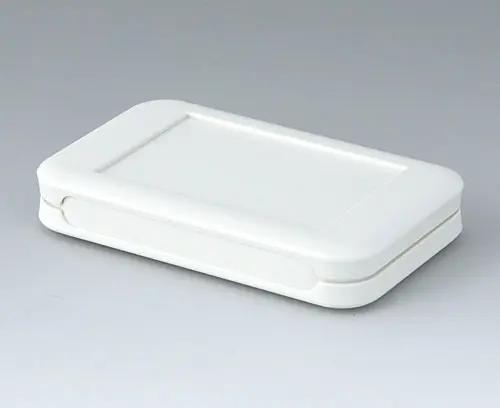

A9050107 SOFT-CASE S

A9050107

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050107

SOFT-CASE S ABS (UL 94 HB)
off-white RAL 9002
2.01″x3.23″x0.55″
IP 54 opt., IP 40
A9050108 SOFT-CASE S

A9050108

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050108

SOFT-CASE S ABS (UL 94 HB)
lava
2.01″x3.23″x0.55″
IP 54 opt., IP 40
A9050209 SOFT-CASE S

A9050209

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050209

SOFT-CASE S PMMA (IR) (UL 94 HB)
black RAL 9005
2.01″x3.23″x0.55″
IP 54 opt., IP 40

Customizing options for A9150118

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
volcano
Length
2.126″
54 mm
Width
3.346″
85 mm
Height
0.472″
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
8 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
