ER123059 SYNERGY R120
ER123059 SYNERGY R120ER123059 SYNERGY R120

ER123059

SYNERGY R120

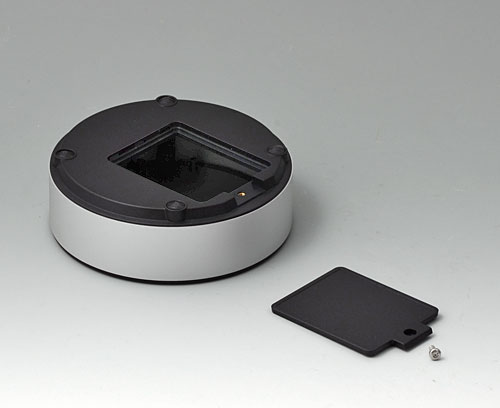

4-part enclosure for many different applications. Sturdy frame made of aluminum, glass bead-blasted and anodized. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply

Top part, bottom part, lid, aluminum profile, assembly kit


  • Technical Data
  • Drawings /
    Further Information
  • Purchasing Data
Material
Protection class
Color
Frame matt anodized,
Plastic parts black RAL 9005
Diameter
⌀ 4.724″
120 mm
Height
1.575″
40 mm
PCB diameter, base
⌀ 4.213″
107 mm
PCB diameter, top
⌀ 4.370″
111 mm
Keypad diameter
⌀ 4.016″
102 mm
  • Suitable System Components
  • View Customizing Options
NEW PRODUCT
View

Accessory "battery"

A9193033  Add to my list
Polarity reversal protection device, positive terminal

ABS (UL 94 HB)
off-white RAL 9002

A9193034  Add to my list
Polarity reversal protection device, positive terminal

ABS (UL 94 HB)
off-white RAL 9002

A9193035  Add to my list
Battery clip

Steel
nickel-plated

A9193036  Add to my list
Battery clip

Steel
nickel-plated

A9193037  Add to my list
Button cell holder

A9193038  Add to my list
Button cell holder

A9193039  Add to my list
Button cell holder

A9193040  Add to my list
Button cell holder

EZ040609  Add to my list
Battery compartment, 3 x AA

ASA+PC-FR (UL 94 V-0)
black RAL 9005

Accessory "wall/holder"

A9305019  Add to my list
Wall suspension elements

ASA+PC-FR (UL 94 V-0)
black RAL 9005

EZ030109  Add to my list
Wall suspension element

ASA+PC-FR (UL 94 V-0)
black RAL 9005

Accessory "screws"

A0305031  Add to my list
Self-tapping screws 0.098" x 0.236" (PZ1)

A0399T10  Add to my list
Torx T10 screwdriver

EZ031209  Add to my list
Extender kit

ASA+PC-FR (UL 94 V-0)
black RAL 9005

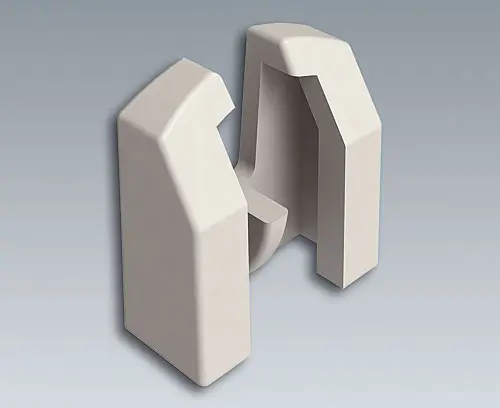

A9193033

For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply
Polarity reversal protection device

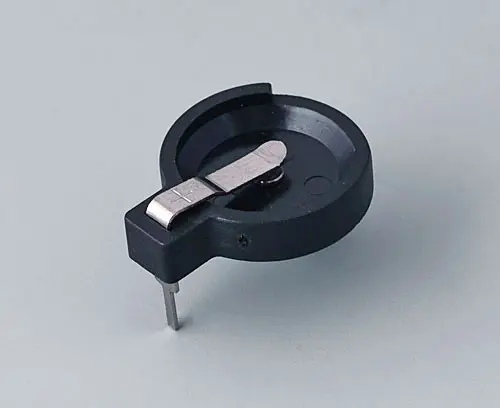

A9193039

For button cells with Ø 0.472", e.g. CR1216, CR1220. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

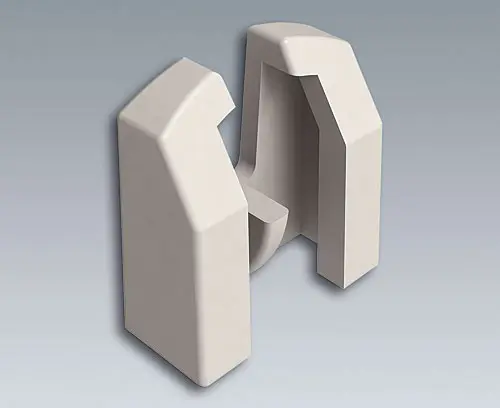

A9193034

For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply
Polarity reversal protection device

A9305019

Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (1.77" x 2.28") is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply
1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

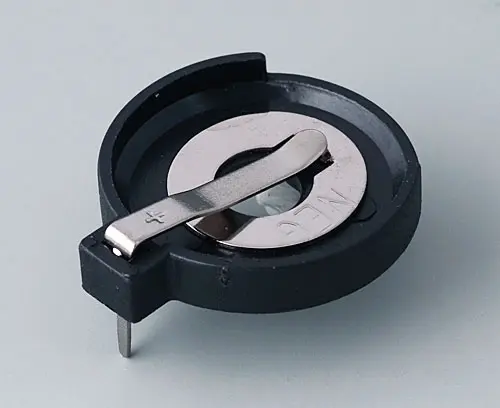

A9193038

For button cells with Ø 0.906", e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

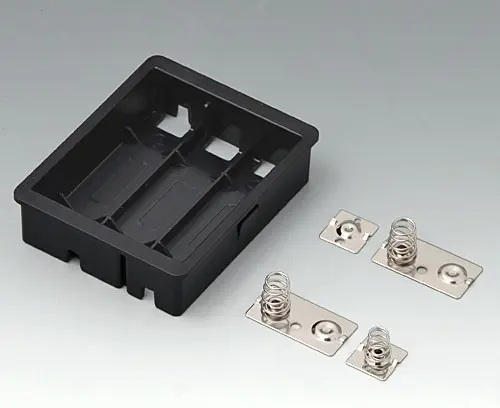

EZ040609

For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply
1 battery compartment, set of battery clips

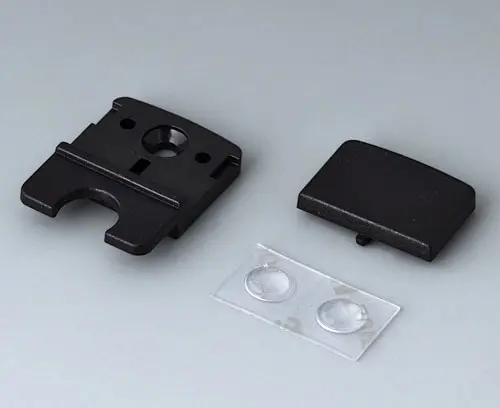

EZ030109

Optional wall mounting with only one screw.

Supply
1 holder and cover plate, 2 anti-slide feet

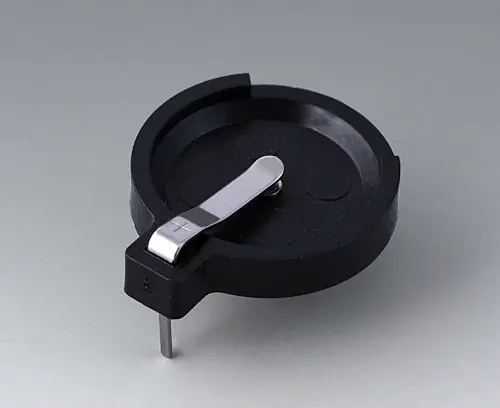

A9193040

For button cells with Ø 0.630", e.g. CR1612, CR1620. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

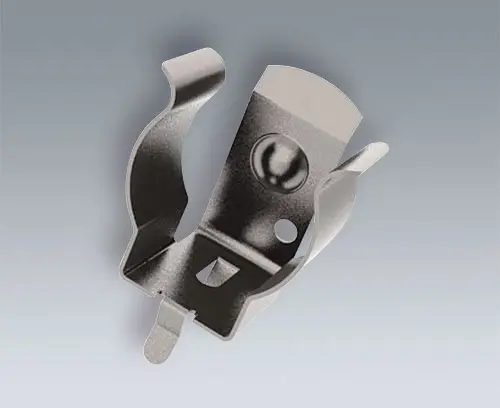

A9193035

For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply
1 battery clip

A0399T10

Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply
1 screwdriver

A9193037

For button cells with Ø 0.787", e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

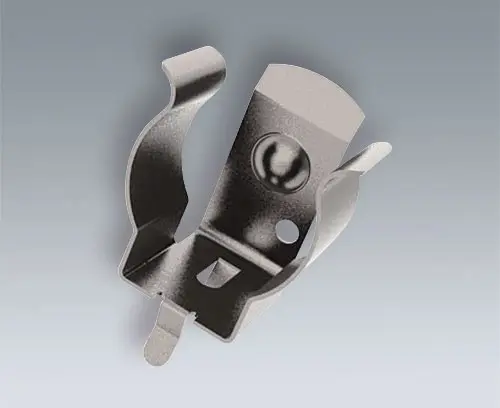

A9193036

For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply
1 battery clip

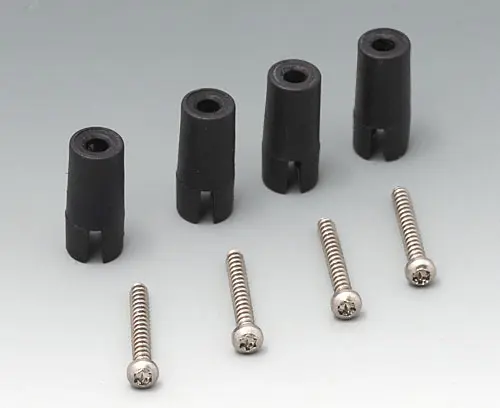

EZ031209

For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply
4 extender, 4 screws (Torx 8)

A0305031

Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply
1 self-tapping screw
