SYNERGY

Synergy

Harmonious blend of materials

The new SYNERGY combines the advantages of plastic and aluminum in one single enclosure concept:

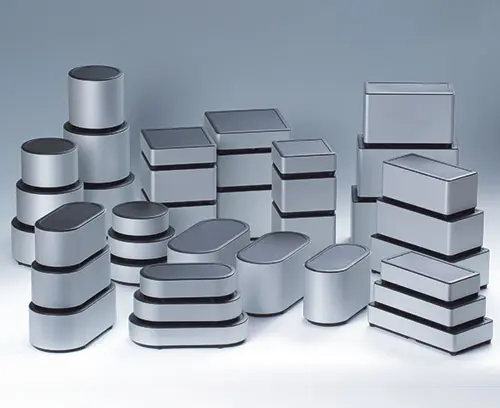

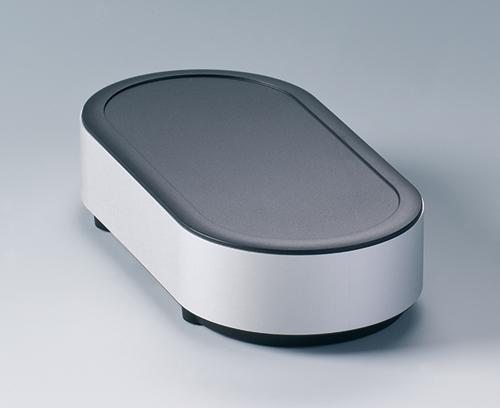

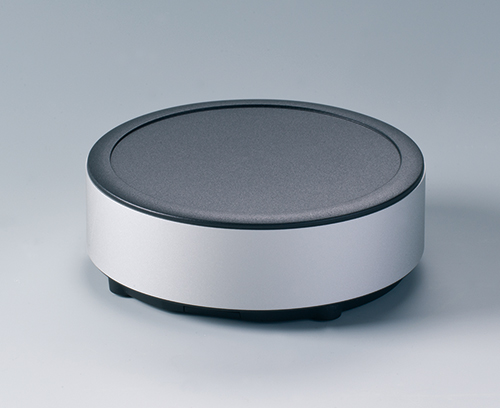

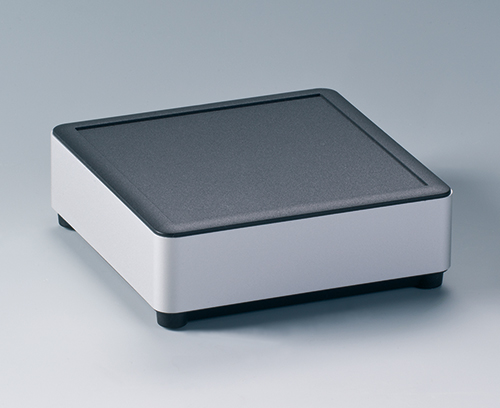

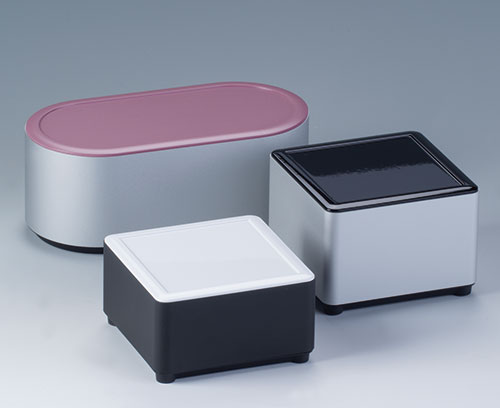

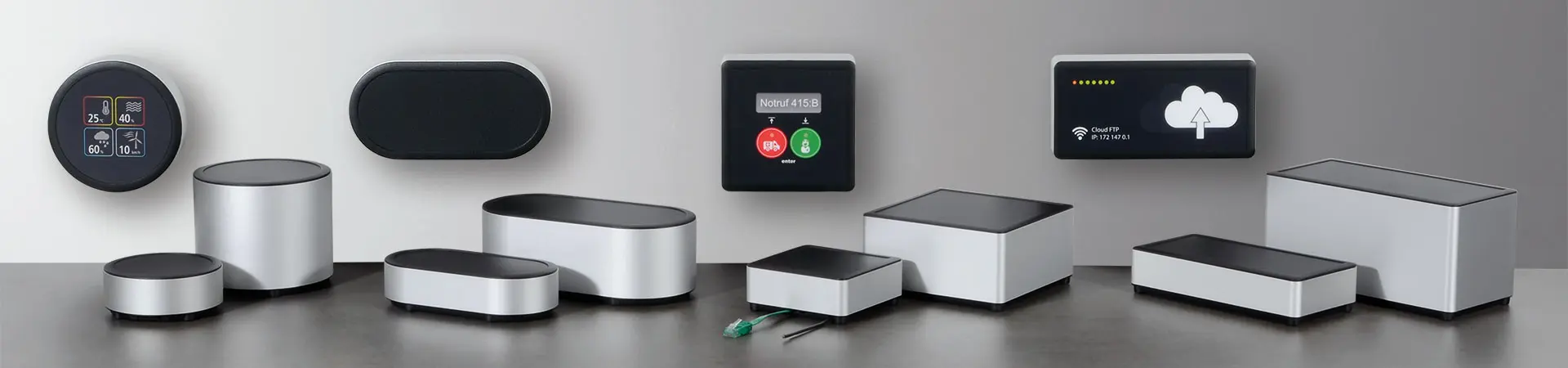

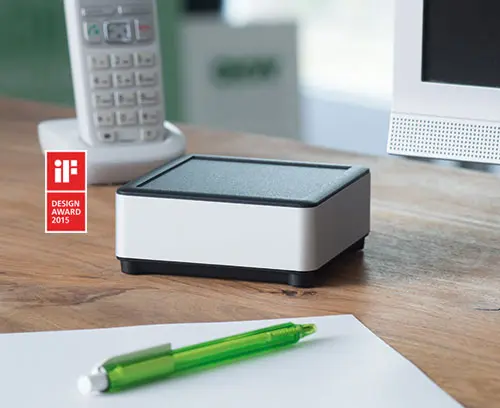

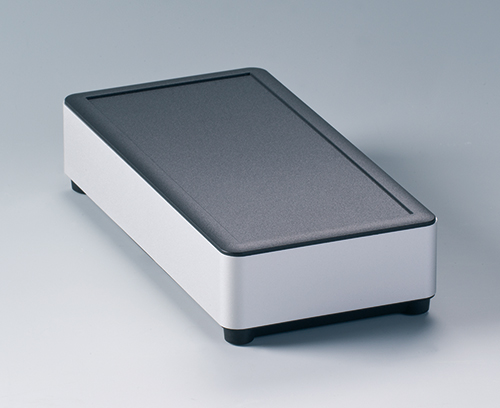

  • a modern range of enclosures in 4 basic geometrical shapes – square, rectangular, circular and oval *** iF product design award ***
  • 36 enclosure sizes, with plenty of room for the electronics and operating elements

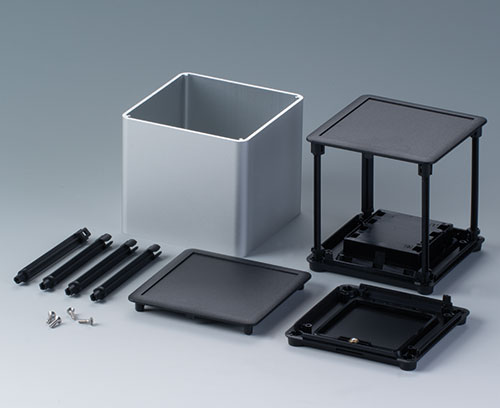

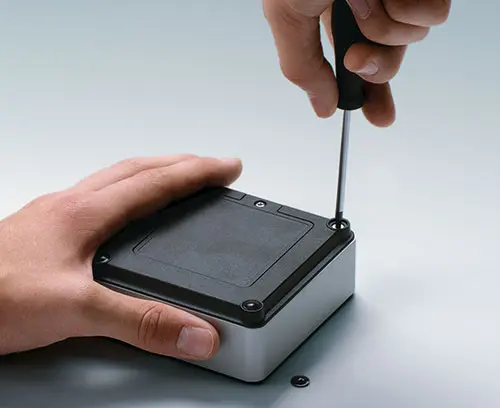

  • screw connection with stainless steel screws and Torx drive
  • color combination:  Aluminum, anodized in silver / plastic parts black

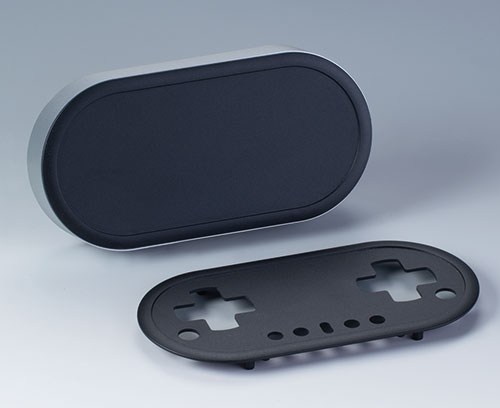

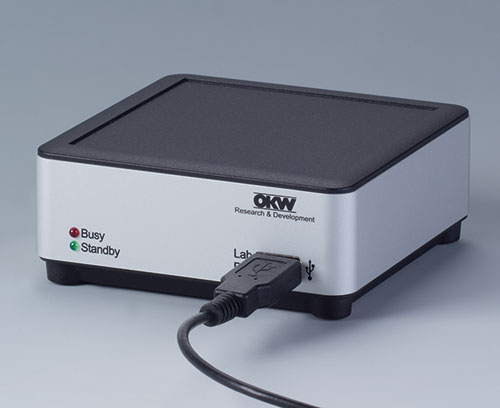

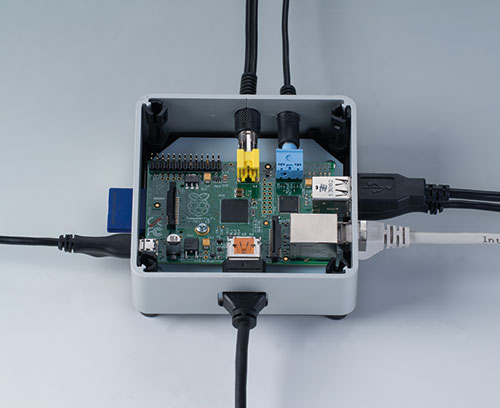

  • plenty of space for interfaces, no inclined surfaces, easy assembly

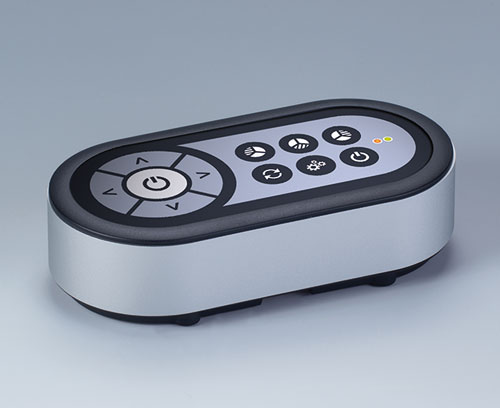

  • recessed surface in the top part for decor foils or membrane keyboards

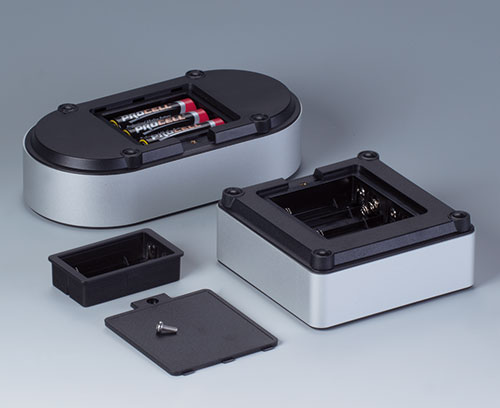

  • bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB; battery compartment kit, battery clips for mounting on PCBs and button cell holder as accessories

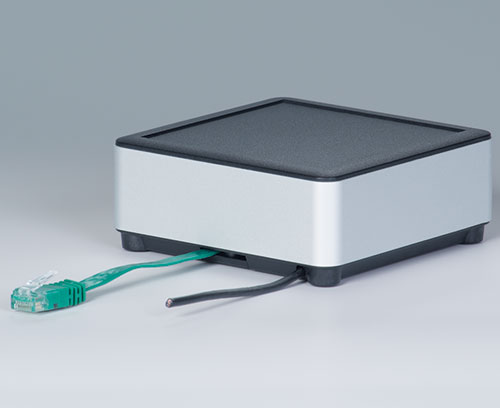

  • cable outlet in the bottom part (extra-flat network cable, round cable up to ø 4 mm)
  • battery compartment kit, wall suspension element and extender (for increasing the height of the domes) as accessories
  • individual enclosure solutions on request

Designer Statement

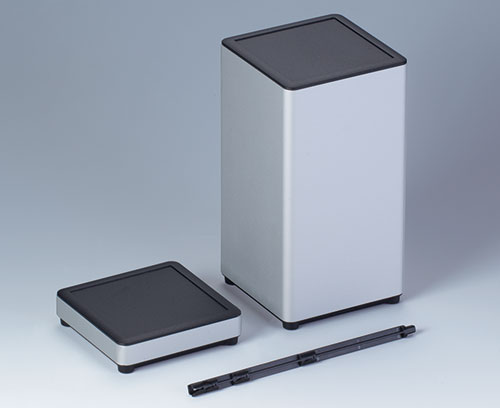

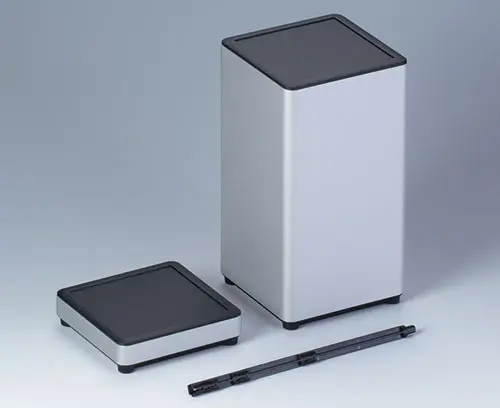

"The special feature of SYNERGY is its high-quality appearance. Right from the very start, the main focus of development was the quality of the materials aluminum and plastic. The timeless basic geometric shapes, the discreetly contoured and trimmed operating panels, as well as the intelligent installation technology results in enclosures that meet the aesthetic demands of your customers. And since single elements can be individually processed in length, the variety of shapes, dimensions and functional variants has created an enormous spectrum of possibilities: altogether a high-quality business."
Martin Nußberger, polyform Industrie Design

  • Video

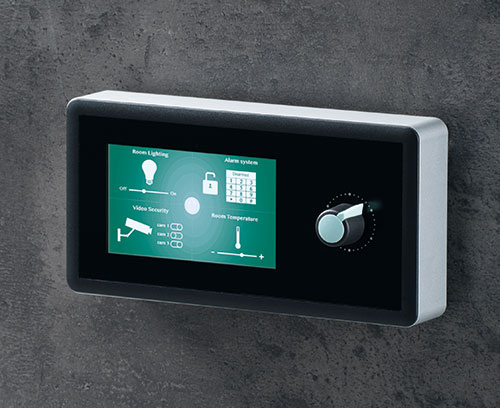

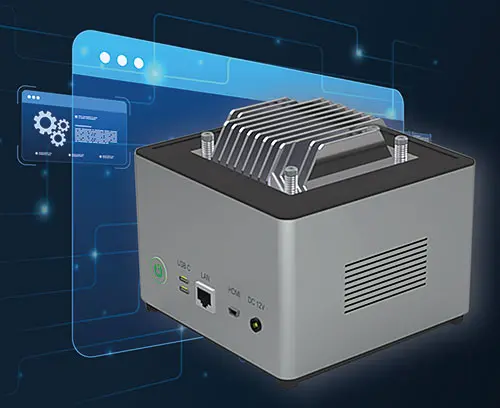

  • Application Examples

Application fields

  • Data systems engineering
  • Network technology
  • Building services systems
  • Safety engineering
  • Medical and therapeutic applications
  • Measurement and control technology
  • IoT/IIoT
  • Gateways
  • Sensors, optoelectronics
  • Select Versions
  • Accessories
  • View Customizing Options
A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A9193033 Polarity reversal protection device, positive terminal AA

A9193033

Polarity reversal protection device, positive terminal AA

For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193033

Polarity reversal protection device, positive terminal AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193034

Polarity reversal protection device, positive terminal AAA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193035 Battery clip, AA

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193035

Battery clip, AA
product added to your basket
Steel
nickel-plated
A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193036

Battery clip, AAA
product added to your basket
Steel
nickel-plated
A9193037 Button cell holder, Ø 0.787"

A9193037

Button cell holder, Ø 0.787" For button cells with Ø 0.787", e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193037

Button cell holder, Ø 0.787"
product added to your basket
A9193038 Button cell holder, Ø 0.906"

A9193038

Button cell holder, Ø 0.906" For button cells with Ø 0.906", e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193038

Button cell holder, Ø 0.906"
product added to your basket
A9193039 Button cell holder, Ø 0.472"

A9193039

Button cell holder, Ø 0.472" For button cells with Ø 0.472", e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193039

Button cell holder, Ø 0.472"
product added to your basket
A9193040 Button cell holder, Ø 0.630"

A9193040

Button cell holder, Ø 0.630" For button cells with Ø 0.630", e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193040

Button cell holder, Ø 0.630"
product added to your basket

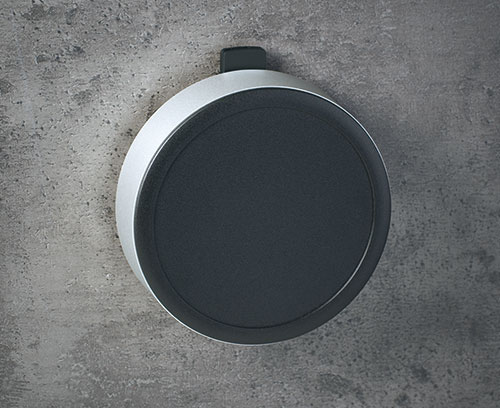

EZ030109 Wall suspension element

EZ030109

Wall suspension element Optional wall mounting with only one screw.

Supply 1 holder and cover plate, 2 anti-slide feet

Close

EZ030109

Wall suspension element
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
EZ031209 Extender kit

EZ031209

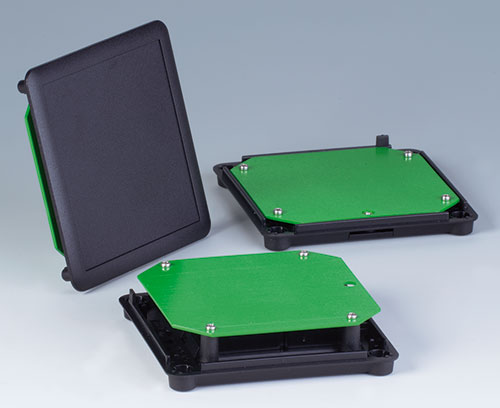

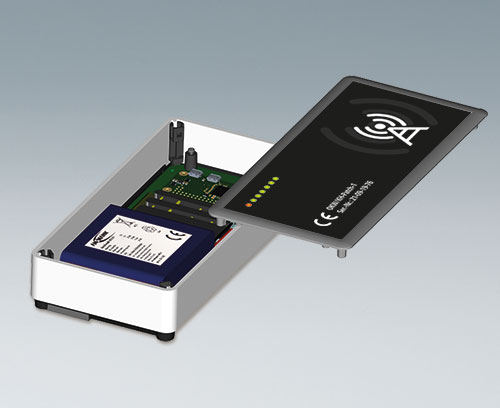

Extender kit For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply 4 extender, 4 screws (Torx 8)

Close

EZ031209

Extender kit
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
EZ040609 Battery compartment, 3 x AA

EZ040609

Battery compartment, 3 x AA For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

Close

EZ040609

Battery compartment, 3 x AA
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
EZ050609 Battery compartment, 4 x AA

EZ050609

Battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

Close

EZ050609

Battery compartment, 4 x AA
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
EZ060609 Battery compartment, 2 x AA

EZ060609

Battery compartment, 2 x AA For 2 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

Close

EZ060609

Battery compartment, 2 x AA
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

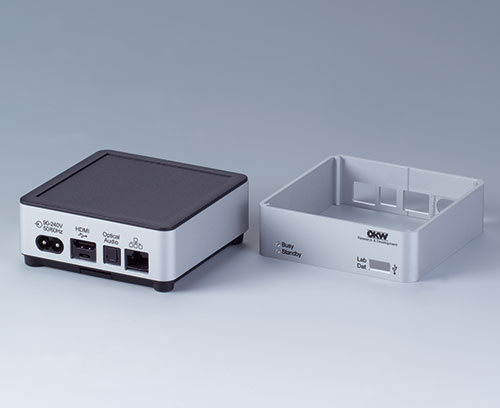

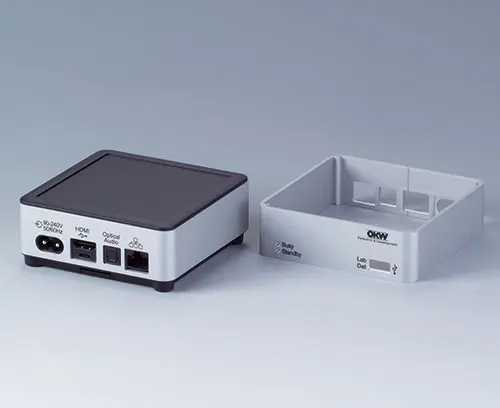

Customizing options for Synergy

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
