A9305017 Wall suspension elements

A9305017

Wall suspension elements

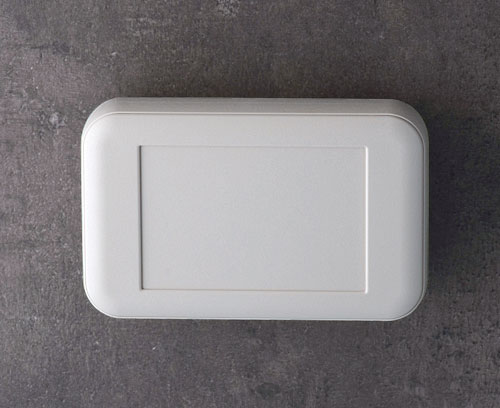

Universal wall suspension element suitable for small plastic enclosures with a flat base.

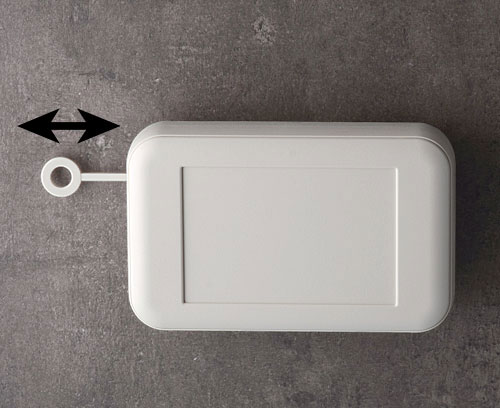

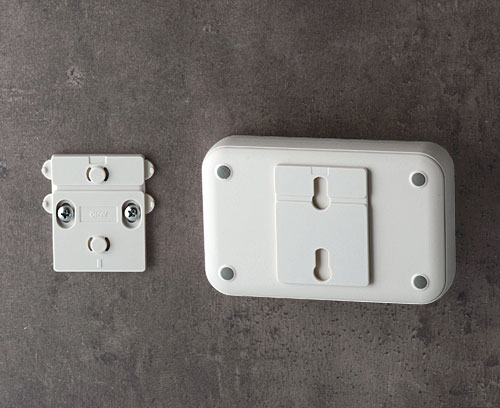

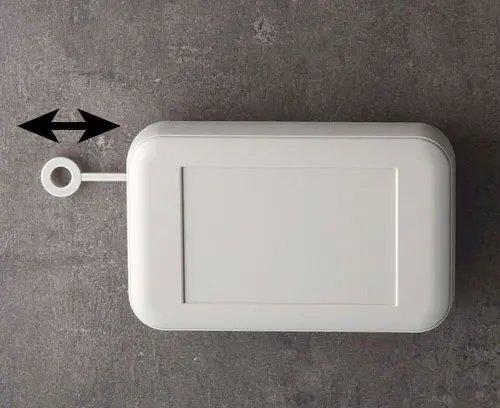

The adapter (1.77" x 2.28") is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply

1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

  • Components/Accessories

System components to complete

A9441107 EVOTEC 150, Vers. I

A9441107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 1.378". Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9441107

EVOTEC 150, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
5.91″x3.66″x1.38″
IP 65 opt., IP 40
A9443107 EVOTEC 150, Vers. I

A9443107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 1.772". Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9443107

EVOTEC 150, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
5.91″x3.66″x1.77″
IP 65 opt., IP 40

Accessory

A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

Close

A9305147

Adhesive foil holder
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Catalog Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
