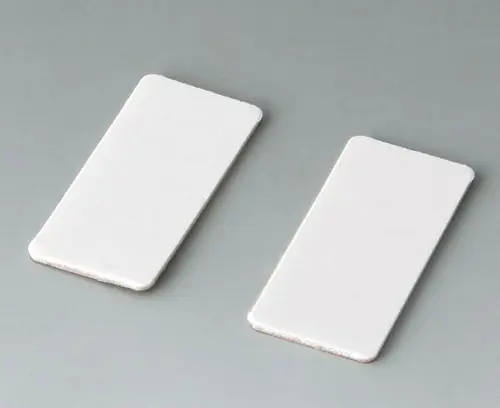

A9305147

Adhesive foil holder

For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply

2 adhesive foils

  • To be used for
AltText

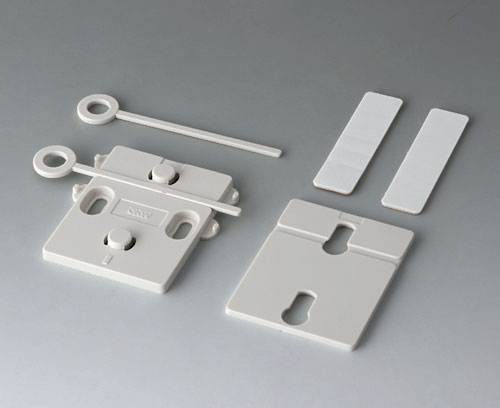

A9305017

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (1.77" x 2.28") is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Close

A9305017

Wall suspension elements
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

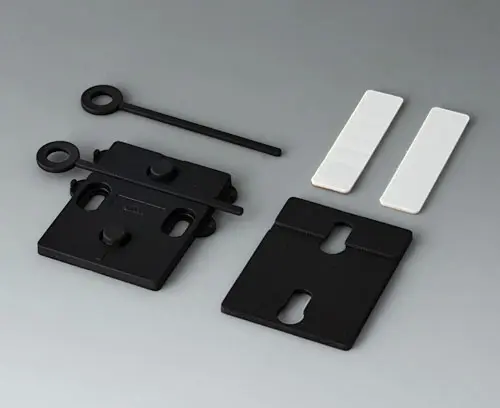

A9305019

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (1.77" x 2.28") is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Close

A9305019

Wall suspension elements
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
