A9305019 Wall suspension elements
A9305019 Wall suspension elementsA9305019 Wall suspension elementsA9305019 Wall suspension elementsA9305019 Wall suspension elementsA9305019 Wall suspension elementsA9305019 Wall suspension elements

A9305019

Wall suspension elements

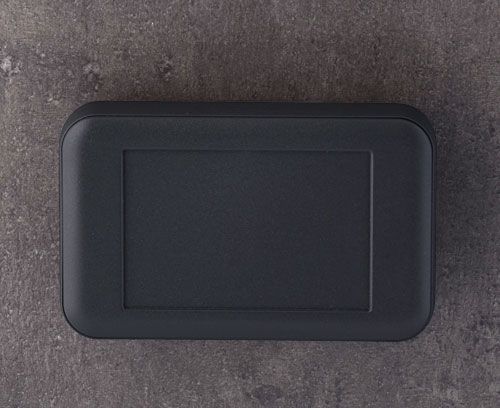

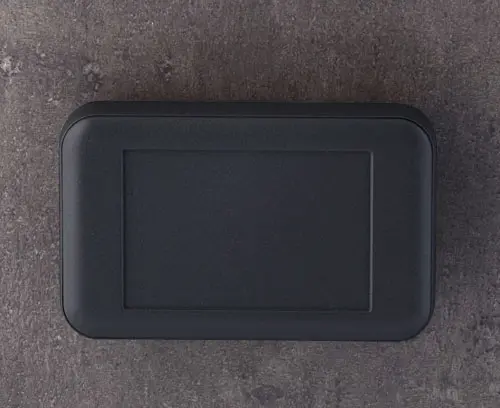

Universal wall suspension element suitable for small plastic enclosures with a flat base.

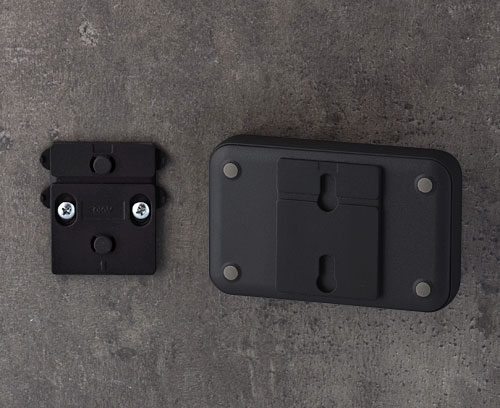

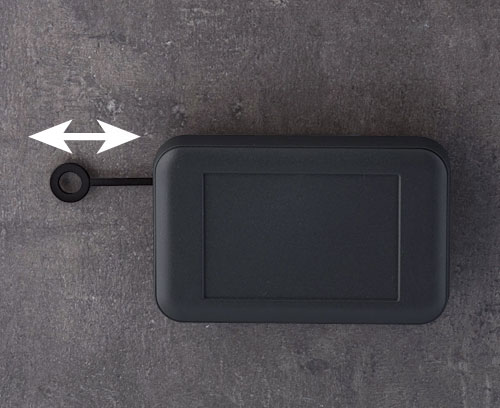

The adapter (1.77" x 2.28") is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply

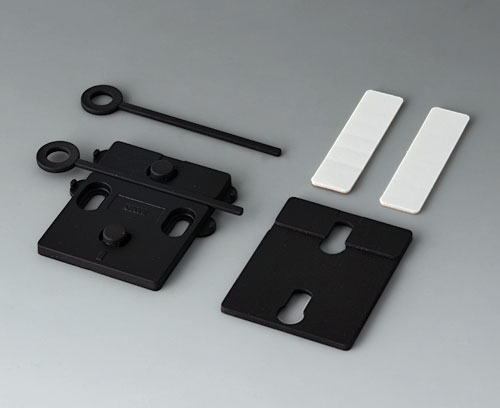

1 adapter, 2 adhesive foils, 1 holder, 2 locking pins


  • Technical Data
  • Drawings /
    Further Information
  • Purchasing Data
Color
black RAL 9005
  • Suitable System Components
NEW PRODUCT
View

System components to complete

ER123059  Add to my list
SYNERGY R120

Aluminum AlMgSi 0.5
matt anodized
⌀4.72″x1.57″
IP 40

ER143059  Add to my list
SYNERGY R140

Aluminum AlMgSi 0.5
matt anodized
⌀5.51″x1.57″
IP 40

Accessory

A9305147  Add to my list

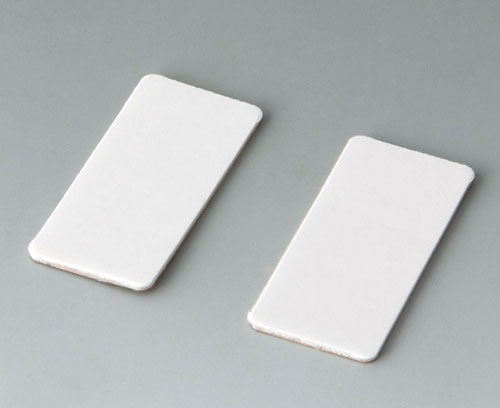

Adhesive foil holder

A9305147

For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply
2 adhesive foils

ER123059

4-part enclosure for many different applications. Sturdy frame made of aluminum, glass bead-blasted and anodized. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply
Top part, bottom part, lid, aluminum profile, assembly kit

ER143059

4-part enclosure for many different applications. Sturdy frame made of aluminum, glass bead-blasted and anodized. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply
Top part, bottom part, lid, aluminum profile, assembly kit
