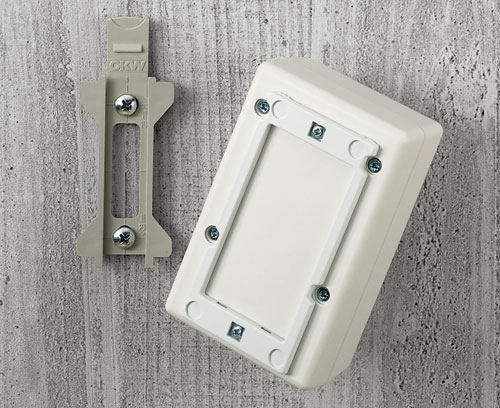

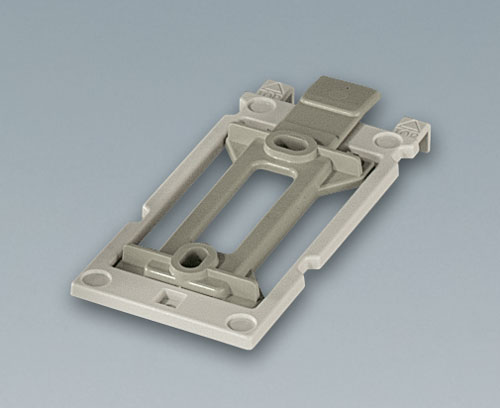

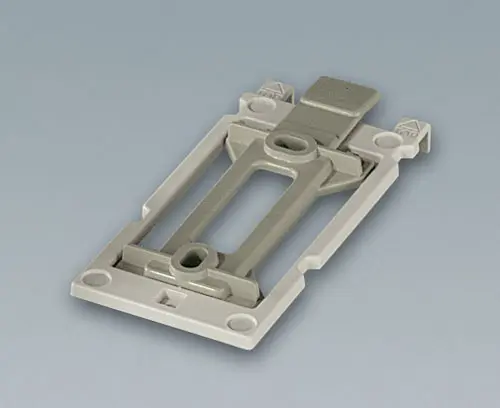

B1360048 Wall suspension elements

B1360048

Wall suspension elements

Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

  • To be used for
  • View Customizing Options

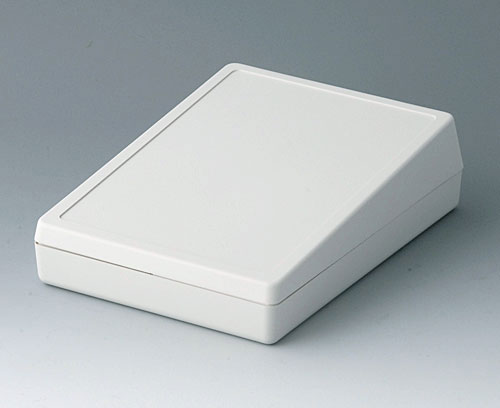

A0514007 DESK CASE 138

A0514007

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.031" . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Close

A0514007

DESK CASE 138
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.13″

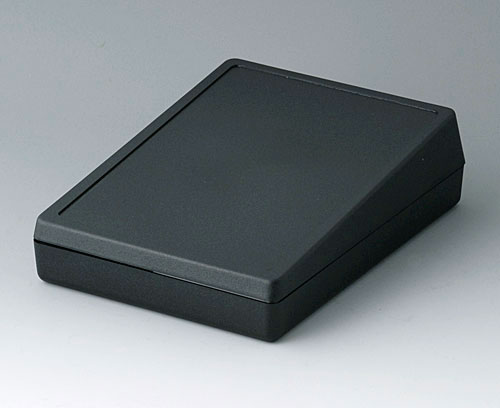

A0514009 DESK CASE 138

A0514009

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.031". Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Close

A0514009

DESK CASE 138
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.43″x7.48″x2.13″

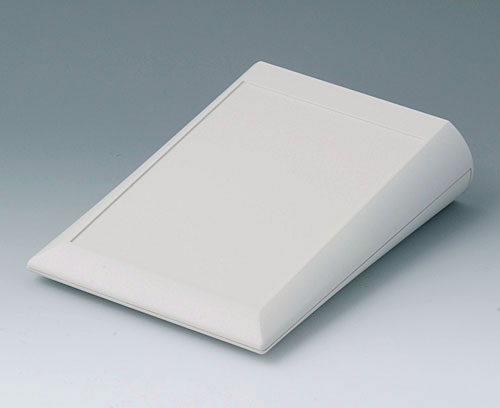

A0615007 COMTEC 150 F, Vers. I

A0615007

COMTEC 150 F, Vers. I Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0615007

COMTEC 150 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x7.87″x2.03″
IP 40
A0615009 COMTEC 150 F, Vers. I

A0615009

COMTEC 150 F, Vers. I Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0615009

COMTEC 150 F, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.91″x7.87″x2.03″
IP 40

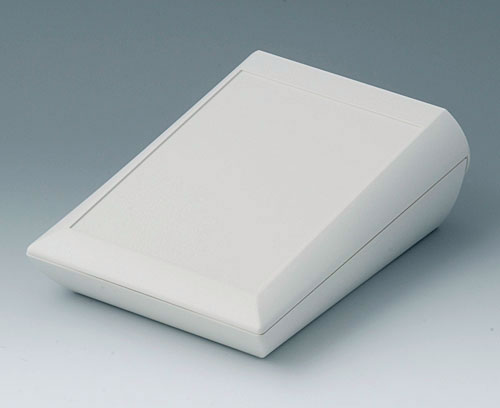

A0615107 COMTEC 150 H, Vers. I

A0615107

COMTEC 150 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0615107

COMTEC 150 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x7.87″x2.81″
IP 40

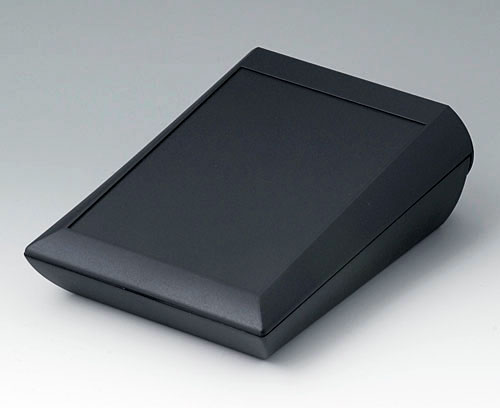

A0615109 COMTEC 150 H, Vers. I

A0615109

COMTEC 150 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0615109

COMTEC 150 H, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.91″x7.87″x2.81″
IP 40

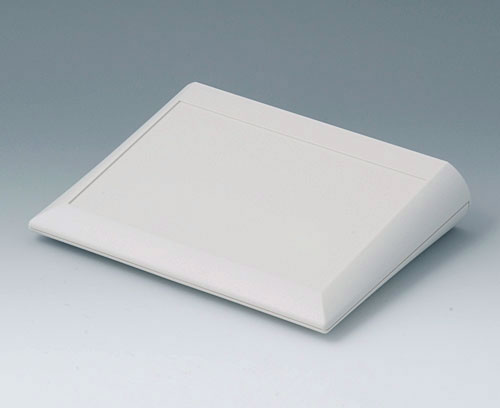

A0620007 COMTEC 200 F, Vers. I

A0620007

COMTEC 200 F, Vers. I Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0620007

COMTEC 200 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.87″x5.91″x1.69″
IP 40

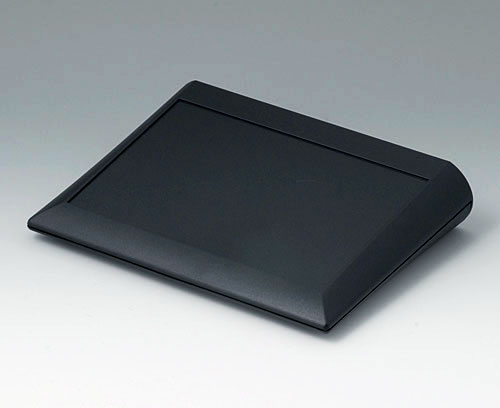

A0620009 COMTEC 200 F, Vers. I

A0620009

COMTEC 200 F, Vers. I Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0620009

COMTEC 200 F, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
7.87″x5.91″x1.69″
IP 40

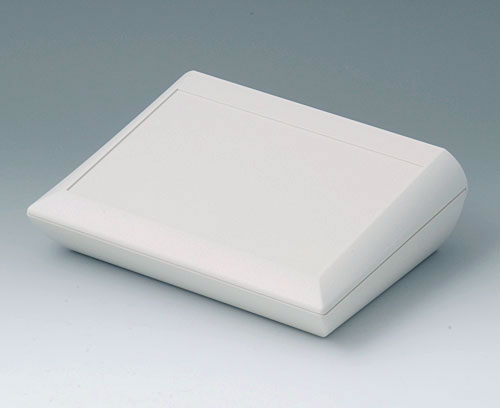

A0620107 COMTEC 200 H, Vers. I

A0620107

COMTEC 200 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0620107

COMTEC 200 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.87″x5.91″x2.47″
IP 40

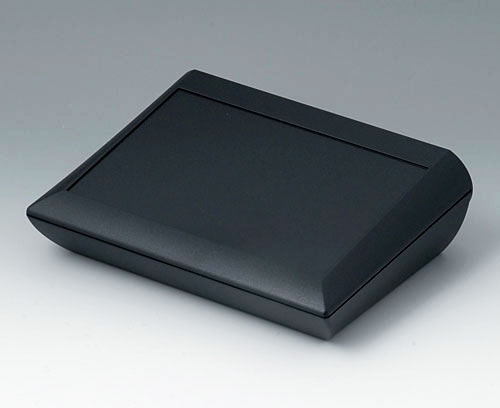

A0620109 COMTEC 200 H, Vers. I

A0620109

COMTEC 200 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0620109

COMTEC 200 H, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
7.87″x5.91″x2.47″
IP 40

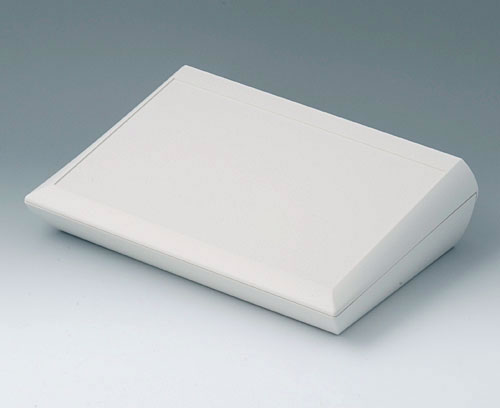

A0629107 COMTEC 290 H, Vers. I

A0629107

COMTEC 290 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0629107

COMTEC 290 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
11.42″x7.87″x2.97″
IP 40

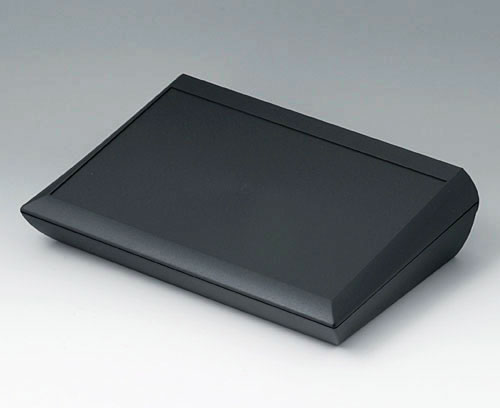

A0629109 COMTEC 290 H, Vers. I

A0629109

COMTEC 290 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 0.047" recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0629109

COMTEC 290 H, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
11.42″x7.87″x2.97″
IP 40

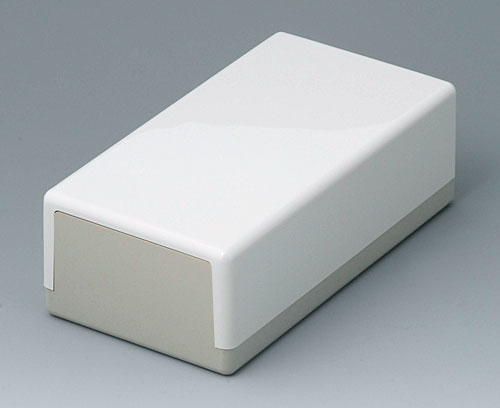

A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9030065

FLAT-PACK CASES 150 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x1.97″
IP 40

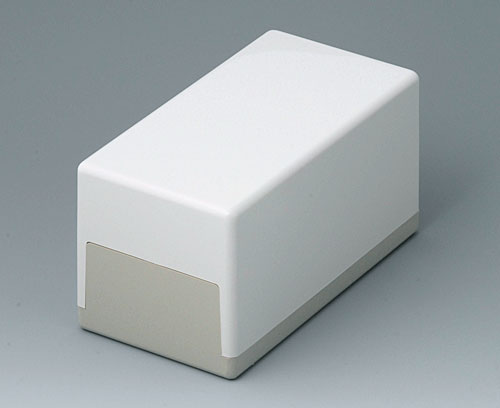

A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9031065

FLAT-PACK CASE 150 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x3.15″
IP 40

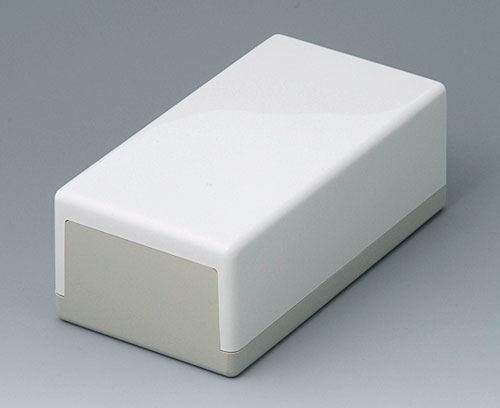

A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9032065

FLAT-PACK CASES 150 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.15″x2.17″
IP 40

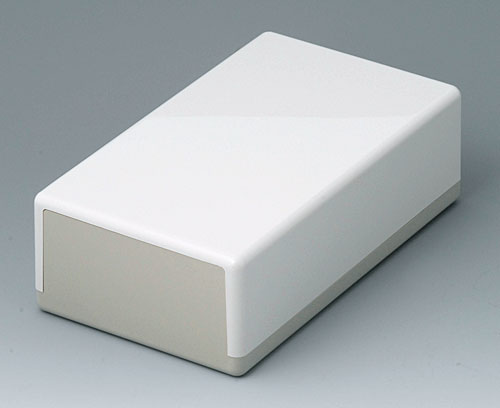

A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9040065

FLAT-PACK CASES 189 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.36″
IP 40

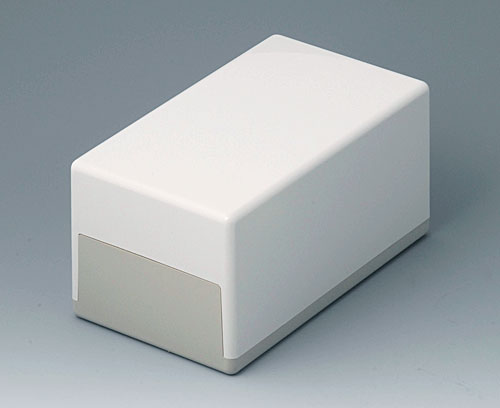

A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9041065

FLAT-PACK CASE 189 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x3.82″
IP 40

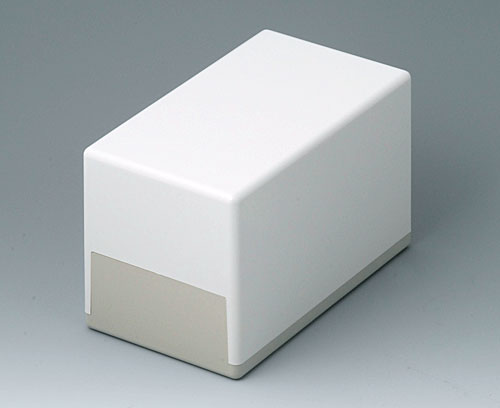

A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9042065

FLAT-PACK CASE 189 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x4.72″
IP 40

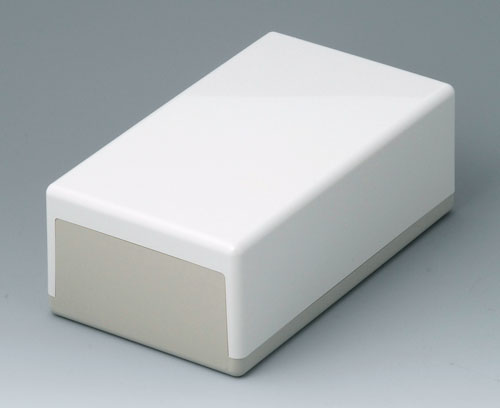

A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9043065

FLAT-PACK CASES 189 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.76″
IP 40

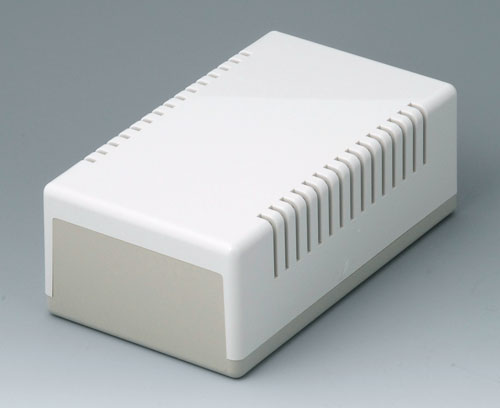

A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Close

A9043265

FLAT-PACK CASE 189 L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.44″x4.33″x2.76″
A9092107 DIATEC XS

A9092107

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Close

A9092107

DIATEC XS
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x1.46″x6.10″
IP 40
A9092108 DIATEC XS

A9092108

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Close

A9092108

DIATEC XS
product added to your basket
ABS (UL 94 HB)
lava
5.91″x1.46″x6.10″
IP 40

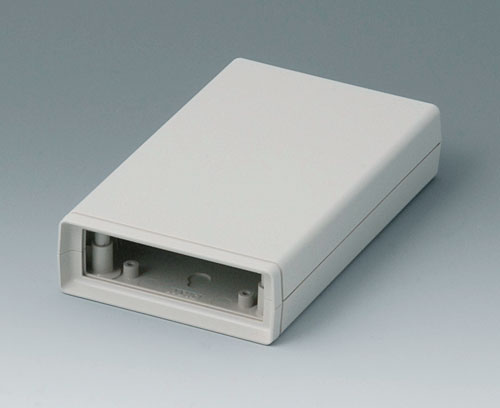

A9408330 SHELL-TYPE CASES O 155, Vers. I

A9408330

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408330

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.30″

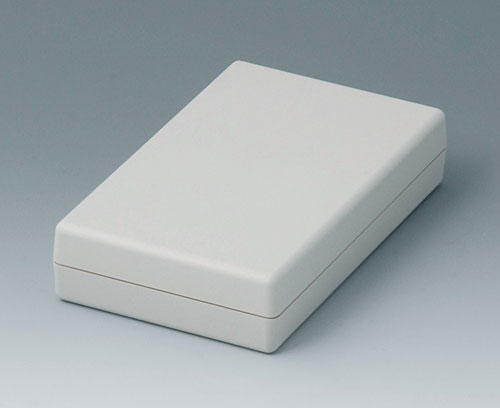

A9408331 SHELL-TYPE CASES G 155, Vers. I

A9408331

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408331

SHELL-TYPE CASES G 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.30″
IP 65 opt.

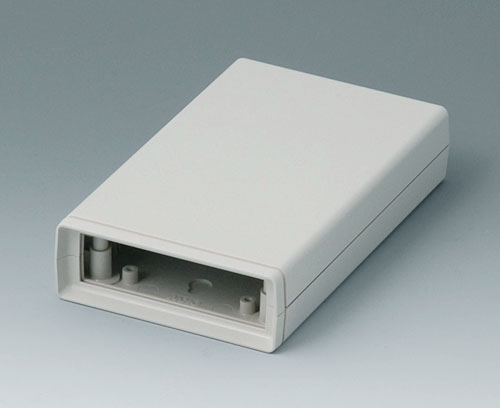

A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408333

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.30″
A9408340 SHELL-TYPE CASES O 155, Vers. I

A9408340

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408340

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″

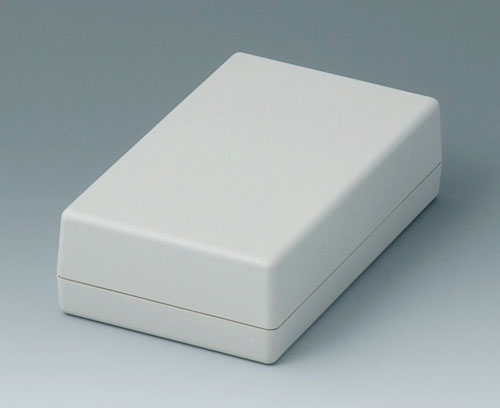

A9408341 SHELL-TYPE CASES G 155, Vers. I

A9408341

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408341

SHELL-TYPE CASES G 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″
IP 65 opt.

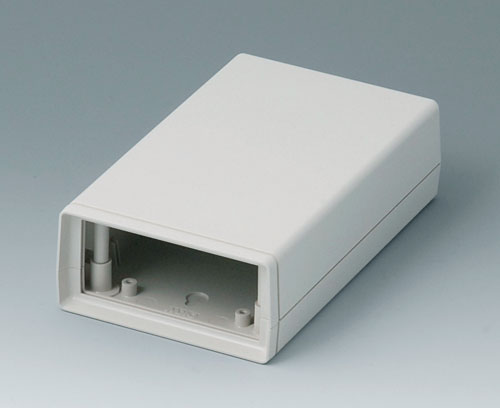

A9408343 SHELL-TYPE CASES V 155, Vers. I

A9408343

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408343

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″

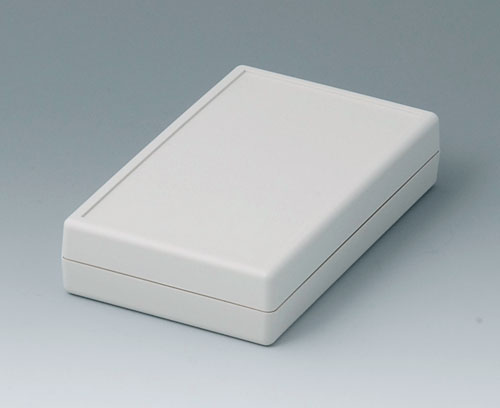

A9408351 SHELL-TYPE CASES G 155, Vers. I

A9408351

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408351

SHELL-TYPE CASES G 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.32″
IP 65 opt.
A9408440 SHELL-TYPE CASES O 155, Vers. I

A9408440

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408440

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.10″x2.24″

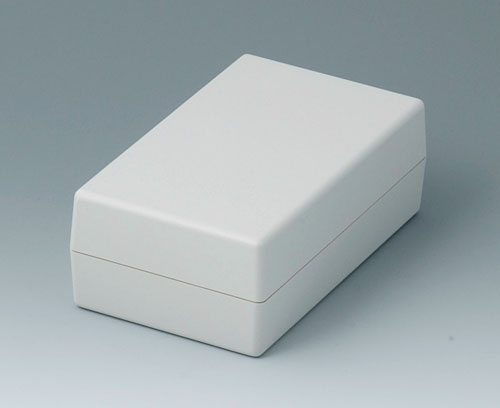

A9408441 SHELL-TYPE CASES G 155, Vers. I

A9408441

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408441

SHELL-TYPE CASES G 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x2.24″
IP 65 opt.
A9408443 SHELL-TYPE CASES V 155, Vers. I

A9408443

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408443

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x2.24″
A9413330 SHELL-TYPE CASES O 190, Vers. I

A9413330

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413330

SHELL-TYPE CASES O 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.77″
A9413331 SHELL-TYPE CASES G 190, Vers. I

A9413331

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413331

SHELL-TYPE CASES G 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.77″
IP 65 opt.
A9413333 SHELL-TYPE CASES V 190, Vers. I

A9413333

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413333

SHELL-TYPE CASES V 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.77″
A9413340 SHELL-TYPE CASES O 190, Vers. I

A9413340

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413340

SHELL-TYPE CASES O 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″
A9413341 SHELL-TYPE CASES G 190, Vers. I

A9413341

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413341

SHELL-TYPE CASES G 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″
IP 65 opt.
A9413343 SHELL-TYPE CASES V 190, Vers. I

A9413343

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413343

SHELL-TYPE CASES V 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″
A9413351 SHELL-TYPE CASES G 190, Vers. I

A9413351

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413351

SHELL-TYPE CASES G 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.79″
IP 65 opt.
A9413440 SHELL-TYPE CASES O 190, Vers. I

A9413440

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413440

SHELL-TYPE CASES O 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x3.58″
A9413441 SHELL-TYPE CASES G 190, Vers. I

A9413441

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413441

SHELL-TYPE CASES G 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x3.58″
IP 65 opt.
A9413443 SHELL-TYPE CASES V 190, Vers. I

A9413443

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9413443

SHELL-TYPE CASES V 190, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x3.58″
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9530165

FLAT-PACK CASE 150 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.91″x3.35″x1.77″
IP 40
A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9540165

FLAT-PACK CASE 210 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.27″x4.92″x2.76″
IP 40

Customizing options for B1360048

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Adapter
PC+ABS (UL 94 V-0)
Wall suspension element
Color
Wall suspension element pebble gray RAL 7032,
Adapter off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
