Smart-Terminal

Select which version/size you want below or browse full product list

System components for individual combinations

SMART-TERMINAL system components for individual combinations

width 6.693"

B3407011 SMART-TERMINAL 160

B3407011

SMART-TERMINAL 160

Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407011

SMART-TERMINAL 160
product added to your basket

matt anodized
7.95″x6.69″x1.97″
B3407012 SMART-TERMINAL 160

B3407012

SMART-TERMINAL 160 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407012

SMART-TERMINAL 160
product added to your basket

matt anodized
7.95″x6.69″x1.97″
B3407013 SMART-TERMINAL 160

B3407013

SMART-TERMINAL 160

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

B3407013

SMART-TERMINAL 160
product added to your basket

matt anodized
6.46″x6.69″x1.97″
B3407021 SMART-TERMINAL 200

B3407021

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407021

SMART-TERMINAL 200
product added to your basket

matt anodized
9.53″x6.69″x1.97″
B3407022 SMART-TERMINAL 200

B3407022

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407022

SMART-TERMINAL 200
product added to your basket

matt anodized
9.53″x6.69″x1.97″
B3407023 SMART-TERMINAL 200

B3407023

SMART-TERMINAL 200

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

B3407023

SMART-TERMINAL 200
product added to your basket

matt anodized
8.03″x6.69″x1.97″
B3407031 SMART-TERMINAL 240

B3407031

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in green and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407031

SMART-TERMINAL 240
product added to your basket

matt anodized
11.10″x6.69″x1.97″
B3407032 SMART-TERMINAL 240

B3407032

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminum profile (glass bead-blasted and anodised), designer seals in volcano and lava gray plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407032

SMART-TERMINAL 240
product added to your basket

matt anodized
11.10″x6.69″x1.97″
B3407033 SMART-TERMINAL 240

B3407033

SMART-TERMINAL 240

Robust enclosure with two-part aluminum profile (glass bead-blasted and anodised) and aluminum end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminum end plates, assembly kit incl. anti-slide feet

B3407033

SMART-TERMINAL 240
product added to your basket

matt anodized
9.61″x6.69″x1.97″

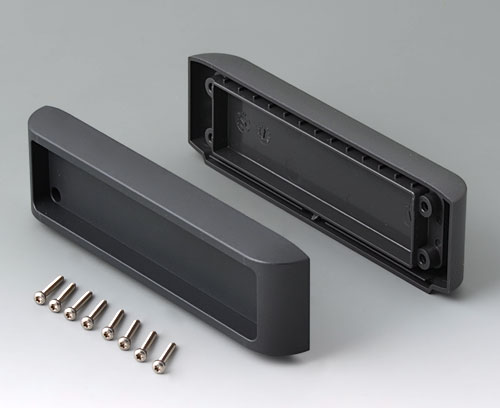

B3507011 Side covers set

B3507011

Side covers set (Order when specifying a SMART-TERMINAL enclosure from individual parts).
Ergonomic molded side covers for fitting to each end of the case profile. A set of designer seals must also be ordered when fitting these side covers to the case. The seals are sold separately in a range of colors.
Enclosure length = profile length + 1.654" (for side covers and seals).

Supply 2 side covers, assembly kit

B3507011

Side covers set
product added to your basket

lava

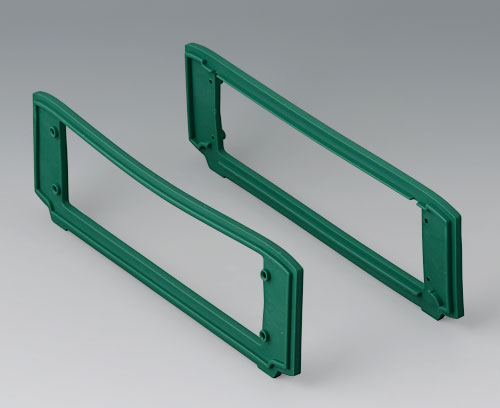

B3507016 Designer seals set, green

B3507016

Designer seals set, green (Order when specifying a SMART-TERMINAL enclosure from individual parts).
Set of molded seals for fitting between the case profile and side covers. Can only be used in combination with a set of side covers.

Supply 2 designer seals

B3507016

Designer seals set, green
product added to your basket

green

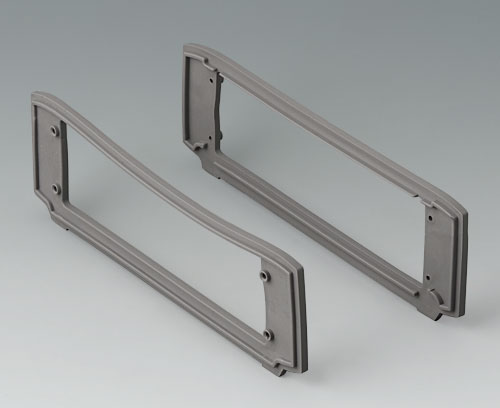

B3507017 Designer seals set, volcano

B3507017

Designer seals set, volcano (Order when specifying a SMART-TERMINAL enclosure from individual parts).
Set of molded seals for fitting between the case profile and side covers. Can only be used in combination with a set of side covers.

Supply 2 designer seals

B3507017

Designer seals set, volcano
product added to your basket

volcano

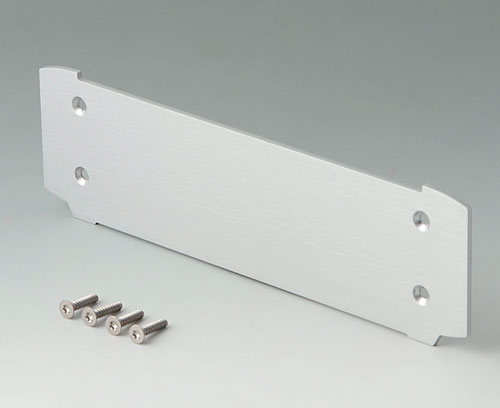

B3507025 Aluminum end plate

B3507025

Aluminum end plate (Order when specifying a SMART-TERMINAL enclosure from individual parts). Simple end plate for fitting to the case profile. Fitted by four screws.
Cannot to be used in conjunction with the designer seals.
Enclosure length = profile length + 4 mm (when using the end plates on both sides).

Supply 1 end plate, 4 screws

B3507025

Aluminum end plate
product added to your basket

matt anodized

Accessory "station"

B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting moldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

B3507030

Case canting kit
product added to your basket

lava

Accessory "wall/holder"

A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
product added to your basket

anthracite gray RAL 7016
3.94″x3.94″x0.79″
B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.
Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

B3507020

Wall suspension element
product added to your basket

Accessory "screws"

A0330080 Screw M3 x 3.150" (T10)

A0330080

Screw M3 x 3.150" (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

A0330080

Screw M3 x 3.150" (T10)
product added to your basket
B3500001 Set of M3 square-head nuts

B3500001

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

B3500001

Set of M3 square-head nuts
product added to your basket

Accessory

A9209229 Anti-slide feet 0.335" x 0.087"

A9209229

Anti-slide feet 0.335" x 0.087" For SMART-TERMINAL enclosures fitted with the aluminum end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

A9209229

Anti-slide feet 0.335" x 0.087"
product added to your basket
black
