NEW QUICK FIT CABLE GLANDS GIVE YOU MORE SPACE

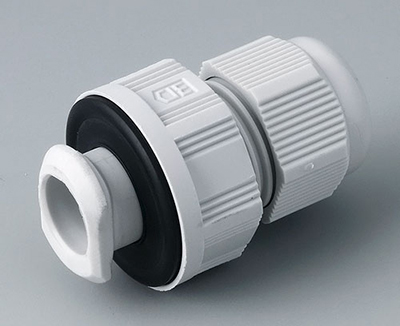

Quick-fit cable glands

November 2013

Sizes from M16 to M32

New quick fit cable glands from OKW will help you to squeeze even more space out of our roomy enclosures. Their easy push-fit format means you can install them from the outside – so no more messing around with separate locknuts.

Simply push them into the drilled holes and centre them. You clamp them into place using the integral exterior locknut – which features a left-hand thread to ensure it stays tight. Then just feed in the cable as normal. You’ll find there’s much more space because our innovative new design replaces the traditional interior locknut with a low profile flange.

Those extra millimetres of space could enable you to specify a cost effective standard sealed enclosure instead of a more expensive custom housing. Or it could mean a smaller standard housing – either way, you’ll cut costs and give your customers a more compact end product.

Our new IP 68 cable glands are very robust so they can cope with challenging applications that call for tough industrial housings. (Visit our IP ratings web page to find out more).

They’re available in four sizes, all of which will fit 0.039" to 0.157" thick enclosure walls:

  • M16 – for 0.196" to 0.393" cables
  • M20 – for 0.314" to 0.511" cables
  • M25 – for 0.433" to 0.669" cables
  • M32 – for 0.590" to 1.259" cables.

All the new cable glands come with strain relief as standard. They are manufactured in light grey (RAL 7035) PA.

View cable glands range >>
