DATEC-COMPACT IN TWO NEWS SIZES


Datec-Compact IP65 handheld enclosures

October 2014

ERGONOMIC IP 65 ENCLOSURES FOR INDOOR AND OUTDOOR USE

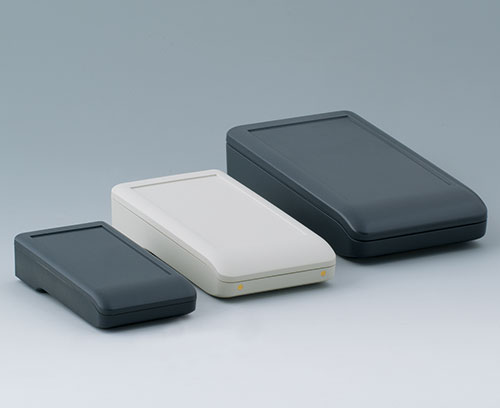

OKW has completed its range of DATEC-COMPACT outdoor handheld enclosures by adding new sizes S and L to the existing M models.

DATEC-COMPACT has been designed for mobile applications in harsh environments: data recording and transfer, measuring and control, stock and sales logging. All three sizes can be specified with or without gold-plated integrated contacts (<15 A, 1-pole) which provide an all-in solution for charging and data transfer.

Versions with battery compartments – 3 x 1.5 V AAA (size S) or 2 x 1.5 V AA (sizes M and L) – provide slots for SD cards and USB connectors. Highly robust DATEC-COMPACT is rated to IP 65 (NEMA 4), manufactured from UV-stable ASA+PC-FR (UL 94 V-0) and assembled using tamper-proof Torx T10 screws.

Sizes for DATEC-COMPACT are S 5.35” x 2.91” x 1.26”, M 6.77” x 3.62” x 1.53” and L 8.11" x 4.33” x 1.85”.   Prices start at $33. Standard colors are Off-white (RAL 9002) and Lava Gray. Special colors are available on request.

Accessories include desk stations and wall holders – both of which can be specified either with or without gold-plated spring contacts (<15 A, 1-pole). Nickel-plated battery clips are also available, along with spare contacts, non-slip feet, self-tapping screws (ø 2.5 x 6 mm PZ1) for mounting PCBs and a Torx T10 screwdriver.

Customizing services include CNC milling and drilling, printing or engraving of legends and logos, special finishes, keypads and assembly.

View range here >>
