New Mini-Size 80 EVOTEC Table-top Plastic Enclosures

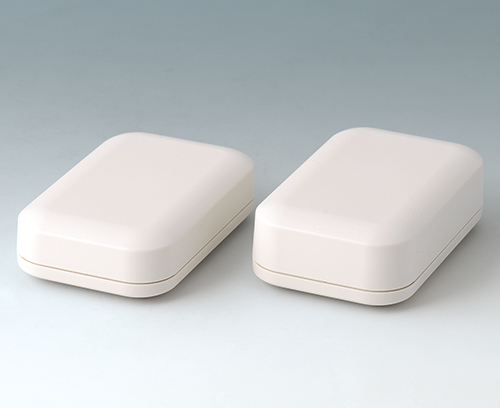

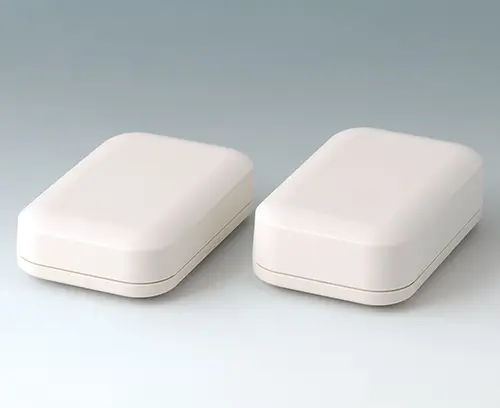

New size 80 EVOTEC plastic desktop enclosures

January 2020

OKW’s EVOTEC designer table-top electronic enclosures are now available in a new smaller 80 size – increasing the range to five plan sizes.

Soft-contoured EVOTEC is elegant and ergonomic but tough enough for challenging working environments. Applications include measurement and control, IT, IoT/IIoT, gateways, medical, laboratory and environmental technology.

At 3.149” x 1.968”, new EVOTEC 80 is the smallest plan size in the range. It has a large flat (non-recessed) top for switches, push buttons and touch displays. Four larger plan sizes are available: 100 (3.937” x 2.440”), 150 (5.905” x 3.661”), 200 (7.874” x 4.881”) and 250 (9.842” x 6.102”).

EVOTEC is also available with a 12° inclined top (either recessed or non-recessed) that offers a superior viewing angle for desktop use. This sloping top versions are available in two plan sizes: 200 and 250.

All EVOTEC enclosures have screw pillars both in the top and base for installing PCBs. Self-adhesive rubber feet ensure stability on flat surfaces. The enclosures are assembled using Torx assembly screws to prevent tampering (ideal for medical electronics).

EVOTEC’s soft contours are moulded from UV-stable ASA+PC-FR (UL 94 V-0) in off-white (RAL 9002) as standard. Prices start at $17.67.

Accessories include an optional IP 65 seal, wall suspension elements, a fastening element for DIN rails, self-tapping screws (PZ1 and Torx T8) and a Torx T8 screwdriver.

OKW can supply EVOTEC fully customized on request. Services include: custom colors; RFI/EMI shielding; CNC machining; lacquering; screen/tampo/digital printing or laser marking of legends and logos; installation and assembly of accessories.

View EVOTEC enclosures >>
