OKW’s New RAILTEC Panel Enclosures For Individual DIN Rail Devices

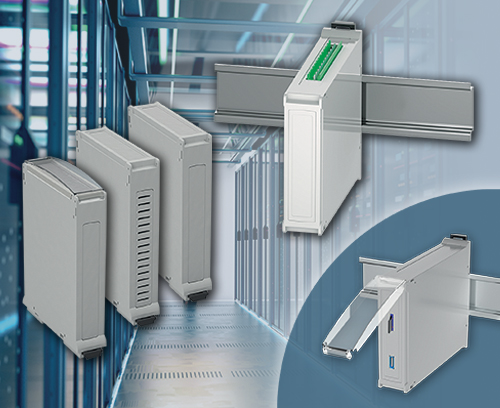

New RAILTEC BP M22 DIN Rail Panel Enclosures

May 2025

OKW has extended its RAILTEC B range of DIN rail enclosures by adding a new panel version with pluggable front and side panels.

RAILTEC BP M22 can accommodate plug headers (maximum 1 or 2 x 16-pin, 5.08, fixed or pluggable). It is ideal for a wide range of applications, notably individual DIN-rail-mounted measuring and control devices.

These fast-fit enclosures lock quickly and easily on to TH35 rails. They are available in three different side panel configurations: closed or with ventilation on one or two sides. Plug headers and other connections such as USB can be fitted to the closed sides.

The 3.74" x 0.91" x 4.45" enclosures have been designed to a standard industrial size, making them compatible and interchangeable with other housings. They are moulded from light gray (RAL 7035) PC (UL 94 V-0).

Each enclosure is supplied as two case shells, two side panels, a front panel and two locking clips. The minimum order quantity is 10 pieces or multiples.

Accessories include plug headers, spare front and side panels, and a transparent hinged cover to protect the front, controls, connectors and lighting elements.

OKW can supply RAILTEC B DIN rail enclosures fully customized. Services include CNC machining, printing and laser marking.

View RAILTEC BP M22 >>
