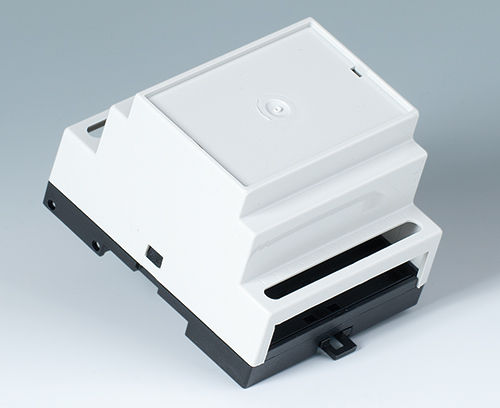

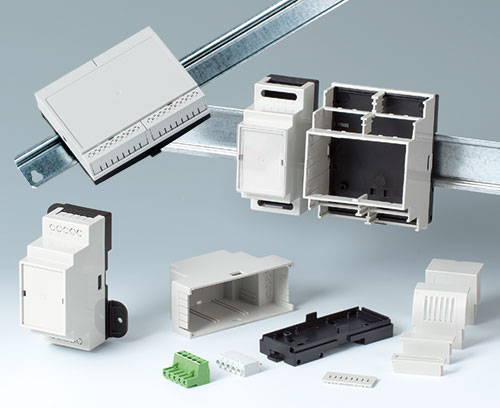

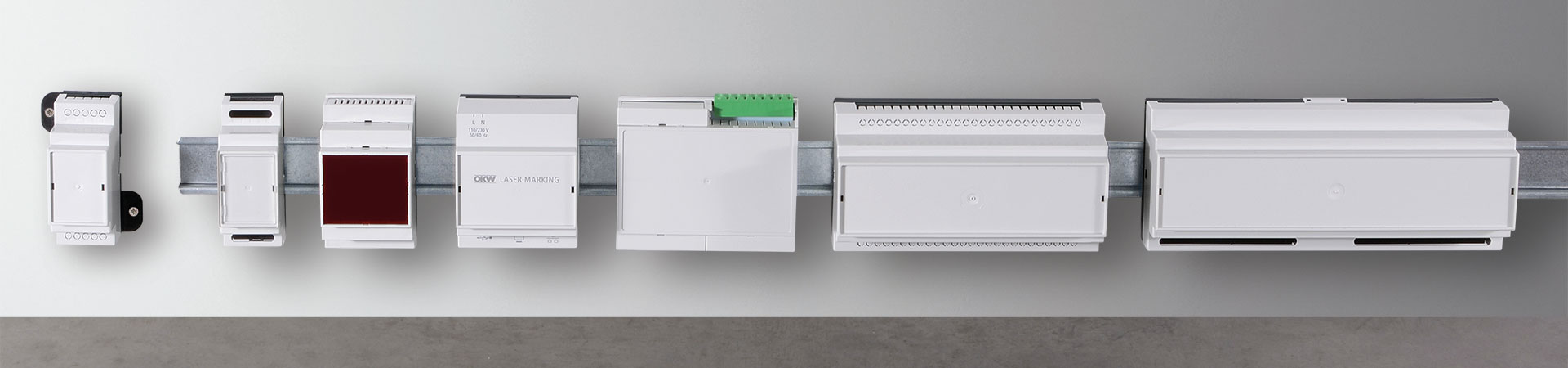

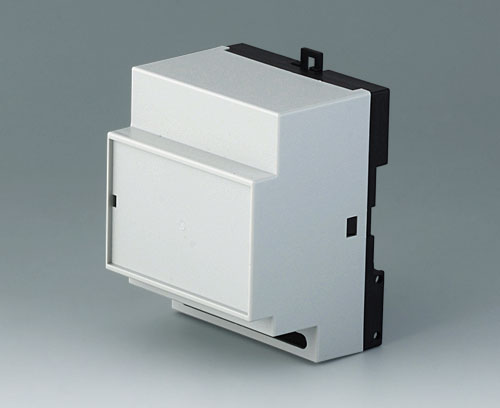

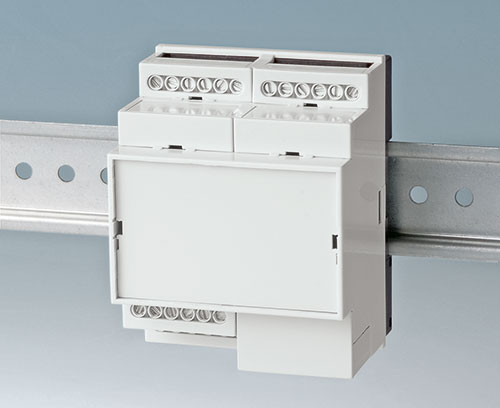

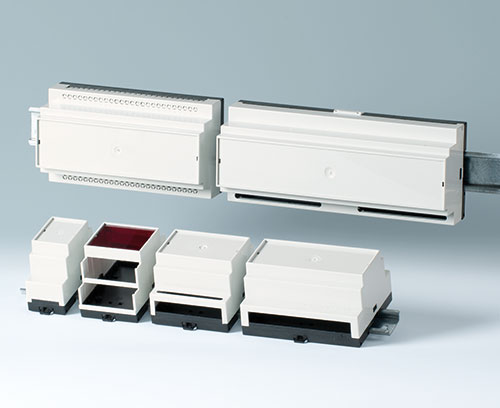

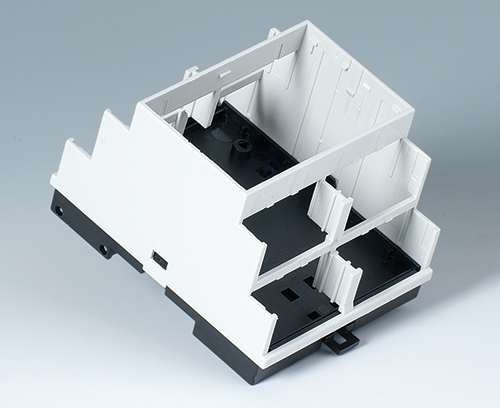

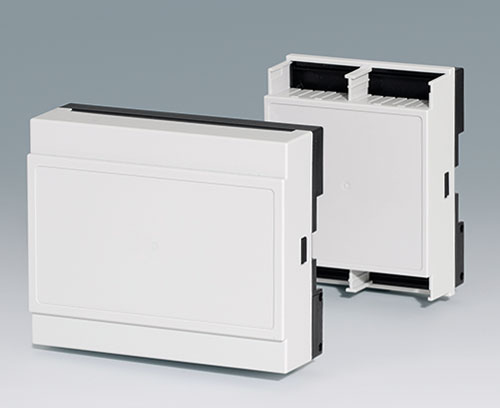

Railtec B

Versatile standard DIN rail enclosures

Our RAILTEC B series of plastic enclosures provides fast and simple mounting on to standard DIN EN 60715 TH35 rails.

  • six sizes (2 to 12 modules wide) according to DIN 43880, unit 1;

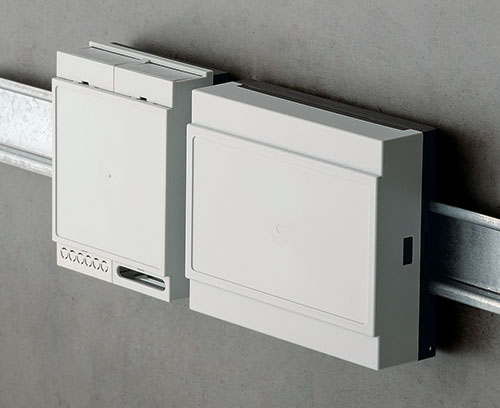

    four sizes (2, 4, 6 & 9 modules wide) with low profile;

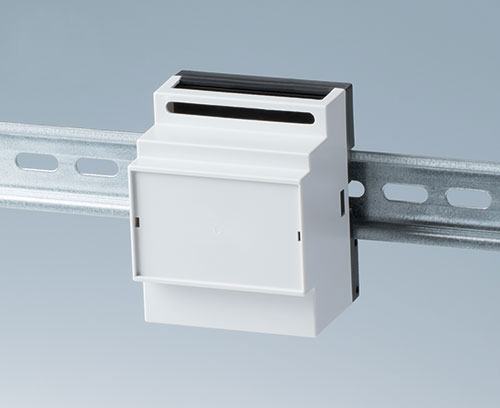

    four sizes (2, 4, 6 & 9 modules wide) with flat/high connection level
  • fully insulated and protected according to VBG 4 and IEC 529/DIN VDE 0470-1
  • flame-resistant material (UL 94 V-0)

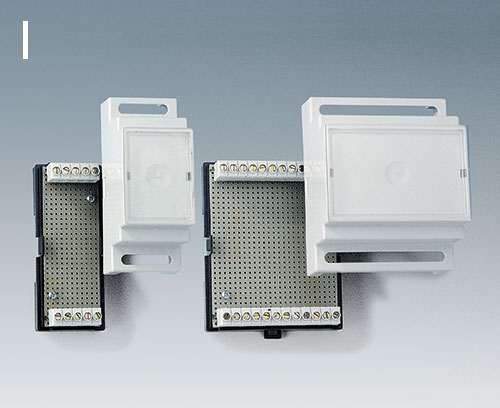

  • version I and XI: for PCB terminal blocks 5.0/5.08 mm pitch

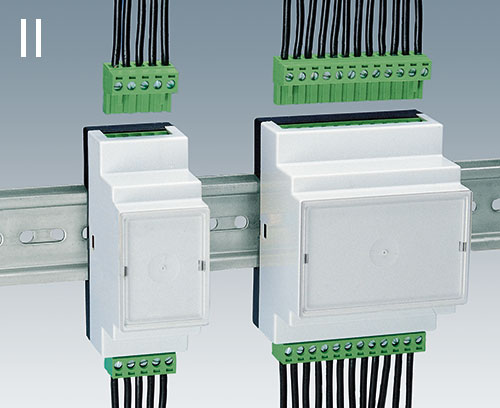

  • version II and XII: for plug headers 5.0/5.08 mm pitch

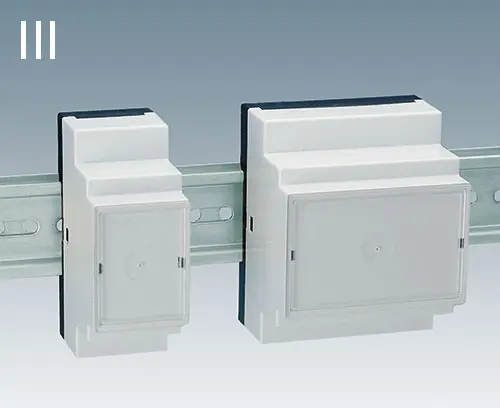

  • version III and XIII: closed case for front connectors, D-SUB connectors, etc.

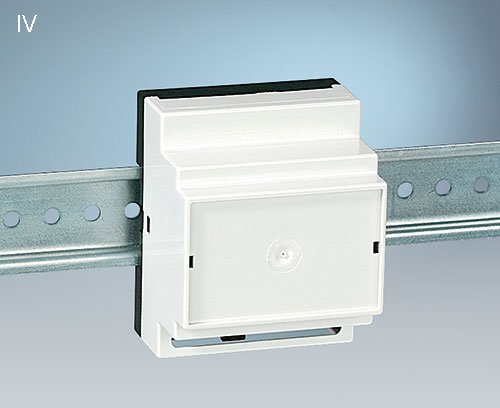

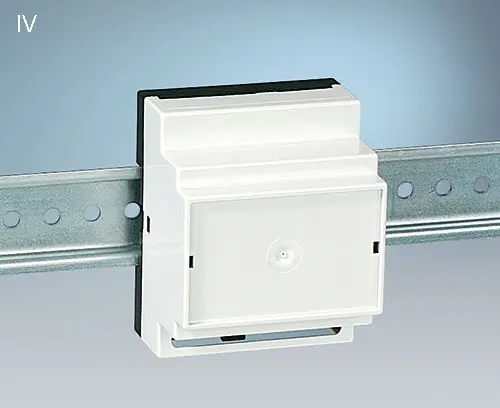

  • version IV: for PCB terminal blocks 5.0/5.08 mm pitch (1 row)

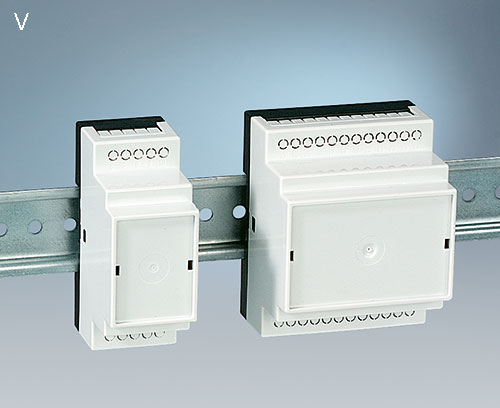

  • version V: with knockout perforations 5.0 mm pitch

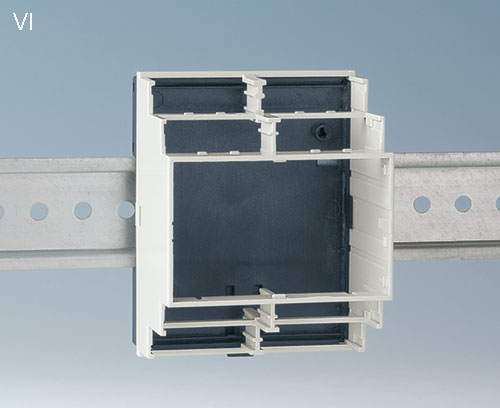

  • version VI: open case for fitting different combinations of terminal guards and partition plate; optionally 1 or 2 connection levels

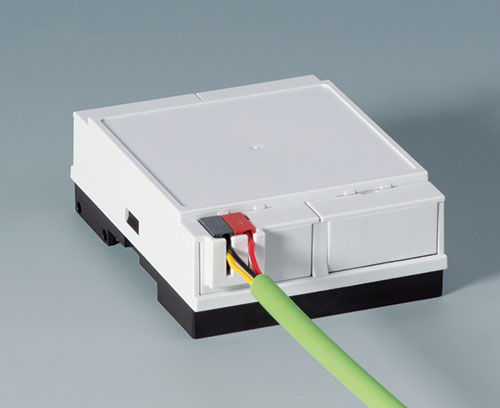

  • KNX cover to fit 2 and 4 modules of series VI and flat top parts
  • suitable for DIN rails EN 60715 TH35 or direct wall mounting

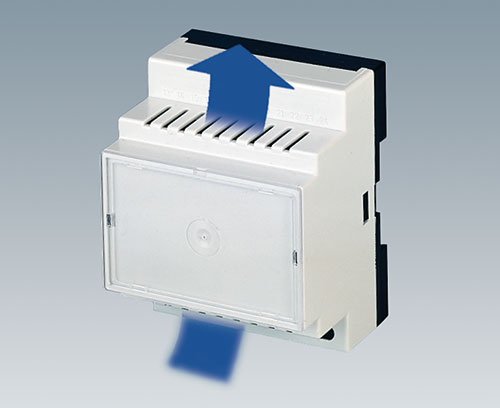

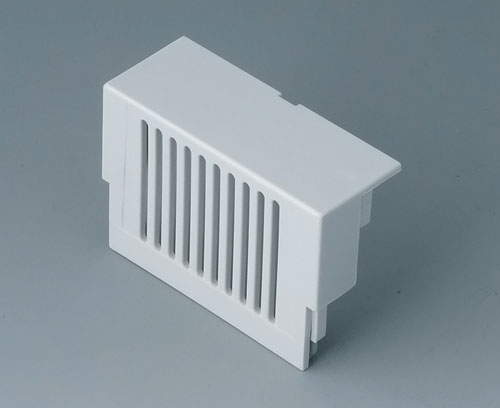

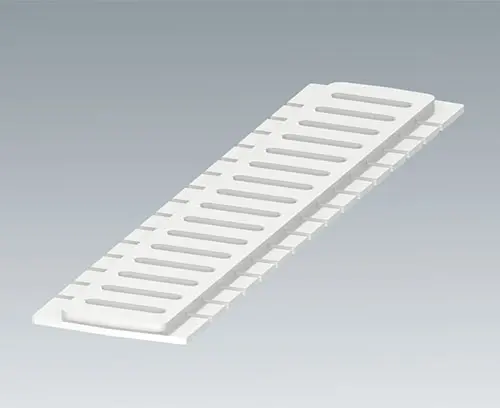

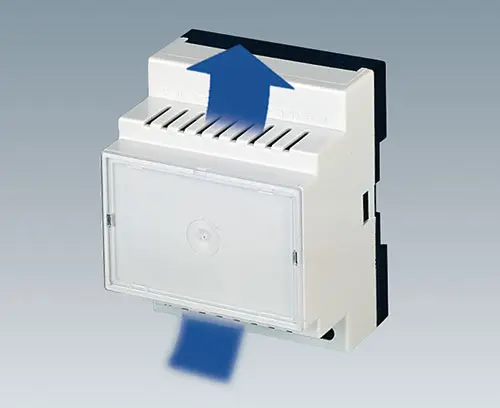

  • with/without ventilation slots for good heat dissipation
  • flexible assembly: PCB positioning in all 3 directions; base part with fixing pillars, top parts with guide ridges

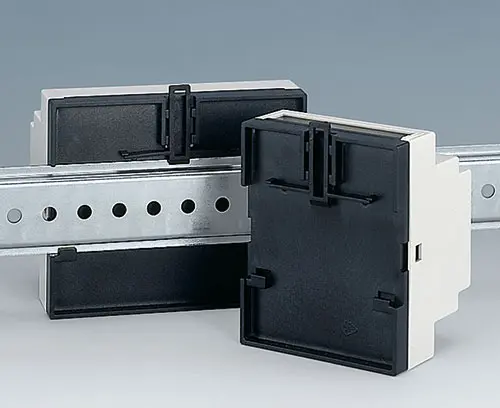

  • DIN rail clip pre-assembled in base part

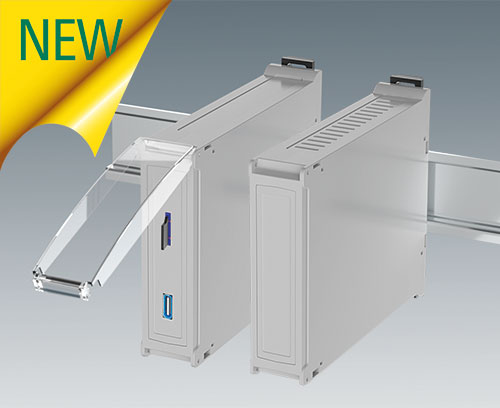

  • transparent lid (acc.) protects display and operation elements
  • protection class < IP 40

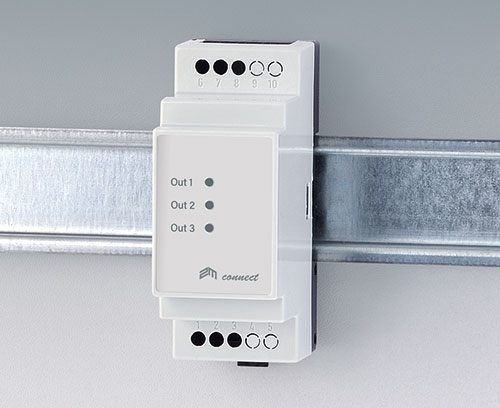

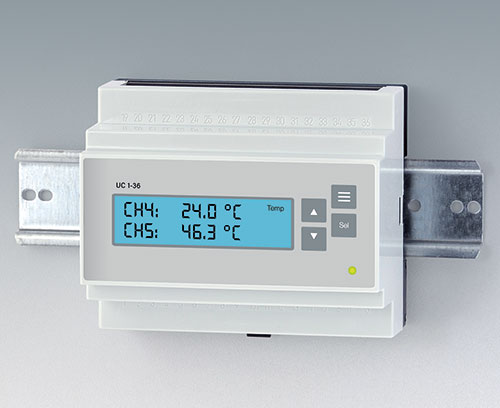

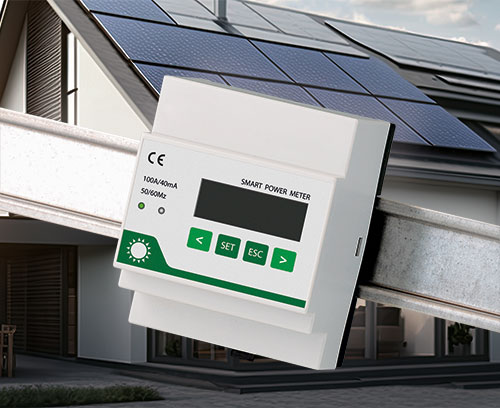

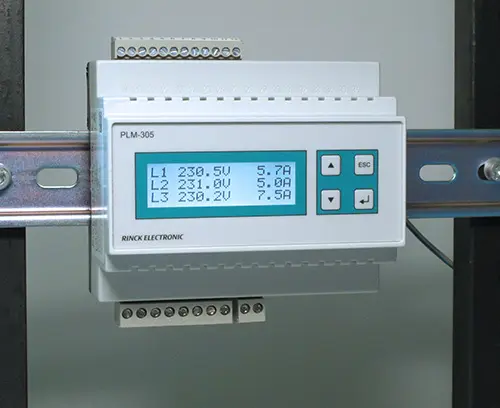

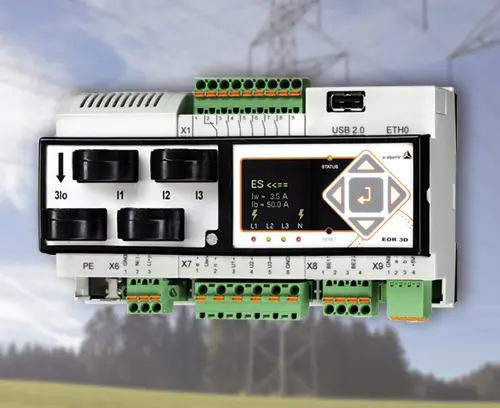

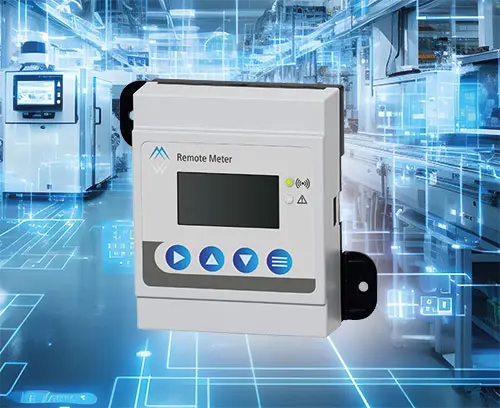

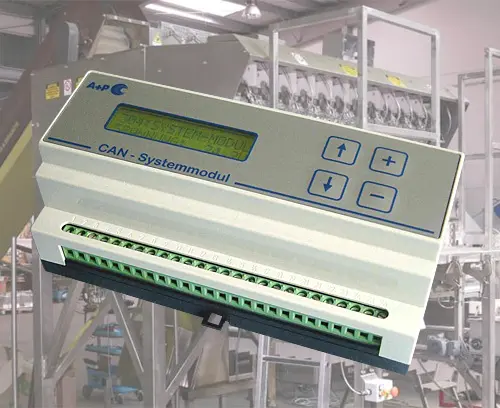

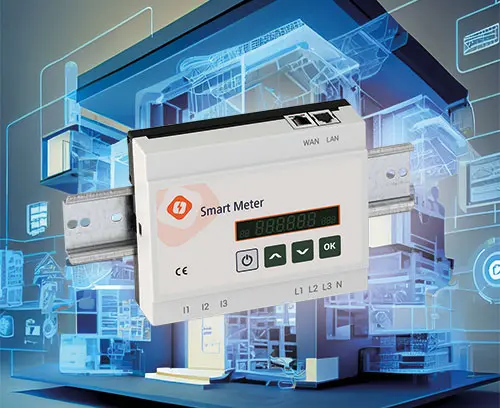

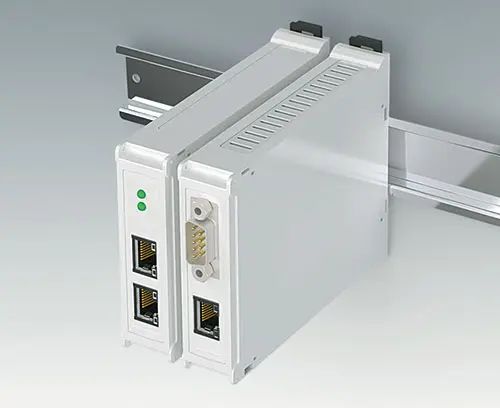

  • Application Examples

Application fields

  • Universal use as installation case
  • Corresponding to the regulations of the machine-building and motorcar industry
  • Smart Factory / Industry 4.0
  • Especially for the control equipment for example lighting systems
  • Select Versions
  • Accessories
  • View Customizing Options

Select which version/size you want below or browse full product list

AltText

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket
AltText

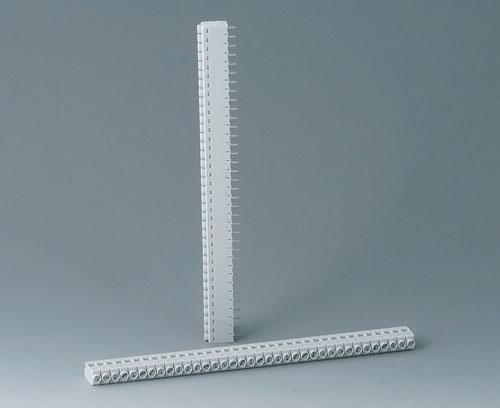

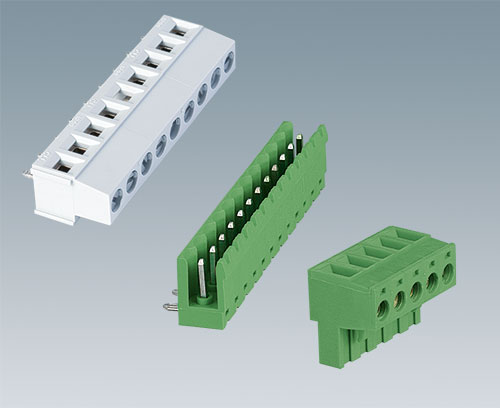

B6600111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 36-pin.

Supply 1 piece

Close

B6600111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
light gray
AltText

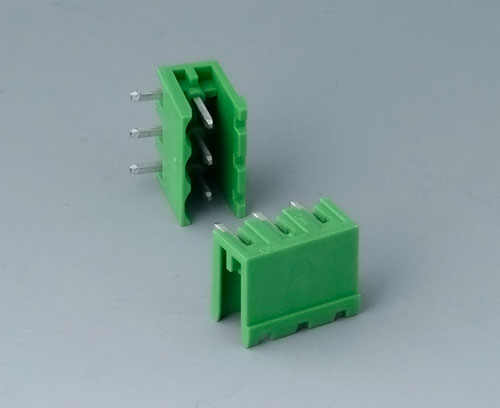

B6600222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 3-pin.

Supply 1 piece

Close

B6600222

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

B6600334

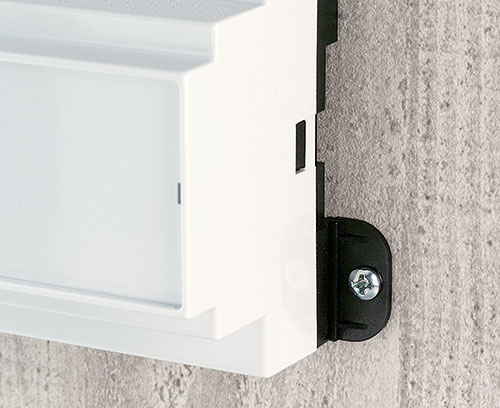

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Close

B6600334

Wall suspension elements
product added to your basket
PPO (UL 94 V-0)
black
AltText

B6601100

Lid, 2 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6601100

Lid, 2 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

B6601111

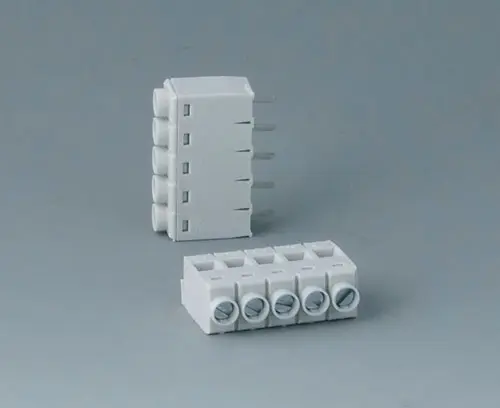

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 5-pin.

Supply 1 piece

Close

B6601111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

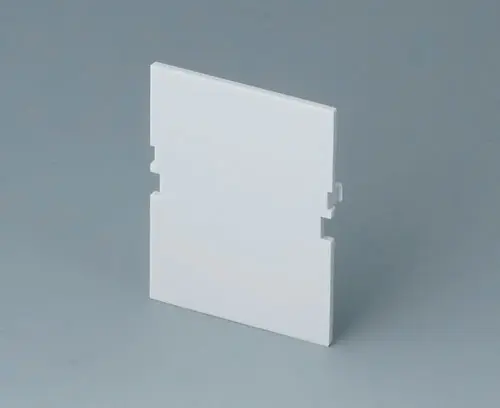

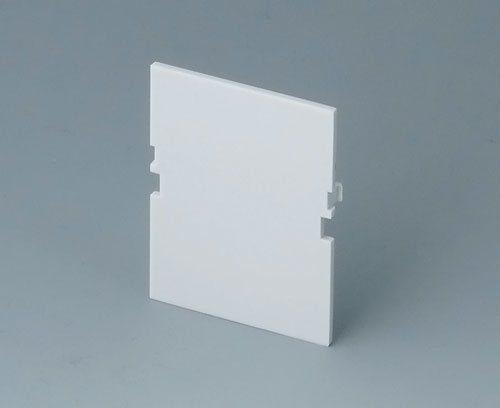

B6601180

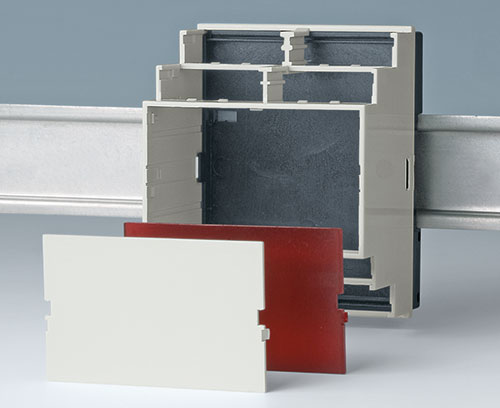

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601180

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
1.26″x1.65″
AltText

B6601222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 5-pin.

Supply 1 piece

Close

B6601222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6601223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 5-pin.

Supply 1 piece

Close

B6601223

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

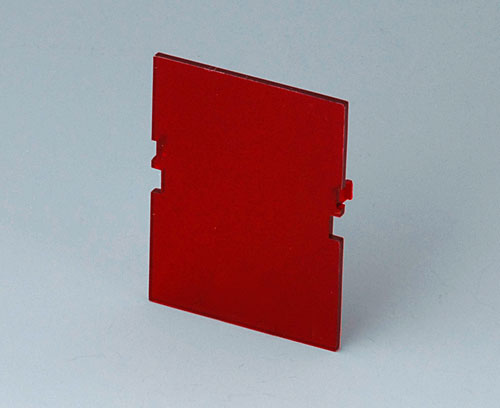

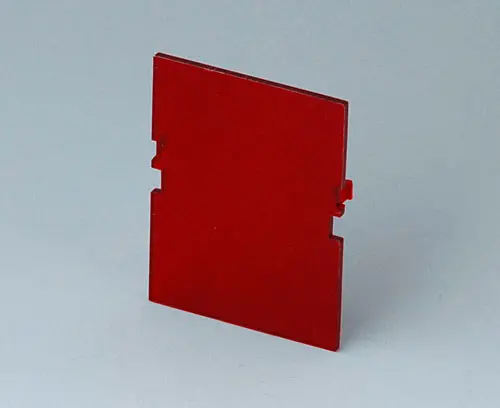

B6601480

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601480

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
1.26″x1.65″
AltText

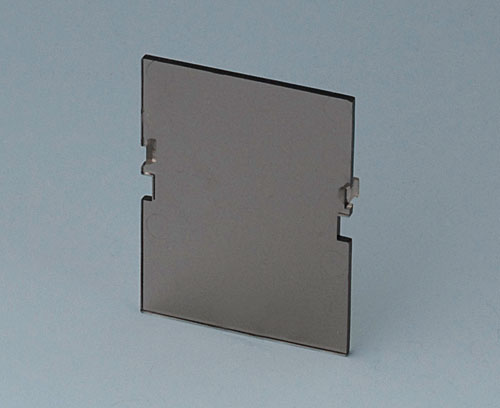

B6601580

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6601580

Front panel, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
1.26″x1.65″
AltText

B6602100

Lid, 3 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6602100

Lid, 3 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

B6602180

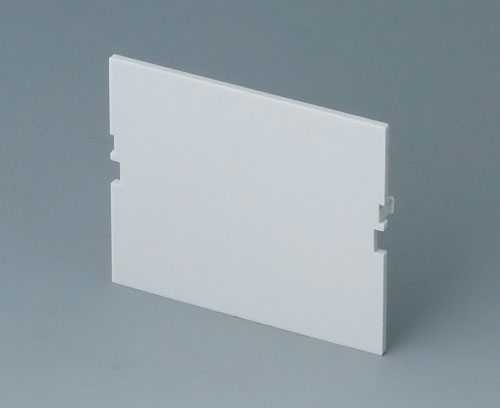

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602180

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
1.93″x1.65″
AltText

B6602222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 9-pin.

Supply 1 piece

Close

B6602222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6602223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 9-pin.

Supply 1 piece

Close

B6602223

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

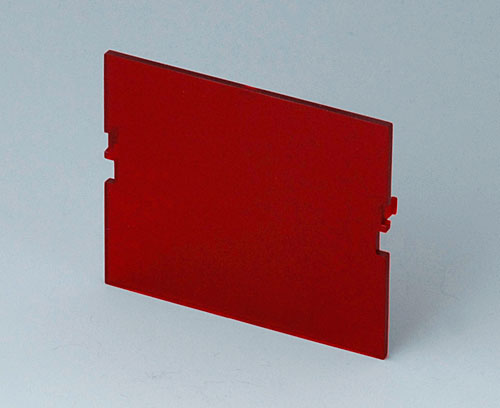

B6602480

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602480

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
1.93″x1.65″
AltText

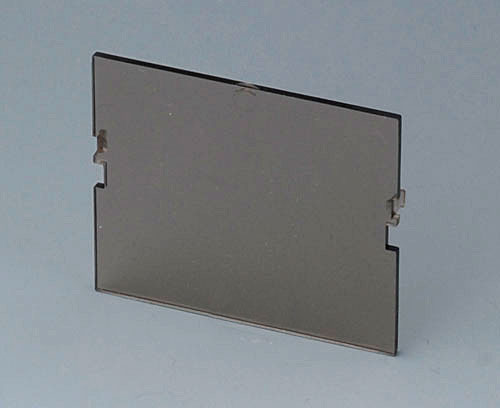

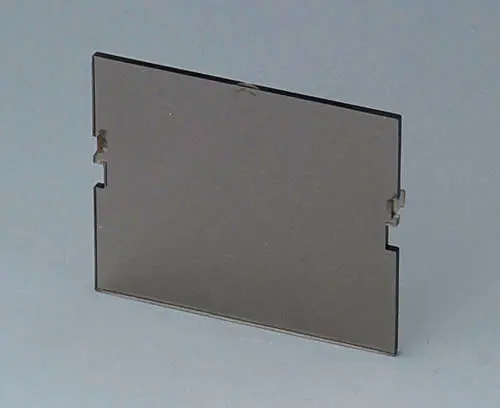

B6602580

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6602580

Front panel, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
1.65″x1.93″
AltText

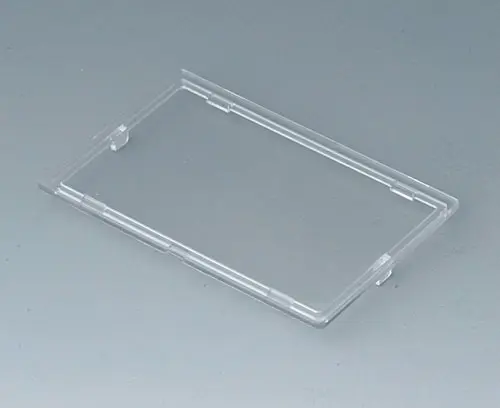

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6603100

Lid, 4 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

B6603111

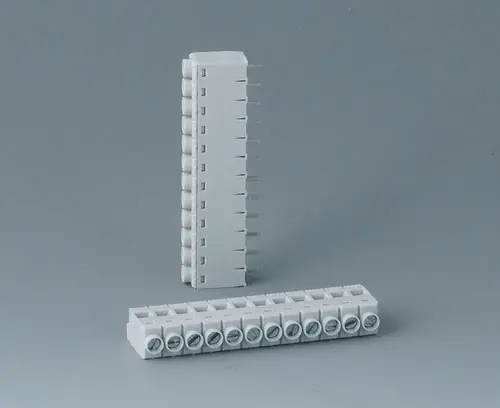

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 12-pin.

Supply 1 piece

Close

B6603111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

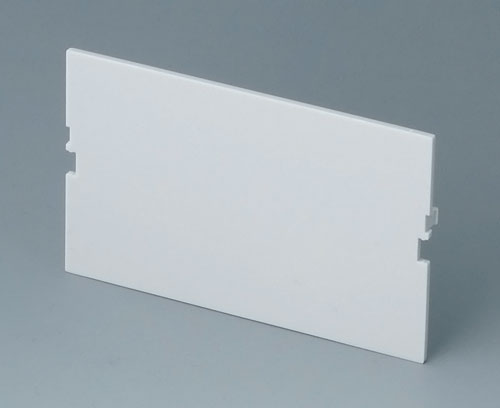

B6603180

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603180

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
2.64″x1.65″
AltText

B6603222

Plug header, block 5.08 mm Male terminal block, 5.08 mm.12-pin.

Supply 1 piece

Close

B6603222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6603223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 12-pin.

Supply 1 piece

Close

B6603223

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

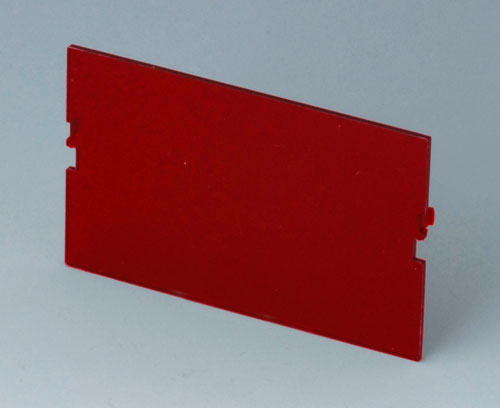

B6603480

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603480

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
2.64″x1.65″
AltText

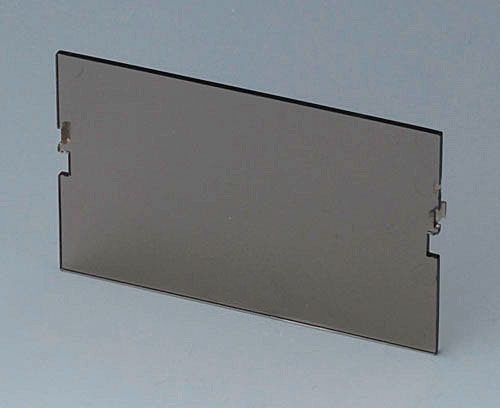

B6603580

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6603580

Front panel, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
2.64″x1.65″
AltText

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6604100

Lid, 6 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

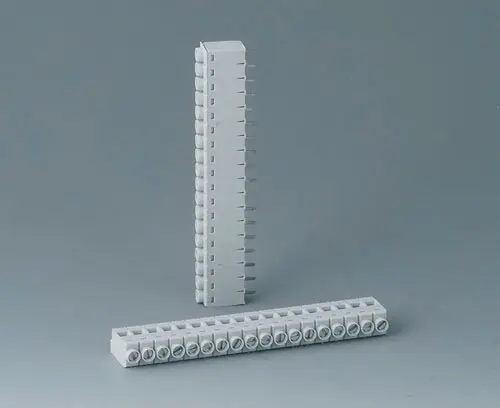

B6604111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 18-pin.

Supply 1 piece

Close

B6604111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

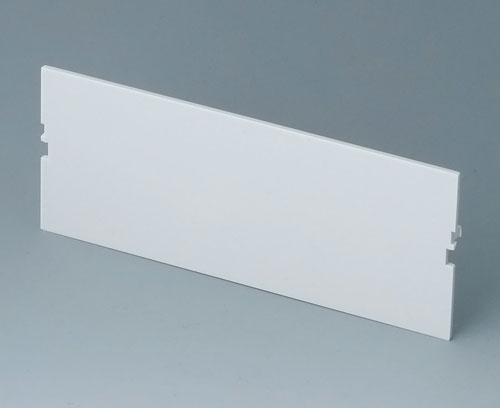

B6604180

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604180

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
4.02″x1.65″
AltText

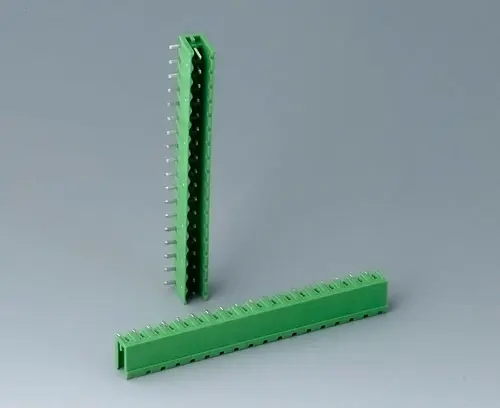

B6604222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 18-pin.

Supply 1 piece

Close

B6604222

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

B6604223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 18-pin.

Supply 1 piece

Close

B6604223

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

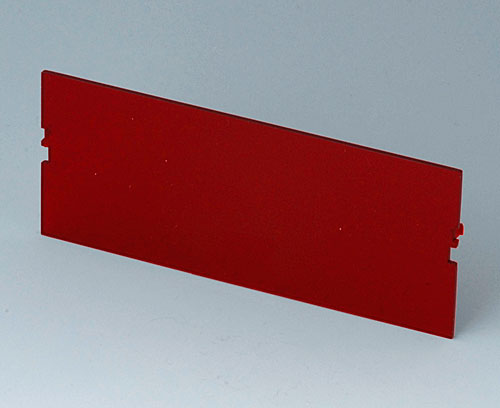

B6604480

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604480

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
4.02″x1.65″
AltText

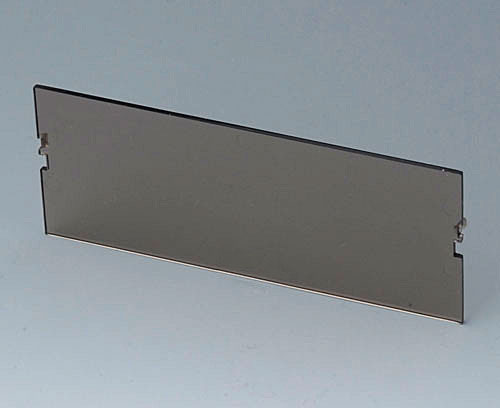

B6604580

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6604580

Front panel, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
4.02″x1.65″
AltText

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6605100

Lid, 9 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

B6605111

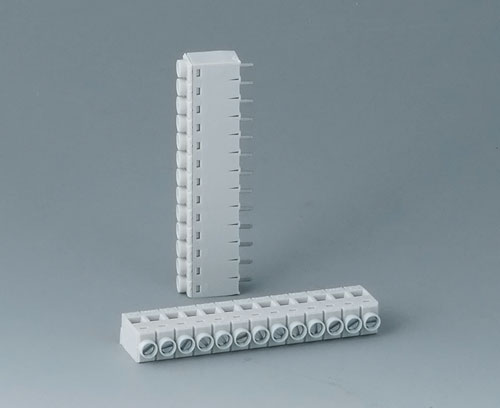

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 13-pin.

Supply 1 piece

Close

B6605111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

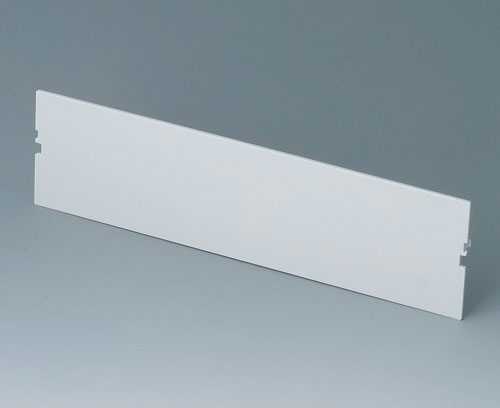

B6605180

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605180

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
6.10″x1.65″
AltText

B6605222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 13-pin.

Supply 1 piece

Close

B6605222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6605223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 13-pin.

Supply 1 piece

Close

B6605223

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6605480

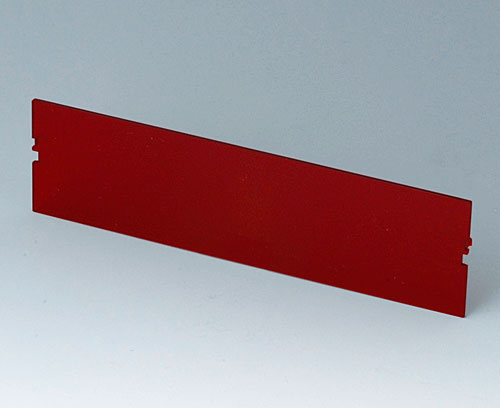

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605480

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
6.10″x1.65″
AltText

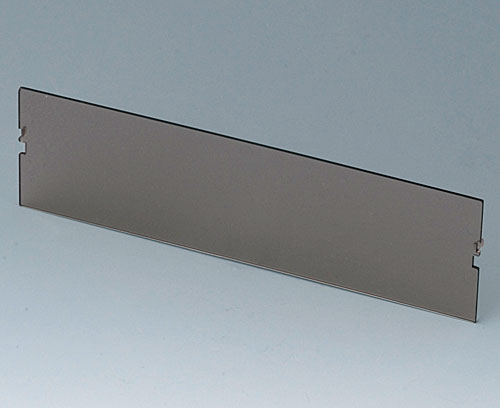

B6605580

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6605580

Front panel, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
6.10″x1.65″
AltText

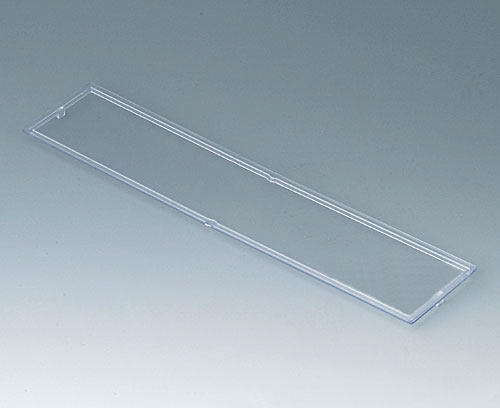

B6606100

Lid, 12 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6606100

Lid, 12 modules
product added to your basket
PC (UL 94 V-0)
transparent
AltText

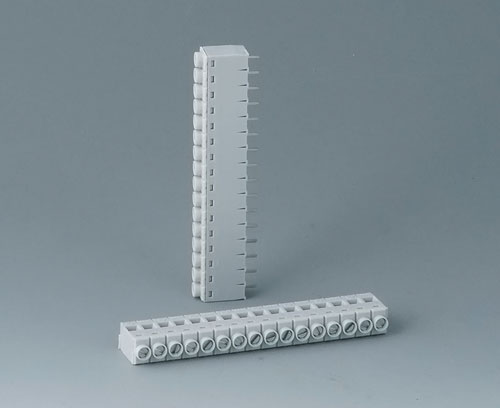

B6606111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 16-pin.

Supply 1 piece

Close

B6606111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

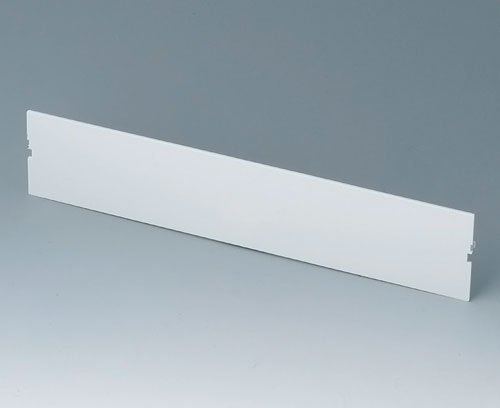

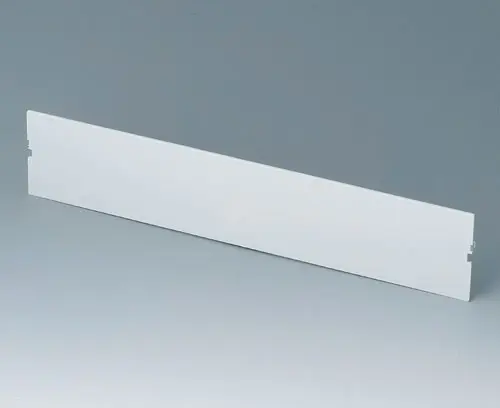

B6606180

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606180

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray
8.11″x1.65″
AltText

B6606222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 2-pin.

Supply 1 piece

Close

B6606222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

B6606223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 2-pin.

Supply 1 piece

Close

B6606223

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
AltText

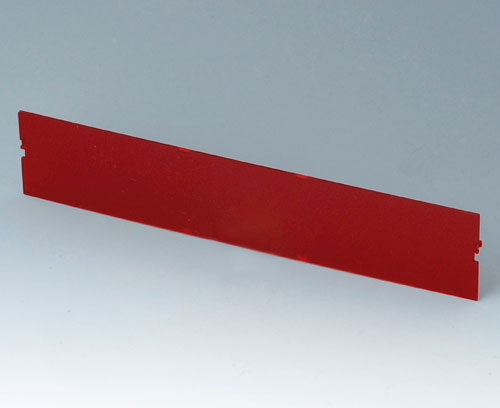

B6606480

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606480

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
red transparent
8.11″x1.65″
AltText

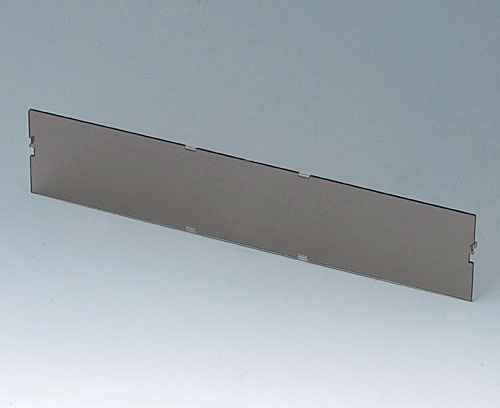

B6606580

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

Close

B6606580

Front panel, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
smoked glass
8.11″x1.65″
AltText

B6607111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 6-pin.

Supply 1 piece

Close

B6607111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

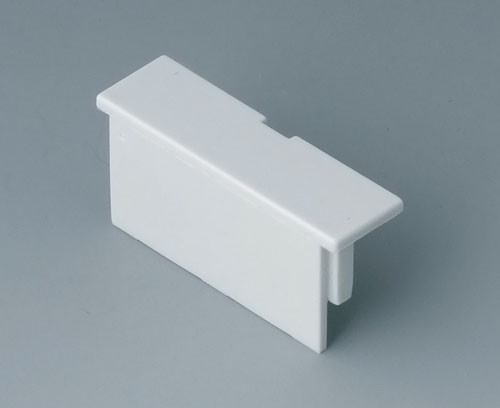

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6607140

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

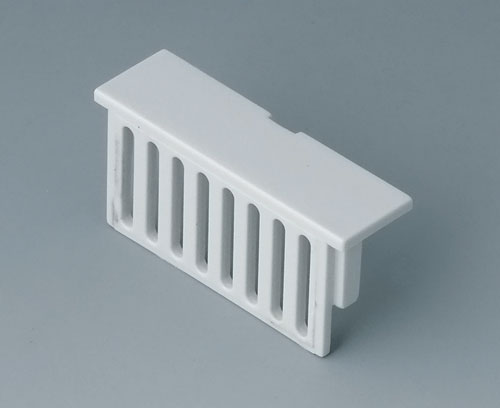

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6607141

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

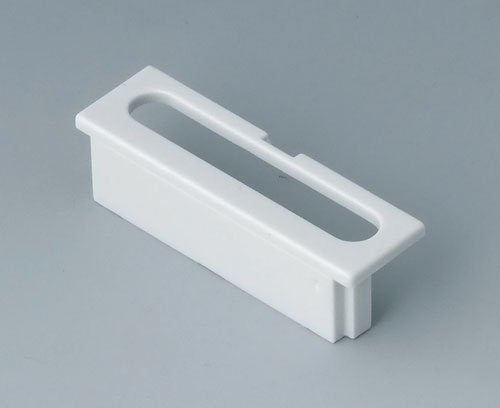

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0 mm, 6-poles

Supply 1 piece

Close

B6607142

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

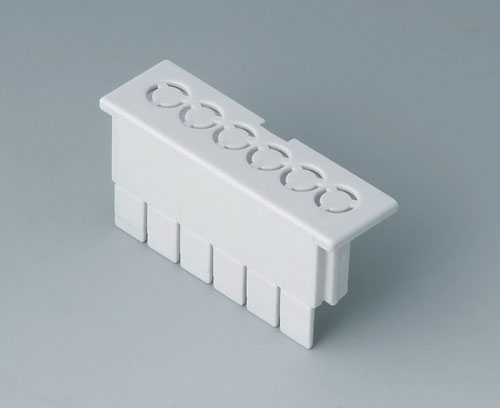

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0 mm

Supply 1 piece

Close

B6607143

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

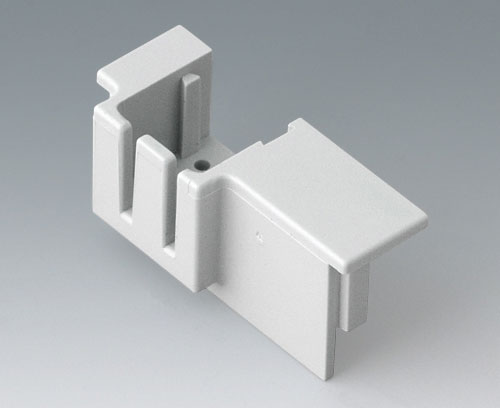

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

Close

B6607145

KNX Cover, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

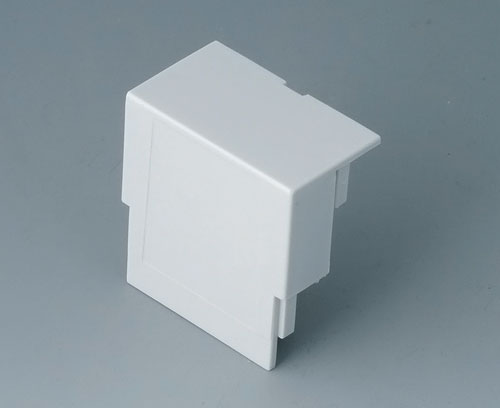

B6607160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6607160

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

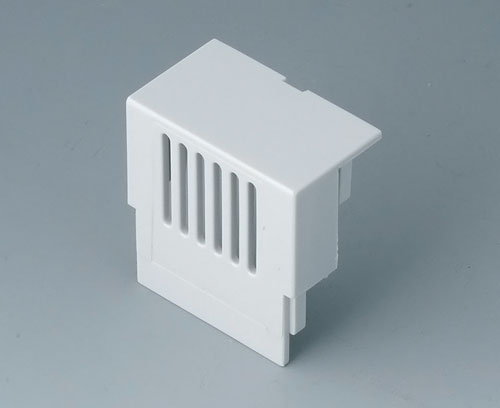

B6607161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6607161

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

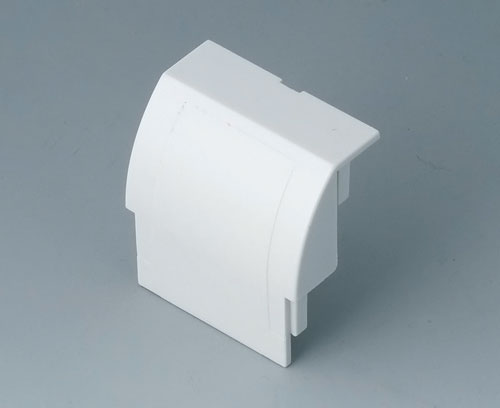

B6607162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Close

B6607162

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

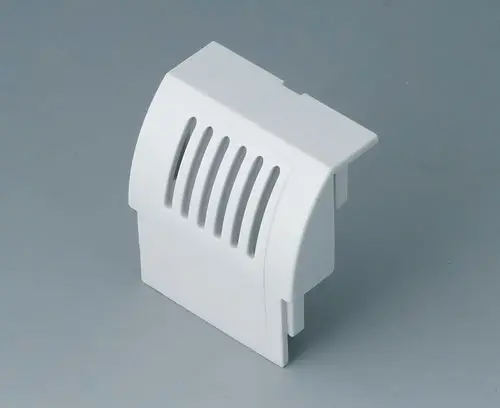

B6607163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Close

B6607163

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

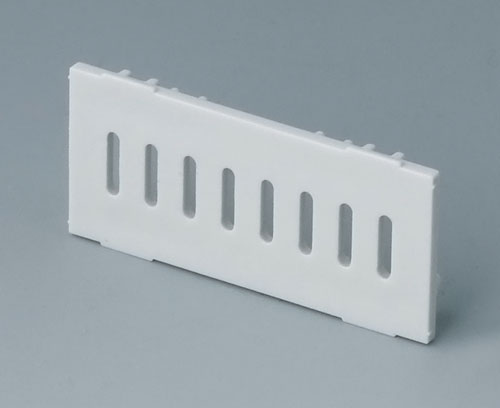

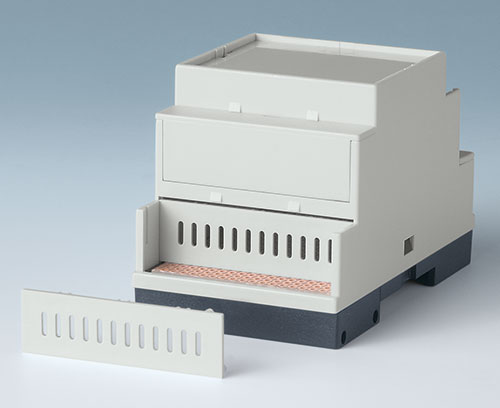

B6607191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Close

B6607191

Partition plate
product added to your basket
PC (UL 94 V-0)
light gray
AltText

B6608111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 9-pin.

Supply 1 piece

Close

B6608111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

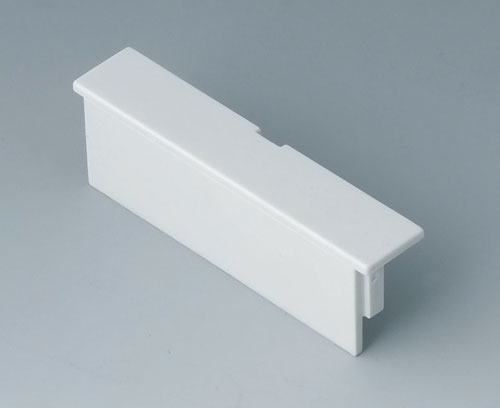

B6608140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6608140

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

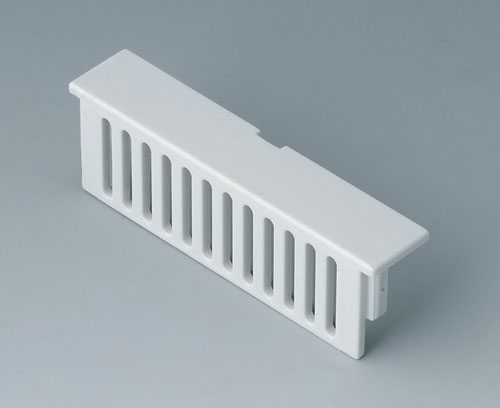

B6608141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6608141

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

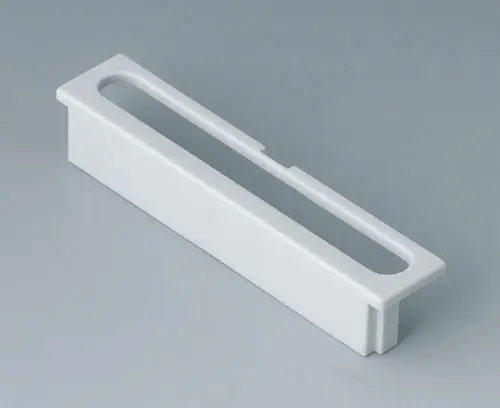

B6608142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0 mm, 9-poles

Supply 1 piece

Close

B6608142

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

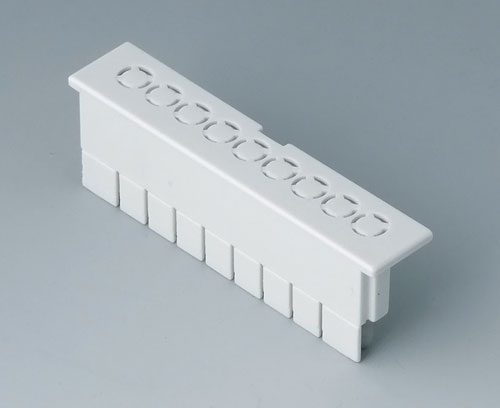

B6608143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0 mm

Supply 1 piece

Close

B6608143

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

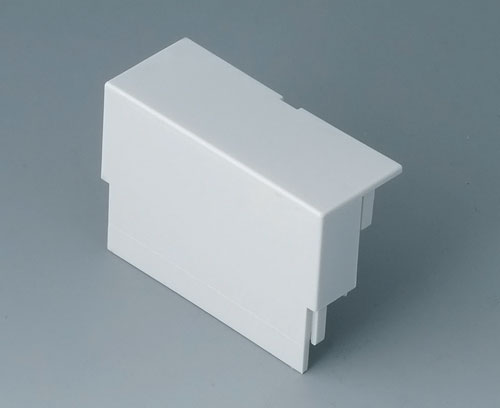

B6608160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6608160

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

B6608161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6608161

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

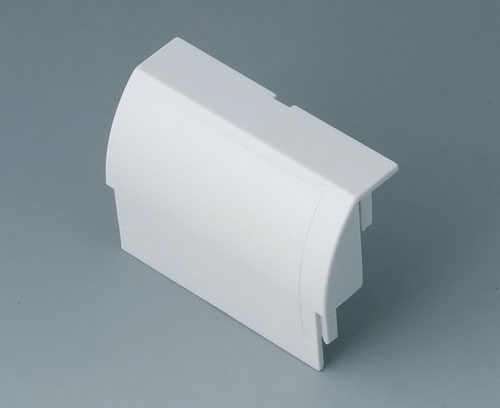

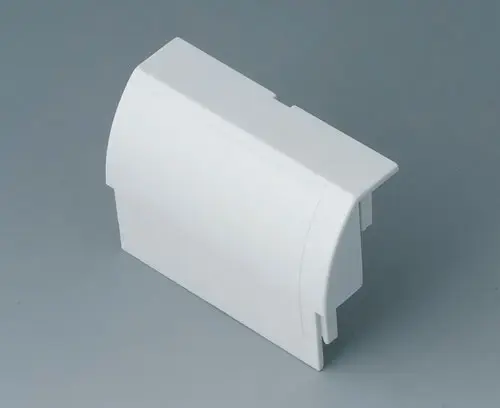

B6608162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Close

B6608162

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

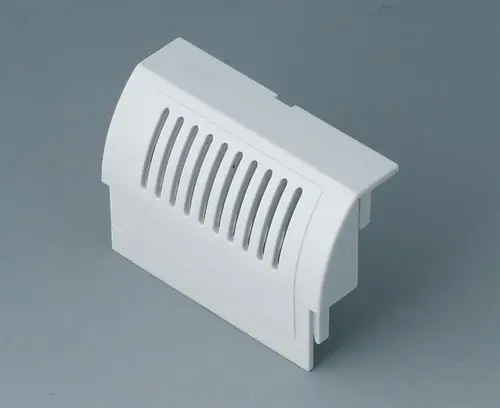

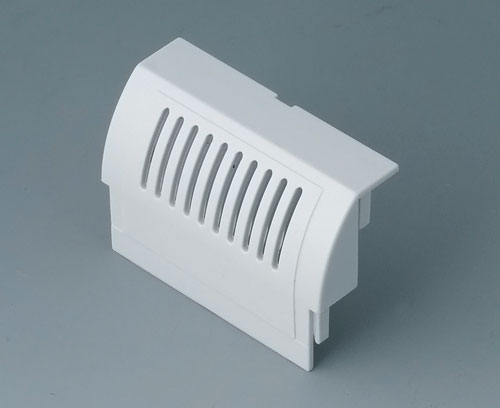

B6608163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Close

B6608163

Terminal guards, high
product added to your basket
PC (UL 94 V-0)
light gray
AltText

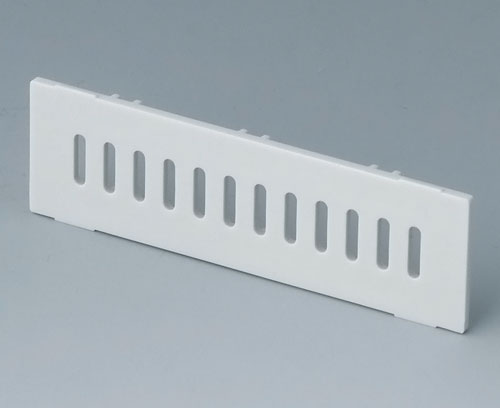

B6608191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Close

B6608191

Partition plate
product added to your basket
PC (UL 94 V-0)
light gray
AltText

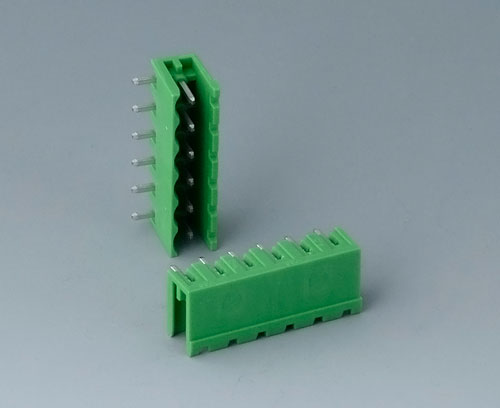

B6608222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 6-pin.

Supply 1 piece

Close

B6608222

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)
AltText

B6608223

Plug header, block 5.08 mm Female terminal block, 5.08 mm. 6-pin.

Supply 1 piece

Close

B6608223

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)

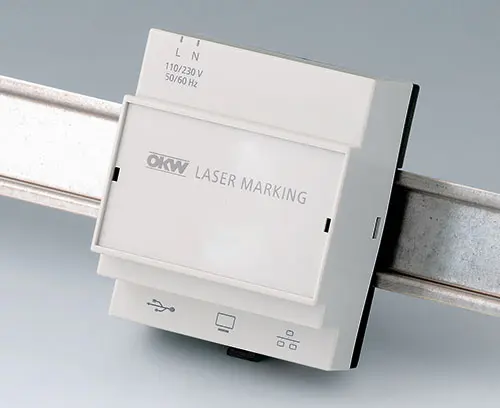

Customizing options for Railtec B

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
