B6606100 Lid, 12 modules

B6606100

Lid, 12 modules

Locking lid for protecting the display and operating elements.

Supply

1 lid

  • To be used for
  • View Customizing Options
B6506110 RAILTEC B, 12 modules, Vers. V

B6506110

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 mm or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Close

B6506110

RAILTEC B, 12 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

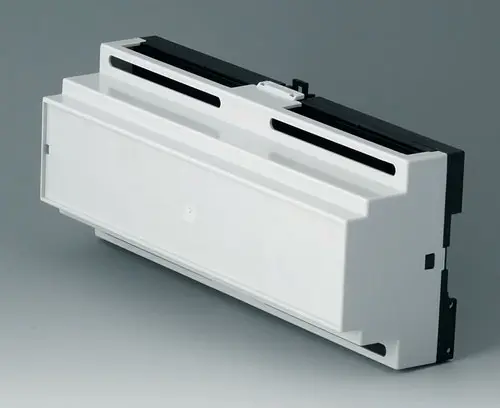

B6506111 RAILTEC B, 12 modules, Vers. I

B6506111

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 mm / 5.08 mm (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6506111

RAILTEC B, 12 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″
B6506112 RAILTEC B, 12 modules, Vers. II

B6506112

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 mm / 5.08 mm

Supply 1 base part with locking clip, 1 top part

Close

B6506112

RAILTEC B, 12 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″
B6506113 RAILTEC B, 12 modules, Vers. III

B6506113

RAILTEC B, 12 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6506113

RAILTEC B, 12 modules, Vers. III
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″
B6506114 RAILTEC B, 12 modules, Vers. I

B6506114

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 mm / 5.08 mm (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6506114

RAILTEC B, 12 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

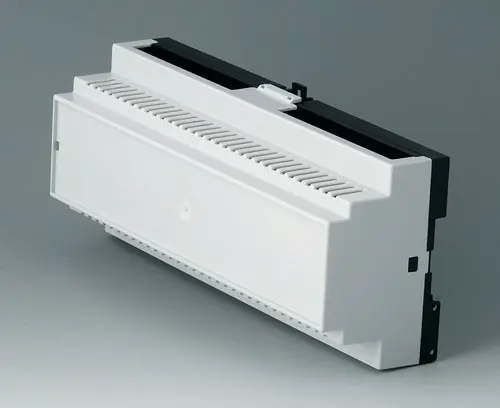

B6506115 RAILTEC B, 12 modules, Vers. II

B6506115

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 mm / 5.08 mm

Supply 1 base part with locking clip, 1 top part

Close

B6506115

RAILTEC B, 12 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

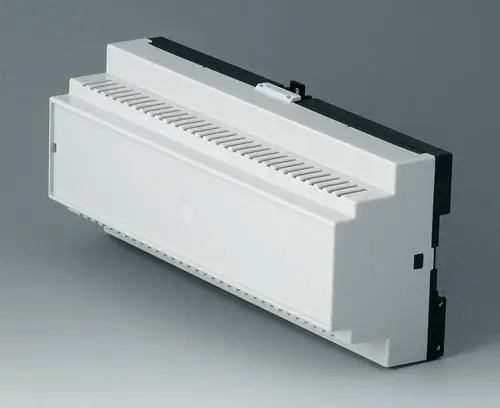

B6506116 RAILTEC B, 12 modules, Vers. III

B6506116

RAILTEC B, 12 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6506116

RAILTEC B, 12 modules, Vers. III
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″
B6506117 RAILTEC B, 12 modules, Vers. IV

B6506117

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 mm / 5.08 mm (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6506117

RAILTEC B, 12 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

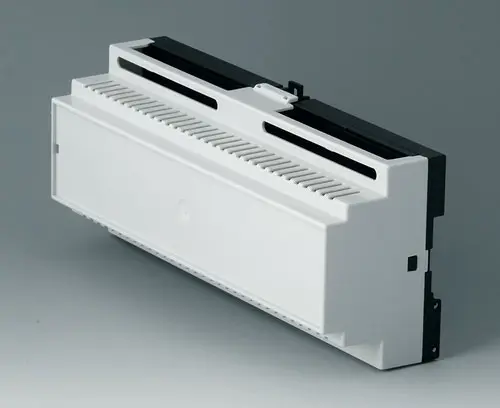

B6506118 RAILTEC B, 12 modules, Vers. IV

B6506118

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 mm / 5.08 mm (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6506118

RAILTEC B, 12 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

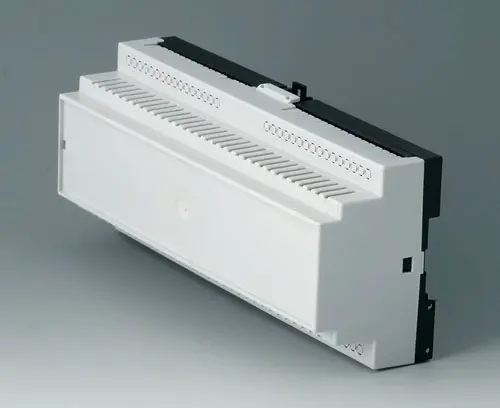

B6506119 RAILTEC B, 12 modules, Vers. V

B6506119

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 mm or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Close

B6506119

RAILTEC B, 12 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6506121

RAILTEC B, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

Customizing options for B6606100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
