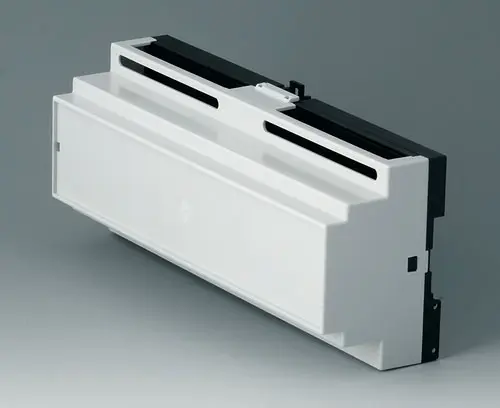

B6506117 RAILTEC B, 12 modules, Vers. IV

B6506117

RAILTEC B, 12 modules, Vers. IV

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

For terminal blocks 5.0 mm / 5.08 mm (32 terminals max., only on bottom)

Supply

1 base part with locking clip, 1 top part

  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Close

B6600334

Wall suspension elements
product added to your basket
PPO (UL 94 V-0)
black

Accessory "terminals"

B6606111 Terminal block, block 5.0 mm

B6606111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 16-pin.

Supply 1 piece

Close

B6606111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

Accessory

B6606100 Lid, 12 modules

B6606100

Lid, 12 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6606100

Lid, 12 modules
product added to your basket
PC (UL 94 V-0)
transparent

Customizing options for B6506117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Top part light gray RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
8.268″
210 mm
Height
3.543″
90 mm
Depth
2.283″
58 mm
PCB length, base
3.228″
82 mm
PCB width, base
8.039″
204.2 mm
Poles
≤ 32
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
120 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
