BODY-CASE comfortable to wear on the body
Enclosures with / without recessed surface for membrane keypadFastening eyelet as accessory (see fastening kit)Loose in articles of clothingPocket clip as accessory (see fastening kit)Fastening kit (1 pocket clip, 1 fastening eyelet, 2 covers)Covers (for one side and/or both sides – according to requirements)With recessed surface for the protection of a decor foil or membrane keypadBODY-CASE with silicone wrist strap, easy to clean (accessory)Inductive charging (example)Rechargeable batteries with charging coil in the bottom part (example)BODY-CASE comfortable to wear on the body
Enclosures with / without recessed surface for membrane keypad
Fastening eyelet as accessory (see fastening kit)
Loose in articles of clothing
Pocket clip as accessory (see fastening kit)
Fastening kit (1 pocket clip, 1 fastening eyelet, 2 covers)
Covers (for one side and/or both sides – according to requirements, see fastening kit)
With recessed surface for the protection of a decor foil or membrane keypad
BODY-CASE with silicone wrist strap, easy to clean (accessory)
Example of 'inductive charging' with the use of rechargeable batteries with copper loop
Example of rechargeable batteries with charging coil in the bottom part
BODY-CASE comfortable to wear on the body

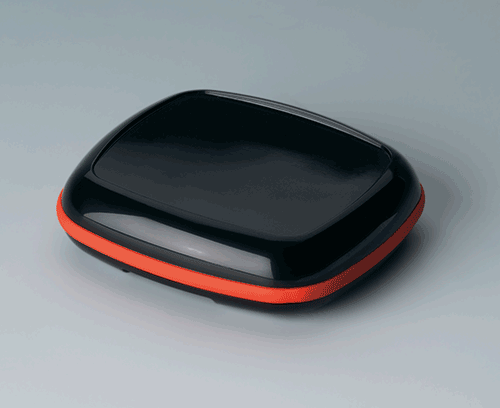

Body-Case

Small enclosure with flair – comfortable to wear on the body

OKW’s BODY-CASE is the new fully "wearable" standard plastic enclosure. The design is perfect for so-called "wearable technologies": on your arm, around your neck, clipped to a shirt or trouser pocket, or carried loose in an article of clothing.

  • special plastic enclosures for components and sensors that are worn on the body or close to the body
  • fulfils its function in the simplest way, without restricting the user in his or her activities and without being conspicuous.
  • modern appearance with highly polished surfaces and a matt TPV sealing ring.
  • easy differentiation through the use of individual, exclusive watch straps (18 mm wide)
  • easy operation with the help of pushbuttons or touchscreens, at the press of a button and with the help of voice commands or gestures
  • wireless networking
  • high protection classes IP 65 / IP 67
  • moulded in ASA plastic with a high UV protection
  • internal power supply with round or button cells which are mounted directly on the PCB – alternatively, the use of a rechargeable battery with receiving charging coil for charging the device inductively
  • top part with / without recessed surface for the protection of a decor foil or membrane keyboard
  • enclosure assembly with four high-quality stainless steel screws with Torx drive; two spring bars for mounting accessories included in the supply of the enclosure
  • Optional accessories: wrist strap, fastening kit (clip, eyelet) etc.

Applications

Mobile data recording and data transmission, tracking and monitoring equipment, emergency call and notification systems as well as bio-feedback sensors in the fields of health care, medical technology, in therapeutic and social fields, leisure and sports.
Also in industry, for example digital communication technology, stock and sales logging, safety engineering, measuring and control technology and automation. Jobs where safety with permanent localisation is required.


  • Browse Full List
  • Catalog Documents
  • View Customizing Options
NEW PRODUCT
View

B1606107  Add to my list
BODY-CASE, without recess

ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 67, IP 65

B1606117  Add to my list
BODY-CASE, without recess

ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 67, IP 65

B1606207  Add to my list
BODY-CASE, with recess

ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 67, IP 65

B1606217  Add to my list
BODY-CASE, with recess

ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 67, IP 65

Accessory "carrying"

B1706001  Add to my list
Fastening kit

ASA (UL 94 HB)
traffic white RAL 9016

B1706202  Add to my list
Wrist strap, 18 mm

Silicone
black

B1706203  Add to my list
Spring bar tool

Stainless steel

B9100043  Add to my list
Hand strap, woven

black
7.87″

B9100063  Add to my list
Carrying strap, textile

black
33.86″

Accessory "screws"

A0399T06  Add to my list
Torx T6 screwdriver

B1606107

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B1606207

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B1706001

Special accessories for BODY-CASE. Kit consisting of 1 pocket clip for shirt or trouser pocket, 1 fastening eyelet for lanyard/chain/cord as well as 2 covers for closing one or both rear wrist strap attachments if required. Fastening with spring bars (supplied with the enclosures).

Supply
1 set

A0399T06

Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T6 type screws. (The original part may differ from the part shown in the picture.)

Supply
1 T6 screwdriver

B1606117

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B9100043

Without quick-action lock.

Supply
1 hand strap

B1706203

Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply
1 Spring bar tool

B1606217

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B9100063

Without quick-action lock.

Supply
1 carrying strap

B1706202

Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 18 mm. Total length without buckle approx. 193 mm. Buckle made of stainless steel. Fastening with spring bars (supplied with the enclosures).

Supply
1 wrist strap
