Accessories for enclosures
Carrytec
Plastic enclosures with integrated handle
CARRYTEC plastic enclosures are unique in offering a functional handle for many different tasks and situations, indoors and outdoors.
- integrated handle with soft insert for perfect, non-slip grip

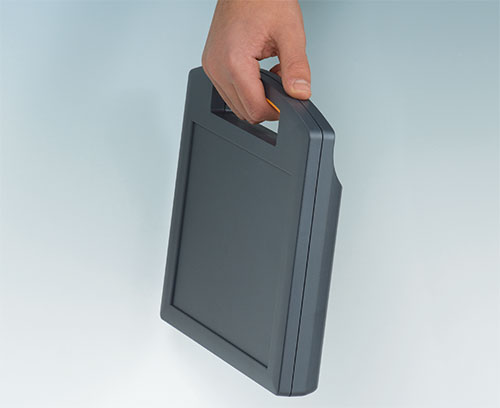

- CARRYTEC M in a slim enclosure version for mounting tablets etc.
- handle located above the center of gravity for balanced carrying

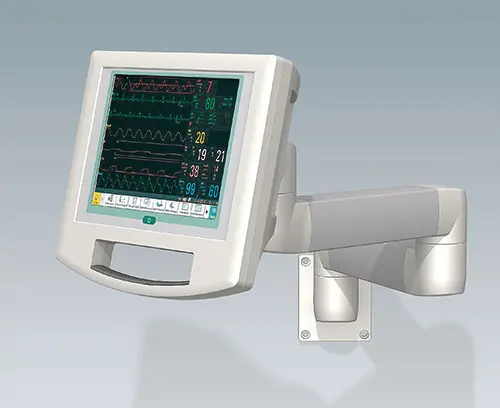

- rear can be installed on a tripod or support arm systems for fast positioning and alignment of the viewing and operating panels, and orderly cable management
- especially large surface area that is ideal for user interfaces

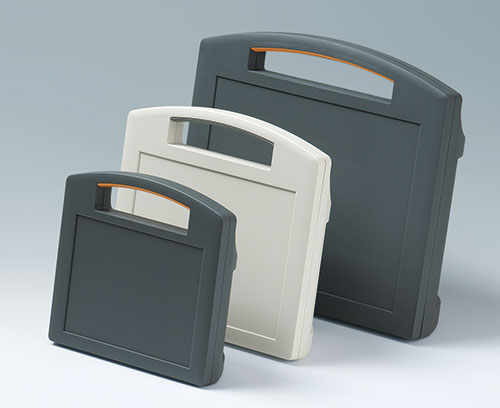

(S: 8.4"/21 cm; M: 10.4"/26 cm; L: 13.4"/34 cm) - ample installation depth and plenty of room for interfaces, yet slim appearance

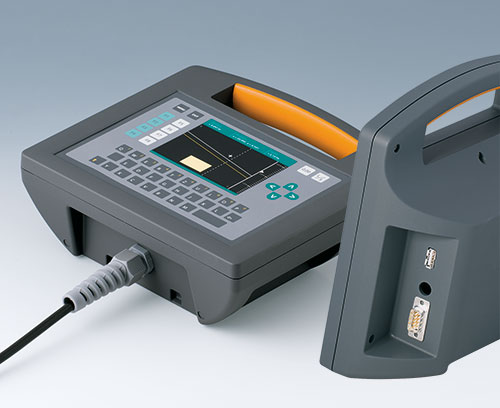

- interfaces are protected by inset areas on the underside

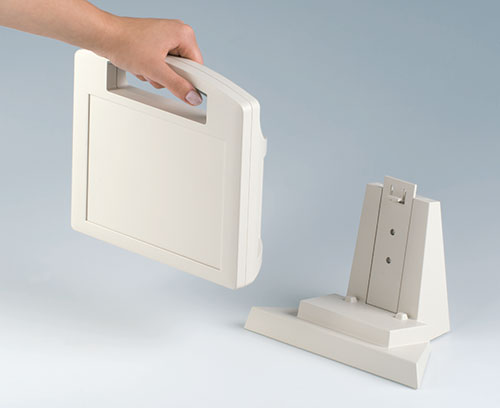

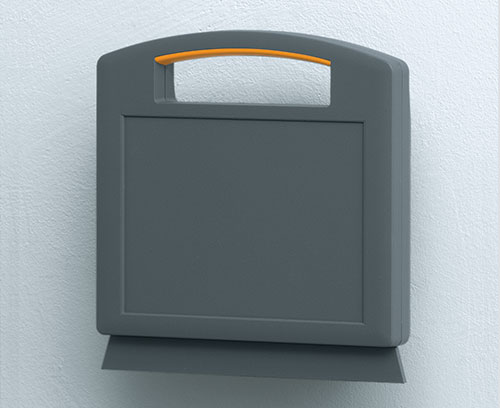

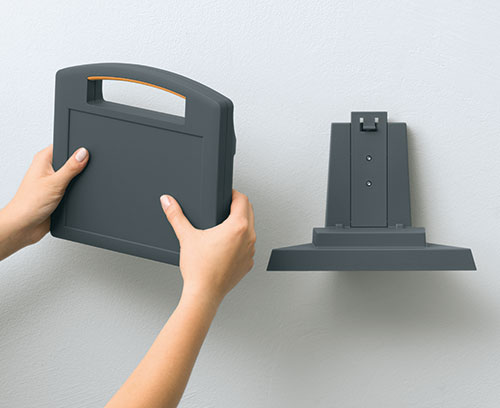

- secure storage on table stand and/or wall suspension element; easy transmission of data and charging current, contacts as accessories (except slim enclosure version)

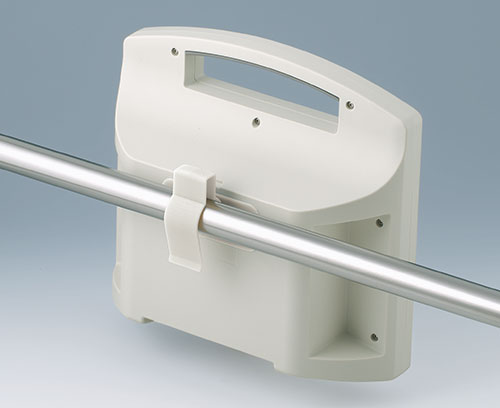

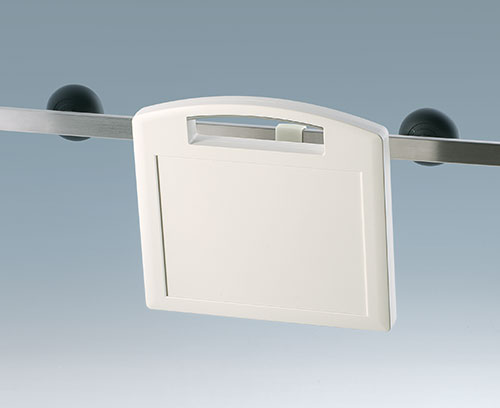

- holding clamp for round tubes and rails according to DIN EN ISO 19054
- available molded in impact resistant plastic material, and darker colors, for tough/dirty conditions indoor or outdoor
- protection class IP 54 with sealing (accessory)

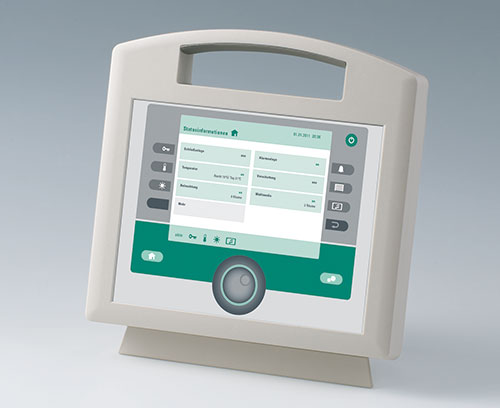

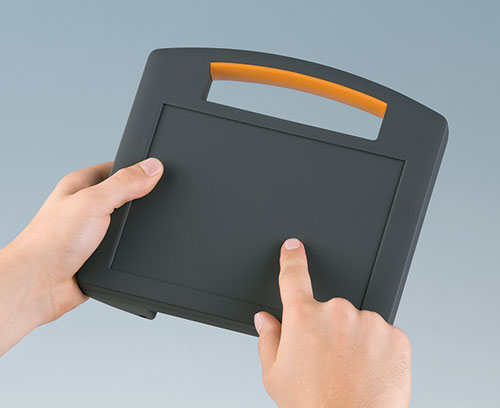

- recessed operating area for protecting the membrane keypad
- the enclosures are easy to clean
- a battery compartment for 5 x AA cells can be fitted (machining required)

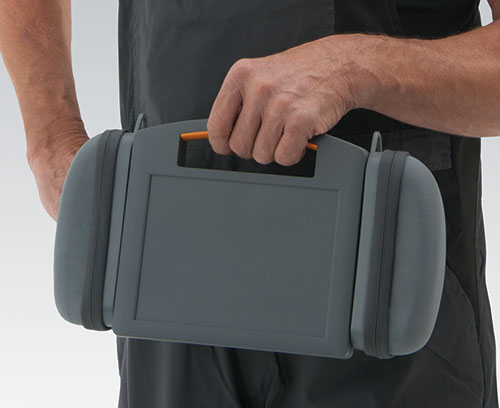

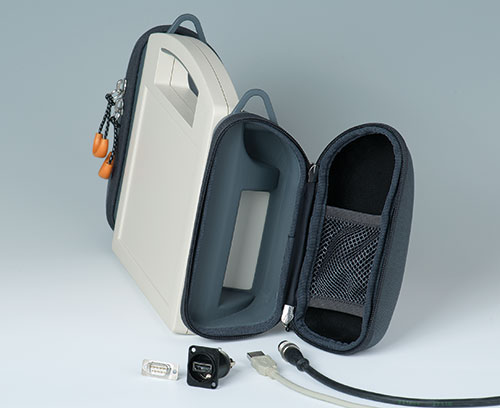

- optional protection bags for carrying probes, sensors, cables etc. (sizes S and M)

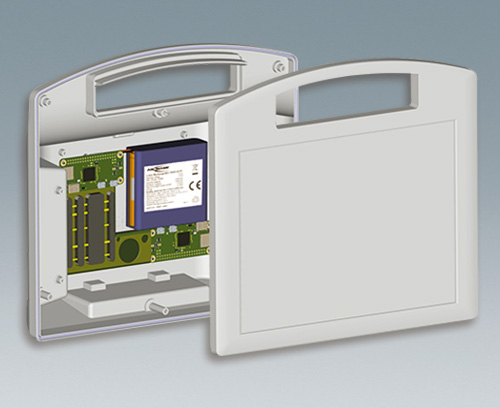

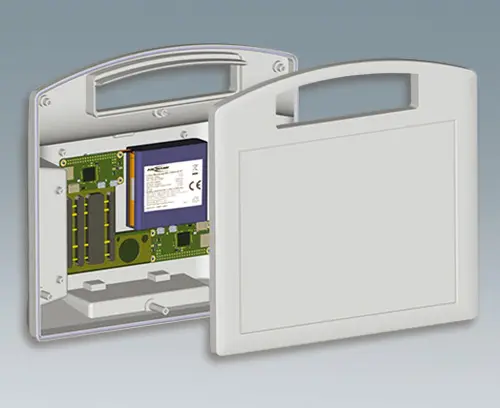

- internal fastening pillars for PCBs
Application Fields
Unique variety of possible uses: mobile – desktop – wall mounted – rail mounted – round tube – tripod – suspension arm. Depending on the application (indoor/outdoor) this innovative enclosure is available in different materials, e.g. high-impact plastic material in darker colors for tough conditions.
Medical, e.g. emergency systems, monitoring and alarm equipment. Diagnostics, therapy, laboratory devices. Test and measurement equipment. Communication technology. Mobile terminals, data collection units. Energy management systems. Sensors. Industry 4.0, smart factory. Machine building and construction equipment. Agricultural economics, forestry.
B4208107
CARRYTEC S
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4208107
CARRYTEC Sproduct added to your basket
off-white RAL 9002
8.74″x8.07″x3.15″
B4208208
CARRYTEC S
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4208208
CARRYTEC Sproduct added to your basket
lava
8.74″x8.07″x3.15″
B4210107
CARRYTEC M
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210107
CARRYTEC Mproduct added to your basket
off-white RAL 9002
10.63″x9.72″x3.58″
B4210127
CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210127
CARRYTEC M slim versionproduct added to your basket
off-white RAL 9002
10.63″x9.72″x1.65″
B4210208
CARRYTEC M
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210208
CARRYTEC Mproduct added to your basket
lava
10.63″x9.72″x3.58″
B4210228
CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210228
CARRYTEC M slim versionproduct added to your basket
lava
10.63″x9.72″x1.65″
B4213107
CARRYTEC L
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4213107
CARRYTEC Lproduct added to your basket
off-white RAL 9002
13.70″x11.93″x4.61″
B4213208
CARRYTEC L
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4213208
CARRYTEC Lproduct added to your basket
lava
13.70″x11.93″x4.61″
A0325080
Self-tapping screws 0.098" x 0.315" (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325080
Self-tapping screws 0.098" x 0.315" (PZ1)product added to your basket
A9178007
Contacts, male

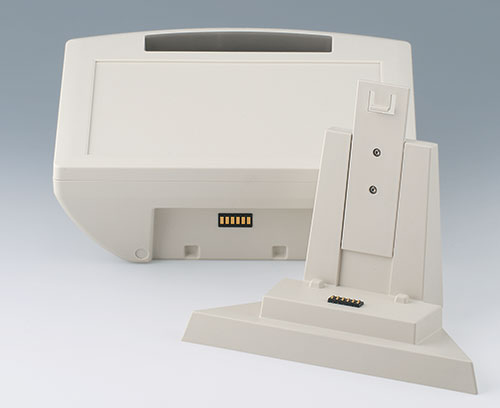

Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleproduct added to your basket
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleproduct added to your basket
A9193042
Mounting plates for contacts
Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
Supply 2 mounting plates
A9193042
Mounting plates for contactsproduct added to your basket
black RAL 9005
A9193044
Contacting kit, 6-pin
Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")
A9193044
Contacting kit, 6-pinproduct added to your basket
black RAL 9005
A9338117

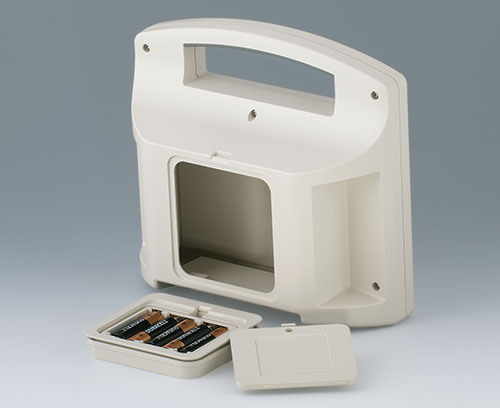

Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338117
Battery compartment kit, 5 x AAproduct added to your basket
off-white RAL 9002
3.66″x3.86″
A9338218
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338218
Battery compartment kit, 5 x AAproduct added to your basket
lava
3.66″x3.86″
B4308001
Sealing S
Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.
Supply 1 sealing
B4308001
Sealing Sproduct added to your basket
B4308117

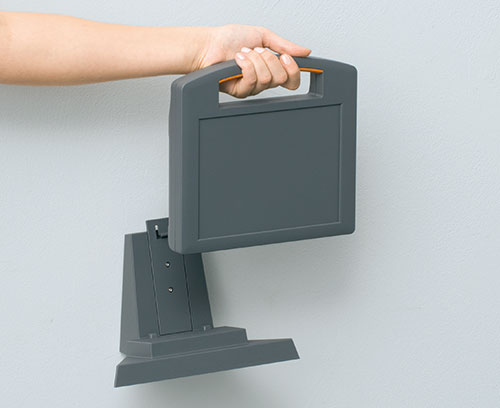

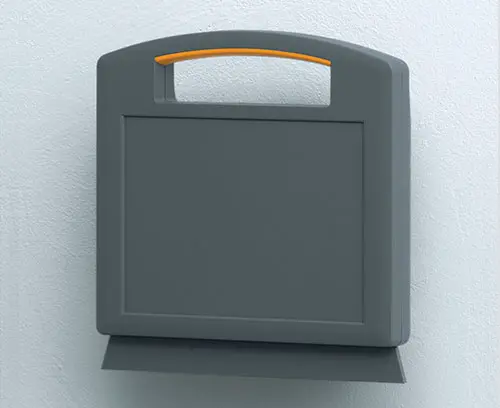

Station S/M
For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4308117
Station S/Mproduct added to your basket
off-white RAL 9002
B4308127
Base plate for station
Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.
Supply 1 base plate, 4 rubber feet, assembly kit
B4308127
Base plate for stationproduct added to your basket
off-white RAL 9002
B4308218
Station S/M
For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4308218
Station S/Mproduct added to your basket
lava
B4308228
Base plate for station
Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.
Supply 1 base plate, 4 rubber feet, assembly kit
B4308228
Base plate for stationproduct added to your basket
lava
B4308237

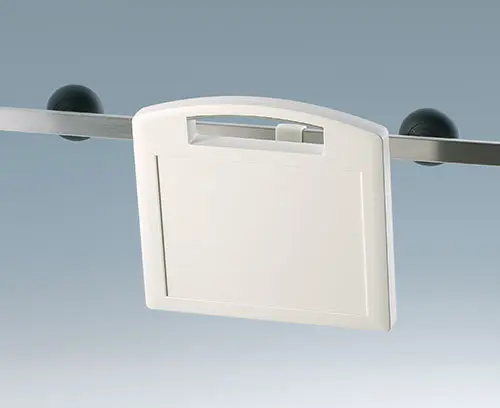

Holding clamps
For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308237
Holding clampsproduct added to your basket
off-white RAL 9002
B4308238
Holding clamps
For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308238
Holding clampsproduct added to your basket
lava
B4308600
Carrying case S, right-hand side
Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Right-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4308600
Carrying case S, right-hand sideproduct added to your basket
3.23″x7.09″x2.56″
B4308610
Carrying case S, left-hand side
Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Left-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4308610
Carrying case S, left-hand sideproduct added to your basket
3.23″x7.09″x2.56″
B4308650
Shoulder strap
Practical shoulder strap with shoulder padding.
Mounting on CARRYTEC enclosures only in conjunction with left and right Carrying cases.
Mounting on CARRYTEC enclosures only in conjunction with left and right Carrying cases.
Supply 1 shoulder strap
B4308650
Shoulder strapproduct added to your basket
55.12″
B4310001
Sealing M
Application: for increasing the protection class, of CARRYTEC M.
Supply 1 sealing
B4310001
Sealing Mproduct added to your basket
B4310600
Carrying case M, right-hand side
Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Right-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4310600
Carrying case M, right-hand sideproduct added to your basket
3.90″x8.43″x2.52″
B4310610
Carrying case M, left-hand side
Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Left-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4310610
Carrying case M, left-hand sideproduct added to your basket
3.90″x8.43″x2.52″
B4313001
Sealing L
Application: for increasing the protection class, of CARRYTEC L.
Supply 1 sealing
B4313001
Sealing Lproduct added to your basket
B4313117
Station L
For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4313117
Station Lproduct added to your basket
off-white RAL 9002
B4313147

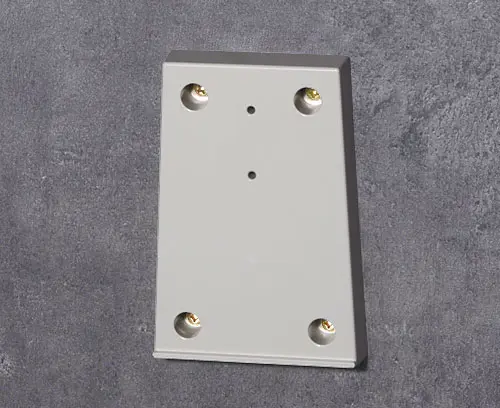

Adapter for Station L
Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.
Supply 1 adapter and 2 self-tapping screws
B4313147
Adapter for Station Lproduct added to your basket
off-white RAL 9002
B4313218
Station L
For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4313218
Station Lproduct added to your basket
lava
B4313248
Adapter for Station L
Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.
Supply 1 adapter and 2 self-tapping screws
B4313248
Adapter for Station Lproduct added to your basket
lava
Customizing options for Carrytec
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
