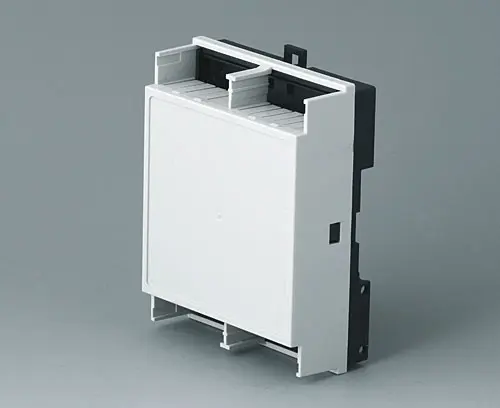

B6503229

RAILTEC B, 4 modules, Vers. low profile

Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version

Individual configuration see accessories

Supply

1 base part with locking clip, 1 top part

  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

AltText

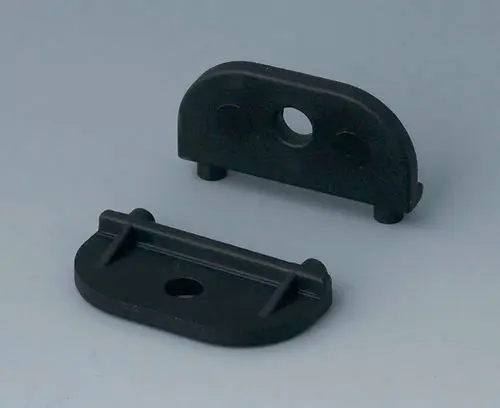

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Close

B6600334

Wall suspension elements
product added to your basket
PPO (UL 94 V-0)
black

Accessory "terminals"

AltText

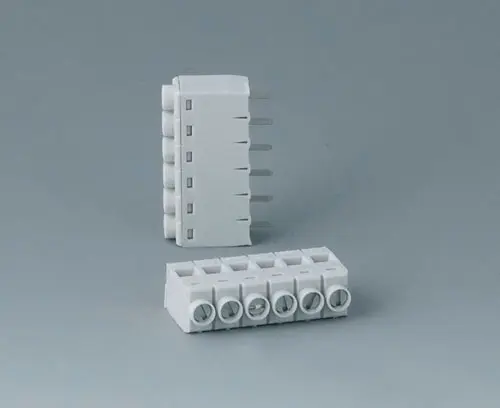

B6607111

Terminal block, block 5.0 mm PCB terminal block, 5.0 mm. 6-pin.

Supply 1 piece

Close

B6607111

Terminal block, block 5.0 mm
product added to your basket
PA 68 (UL 94 V-0)

Accessory "terminal guards"

AltText

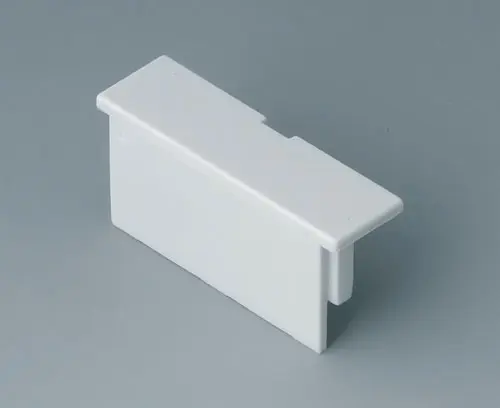

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6607140

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

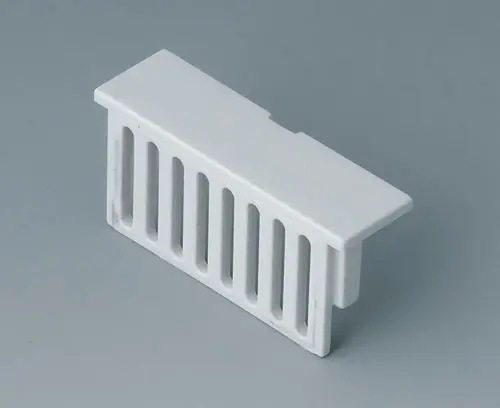

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Close

B6607141

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

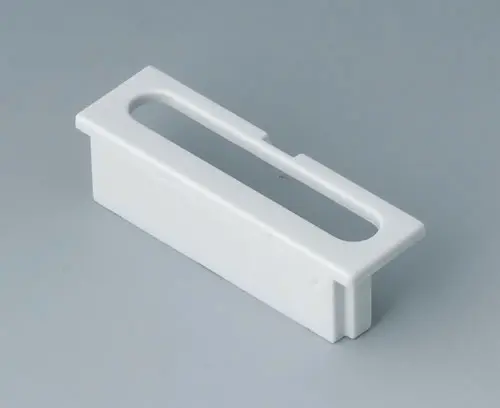

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0 mm, 6-poles

Supply 1 piece

Close

B6607142

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

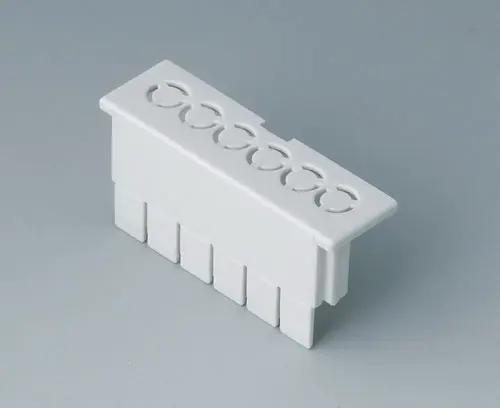

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0 mm

Supply 1 piece

Close

B6607143

Terminal guards, flat
product added to your basket
PC (UL 94 V-0)
light gray
AltText

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

Close

B6607145

KNX Cover, flat
product added to your basket
PC (UL 94 V-0)
light gray

Accessory "screws"

AltText

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

Customizing options for B6503229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Top part light gray RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
2.756″
70 mm
Height
3.528″
89.6 mm
Depth
1.230″
31.25 mm
PCB length, base
3.228″
82 mm
PCB width, base
2.520″
64 mm
Keypad length
2.362″
60 mm
Keypad width
2.535″
64.4 mm
Pitch
5.0 mm
Poles
≤ 24
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
41 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
